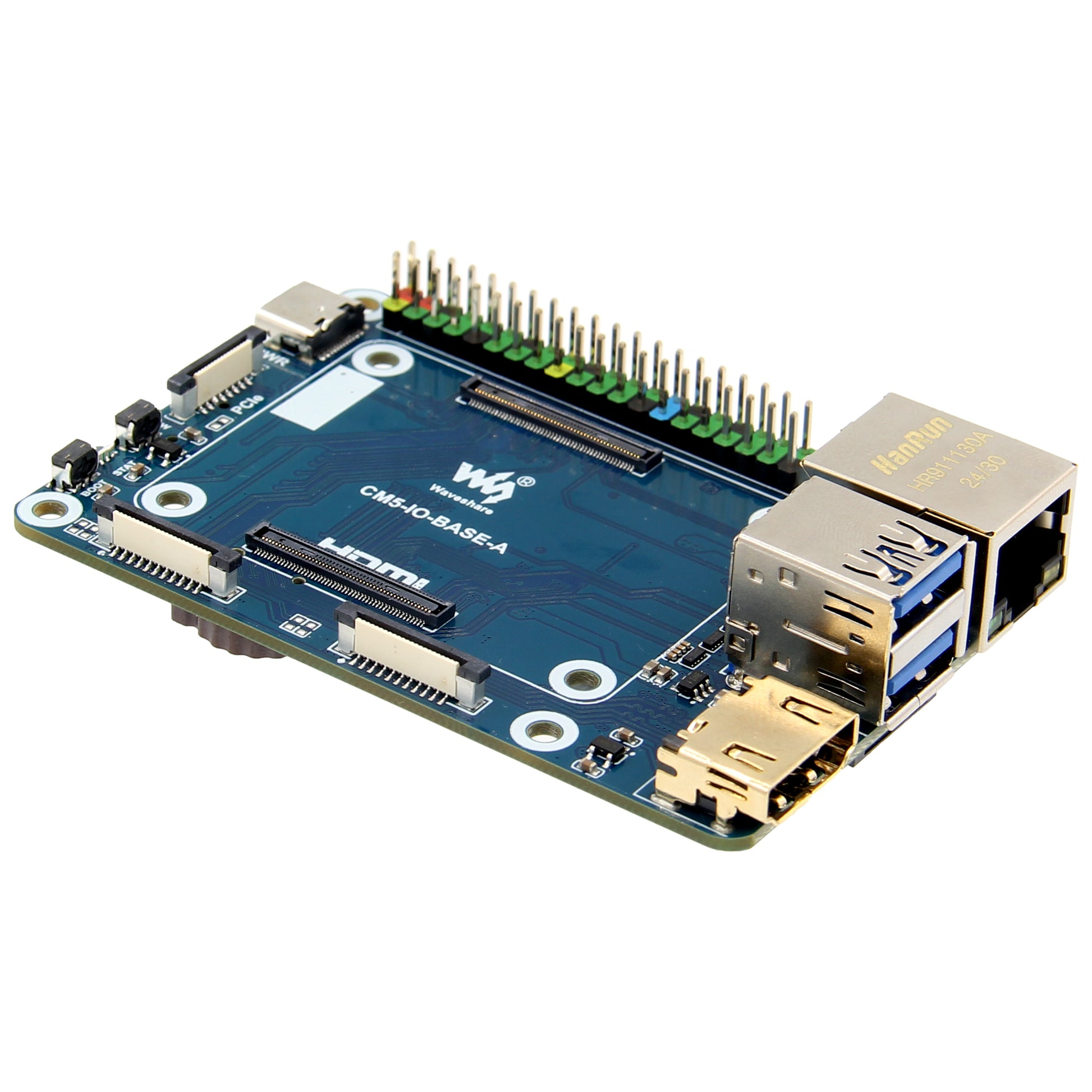

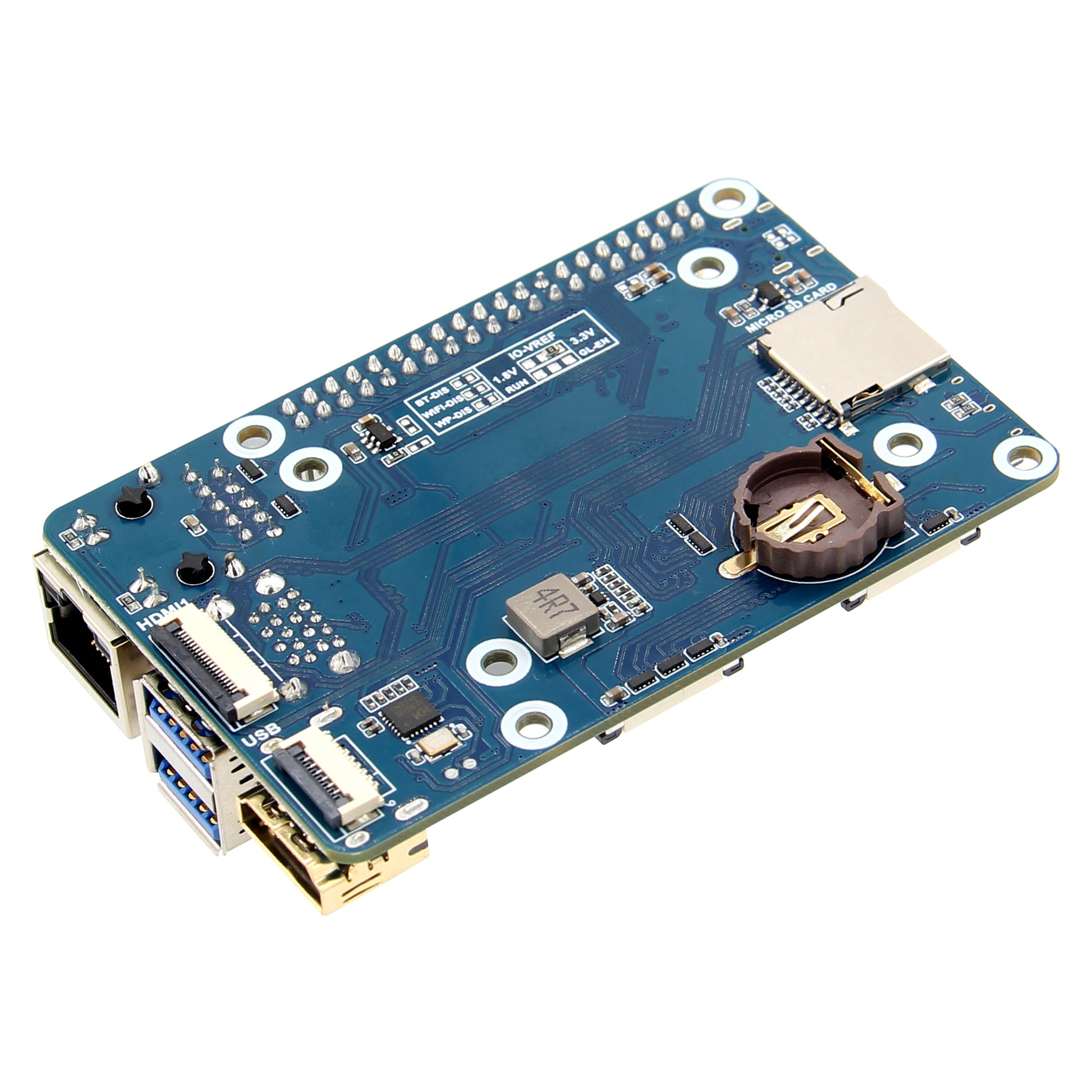

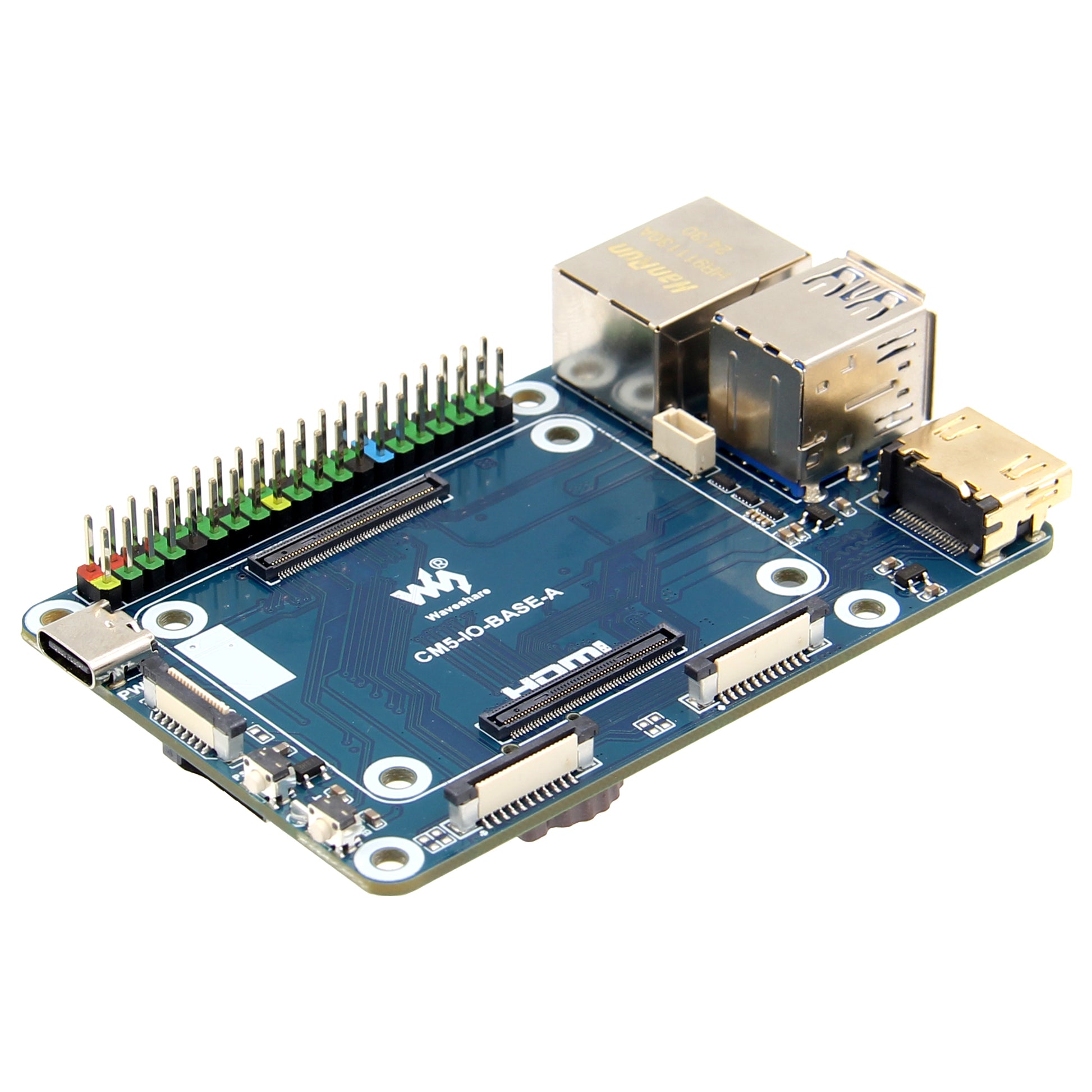

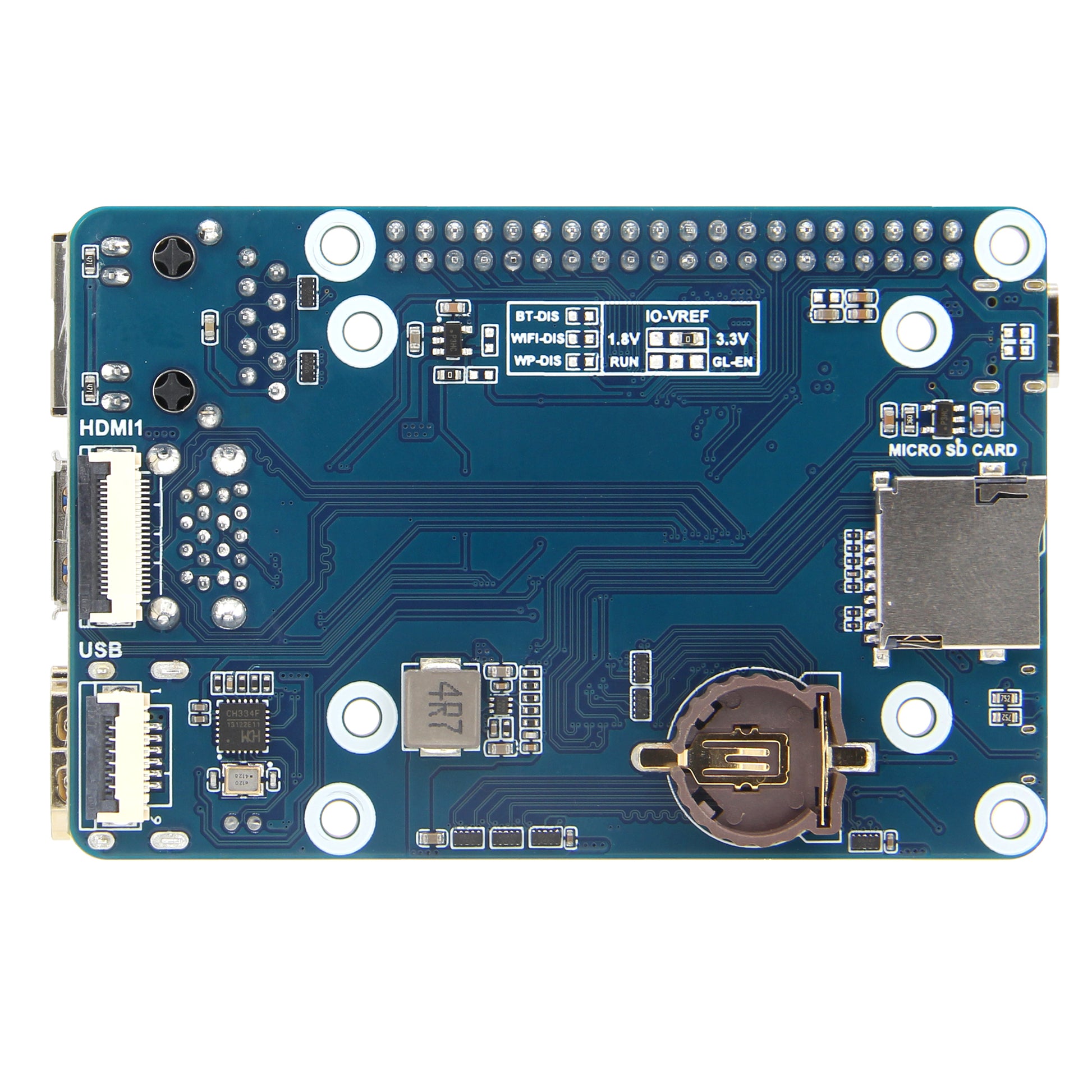

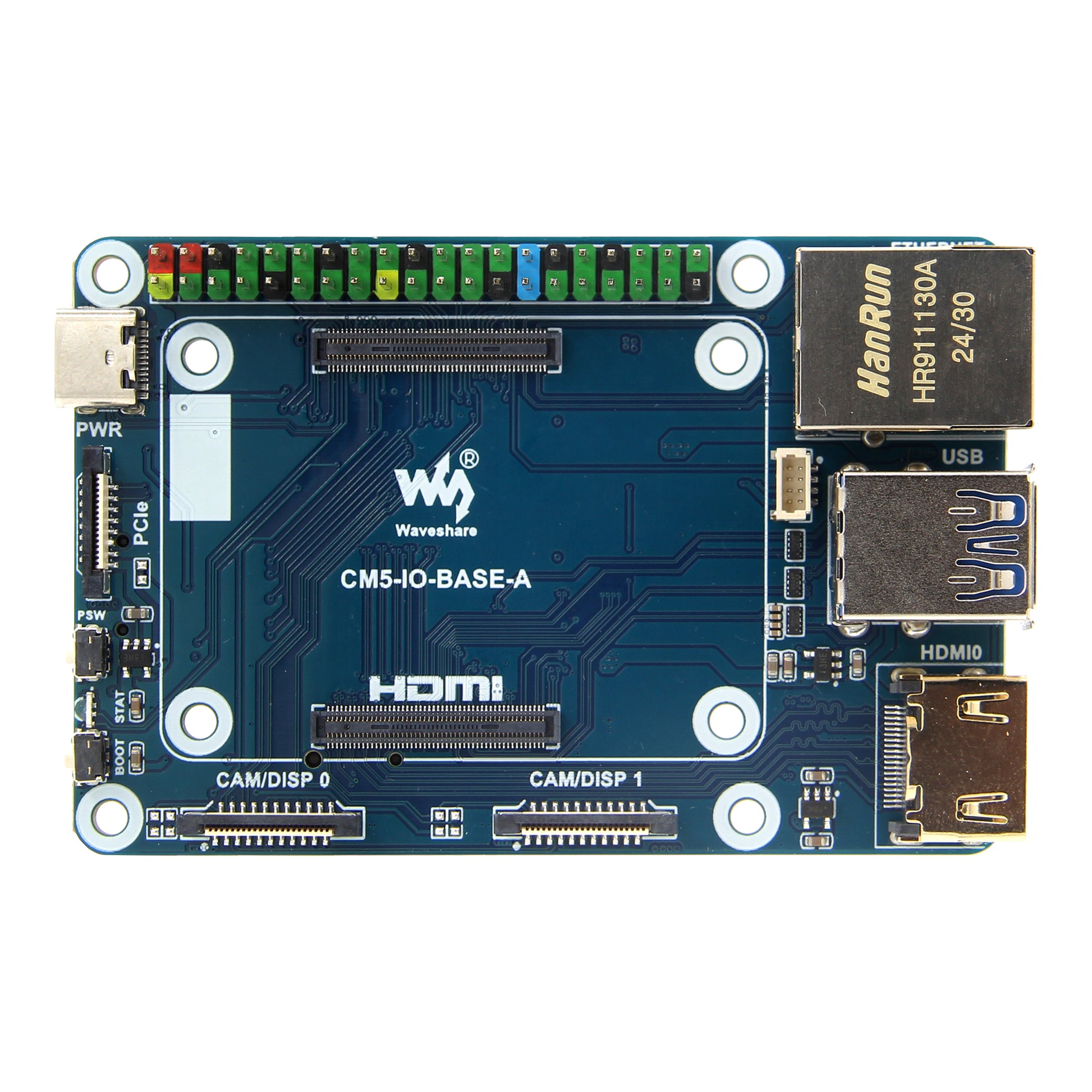

CM5-IO-BASE-A Mini Base Board for Raspberry Pi Compute Module 5

Note: The Raspberry Pi CM5 board, SD card, CR1220 battery, power supply is not included in the packing list.

Overview

The CM5-IO-BASE-A is an IO baseboard designed for use with the Raspberry Pi Compute Module 5. Despite its compact size—comparable to that of a bank card—it integrates a range of powerful features. The board includes two USB 3.2 Gen1 ports and two USB 2.0 ports, offering users convenient connectivity options.

Features

• Do not plug or unplug any device other than USB and HDMI when the device is powered on
• Type C can be used as a USB SLAVE interface to flash images.

• Onboard default 2 USB 3.2 Gen1 ports

• Supports 4 screens to display different contents, adds MIPI DSI driver, regardless of whether a screen is connected, the system will default to connect, the screen will display in split-screen mode (related to the system version)

• The onboard BOOT button, you can press the BOOT button before powering on, and connect to the computer through Type C to let the device enter the flashing mode

• Do not connect other devices when using Type-C to flash. Insufficient power supply for flashing will cause the device to be unrecognized

• The USB ports have a total maximum power output of 2A

Packing List

• 1x CM5-IO-BASE-A

• 1x Screws pack
