Geekworm GaN PD 27W 5.1V 5A Power Supply for Raspberry Pi 5

Overview
The XS-GaN-27W power supply is an ideal power supply for Raspberry Pi 5 soc, especially for users who wish to drive high-power peripherals, such as hard drives and SSDs, from Raspberry Pi 5's four Type A USB ports.

It powered by GaN Technology, making power supply smaller without sacrificing a drop of power and work with low temp and more stable.

Delivering a maximum of 5.1V, 5A, it supports USB PD (Power Delivery), so Raspberry Pi 5 can communicate with it and select the most appropriate power profile. This enables Raspberry Pi 5 to increase the USB current limit automatically from the default 600mA to 1.6A, in order to provide extra power for devices connected to the four Type A USB ports.

Additional built-in power profiles mean the Raspberry Pi 27W USB-C Power Supply is also an excellent option for powering third-party PD-compatible products. The available profiles are 9V, 3A; 12V, 2.25A; and 15V, 1.8A, all limited to a maximum of 27W.

[Wholesale]
Customised logo is available for bulk purchase, please contact us at info@geekworm.com;

User Manual: https://wiki.geekworm.com/XS-GaN-27W

Features

• Input: 100 – 240Vac
• Output: 5.1V, 5A; 9V, 3A; 12V, 2.25A; 15V, 1.8A (Power Delivery)
• Connector: USB-C
• Plug Type: EU plug/US plug availble

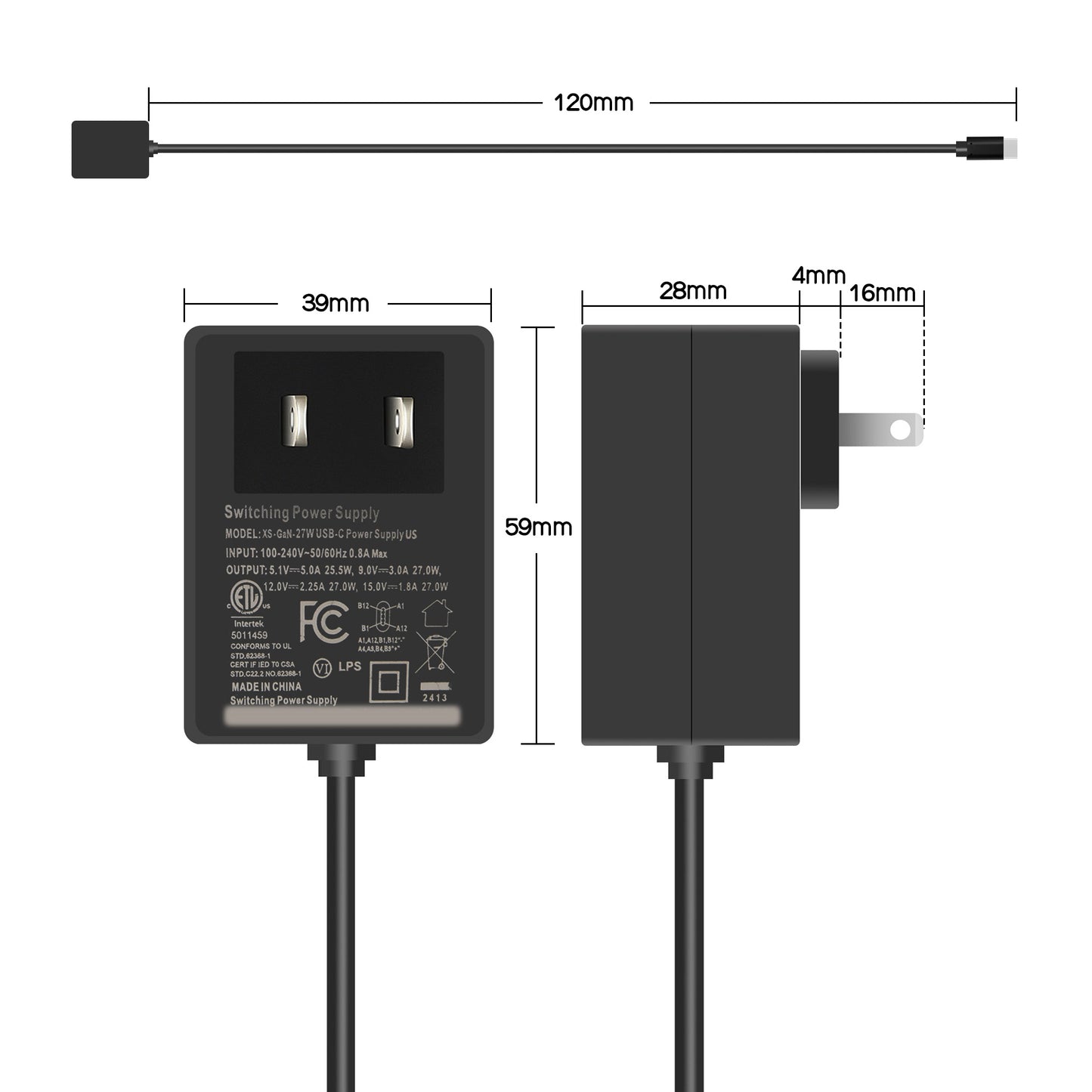

• Cable length: 120mm/47.24inch, 18AWG
• Color: black
• Ripple and Noise: ≤200mV p-p (Full load)
• With over voltage, over current short circuit protection.

Packing List

• 1x PD 27W Power Adapter for Raspberry Pi 5（US or EU Plug）

Warnings

1. This product should be operated in a well ventilated environment.
2. The connection of incompatible devices to this power supply may affect compliance, result in damage to the unit, and invalidate the warranty.

Safety Instructions
To avoid malfunction or damage to this product, please observe the following:

1. Do not expose to water or moisture, or place on a conductive surface while in operation.
2. Do not expose to heat from any source; this power supply is designed for reliable operation at normal ambient temperatures.
3. Do not attempt to open or remove the power supply case.
