For Raspberry Pi 4, X876 V1.1 NVME M.2 SSD Storage Expansion Board Support Key-M 2280 SSD

Regular price
$33.00
Regular price
$39.00
Sale price
$33.00
-15%
Only 37 items in stock! Out of stock!
  • Description
  • Manual
  • Shipping Policy
  • Reviews

Note:

  1. The Raspberry Pi 4 and NVMe M.2 SSD is not included in the packing list.
  2. As with all SSDs, new media must be formatted before use.
  3. SSDs use exceptionally high performance storage media that will run hot when under load.
  4. Older SSD drives with less efficient flash media may not perform as well as newer drives.
  5. Remove the USB cable since Feb. 22 2024.

Overview

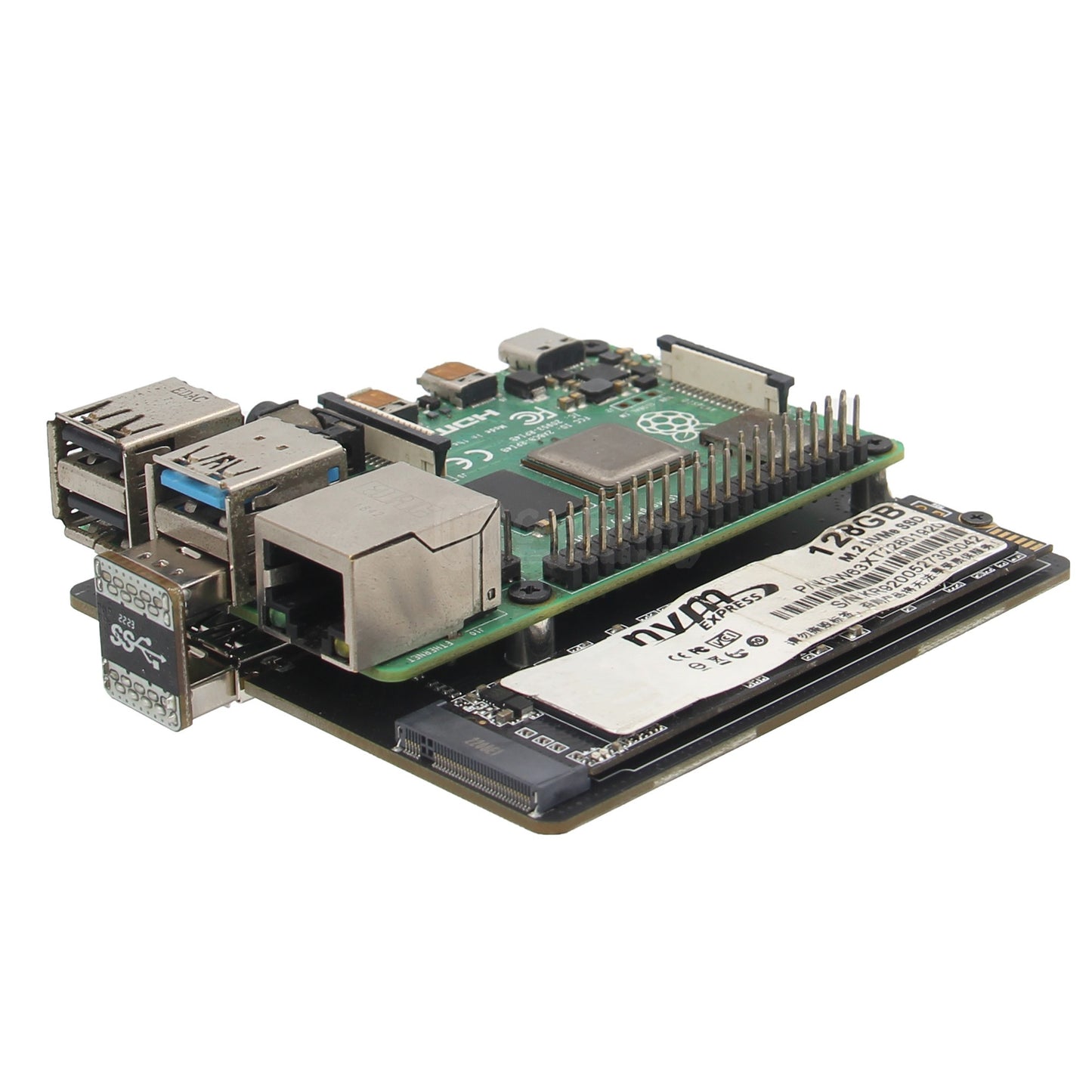

The X876 is a new ultra-compact design M.2 NVMe SSD expansion board which offers an easy and fast way to create storage solution for your Raspberry Pi 4 Model B. UASP supported for Raspberry Pi 4.
The X876 can be the perfect storage solution for your home media center and building Network-attached storage (NAS) for storing and streaming your own videos, music, and digital photos around the house and even across the world. The X876 also supports operating system booting from your SSD for faster app opens, web serving and file copying.

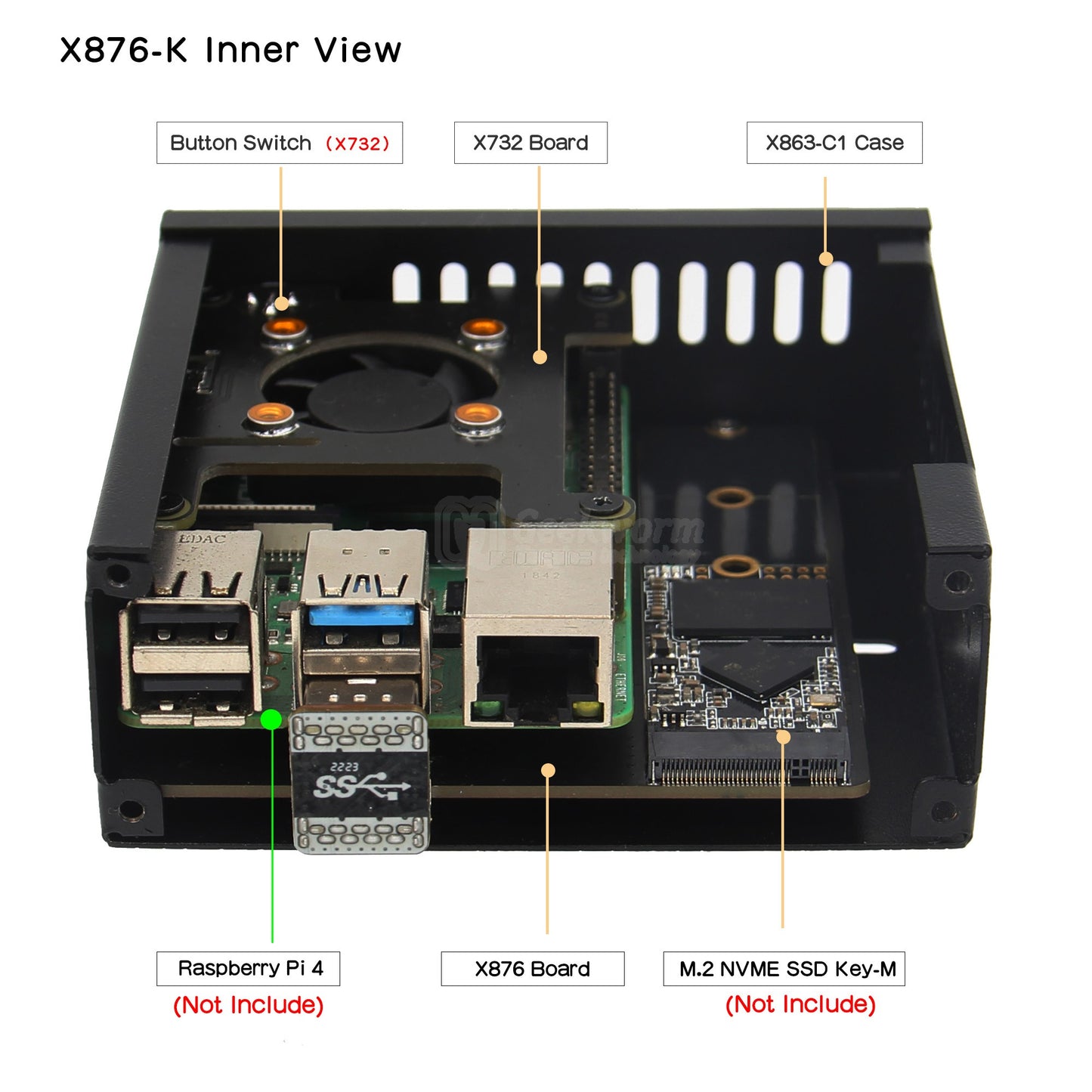

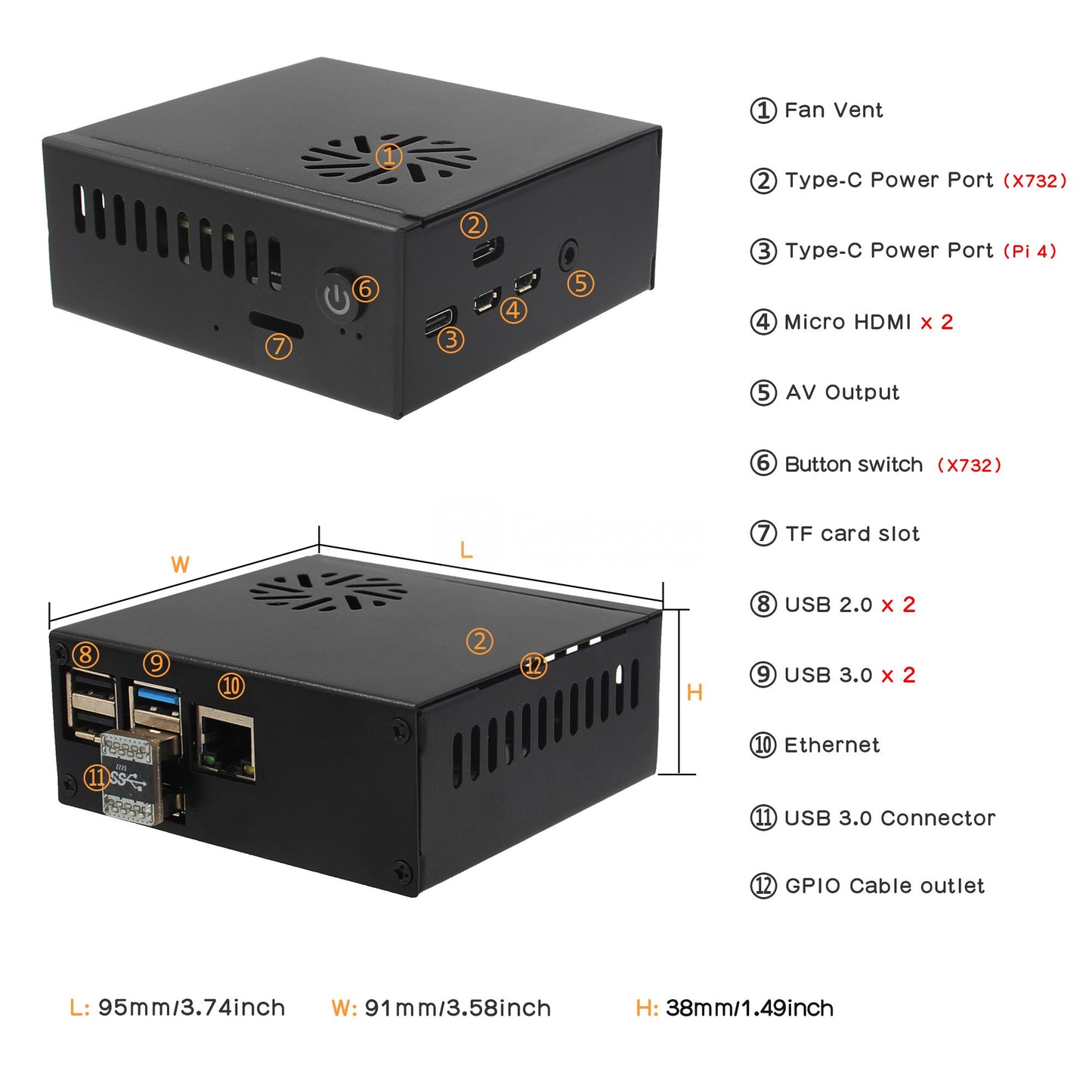

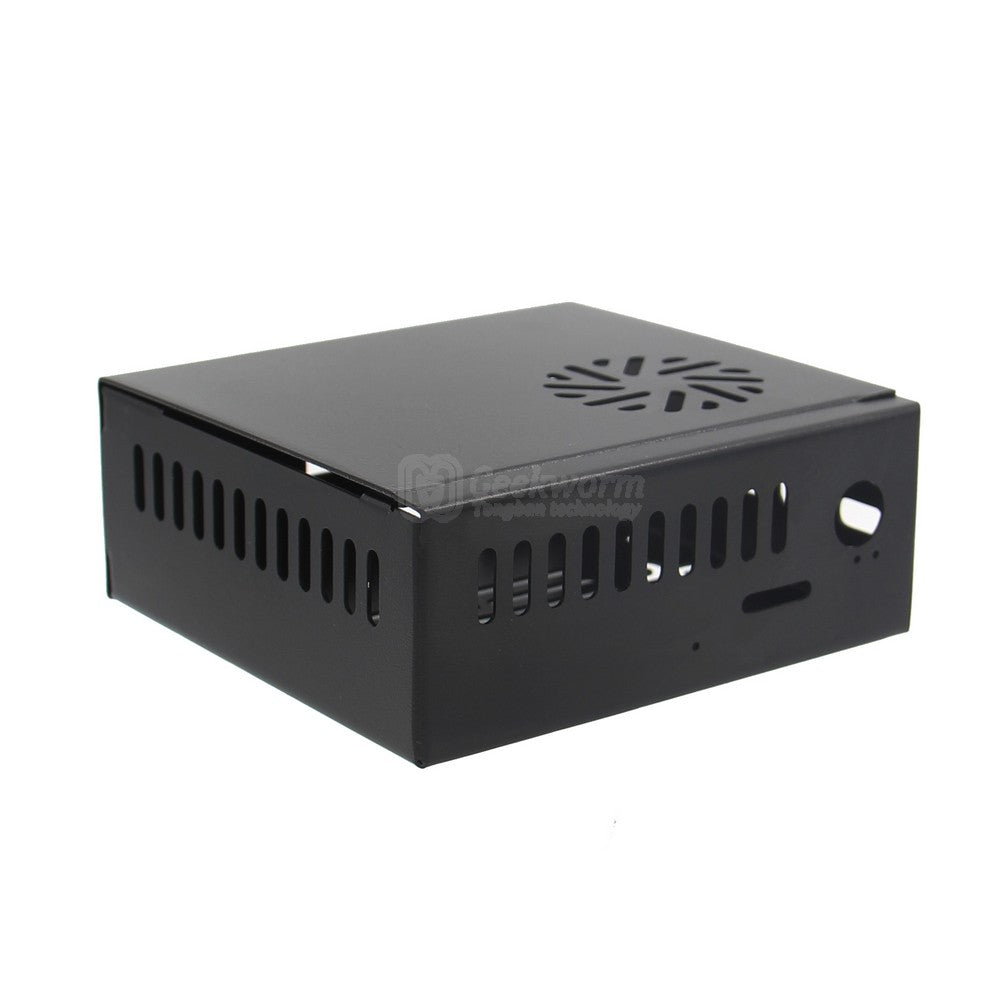

Matching Case is X863-C1

Matching cooling fan expansion board is X732

User Manual:

Features

  • Ideal storage solution for Raspberry Pi 4 - NVME M.2 SSD Shield
  • Supports up to 2TB NVME M.2 SSD solid-state drive

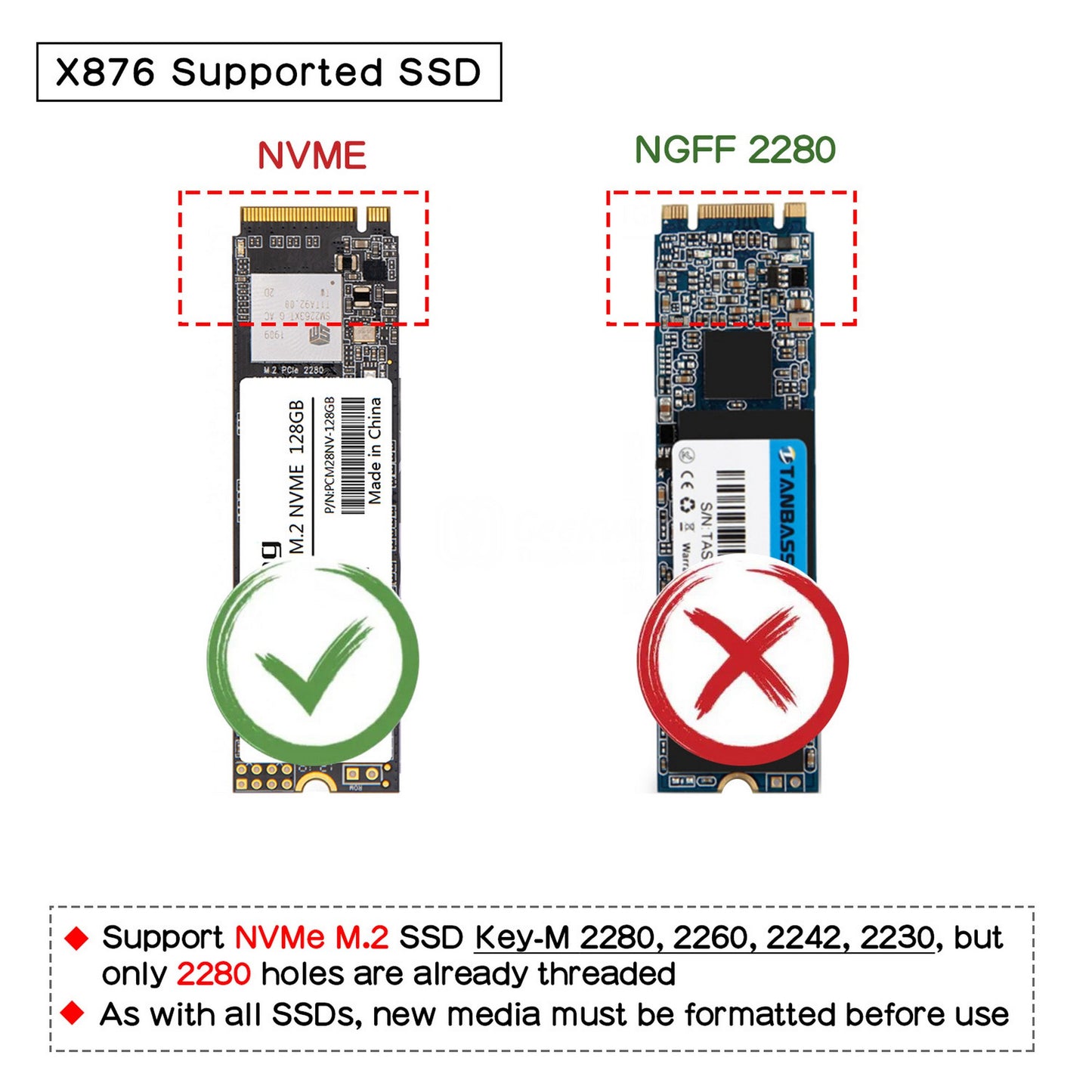

  • Supports multiple M.2 NVMe SSD lengths including: 2280, 2260, 2242, 2230,additional spacer required for SSD lengths 2260, 2242 and 2230
  • UASP supported for Raspberry Pi 4
  • LED blue indicator indicates drive status
  • Allows booting OS from your HDD/SSD for faster app opens, web serving and file copying

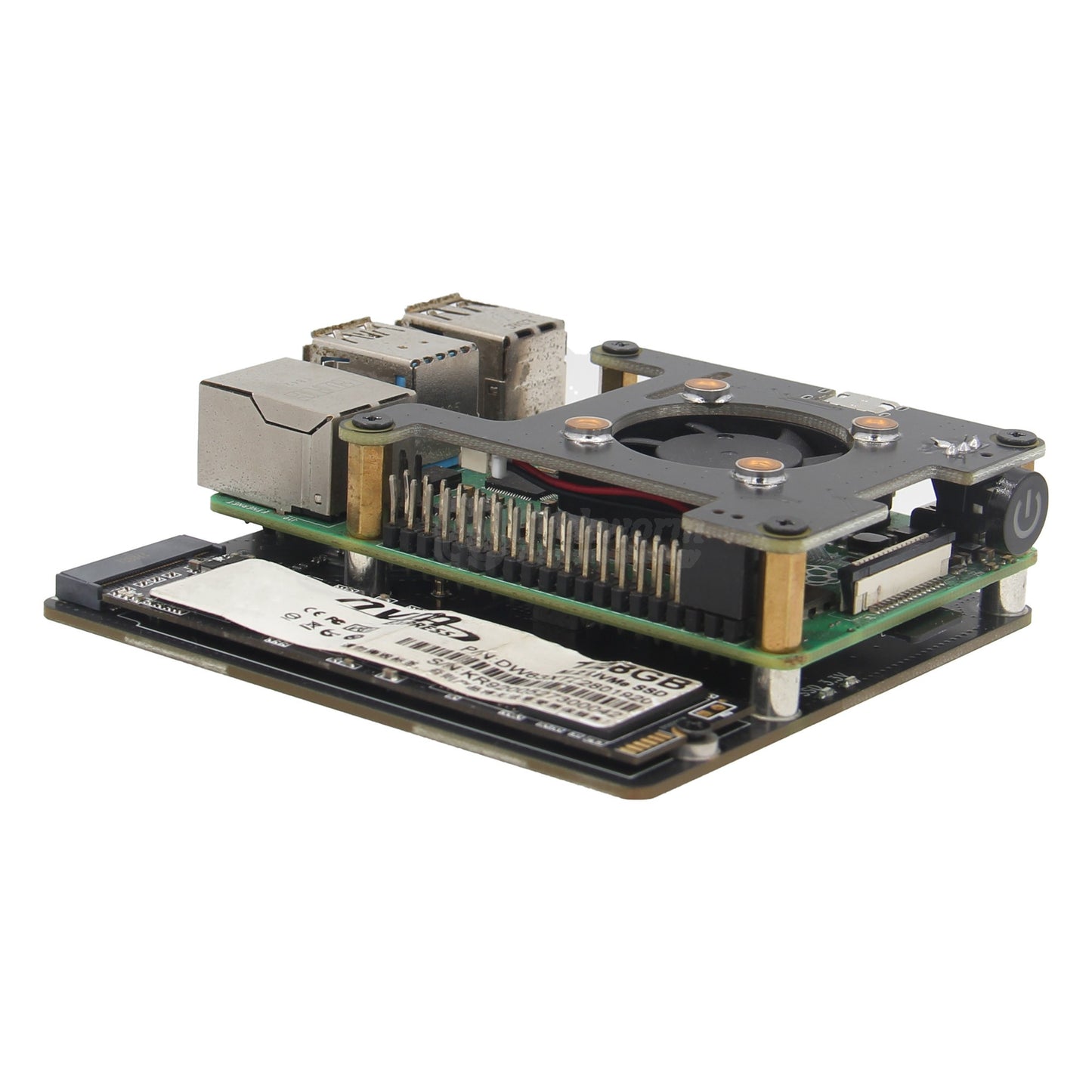

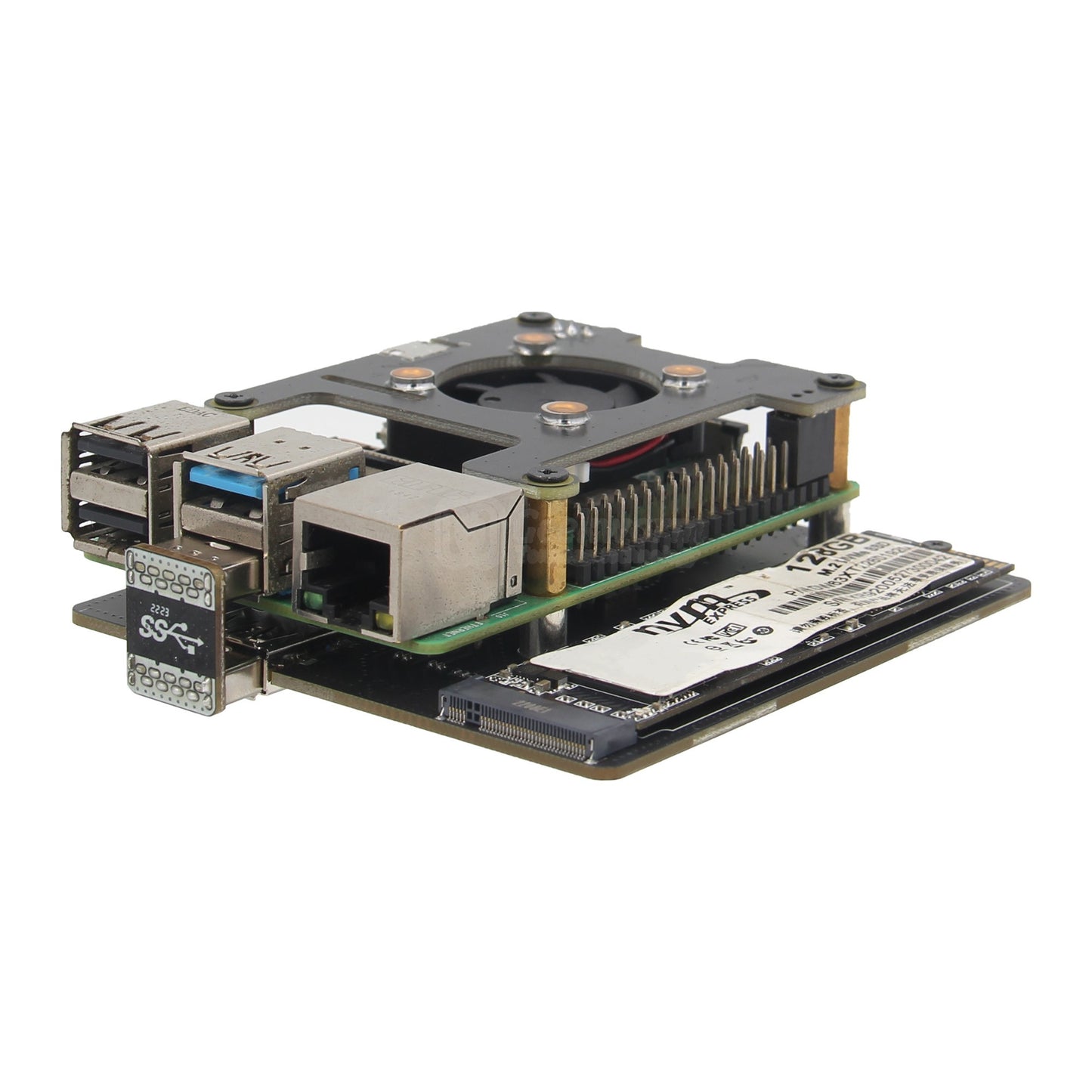

  • Fully compatible with X732 for power management and cooling your Raspberry Pi 4

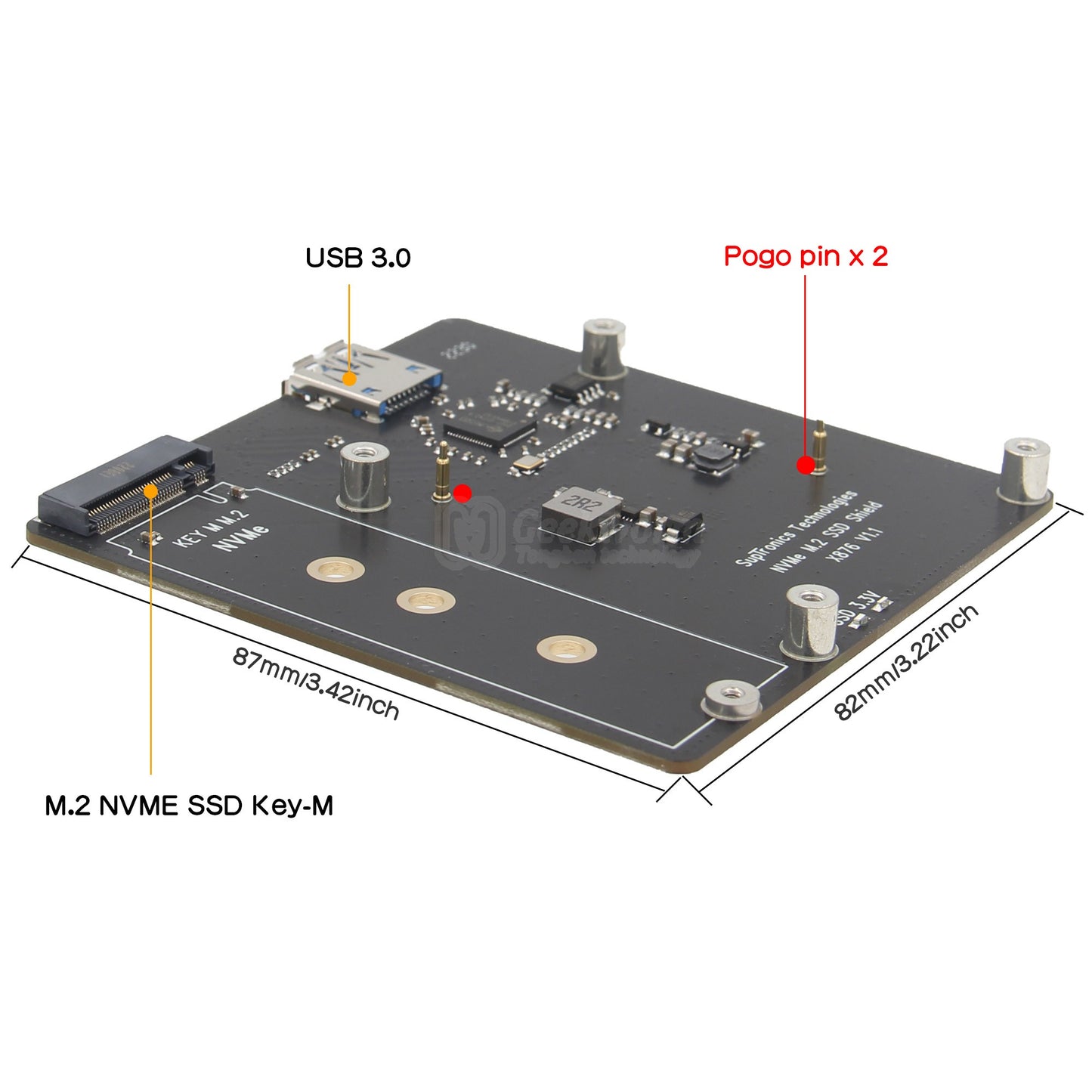

  • PCB Size:87x82mm/3.42x3.22inch

How to Power

  • Power supply request: 5Vdc +/-5% , ≥3A (Power via Type-C port of Raspberry Pi 4 or X732)

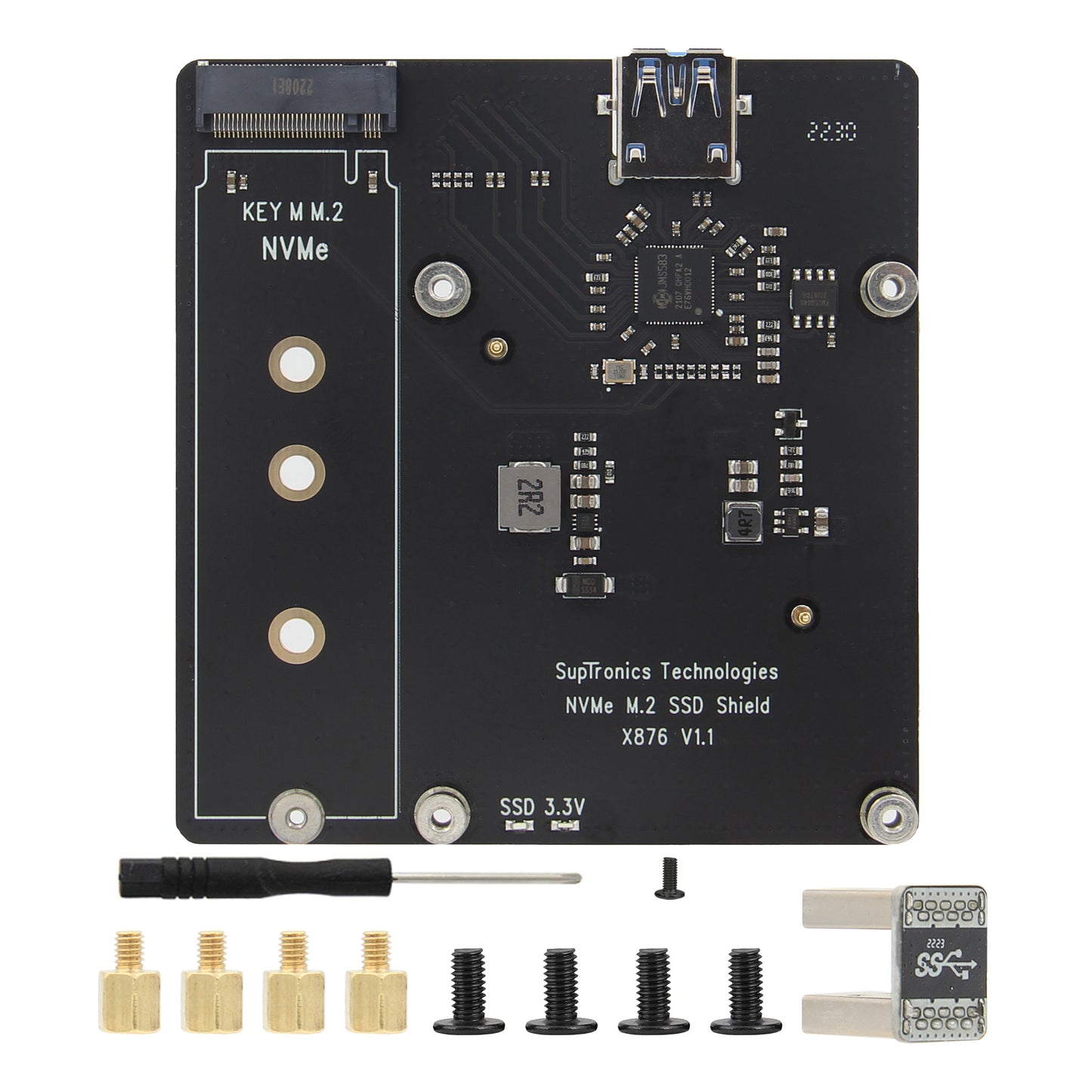

Packing List

  • 1 x X876 V1.1 NVME M.2 SSD Shield
  • 1 x USB3 Connector
  • 4 x M2.5 *5+3mm M/F Spacers
  • 4 x Screw M2.5 *5mm
  • 1 Screw M2 *4mm
  • 1 x Screw driver

    Refer to: https://wiki.geekworm.com/X876

    Please email to us at info@geekworm.com if you have other questions.
