X732 V1.1 Power Management & Cooling Expansion Board for Raspberry Pi 4B/3B+/3B

Overview

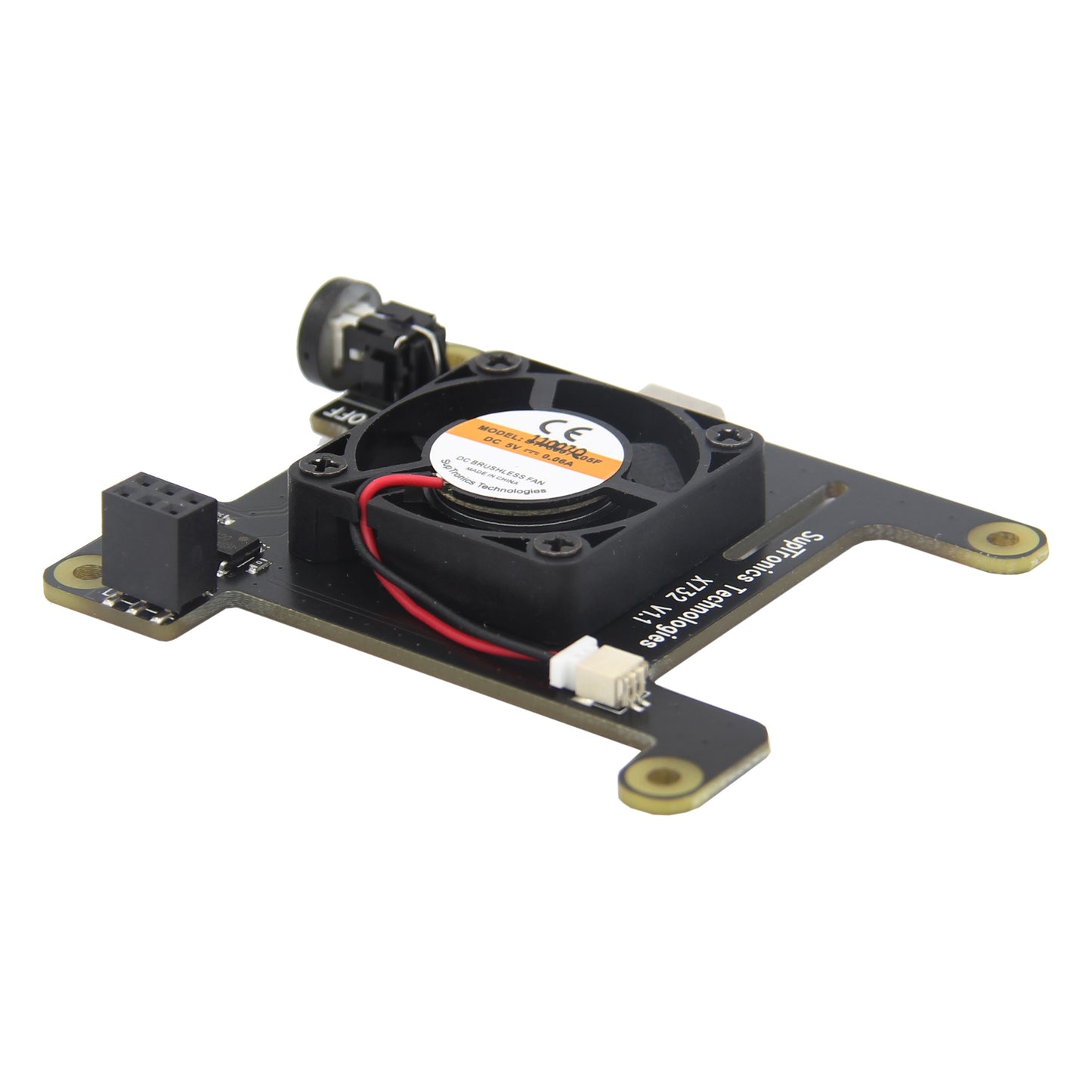

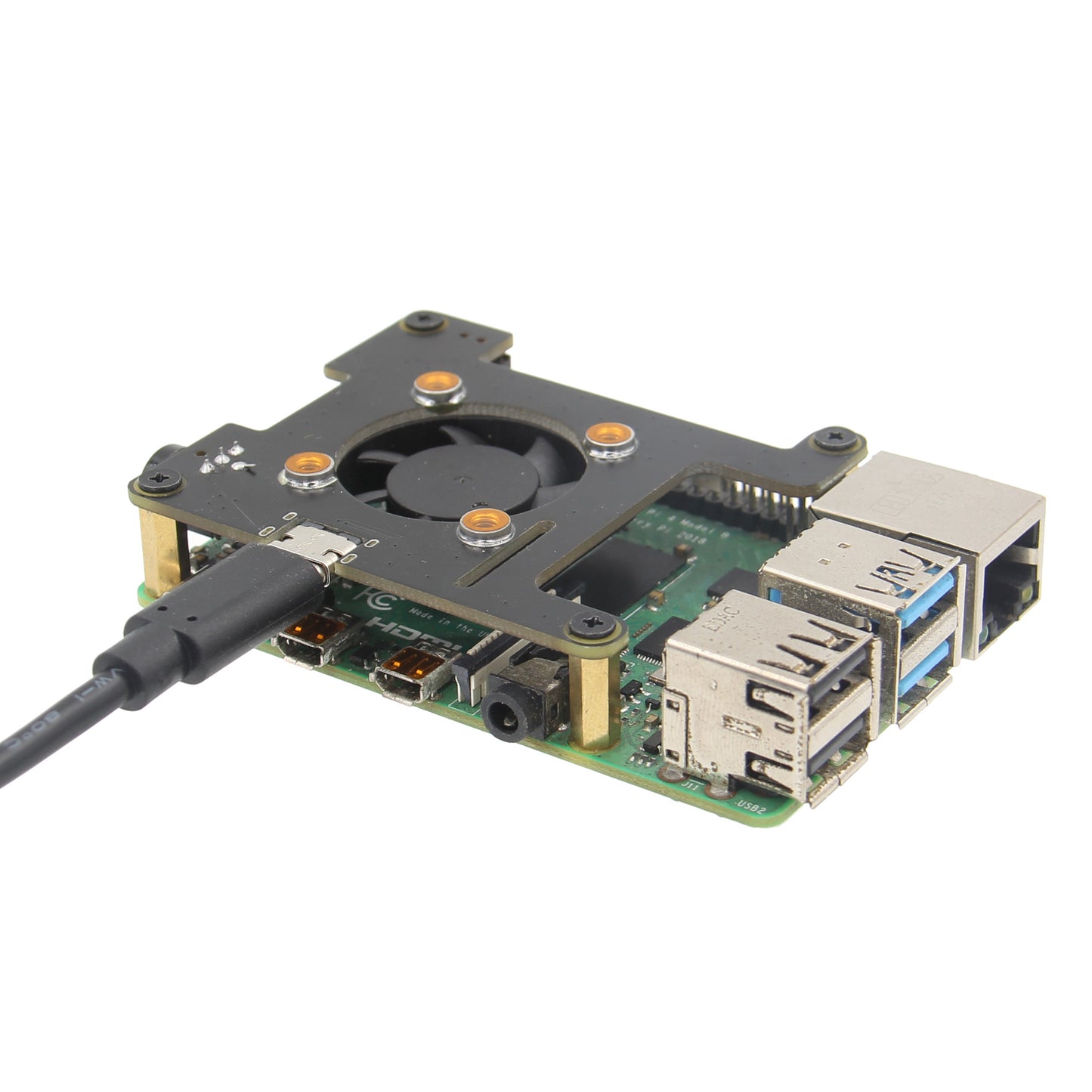

The X732 is a power management and cooling expansion board compatible with Raspberry Pi 4B/3B+/3B. The on-board 3007 cooling fan can cool down the Raspberry Pi boards in extreme conditions including very high temperature environments. With a on/off power button, you can control to power on/power off the Raspberry Pi board easily.

User Manual: https://wiki.geekworm.com/X732

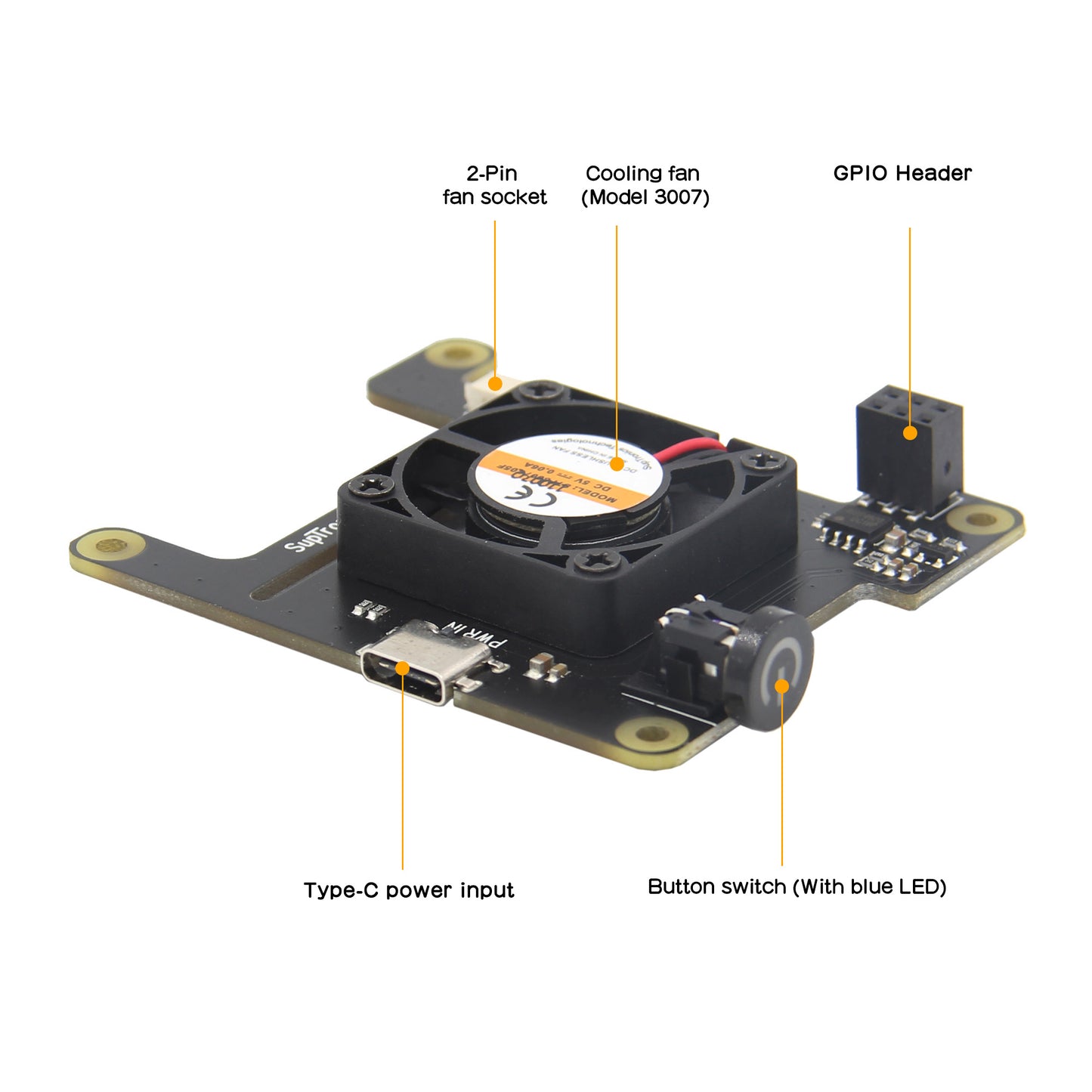

Features

• Ideal power management solution for Raspberry Pi
• On-board Type-C connector for power input
• 30mmx30mm low noise cooling fan for processor cooling
• On-board power button to control power on/off of Raspberry Pi
• Press button switch to turn on
• Press button switch and hold for 3 seconds to force shutdown
• Board size:65x55mm/2.55x2.16inch

Power Supply Request:

• Power supply: 5Vdc +/-5% , ≥3A (Via Type-C port of X732)

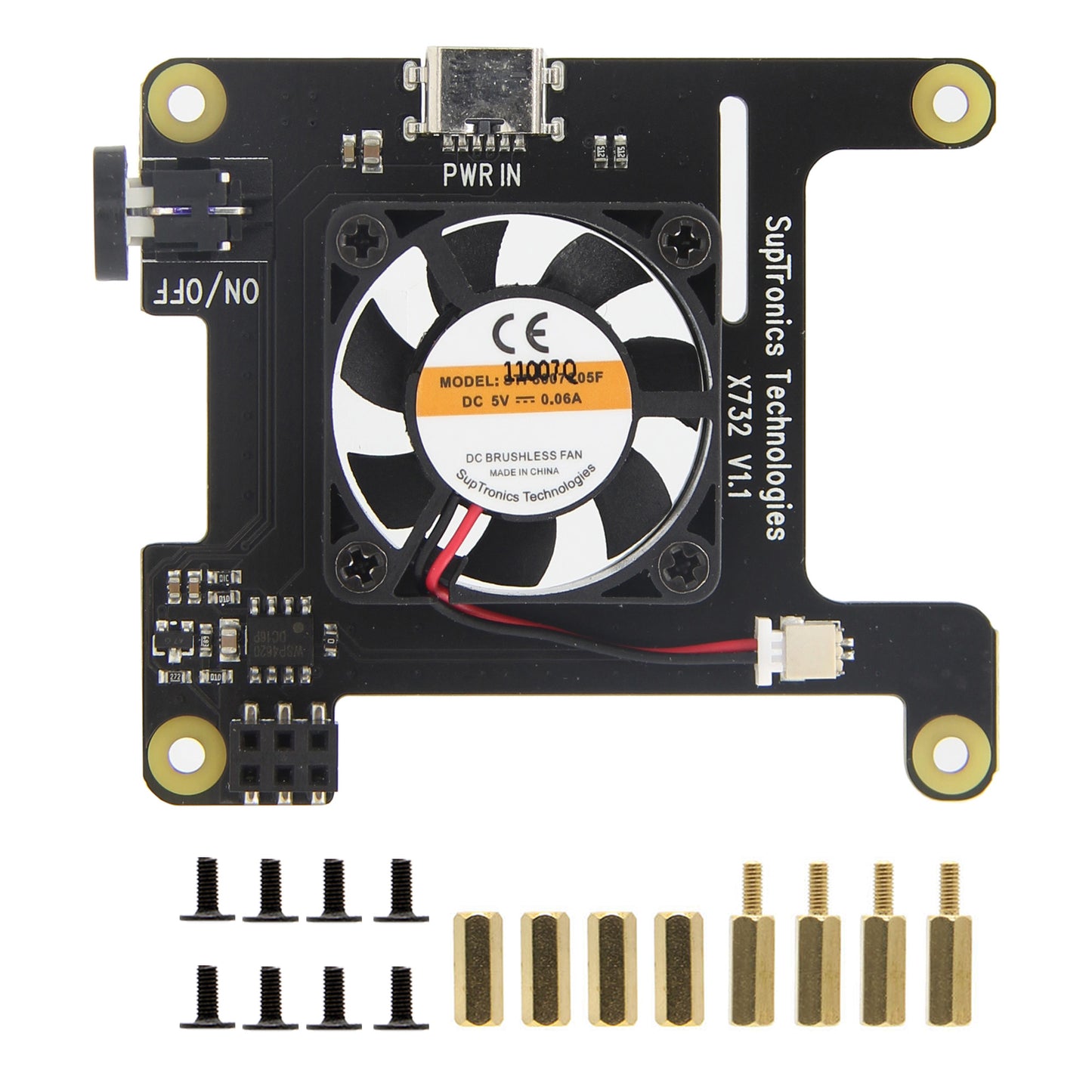

Packing List

• 1 x X732 Expansion Board
• 4 x M2.5 *12mm F/F Spacers
• 4 x M2.5 *12+4mm M/F Spacers
• 8 x M2.5 *5mm Screws
