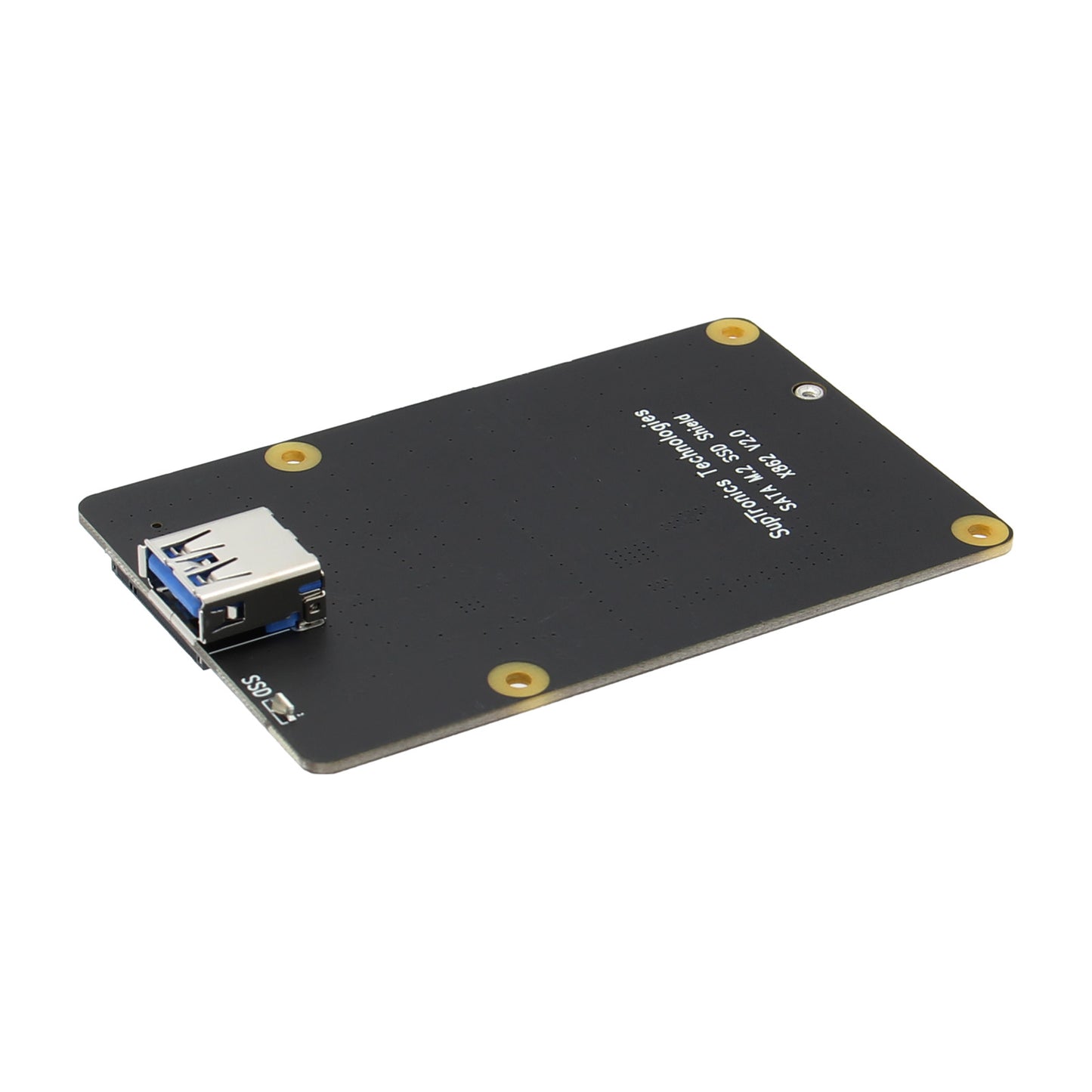

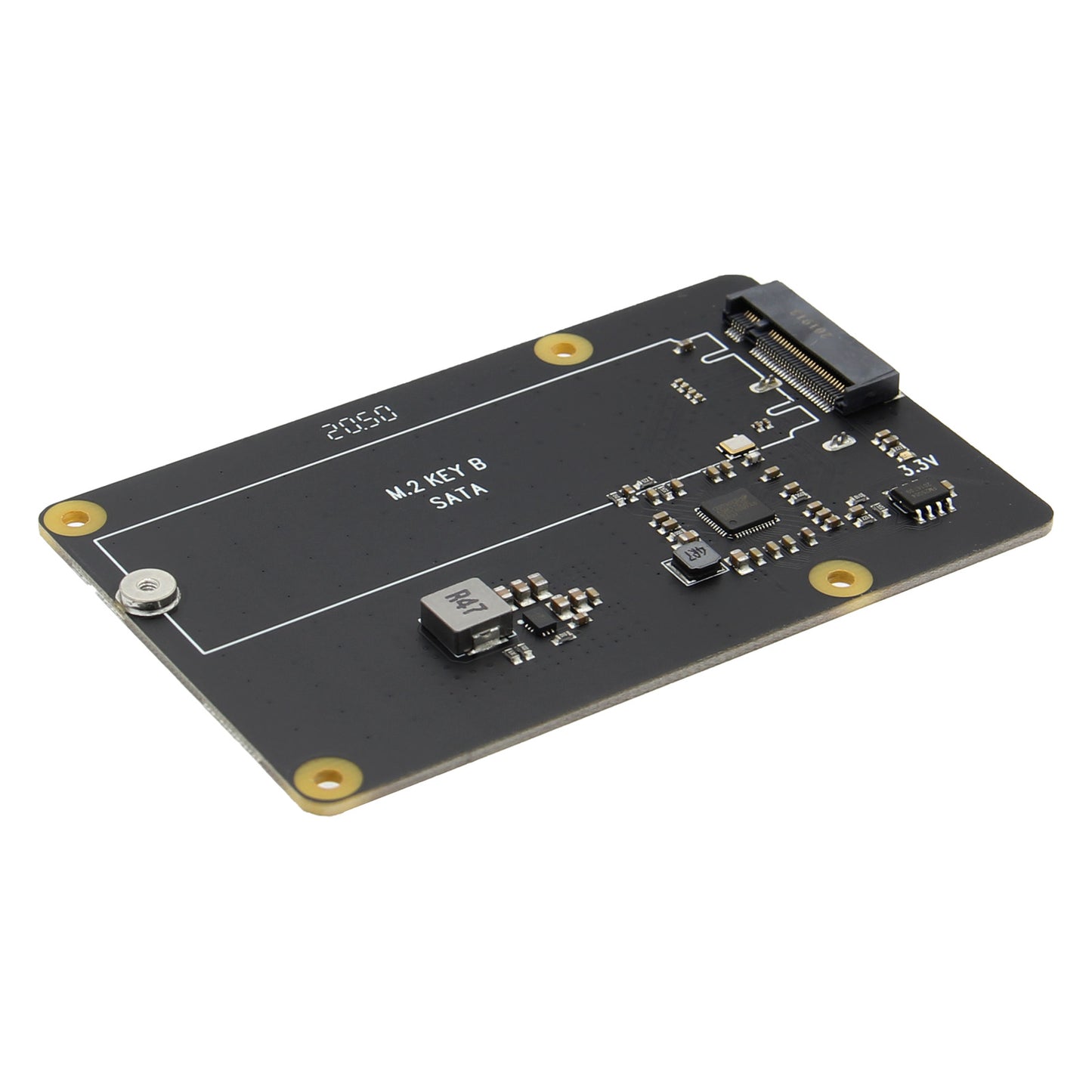

For Raspberry Pi 4, X862 V2.0 M.2 NGFF SATA SSD Storage Expansion Board Support Key-B 2280 SSD

Overview
This is new updated X862 V2.0 version from X862 V1.0. We solve the EMC interference issue between Raspberry Pi 4 and USB3.0 device.

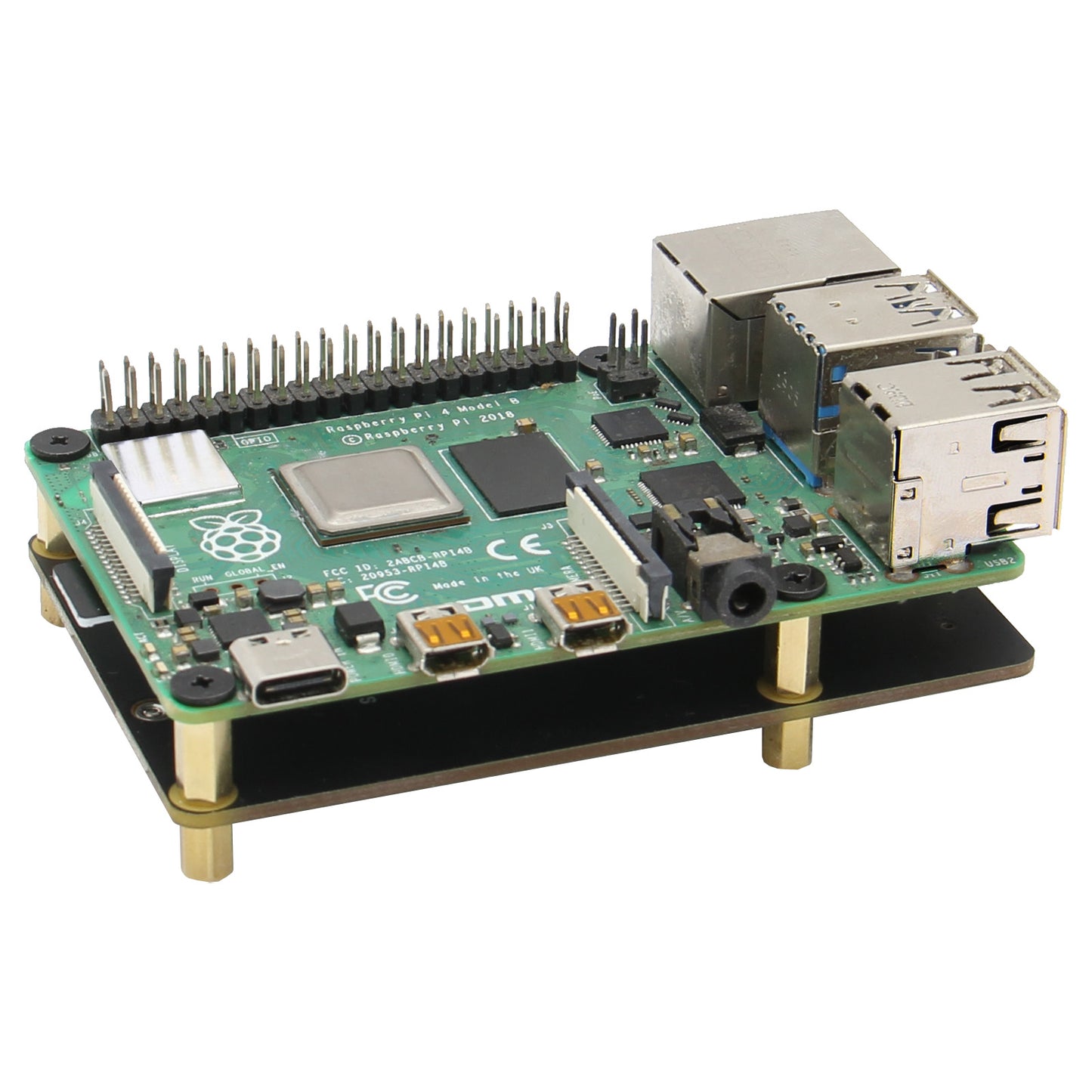

The X862 V2.0 M.2 NGFF SATA SSD Shield is designed for Raspberry Pi 4 model B, it provides a complete storage solution for Raspberry Pi 4. New X862 V2.0 ONLY support M.2 NGFF SSD Key-B 2280 length. The X860 V2.0 support UASP.

User Manual

• https://wiki.geekworm.com/X862_V2.0
• https://wiki.geekworm.com/X735

Click to Order from Amazon

For Use With

• Raspberry Pi 4 Model B

Operating System

• All Raspberry Pi operating systems

Key Features

• Ideal storage solution for Raspberry Pi 4 - M.2 NGFF SATA SSD Shield
• Supports up to 2TB M.2 NGFF SSD solid-state drive
• Only supports M.2 NGFF SSD 2280 length
• UASP supported for Raspberry Pi 4
• Integrated USB 3.1 Gen1 to SATA 6Gb/s bridge controller
• Integrated high efficiency step-Down Converter, 3.3V max 4A to power the SSD
• USB3.1 Gen1 5Gb/s connectivity offers plug-and-play functionality on your Raspberry Pi 4
• Allows booting OS from your HDD/SSD for faster app opens, web serving and file copying (see note 2)
• LED blue indicator indicates drive status
• Specially-made USB3.1 jumper to connect with Raspberry Pi - no cabling required!

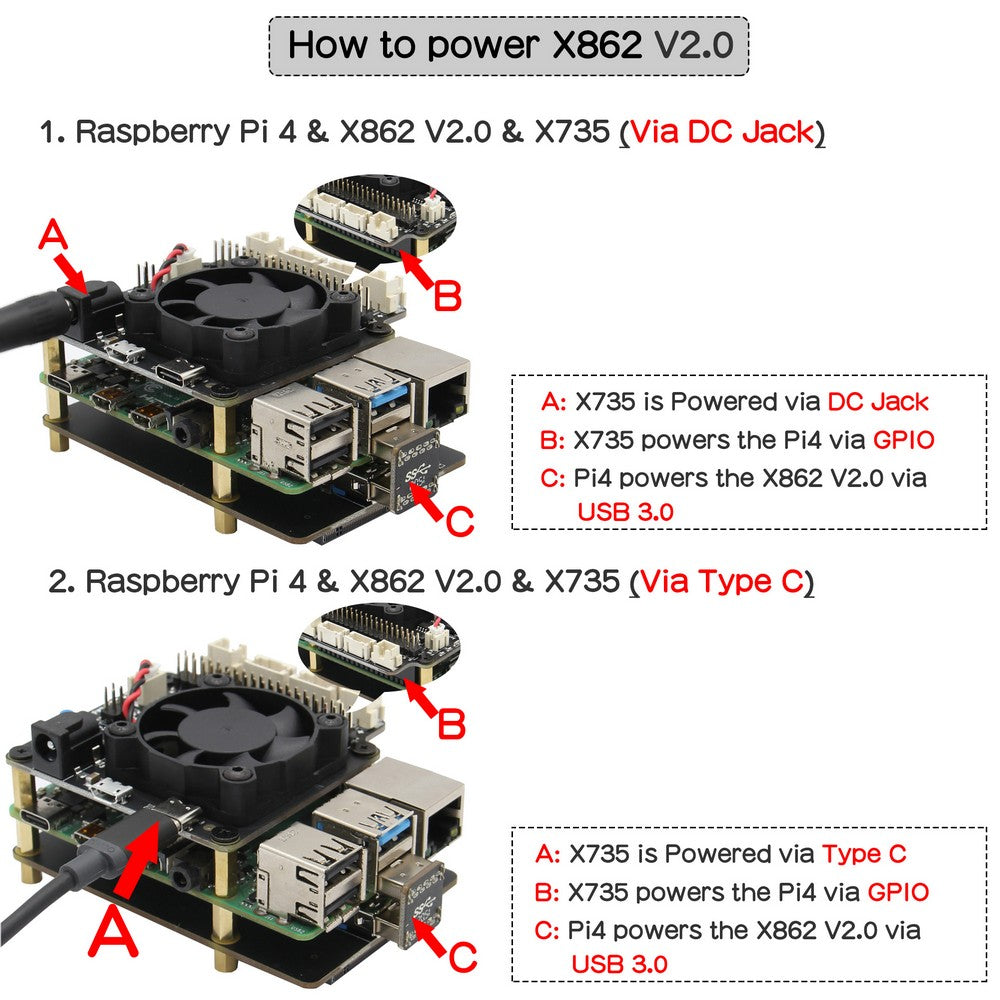

• Fully compatible with X735 for intelligent power management and cooling your Raspberry Pi
• Fully compatible with X710 for wide input voltage (6~36V) and intelligent power management
• Fully compatible with X765 for powering over Ethernet (POE, 5V 5A)
• Fully compatible with X728 for uninterruptible power supply (18650 UPS, 5.1V 8A, smart power mgmt)

Specifications
Power supply:

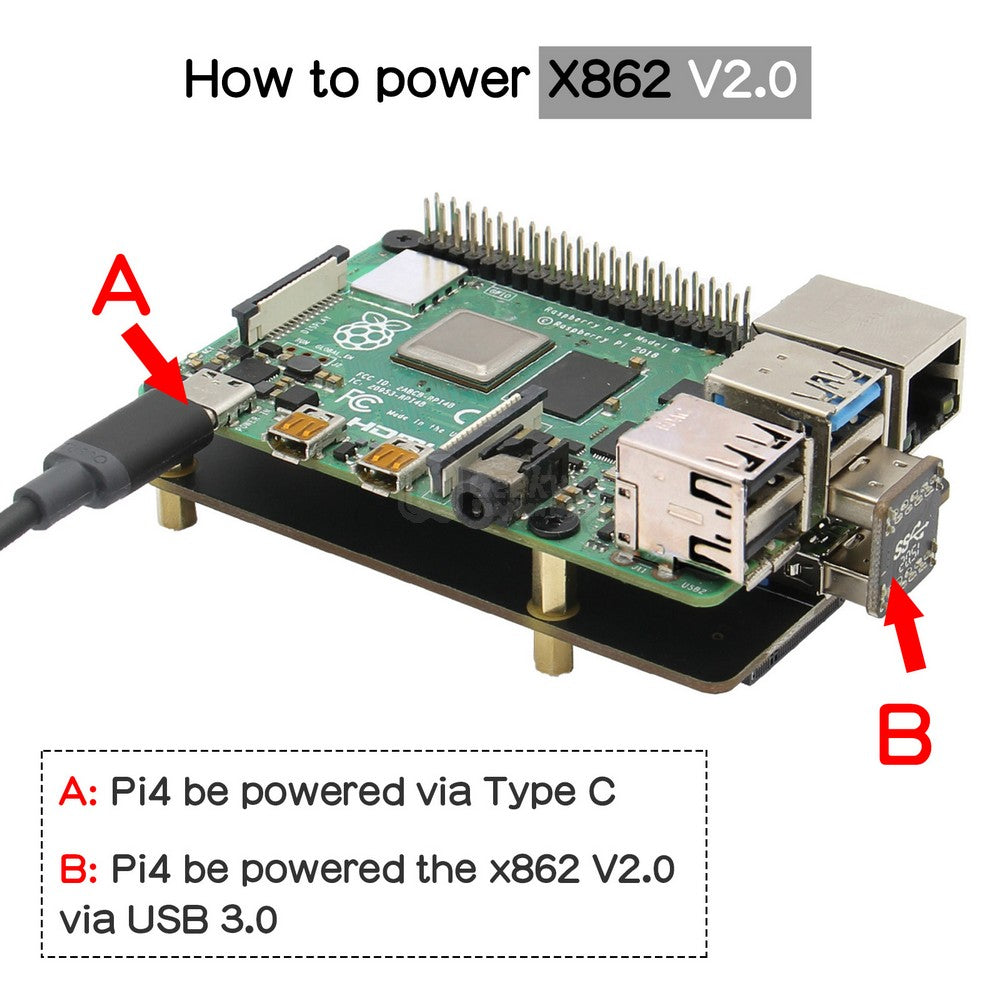

5Vdc +/-5% , Powered via USB port by Raspberry Pi 4

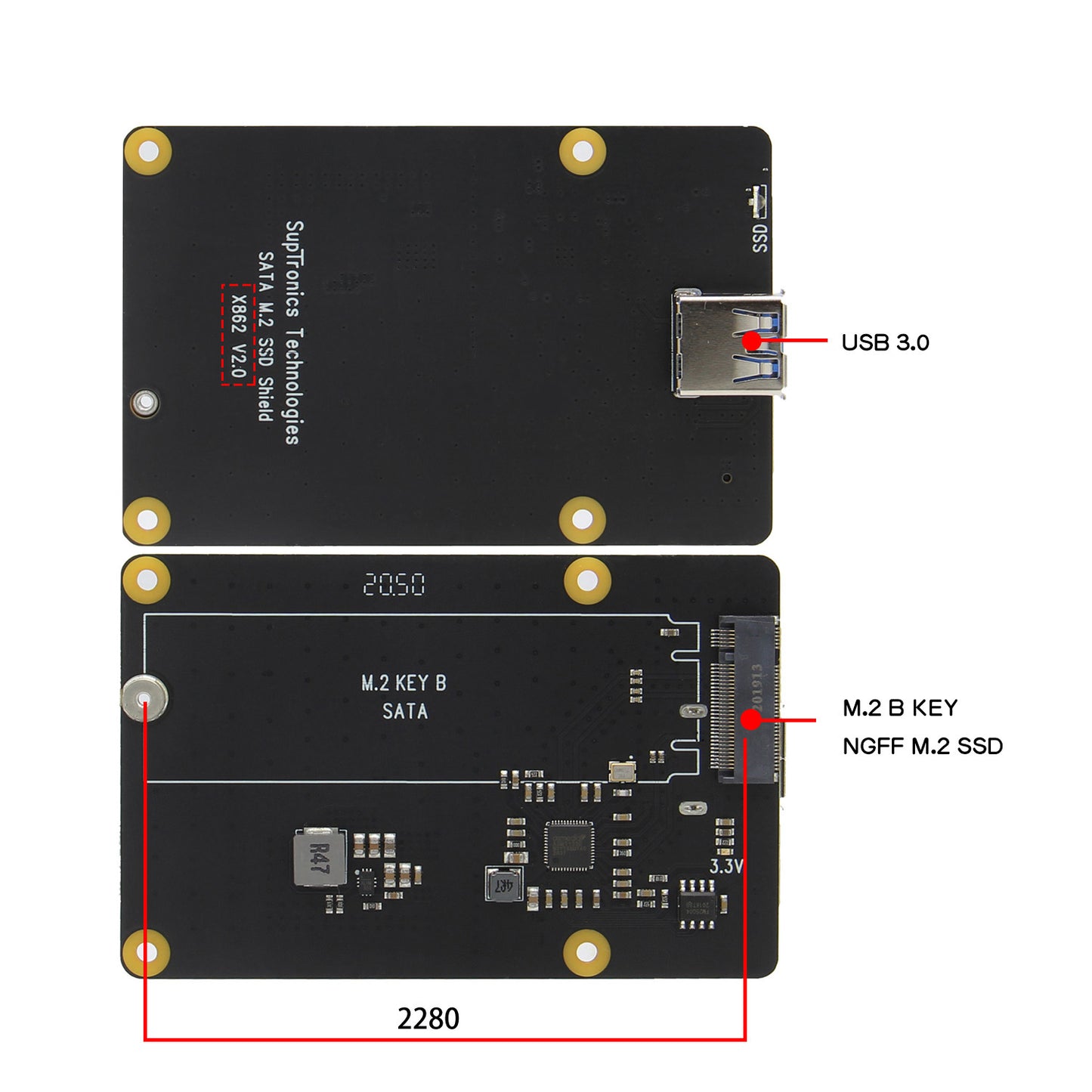

Ports & Connectors:
USB socket - USB 3.0 type A x1
67Pin M.2 connector P=0.5mm, H3.2mm, Key B x1
PCB Size 87mm x 56mm
NOTES:

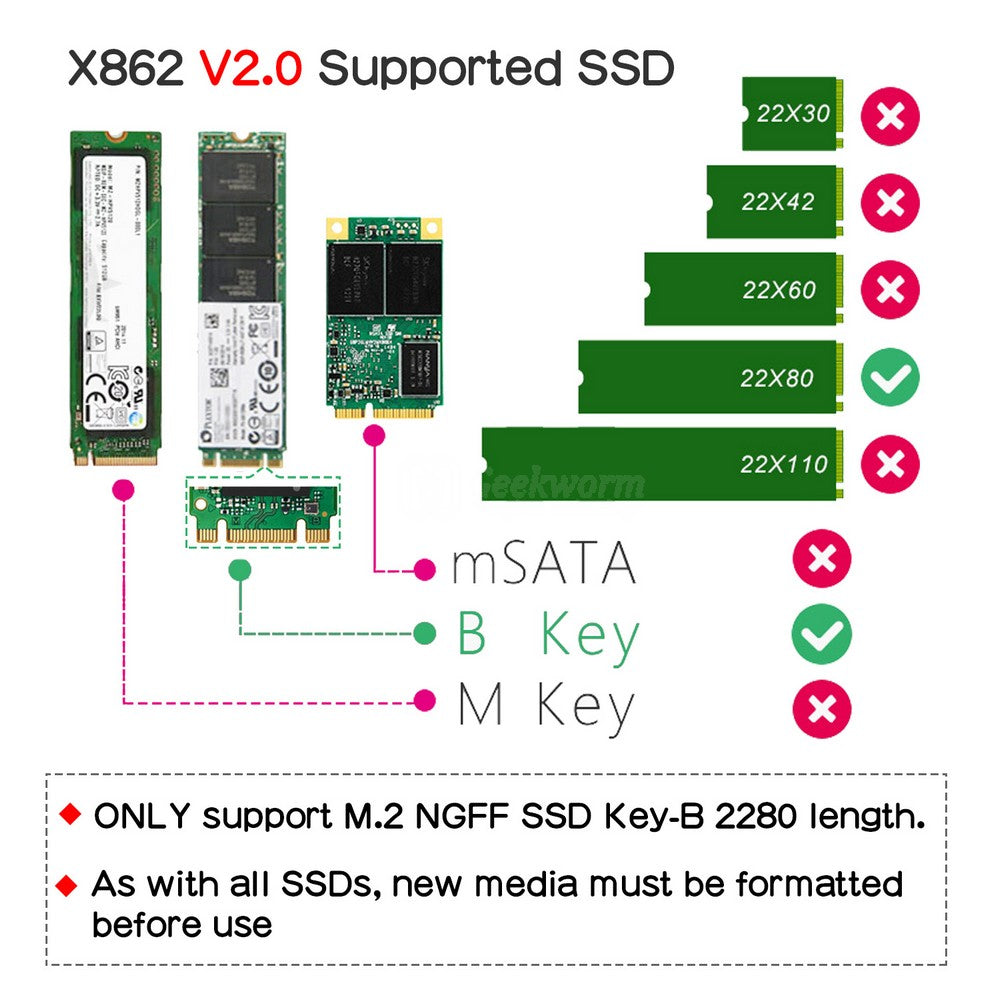

• Only compatible with Key-B SSD length 2280
• Compatible with M.2 NGFF SATA SSDs only, not compatible with NVMe M.2 SSDs
• As with all SSDs, new media must be formatted before use
• SSDs use exceptionally high performance storage media that will run hot when under load
• Older SSD drives with less efficient flash media may not perform as well as newer drives

Matching Metal Case
https://wiki.geekworm.com/X857-C3 (SOULD OUT)

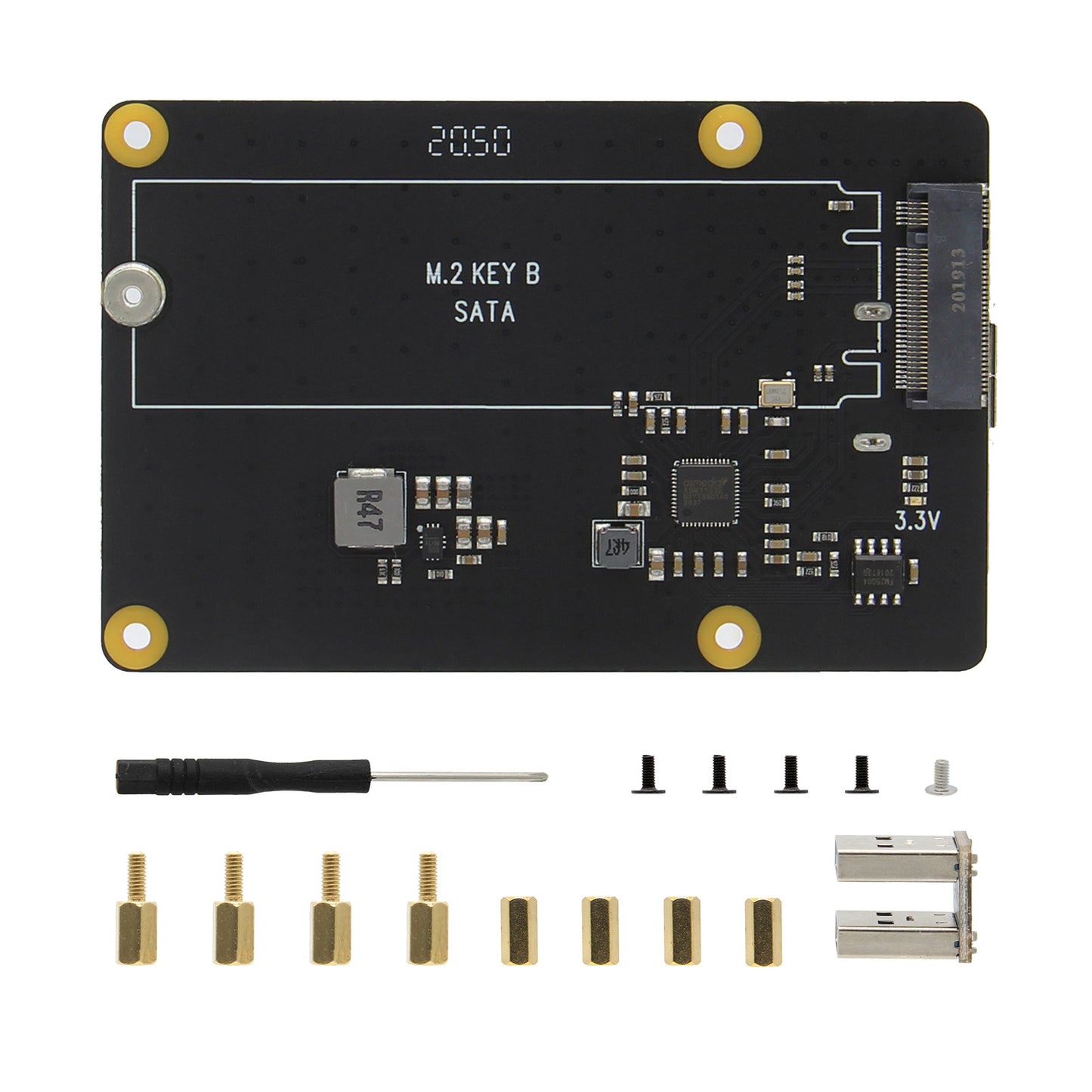

Packing List

• 1x X862 V2.0 Board
• 1x X735 V3.0 Board
• 1x Type-C 5V 4A Power Supply(EU plug)
