Geekworm X728-C1 Metal Case with Cooling Fan & Power Switch for Raspberry Pi 4 & X728 V2.5/V2.3/V2.2/V2.1/V2.0 / X708 / X735

Note:

• Raspberry Pi motherboard, 18650 battery, X728, X708, X735 and power adapter are all not included in the packing list.
• X728-C1 only supports X728 V2.0 and later versions like V2.1, V2.2, PCB dimensions of previous versions are different!!!
• X735 is not a UPS, so it does not support to use with a battery holder.
• X728-C1 does not support the installation with X728-A1 or X728-A2.

Overview

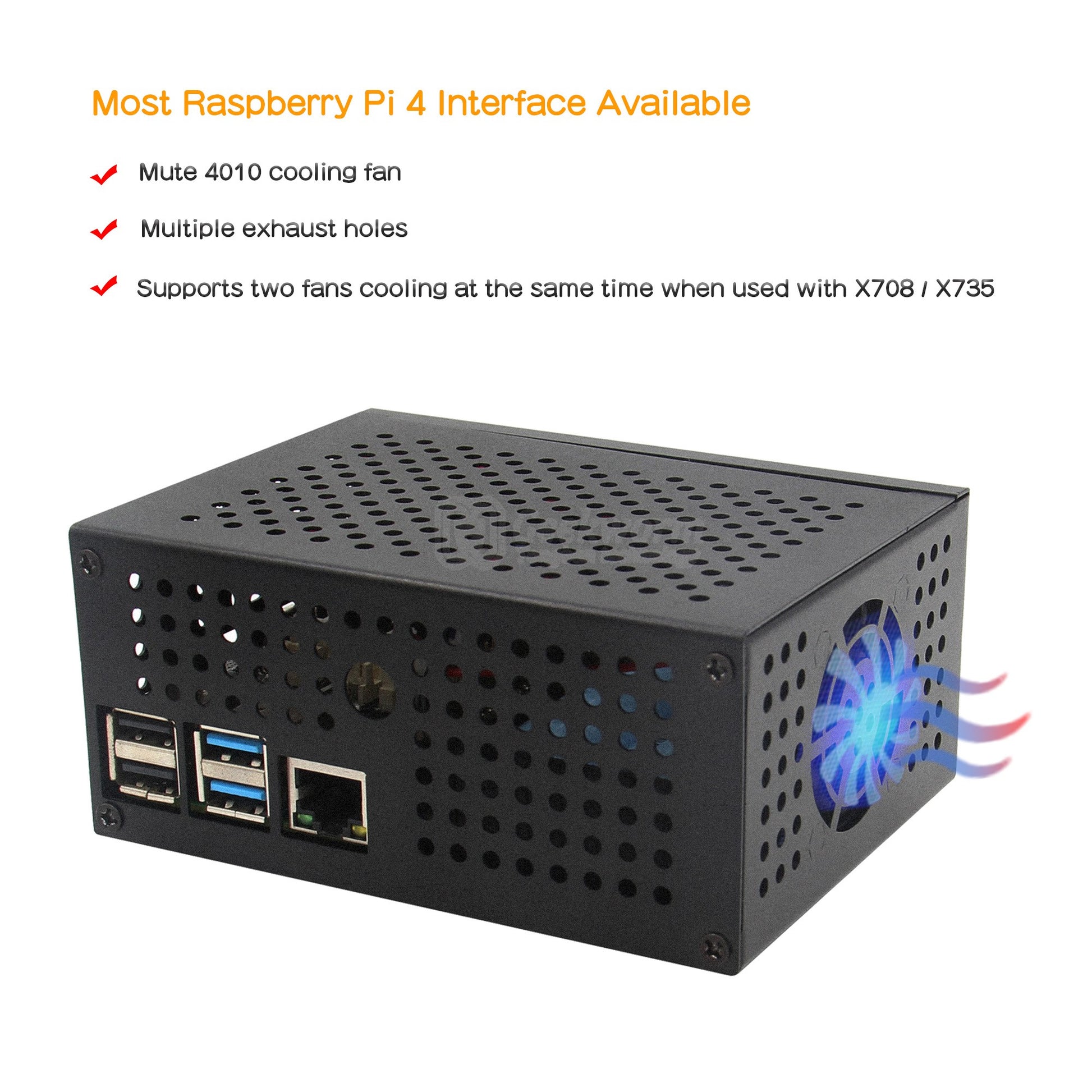

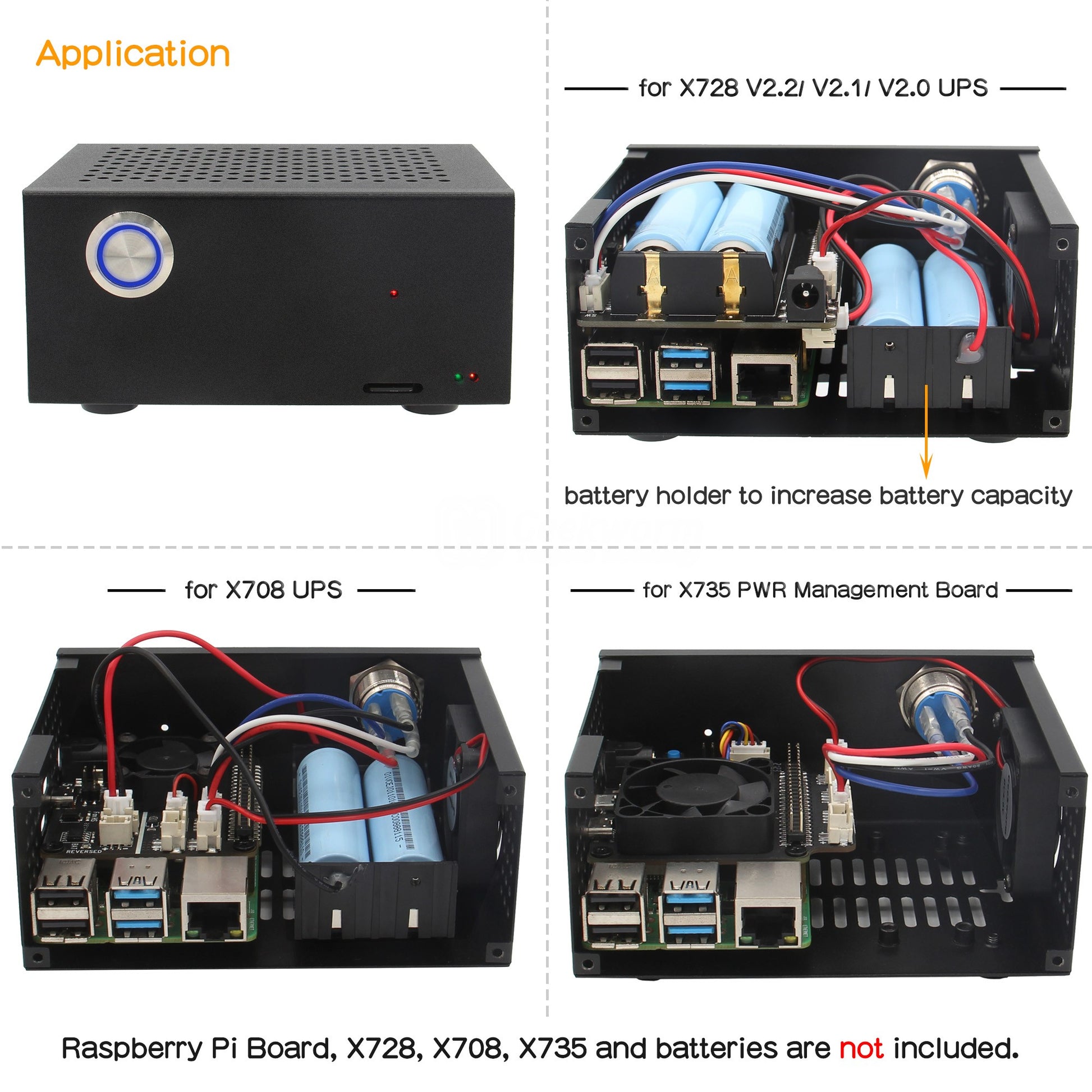

X728-C1 is a metal case with a 5V 4010 cooling fan and metal momentary power switch. It is special designed for Raspberry Pi 4 with X728 V2.0/ V2.1/ V2.2 ups, also compatible with Raspberry Pi 4 with X708 UPS or Raspberry Pi 4 with X735.
X728-C1 also equipped with a 2-slot parallel 18650 battery holder, users can connect it to X728 UPS to increase the battery capacity.

User Manual: wiki.geekworm.com/X728#X728-C1

Features

• High quality metal material with surface galvanized process;
• Exhaust holes surface can reach good heat dissipation

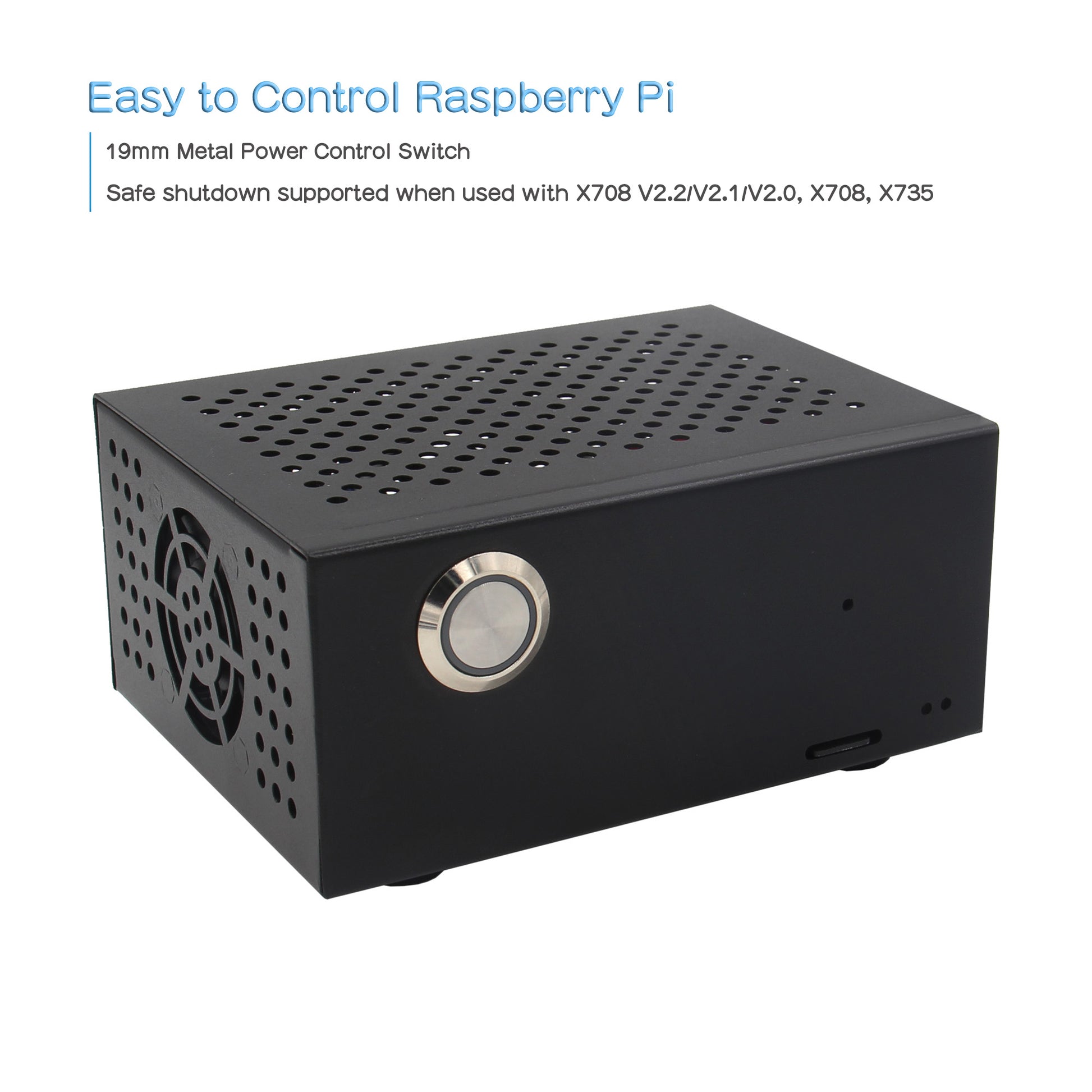

• Equipped with a 19mm momentary power switch for easy power control
• Easy to insert and remove SD card - No need to open the case
• Reserved GPIO cable hole
• with VESA mounting hole, you can hang it on the wall or somewhere you want.

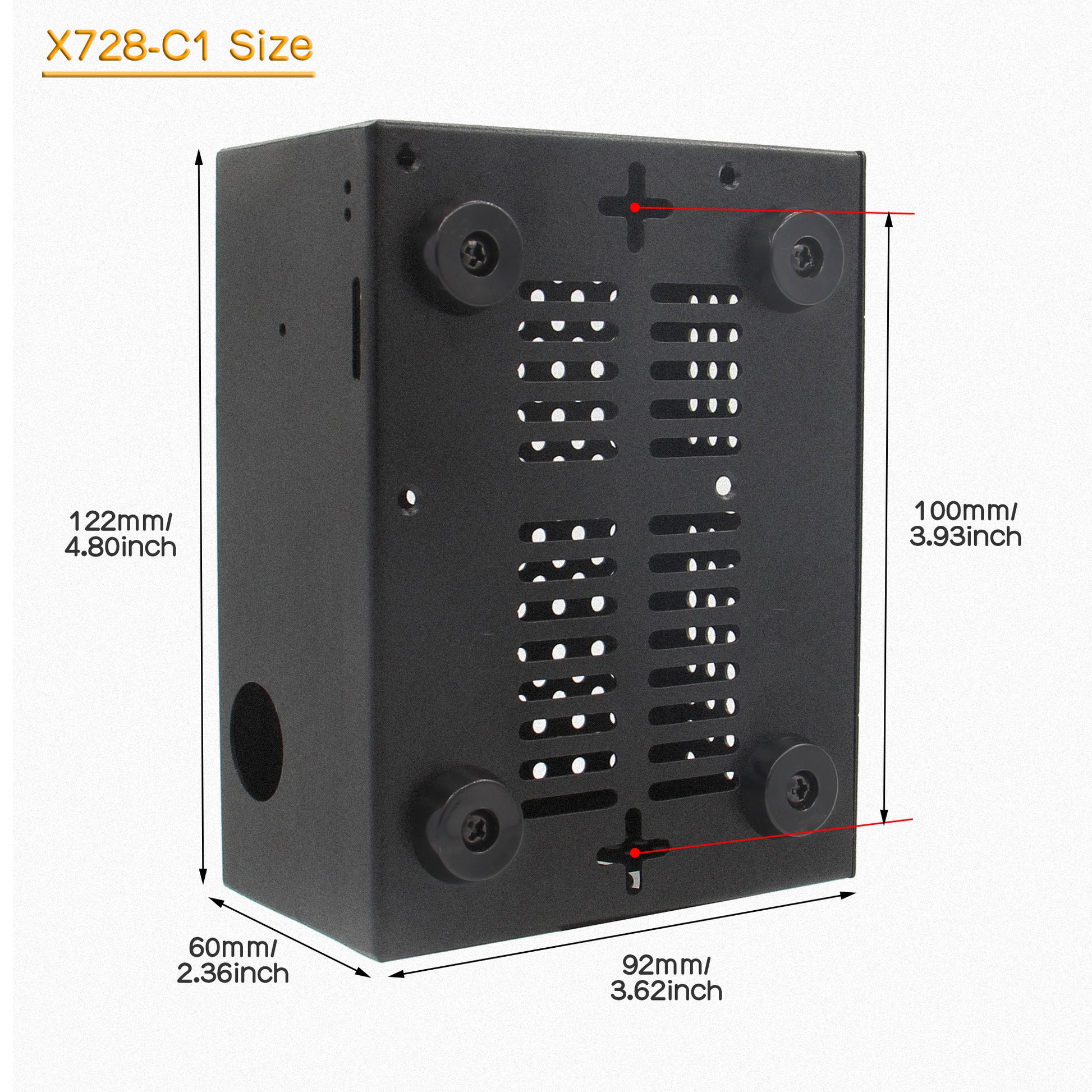

• Case Dimensions: 122*92*60mm/4.8 x 3.62 x 2.36inch

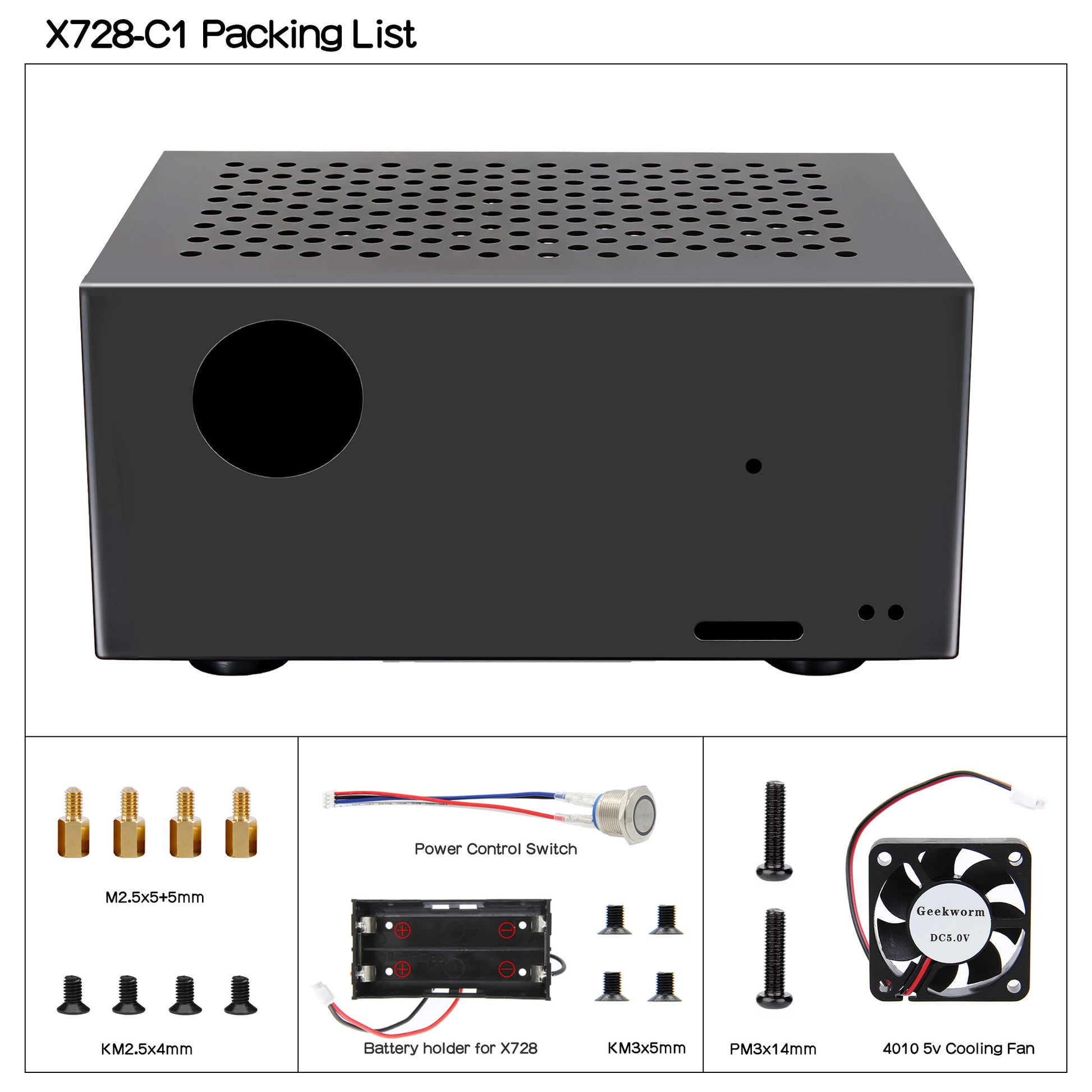

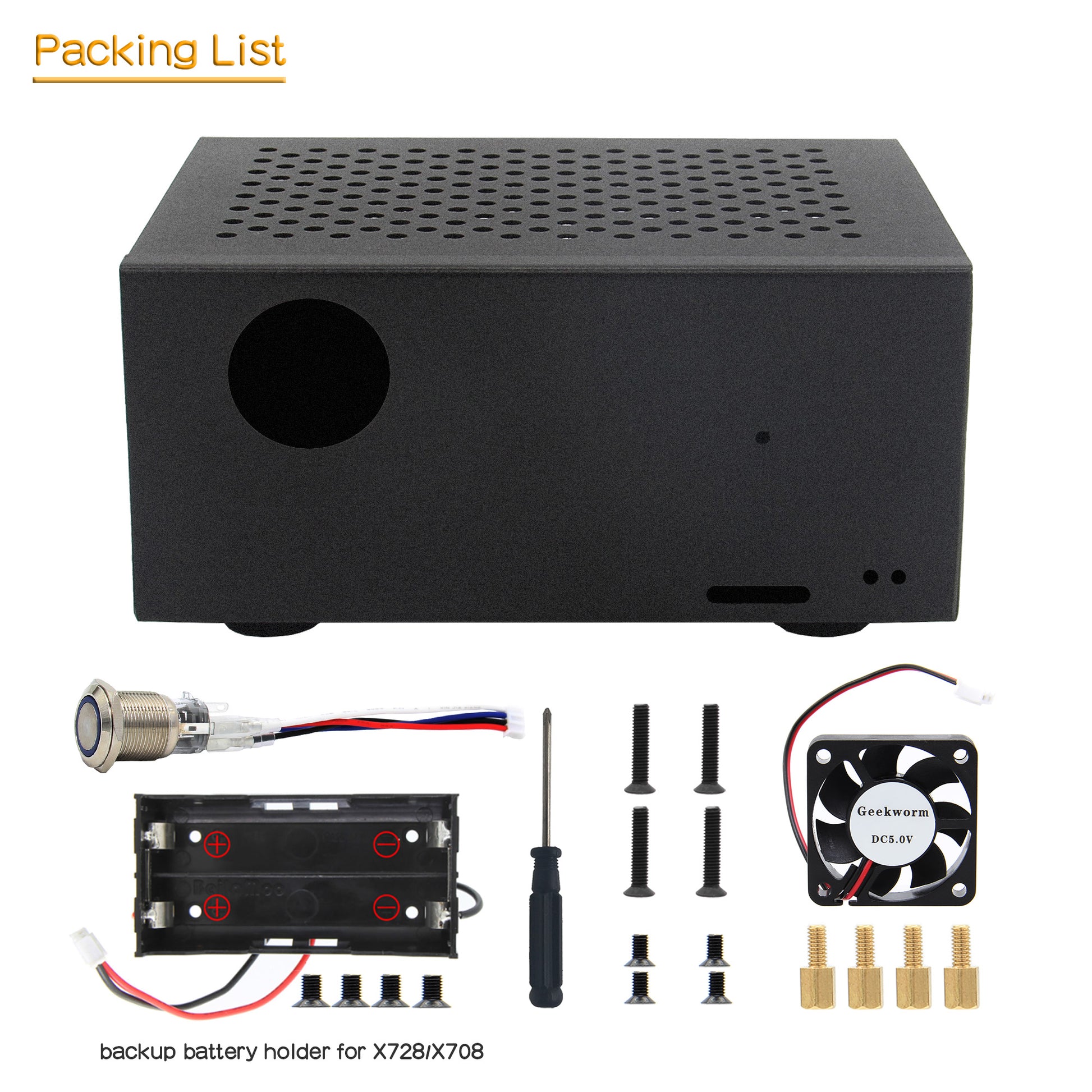

Packing List

• 1 x X728-C1 metal case
• 1 x Momentary switch
• 1 x 4010 5V cooling fan
• 1 x 18650 battery holder(for backup)
• 4 x M2.5x5+5mm spacers
• 4 x KM2.5x4mm screws
• 4 x PM3x10mm screws (for fan)
• 1 x Small screw driver
