Geekworm T150 M.2 NGFF SATA SSD Storage Expansion Board Compatible with Jetson Nano 2GB/4GB

Note: The jetson Nano , SSD or power supply is not included in the packing list.

Overview

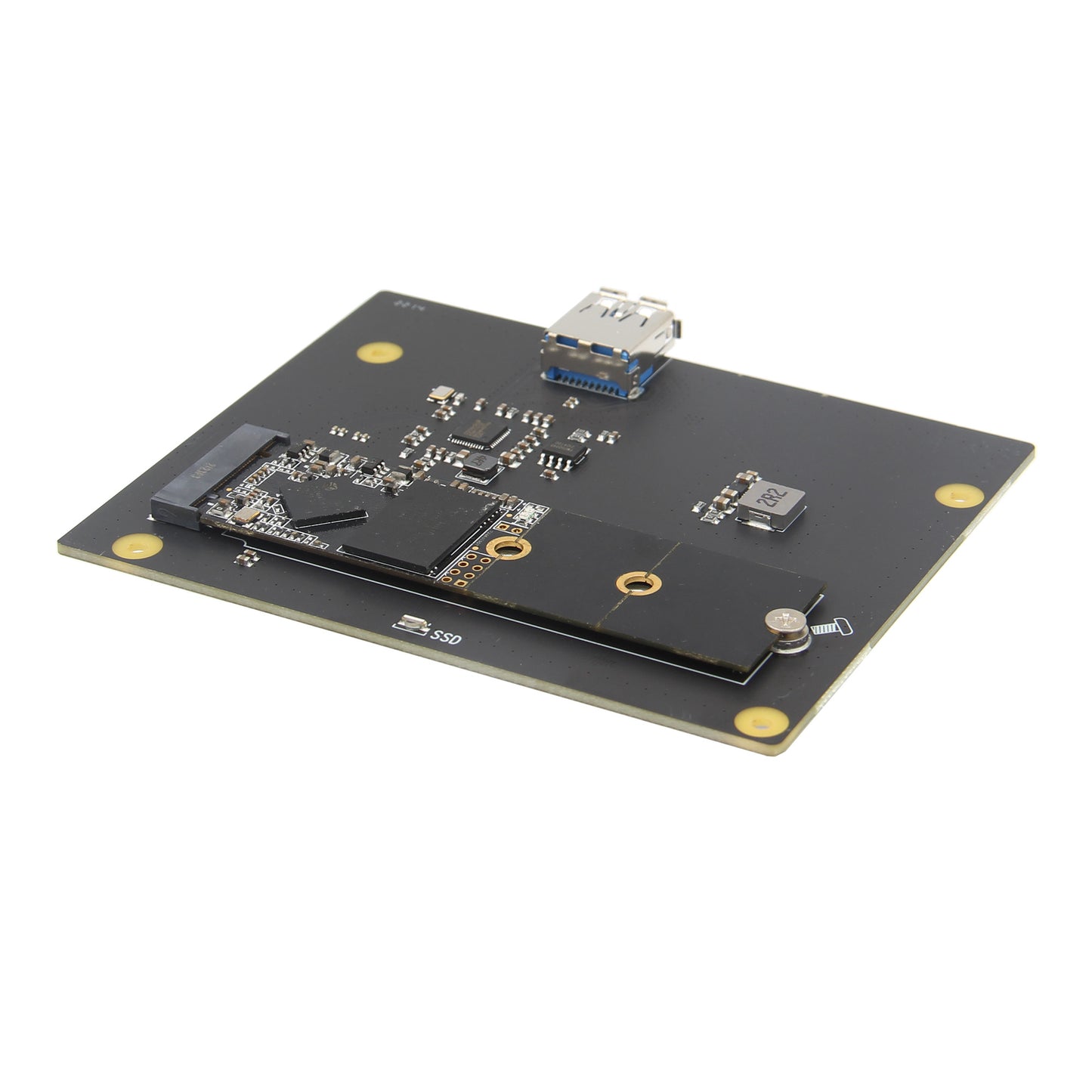

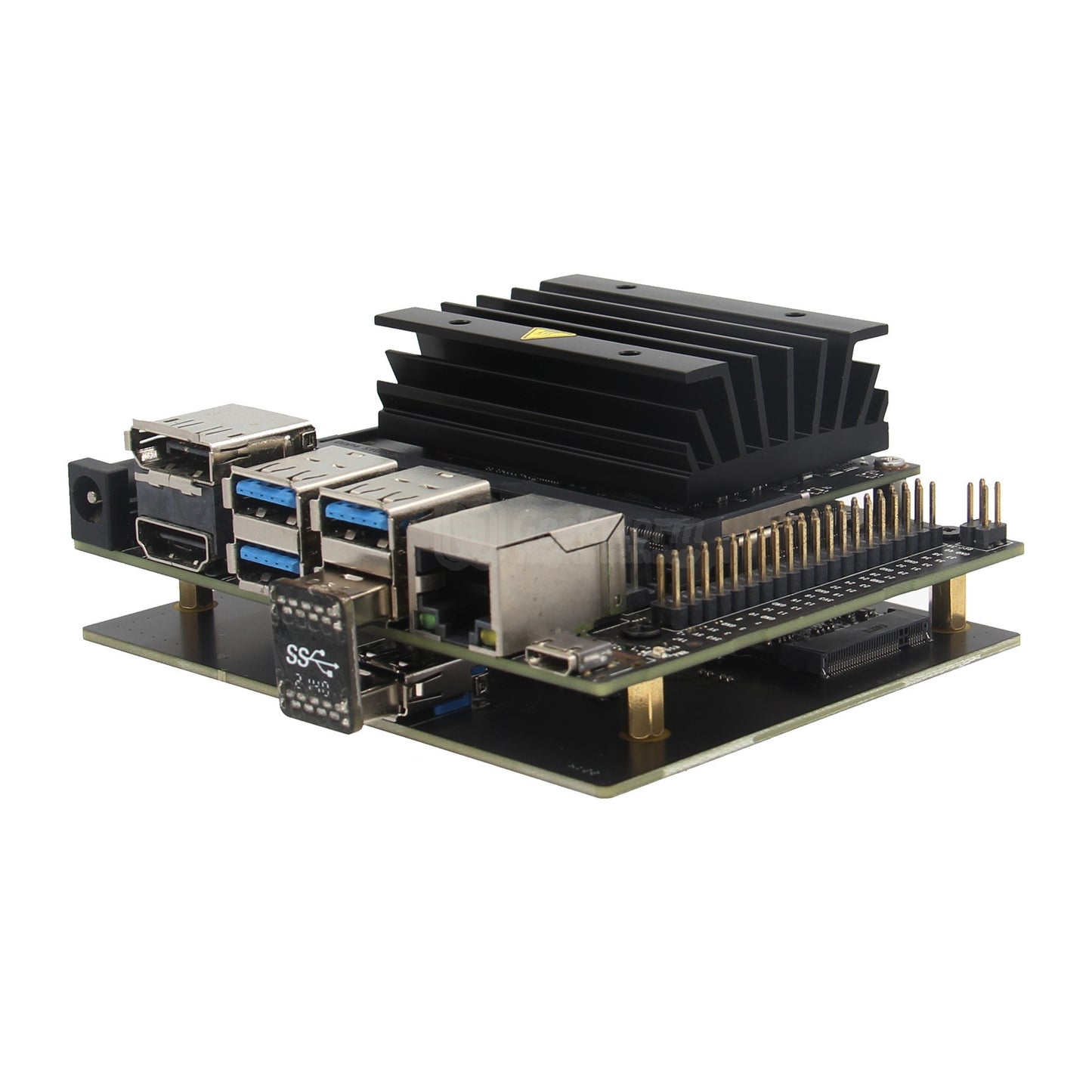

The T150 is a M.2 NGFF SATA SSD storage expansion board specially designed for NVIDIA Jetson nano developer kit, it
supports up to 2TB M.2 NGFF SSD solid-state drive (SSD), allowing you to expand your storage with high-speed SSD
drives on Jetson Nano. Now it is time to build a mobile hard disk with a M.2 NGFF SATA SSD for your Jetson Nano.

User Manual: wiki.geekworm.com/T150

Click to Order from Amazon

Features

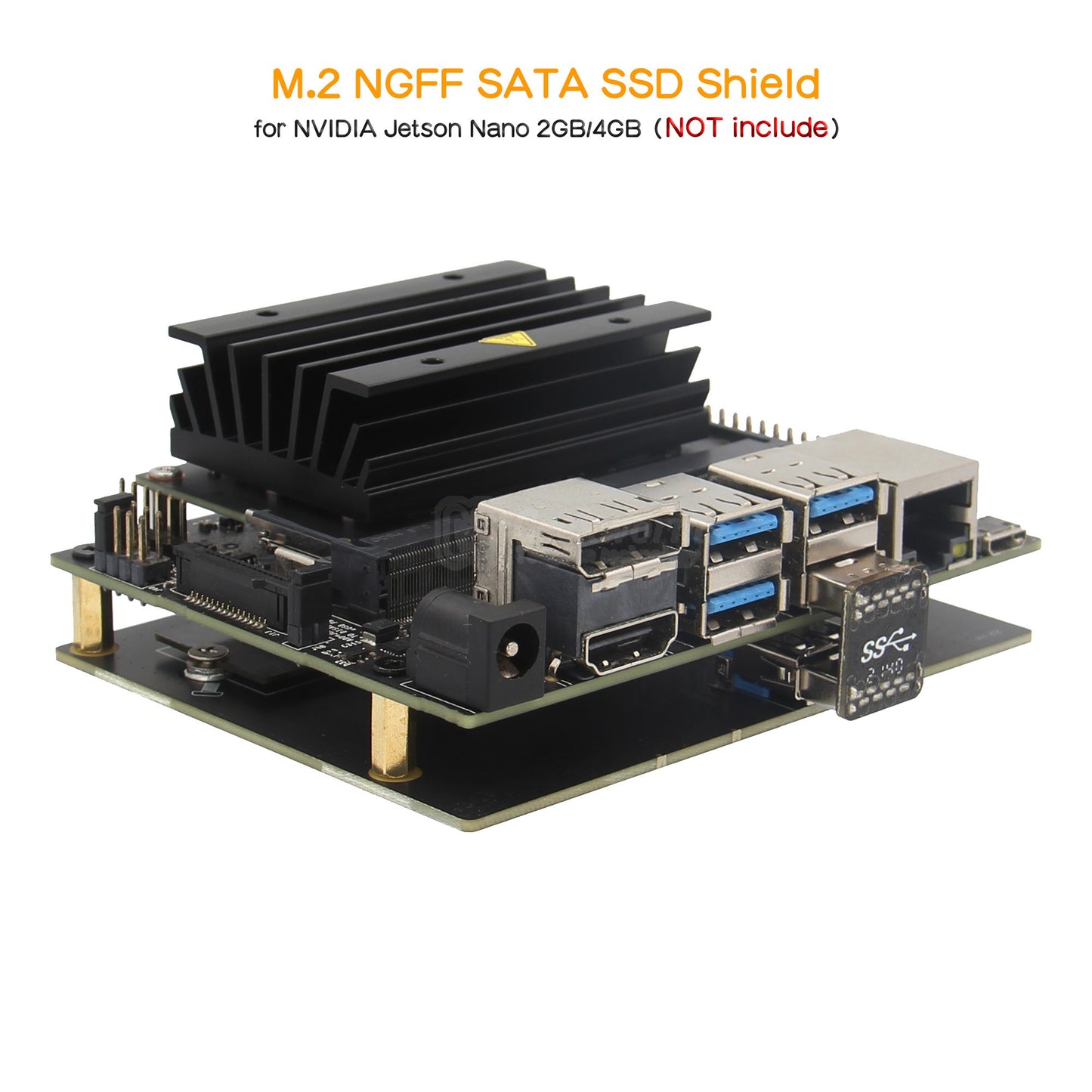

• Ideal storage solution for Jetson Nano - M.2 NGFF SATA SSD Shield
• For Use with Jetson Nano 2GB/4GB
• Support up to 2TB M.2 NGFF SSD solid-state drive

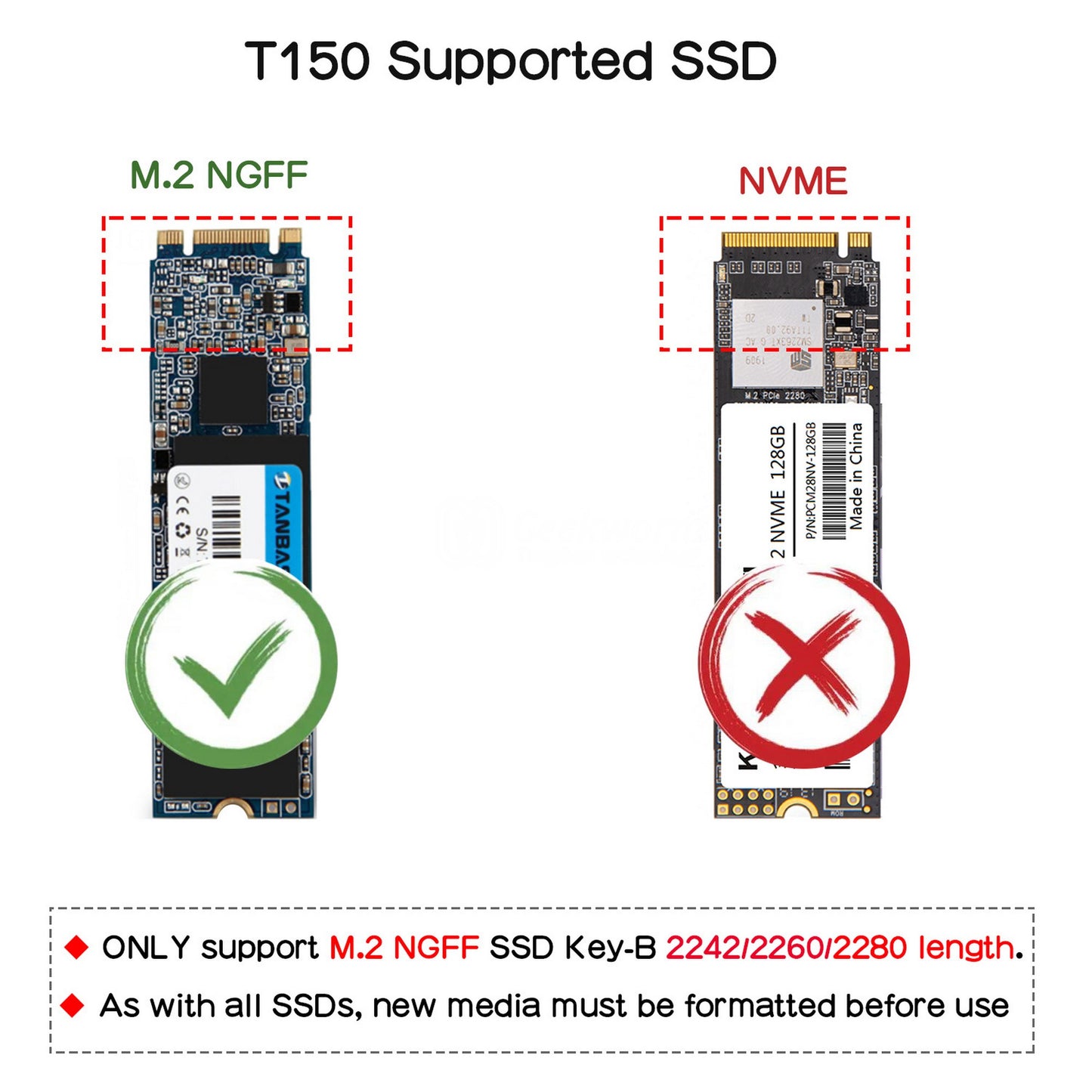

• Support M.2 B Key NGFF SSD 2280 length Only
• Supports USB Attached SCSI Protocol (UASP)
• Specially-made USB3.1 jumper to connect with Jetson Nano- no cable needed!
• USB bus-powered- no PSU needed!
• With SSD LED blue indicator
• PCB Size:100x80mm/39.37x31.49inch

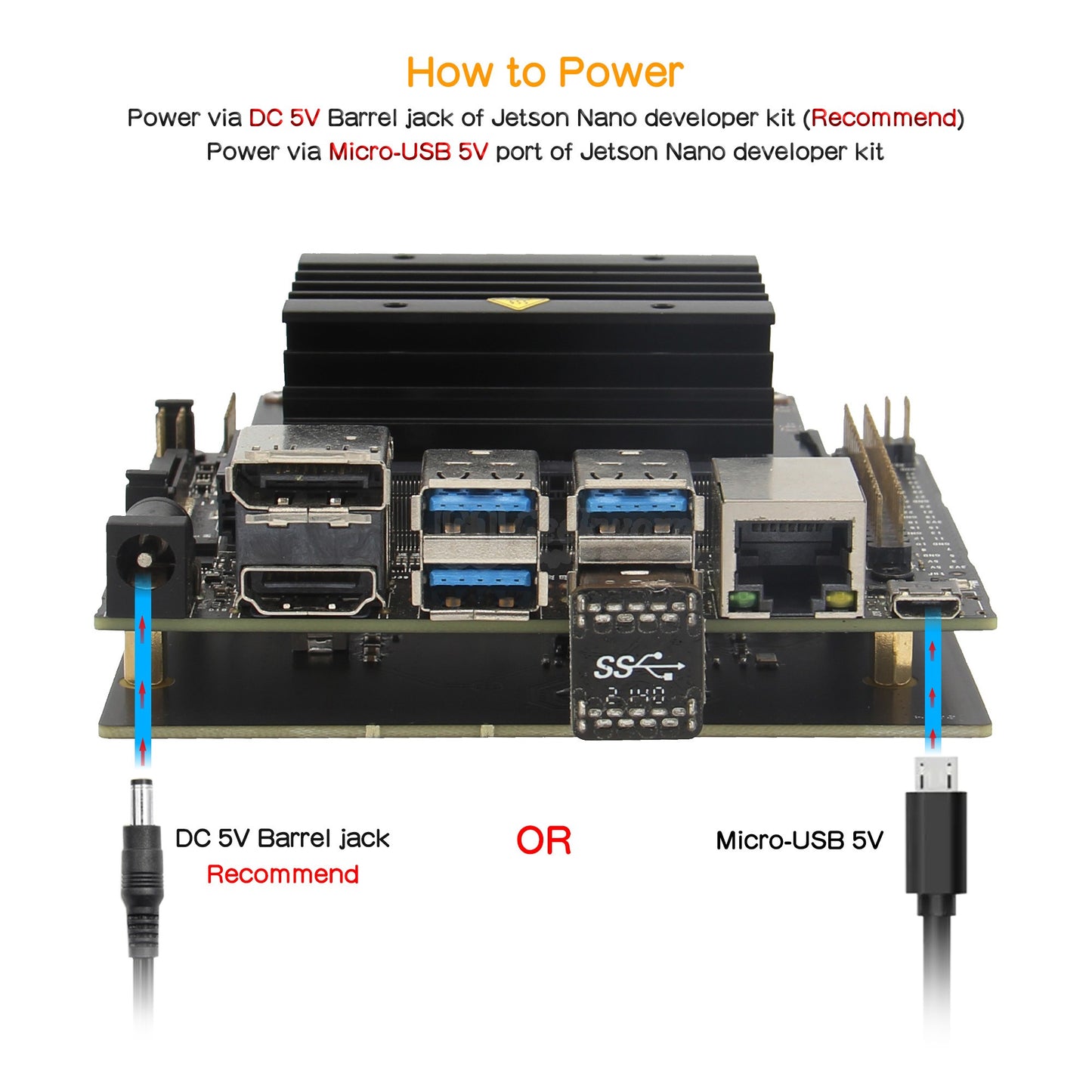

• Power via DC 5V Barrel jack of Jetson Nano developer kit(Recommend)
• Power via Micro-USB 5V port of Jetson Nano developer kit

Matching Metal Case

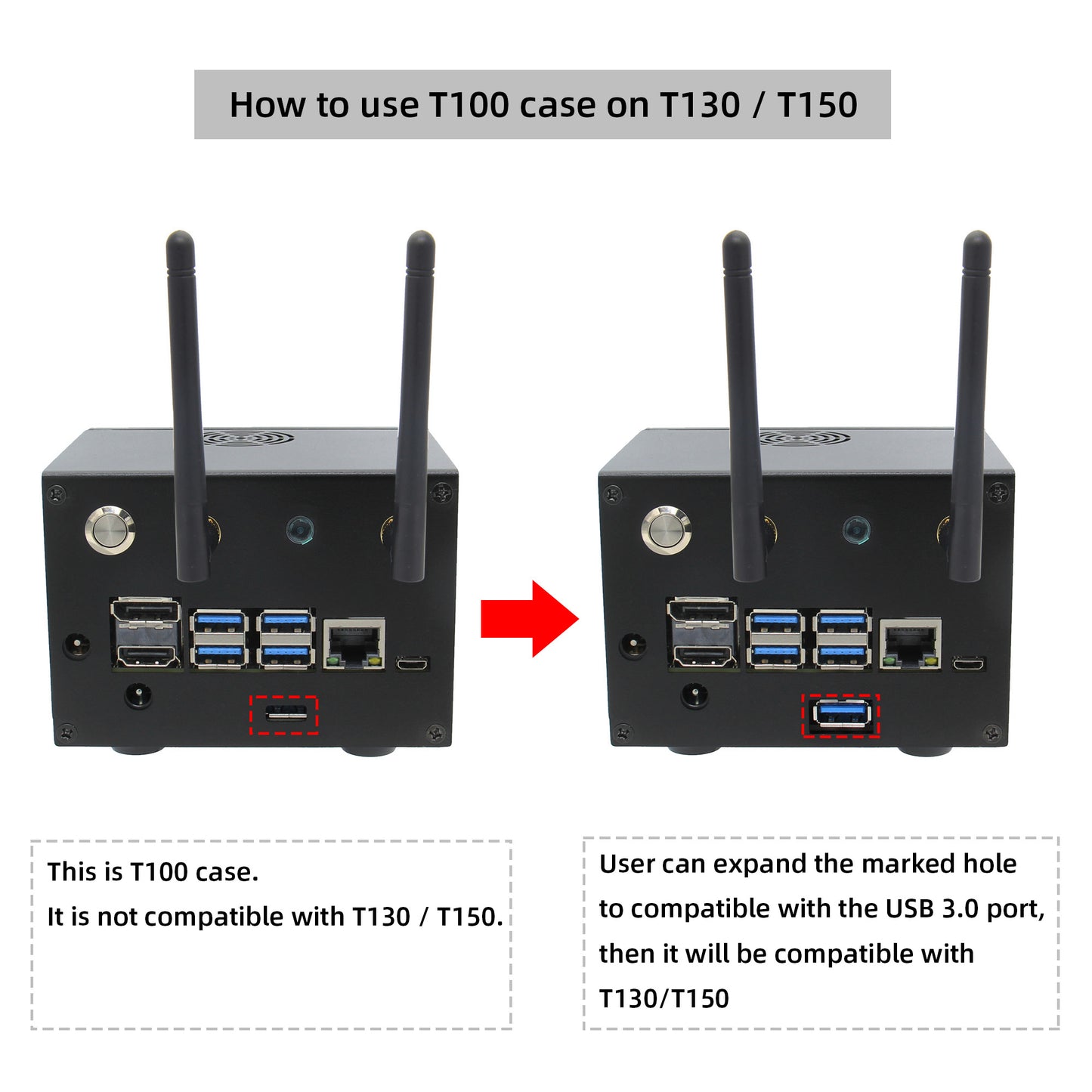

• There is no design case for T150, BUT you can consider to use the T100-C1 Metal Case to drill out the USB port to use.

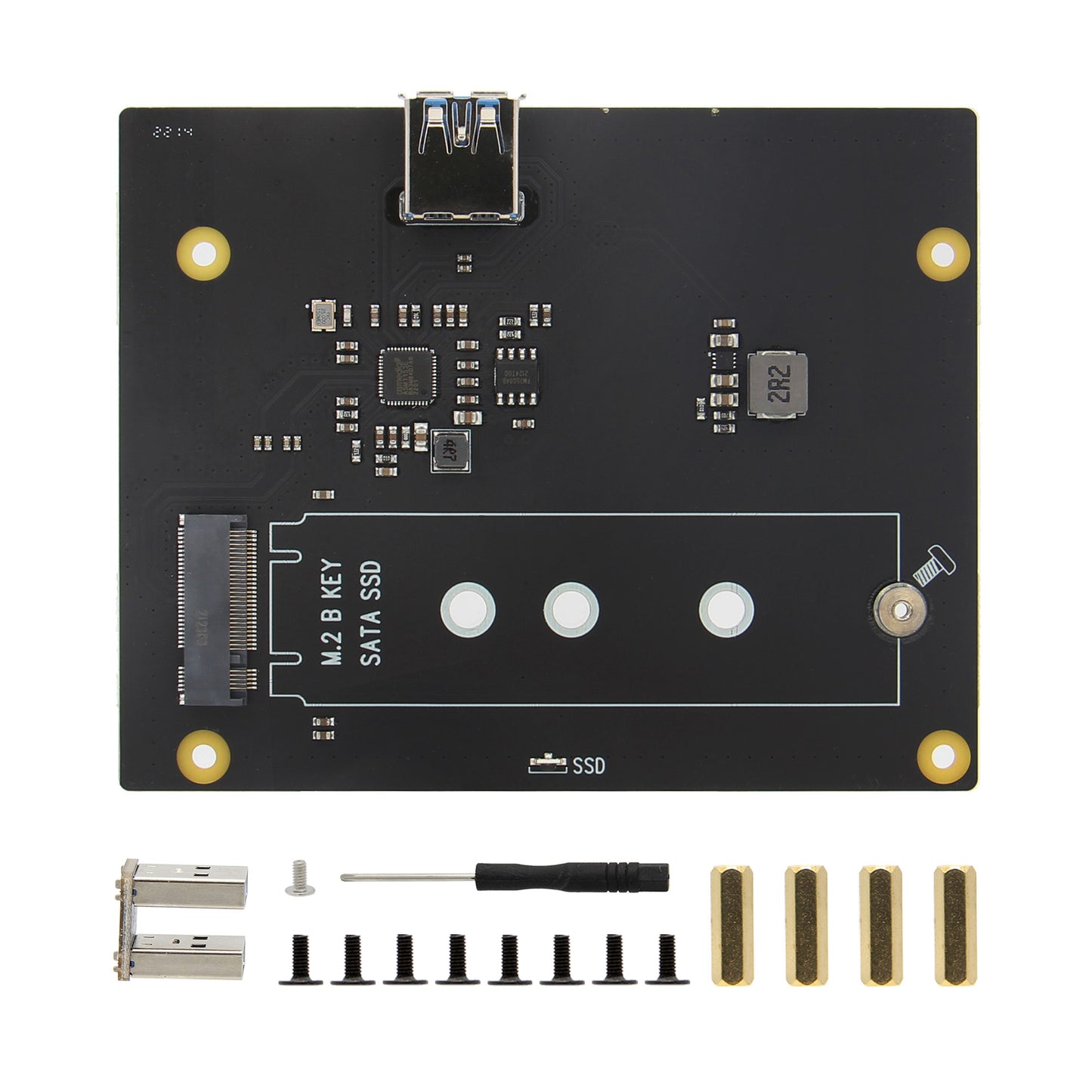

• 1x T150 M2 SATA SSD Expansion Board
• 4x M2.5x11mm F/F Spacers
• 8x M2.5x6mm Screws
• 1x M2x4mm Screw (for SSD)
• 1x Screw Driver
