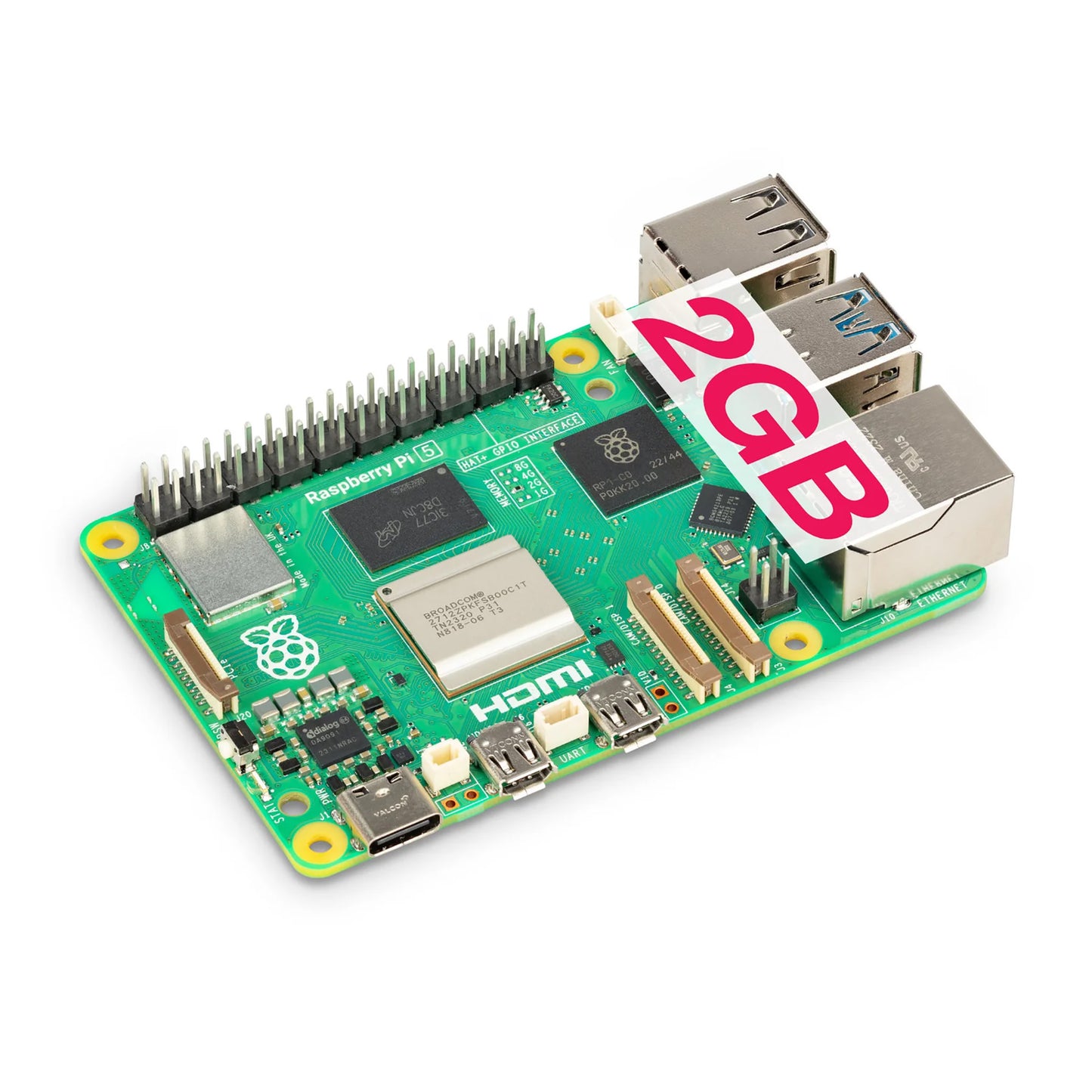

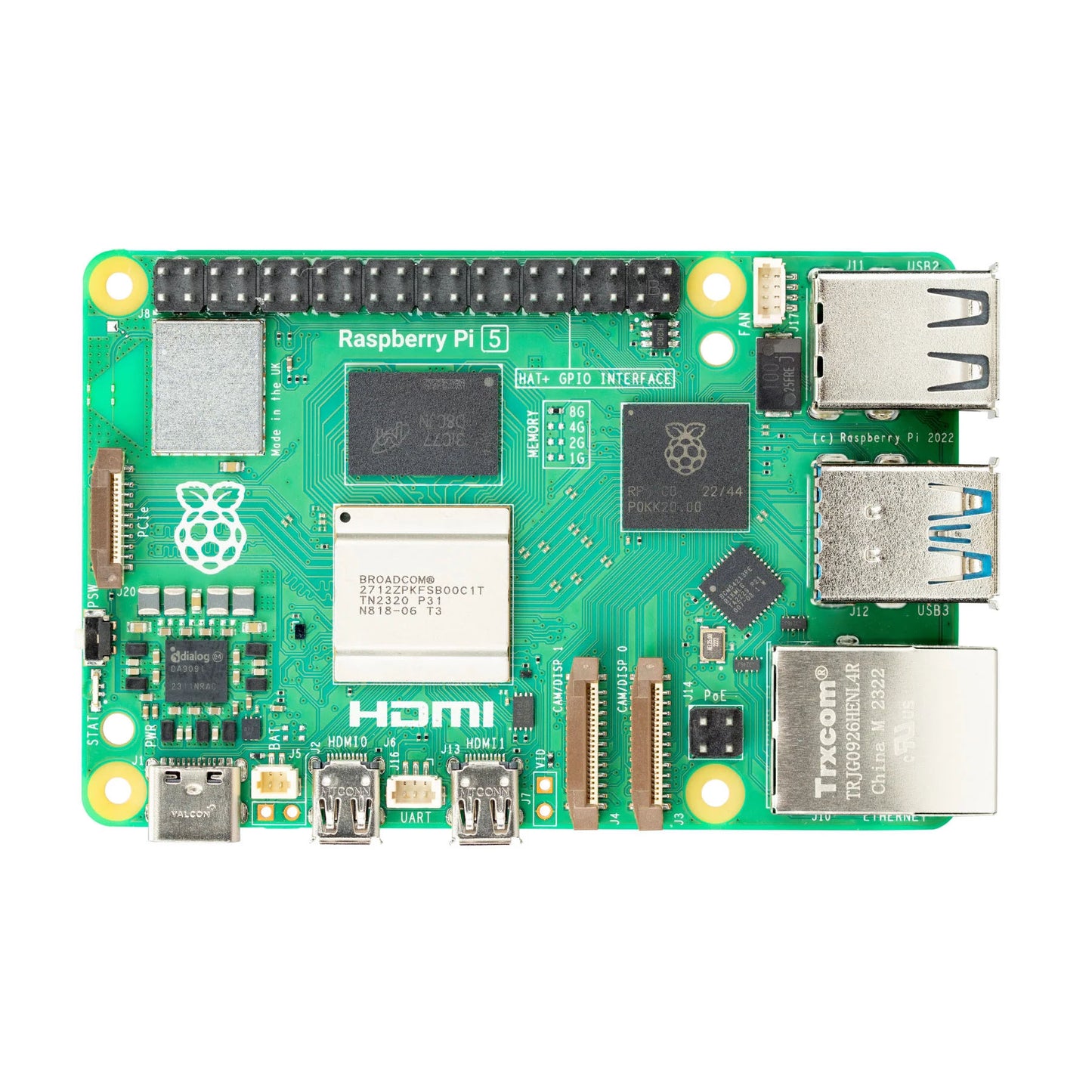

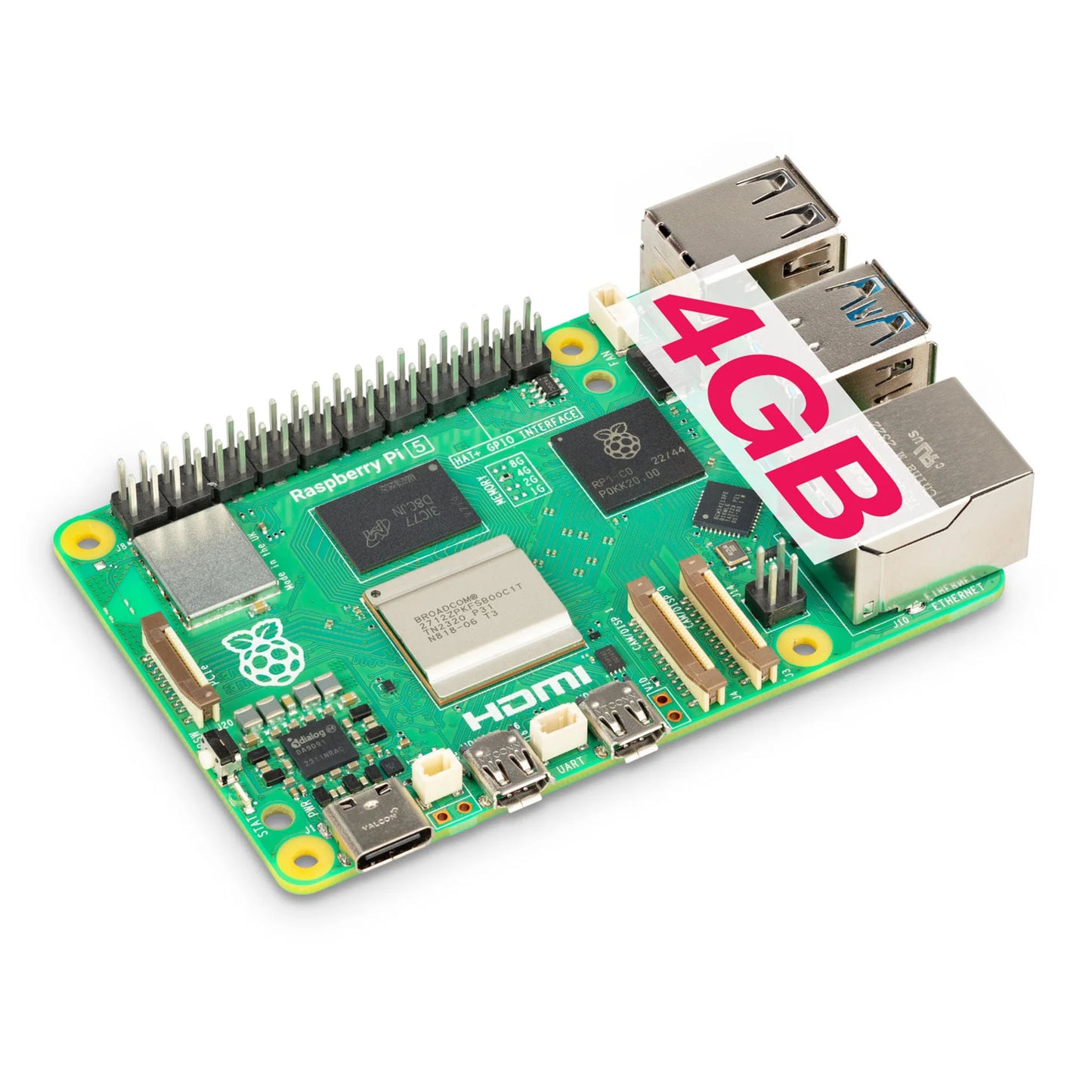

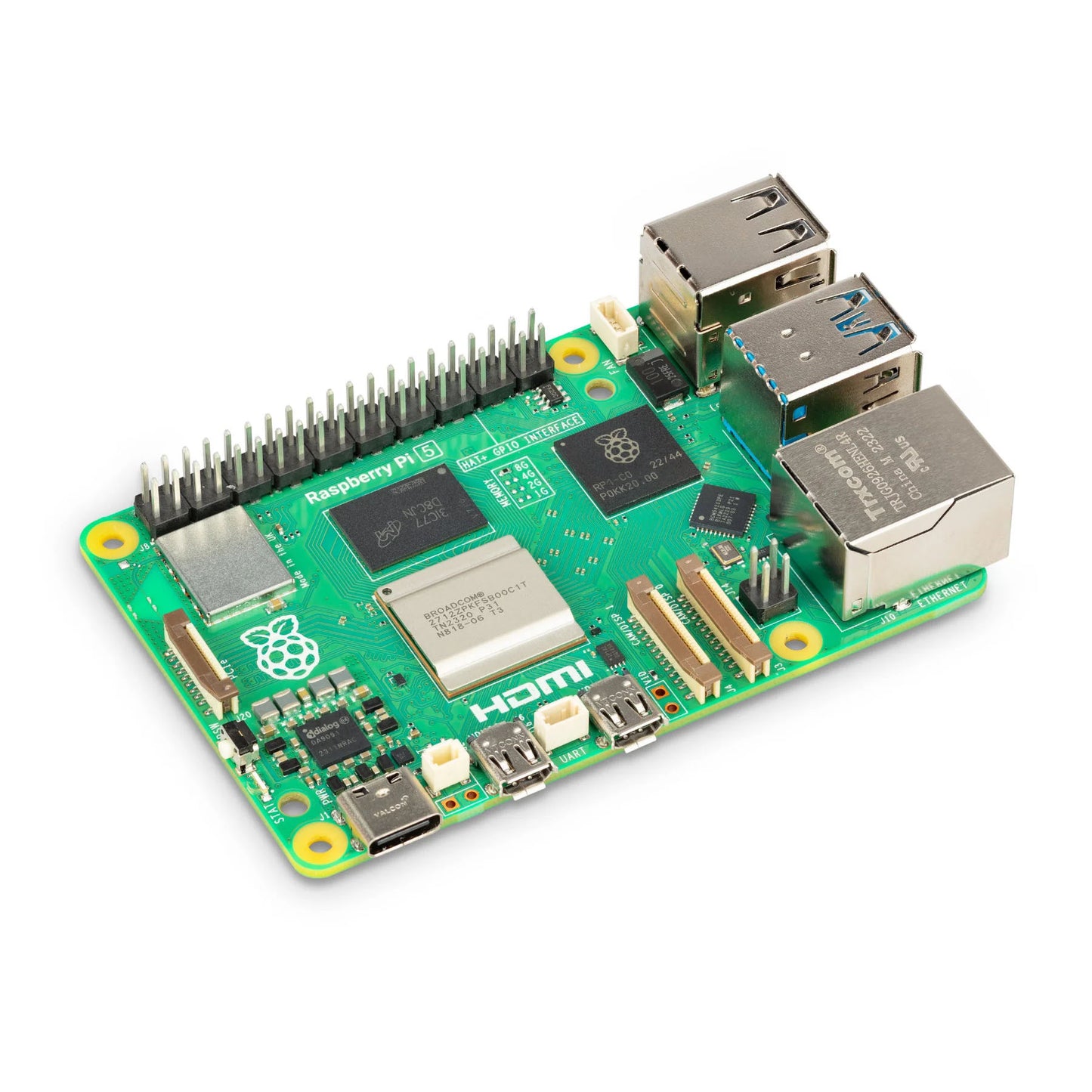

Raspberry Pi 5 Board
Raspberry Pi 5 Board
Raspberry Pi 5 Board
Raspberry Pi 5 Board

    Raspberry Pi 5 Board

    $72.00 $80.00

      Raspberry Pi 5 is the latest product in the popular Raspberry Pi range of computers. It offers up to 2-3x improved CPU performance compared to the prior-generation Raspberry Pi 4.  Significant increase in video performance driven by the VideoCore VII GPU that allows for dual 4Kp60 display over both HDMI ports. For the end user, Raspberry Pi 5 provides a smooth desktop performance and can be the next 'everything computer.

      This product's key features include the following:

      • Integrated power button and power management IC
      • Built in RTC support
      • One (1) PCIe 2.0 interface
      • high-performance 64-bit quad-core processor
      • dual-display support at resolutions up to 4K via a pair of micro-HDMI ports
      • hardware video decode at up to 4Kp60
      • up to 8GB of RAM
      • dual-band 2.4/5.0 GHz wireless LAN
      • Bluetooth 5.0
      • Gigabit Ethernet
      • USB 3.0, simultaneous support for 5 Gbps transfer
      • PoE+ capability, PoE 802.3at compliant (via a separate PoE+ HAT add-on)
      • Two (2) 4-lane MIPI DSI/CSI port allowing for up to 2 cameras or displays

      The dual-band wireless LAN and Bluetooth have modular compliance certification, allowing the board to be designed into end products with significantly reduced compliance testing, improving both cost and time to market.

      Processor: Broadcom BCM2712, quad-core Cortex-A76 (ARM v8) 64-bit SoC @ 2.4 GHz
      Memory:

       4GB LPDDR4X-4267 SDRAM

      8GB LPDDR4X-4267 SDRAM

      Connectivity:

      2.4 GHz and 5.0 GHz 802.11ac wireless LAN
      Bluetooth 5.0, BLE
      2 x USB 3.0 ports, 5 Gbps simultaneous operation support
      2 x USB 2.0 ports

      GPIO: Standard 40-pin GPIO header
      (fully backwards-compatible with previous boards)
      Video & Sound:

      2 x micro HDMI ports (up to 4Kp60 supported)
      Two (2) 4-lane MIPI DSI/CSI display port, dual camera or display support
      VideoCore V3D VII GPU
      Audio via HDMI ports

      Multimedia: 4Kp60 HEVC decoder
      OpenGL ES, 3.1 graphics, Vulkan 1.2
      SD card support:

      Micro SD card slot, now with support for  high-speed SDR104 mode

      PCIe Interface:

      PCIe 2.0 x 1 slot

      Power:

      5V/5A DC power via USB-C, with Power Delivery support
      Power over Ethernet+ (PoE+)-enabled; PoE 802.3at compliant
      (requires separate PoE+ HAT)

      Integrated power button and power management controller
      Built-in RTC support

      Compliance: For a full list of local and regional product approvals, please visit pip.raspberrypi.com
      Production lifetime: The Raspberry Pi 5 will remain in production until at least January 2035
