Raspberry Pi 4B/3B+/3B X708 V2.0 UPS HAT & Power Management Board with Cooling Fan

Note: The X708 has been discontinued, and there are no plans for future production. Please refer to the new product X1209.

Update:

• Added protection circuit and alarm function when the battery is reversely connected (RESERVED will be on)
• Supports the control of two fan speeds
• Solved the problem that the old version can't charge when the battery is exhausted
• Improved AUTO ON function
• Added battery over-discharge function
• Improved power path management function: when external AC power is supplied, the AC PSU supplies power to the UPS shild and also charges the battery.

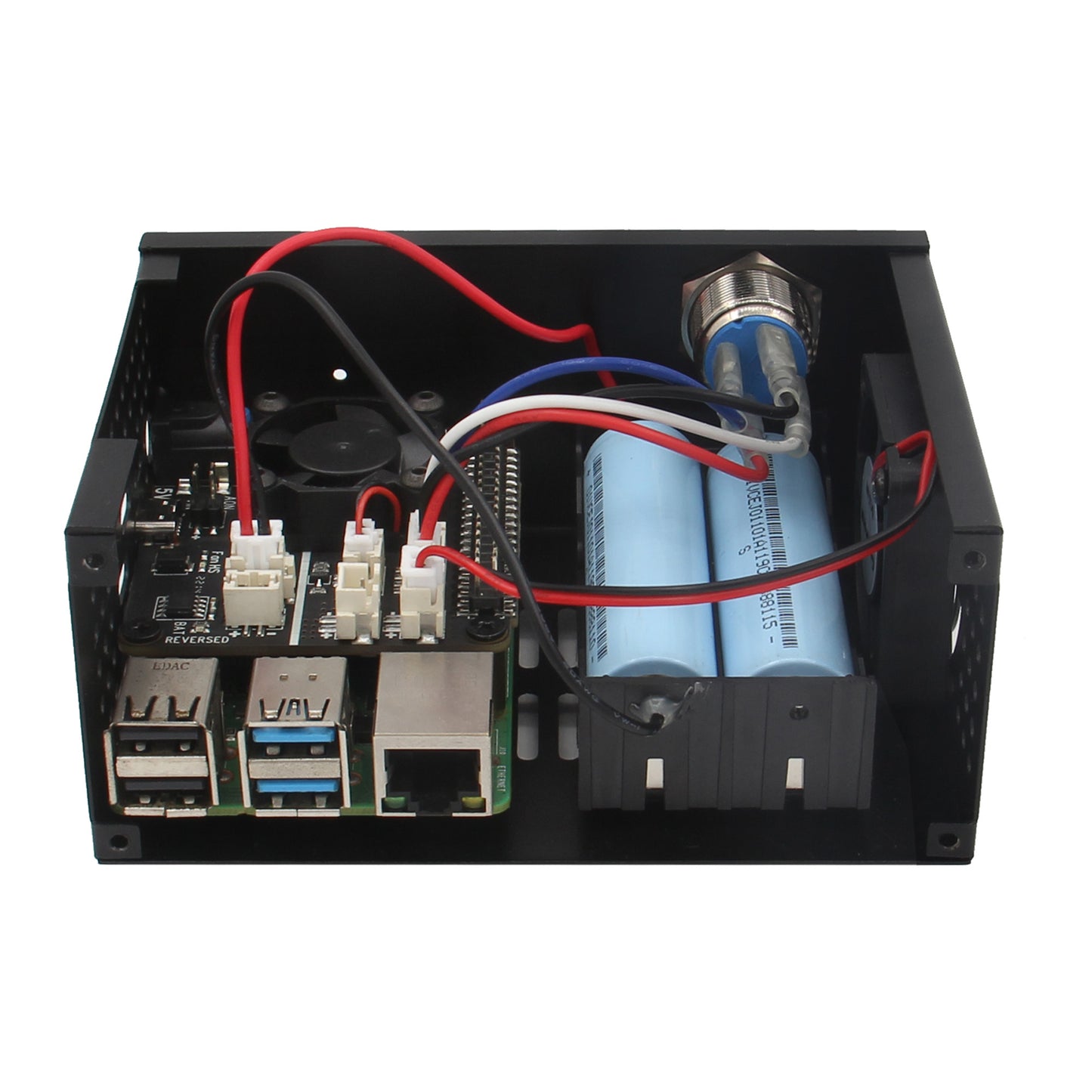

Note: The X708 is compatible with the X857-C3/X857-C1/X829-C1/X825-C7 Case, but X708 do not support the X825-C1 to X825-C6 case.

Overview

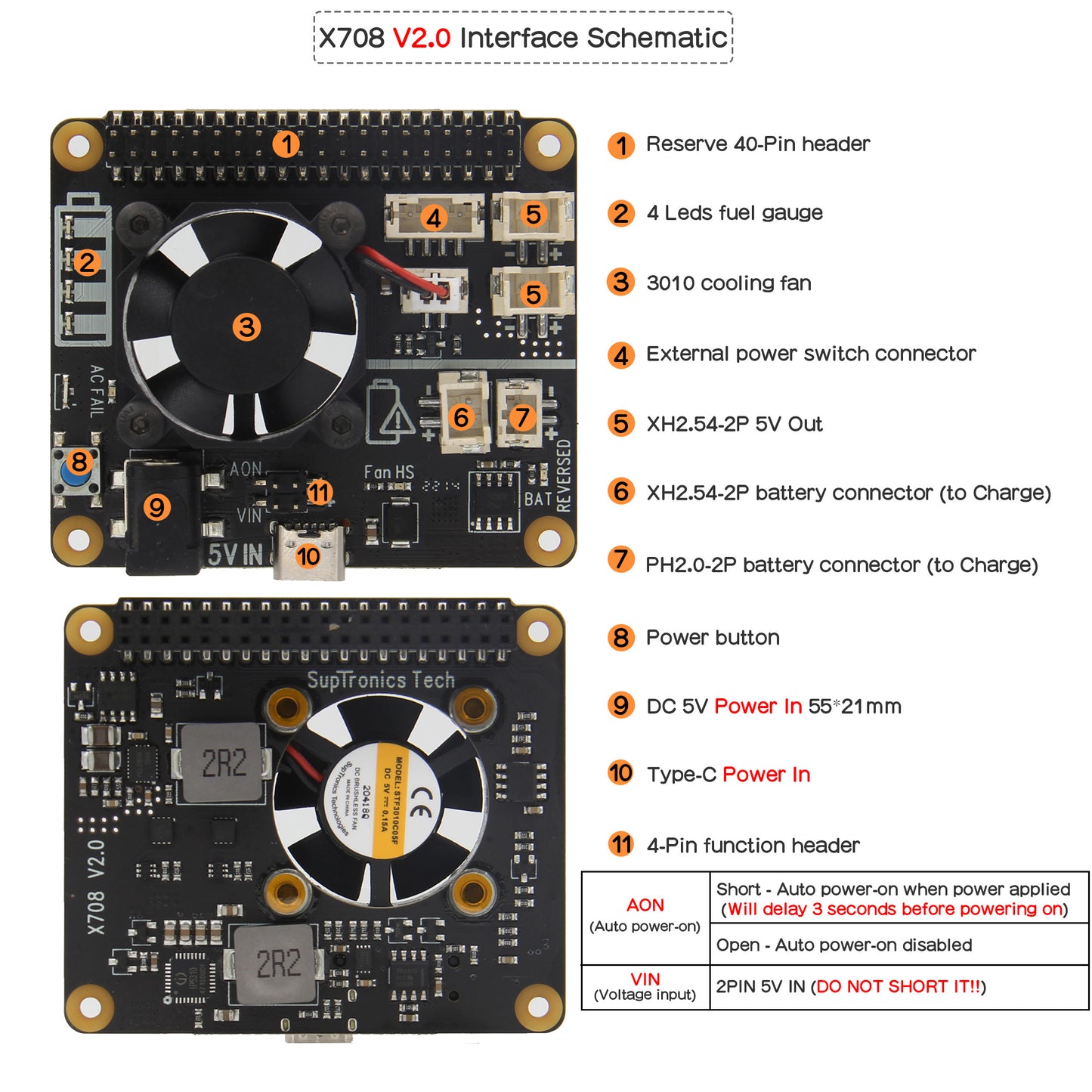

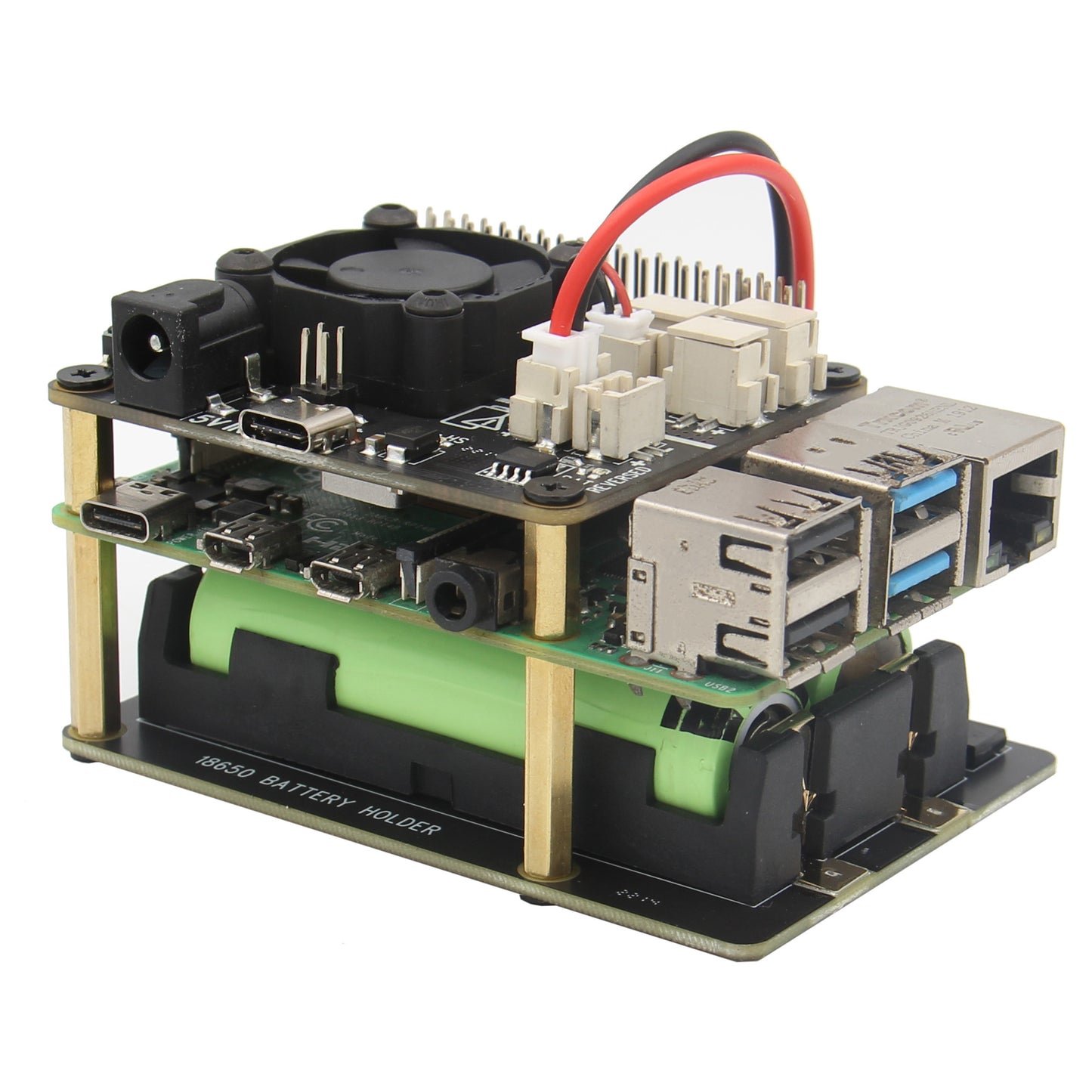

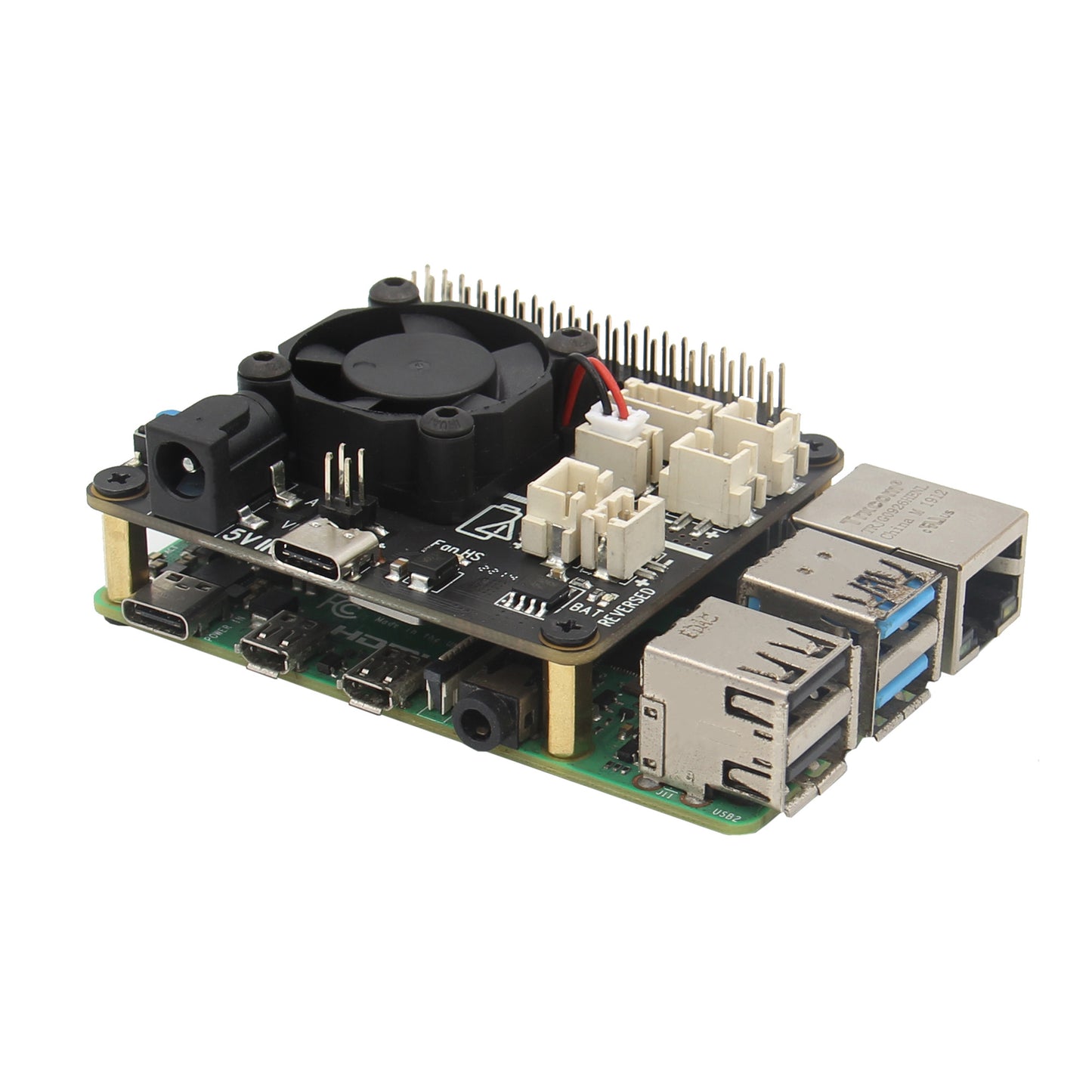

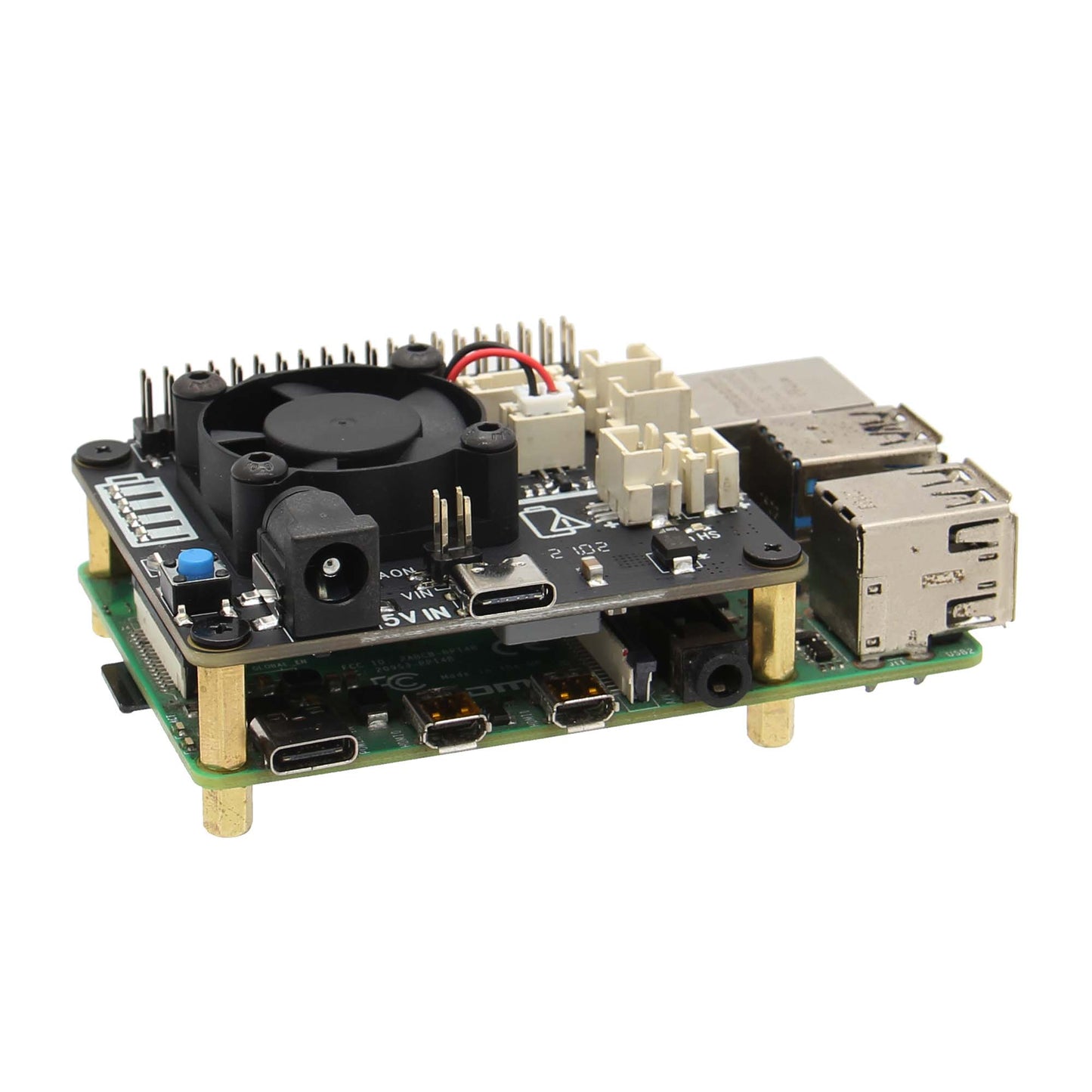

The X708 is an advanced uninterruptible power supply expansion board for all current models of the Raspberry Pi using a 40 pin header. It provides 5.1V Max. 6000mA Power Backup for even the most demanding Raspberry Pi set ups, intelligent and safe power management, safe shutdown, AC power loss/ power adapter failure detection , auto power-on, full poweroff from software, and a cooling fan.

The X708 reserves the 40-pin header that can be stacked with other Raspberry Pi accessory boards for enhanced applications. The X708 can also be used with the X825/X828/X829 (2.5" HDD/SSD Shield) and X857/X862/X872/X873(MSATA/M.2 SSD shield) for safe data backup.

User Manual: https://wiki.geekworm.com/X708

Click to Order from Amazon

For Use With

• Raspberry Pi 4 Model B/3B+/3B/2B/B+

Operating System

• Raspbian Stretch
• Safe shutdown function tested for Raspbian, other operating systems to be tested and advised

Key Features
Smart and powerful Uninterruptible Power Supply (UPS)

• Provides continuous operations for up to 10~30 hours (depending on battery type and qty used)
• Max 5.1V 6000mA Power Backup for even the most demanding RPi set ups
• Supports 2A/3A fast battery charging
• Integrated over current protection and over voltage protection, Maxim's fuel-gauge systems (Reading battery voltage and percentage via i2c) and 10-A fully-integrated synchronous boost converter
• Intelligent automatic charging and discharging
• Operate in both charge mode and boost mode to allow full system management and battery power mgt
• Integrated IN-to-SYS pass-through path to pass the input voltage to the system
• Advanced system power-path management avoids batteries frequent charging and discharging; allows 3A fast charging and powering Raspberry Pi at the same time
• On-board 4 green LEDs indicate battery charging and discharging levels of 25%, 50% , 75% and 100%

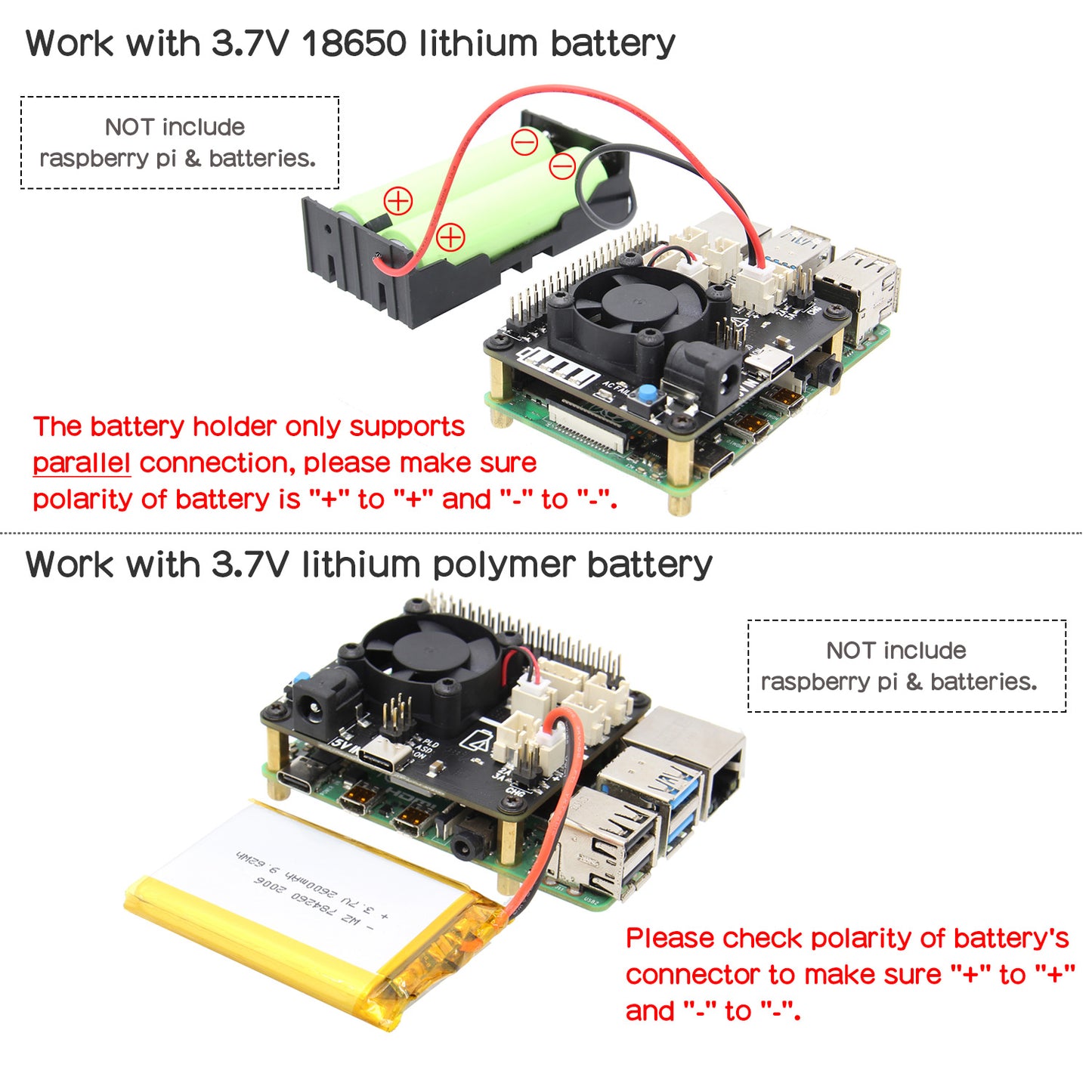

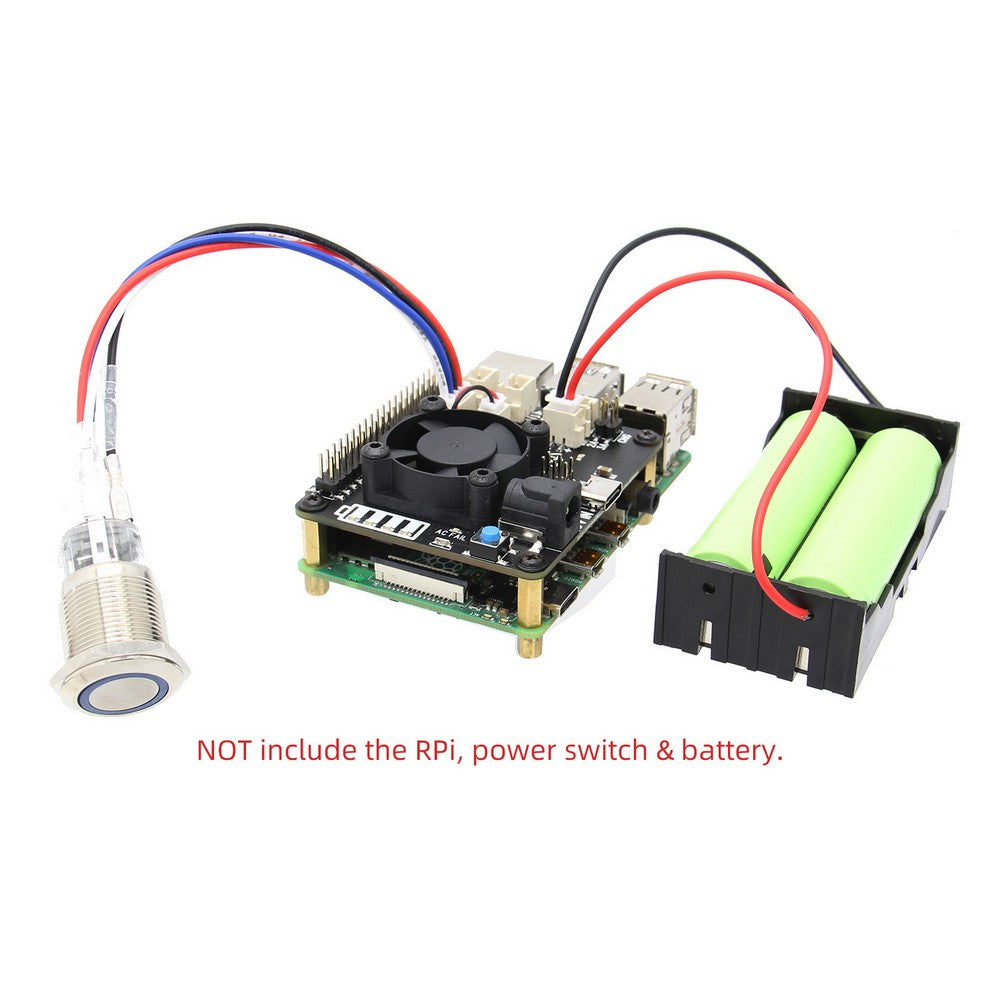

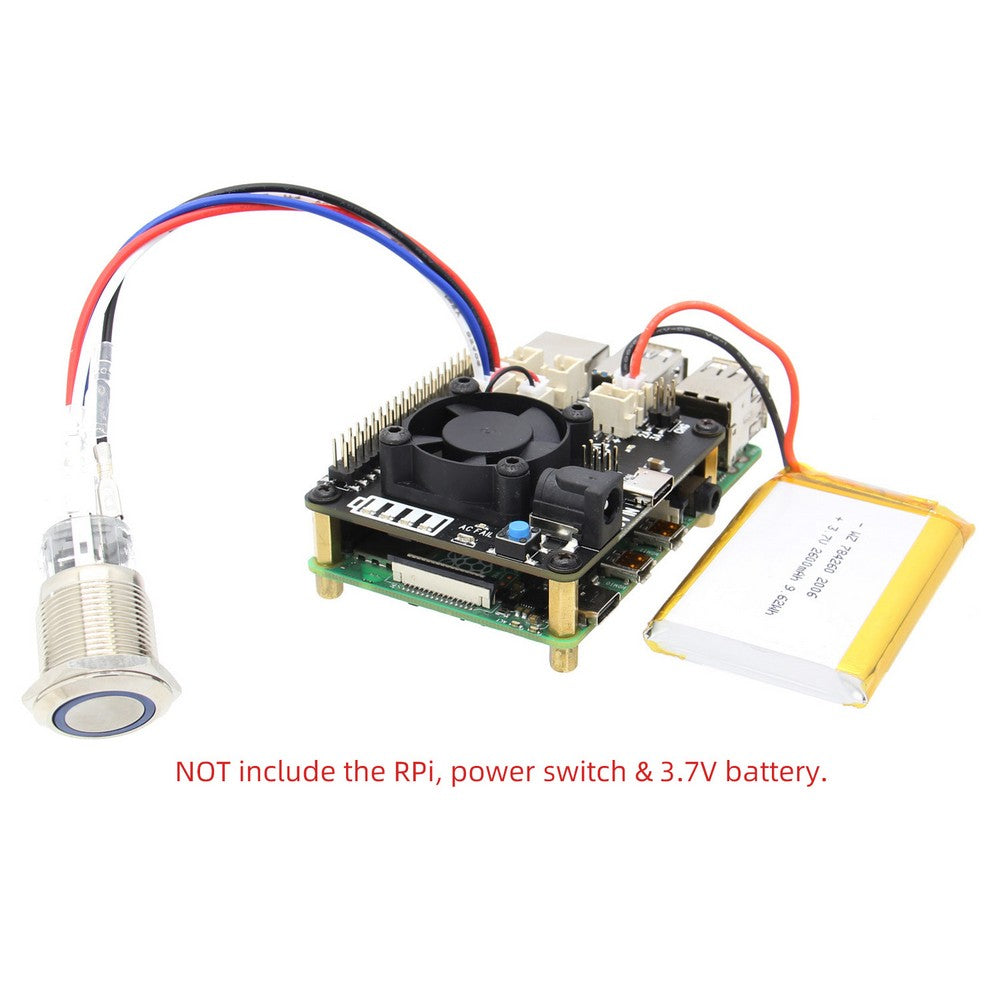

• Batteries attach via PH2.0-2P or XH2.54-2P

Intelligent and safe power management

• Equipped with momentary button for easy power control
• Press the button to turn on
• Press the button and hold for 1~2seconds to reboot
• Press the button and hold for 3~7seconds to implement safe shutdown
• Press the button and hold for >8seconds to force shutdown
• Supports safe shutdown and full poweroff from software
• On-board blue LED shows the status of power on, reboot and shutdown
• AC power loss or power adapter failure detection (LED and GPIO indication)

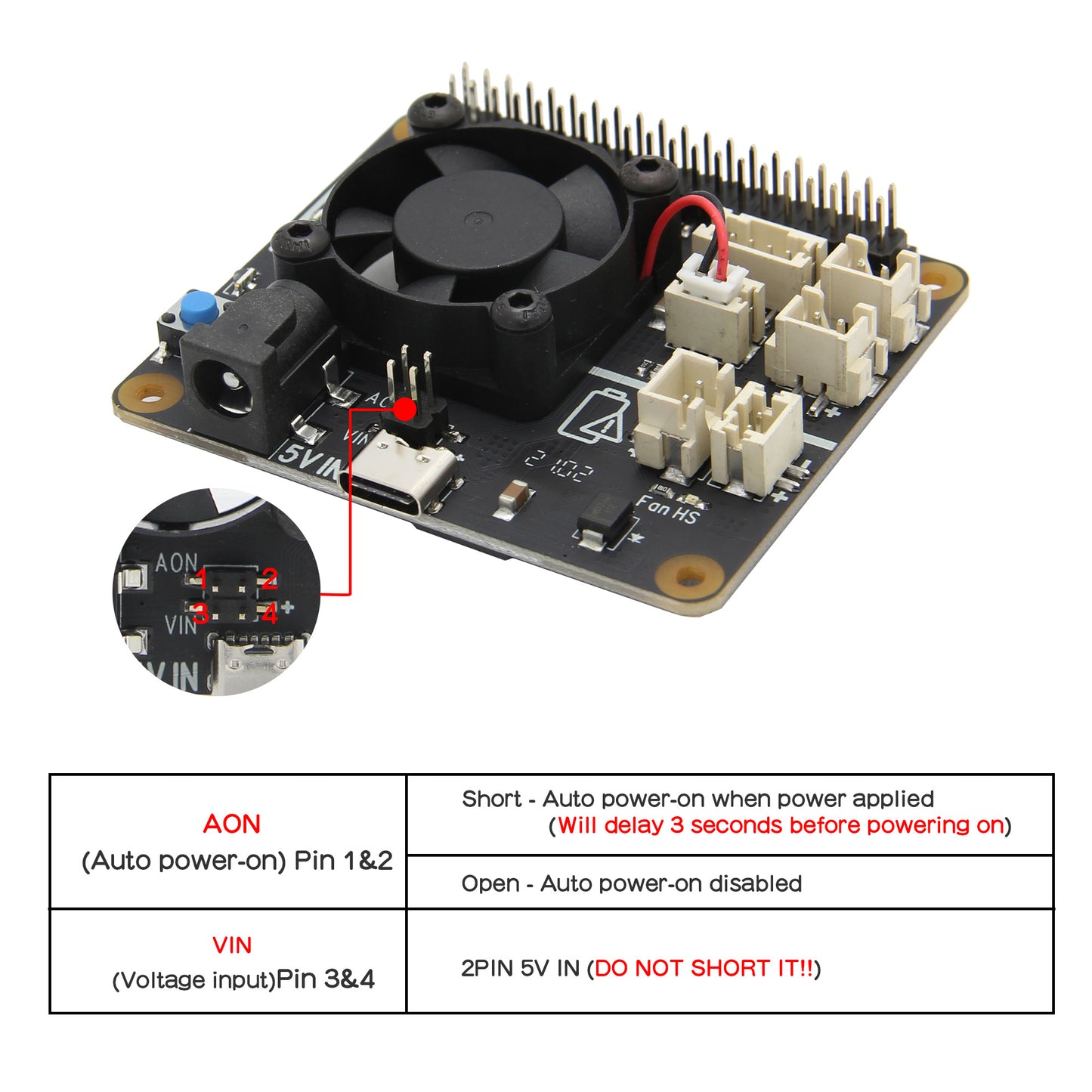

• Optional to enable Auto power on when power applied or restored
• Automatic safe shutdown when battery low (voltage <3.0V)
• Ultra-low standby power consumption to maximize battery life

Integrated cooling fan that allows the heat from your Raspberry Pi to dissipate!

• Completely solve the overheating problem of your Raspberry Pi
• Efficient drop temp of Raspberry Pi CPU

Specifications

• Power supply via Type-C socket : 5Vdc ±5%, ≥3A
• Via DC power jack : 5Vdc ±5%, ≥4A
• UPS output : 5.1V ±5% Max 8A
• UPS charging current: 1.8~2.2A / 2.3~3.2A
• Terminal Battery Voltage : 4.24V
• Recharge Threshold : 4.1V

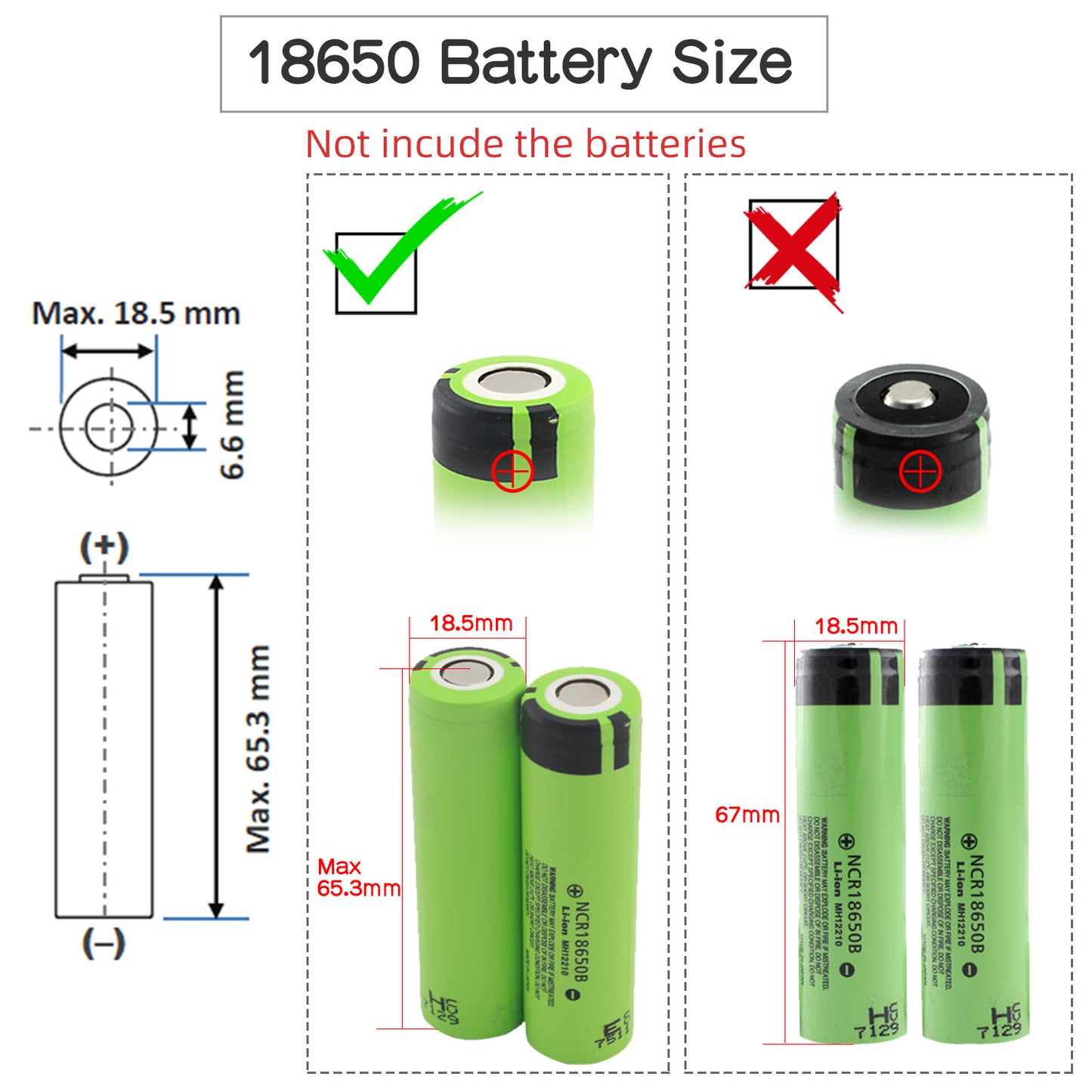

• Battery: 3.7V Lithium Battery

How to Power

• Power via Type-C or DC Jack of X708

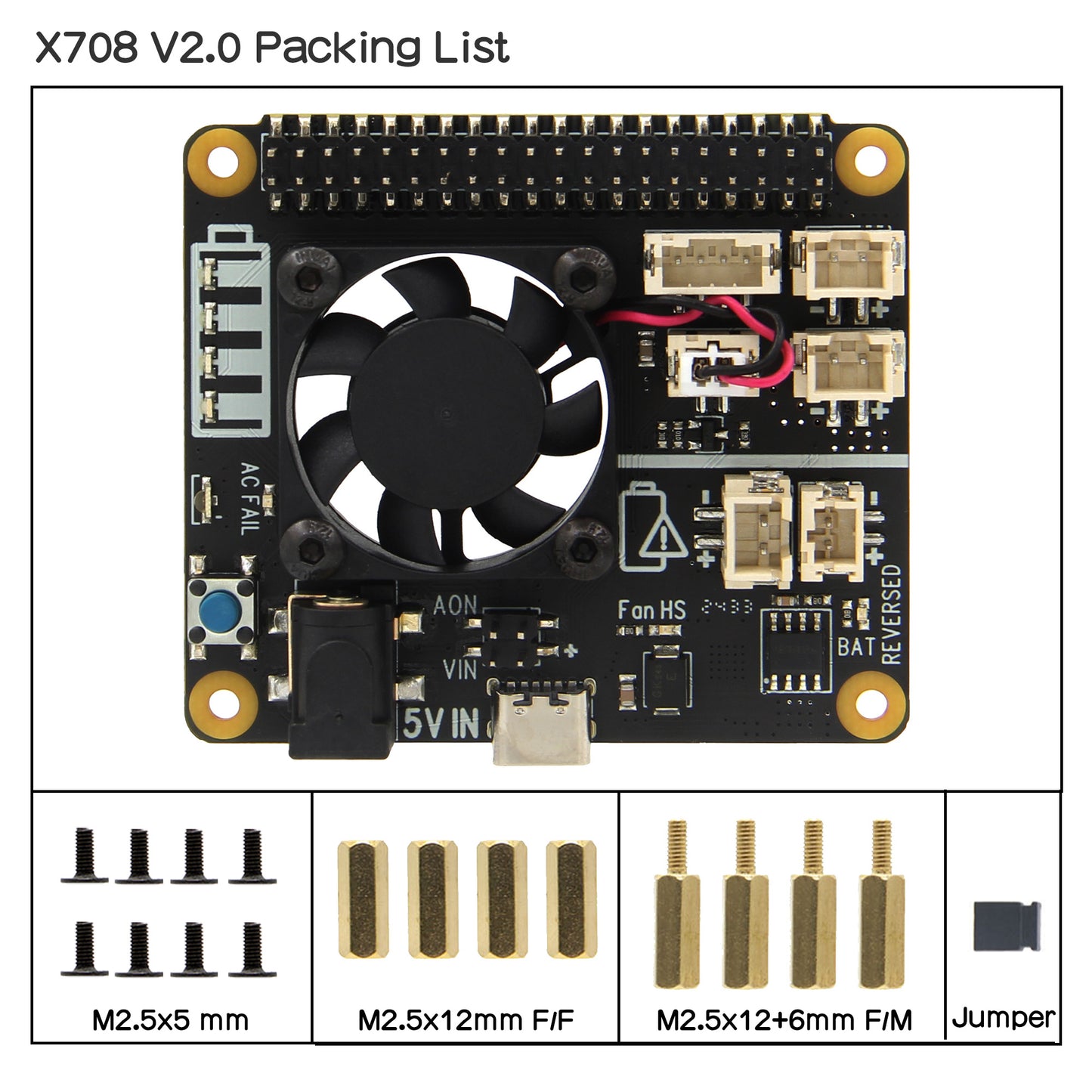

Packing List

• 1x X708 V2.0 Expansion Board
• 8x M2.5 *5mm Screws
• 4x M2.5 *12+6mm Spacers
• 4x M2.5 *12mm Spacers
• 1x Jumper link Pitch 2.54mm
