Geekworm Raspberry Pi 5 5V 5A Power PD Activation Module

Overview

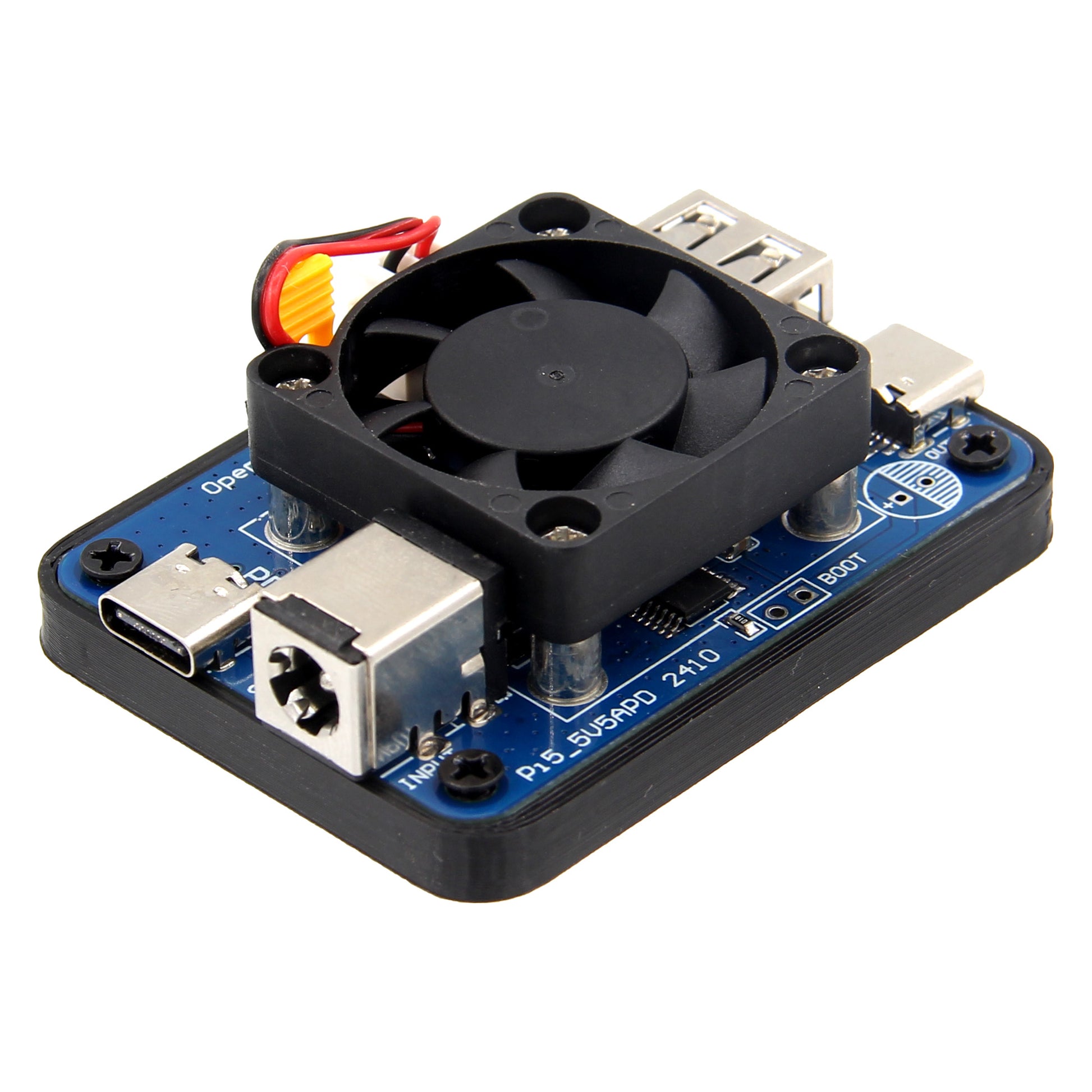

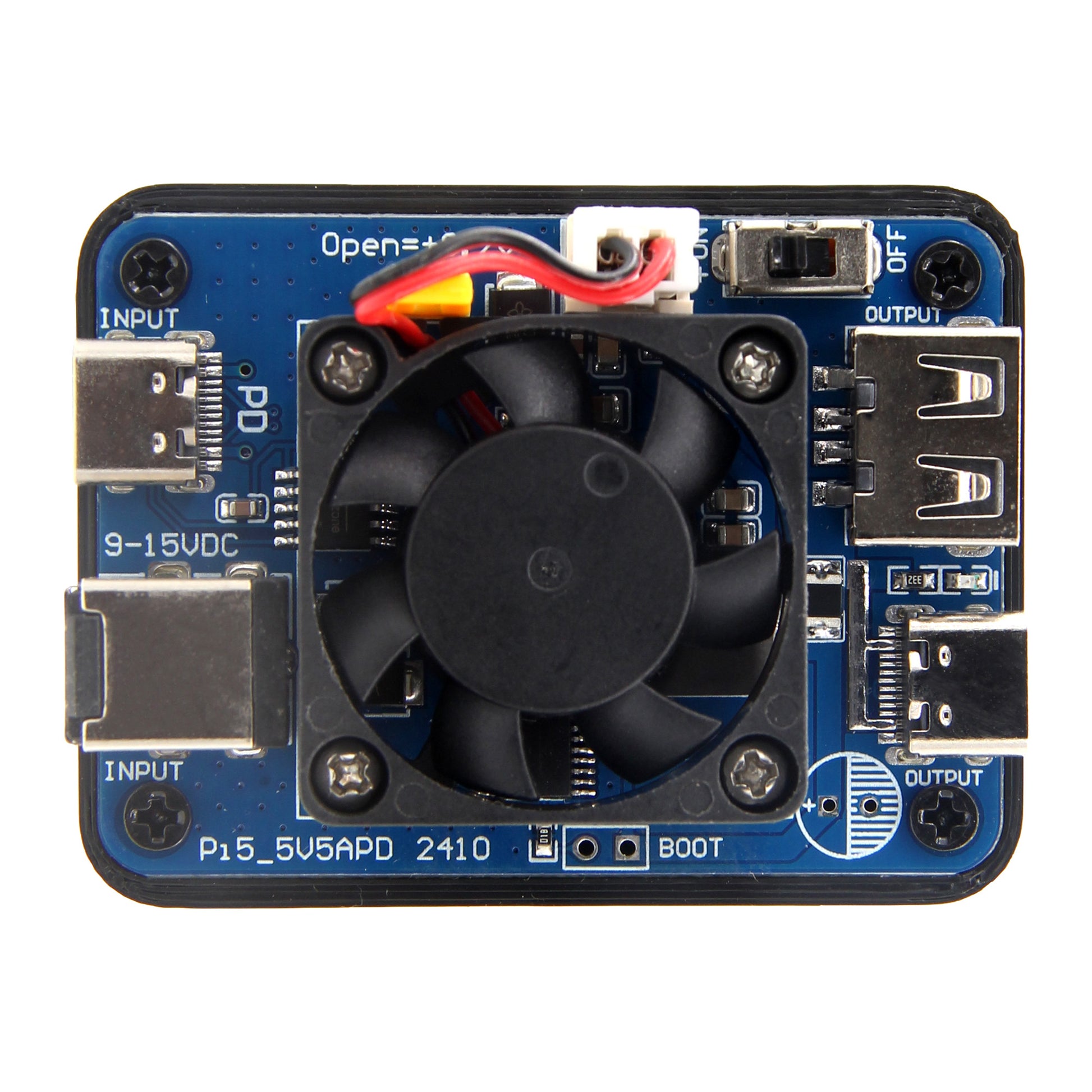

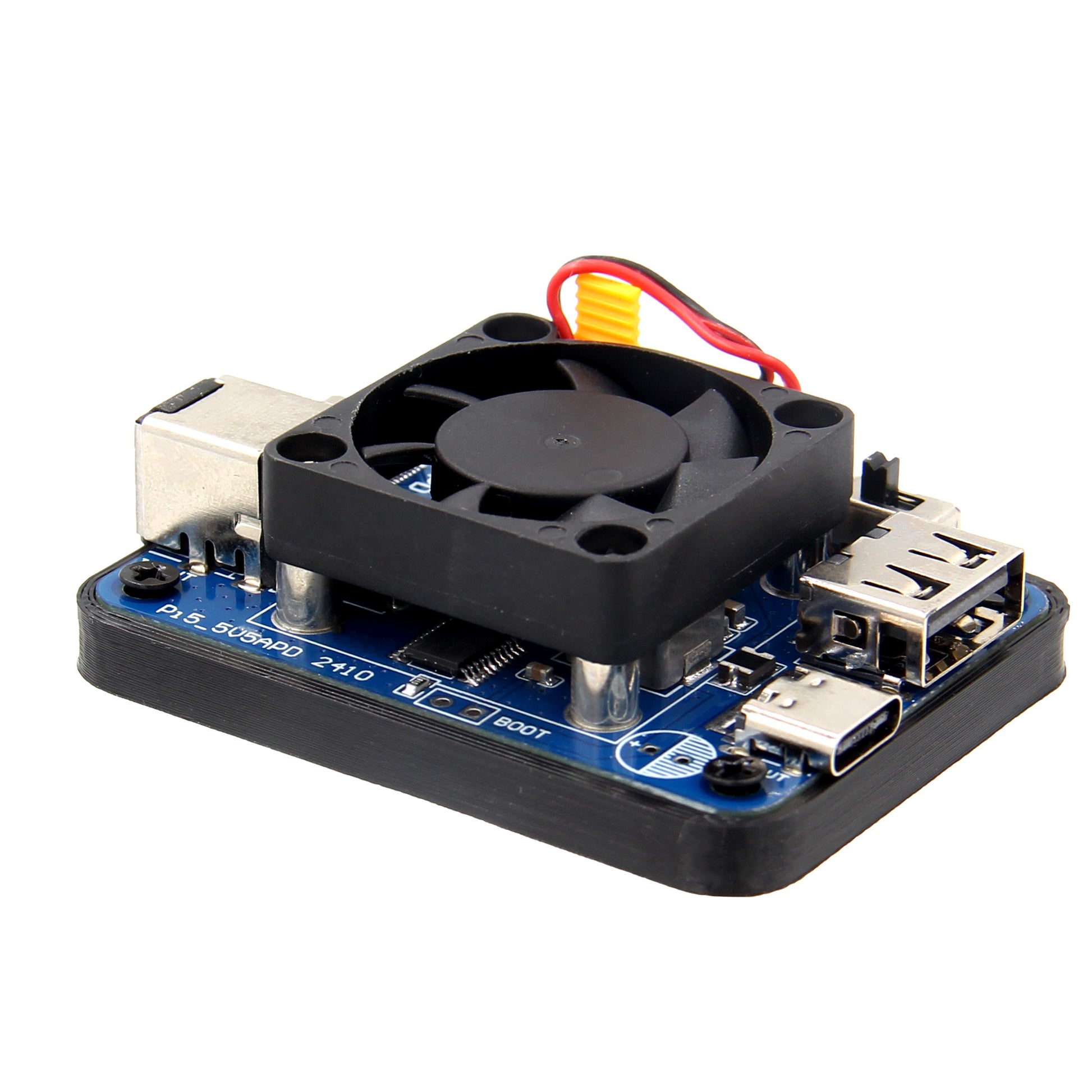

Designed specifically for the Raspberry Pi 5, this high-performance 27W power module delivers stable and efficient 5V/5A power through dual input methods and dual output interfaces. It ensures reliable operation for power-intensive applications and includes built-in protection and customization features.

Key Features:

• Dual Input Flexibility: Supports two input methods:

1. USB-C PD Input: Connects to a Power Delivery (PD) adapter for an automatic handshake to request 12V input.
2. DC 5.5x2.1mm Input: Accepts a wide voltage range of 9-15V from a standard DC power supply.

Use either input method based on your available equipment.

• High-Current Dual Output: Provides a combined output of over 5A through two convenient ports:

1. USB-C Output
2. USB-A 2.0 Output

Perfect for powering your Raspberry Pi 5 and additional peripherals simultaneously.

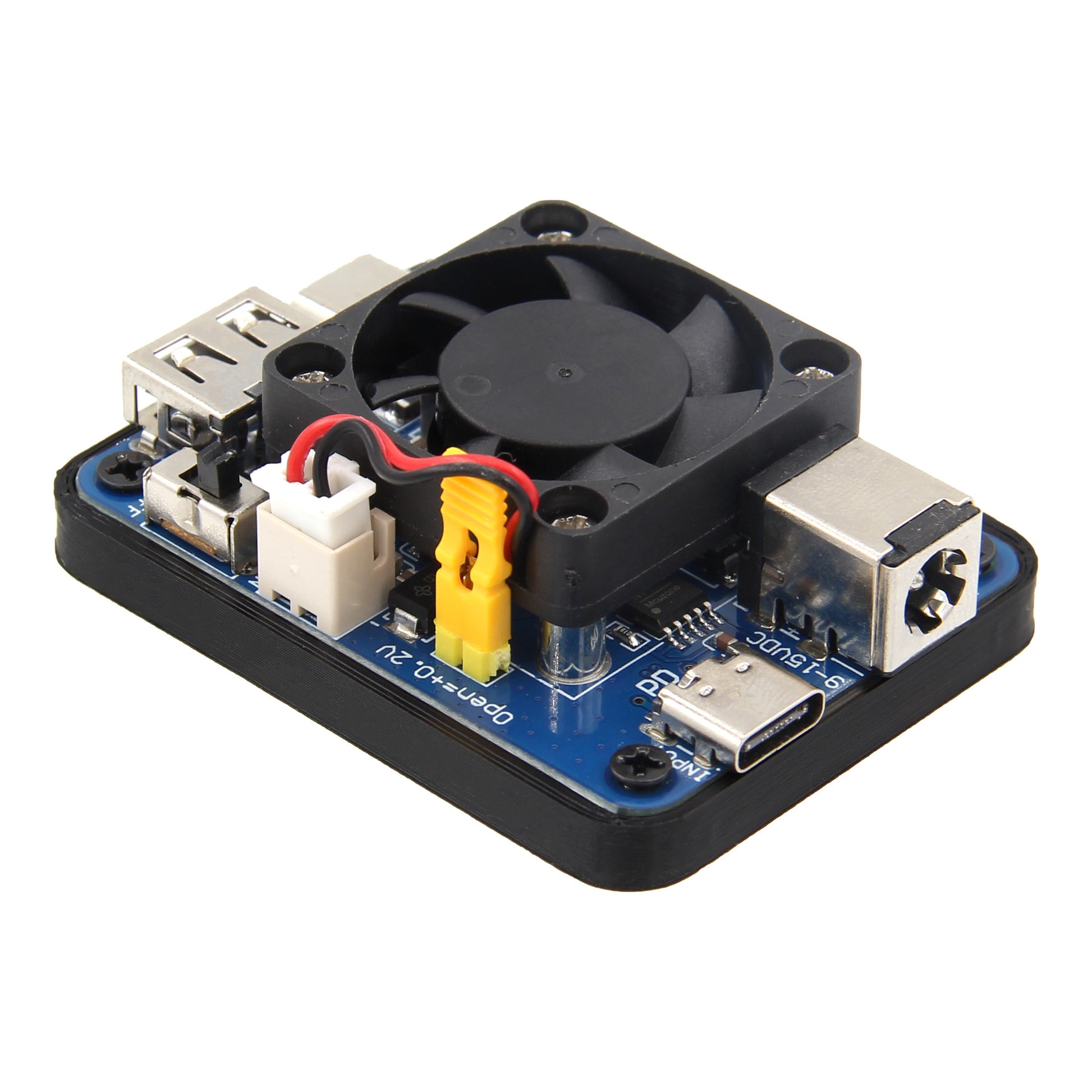

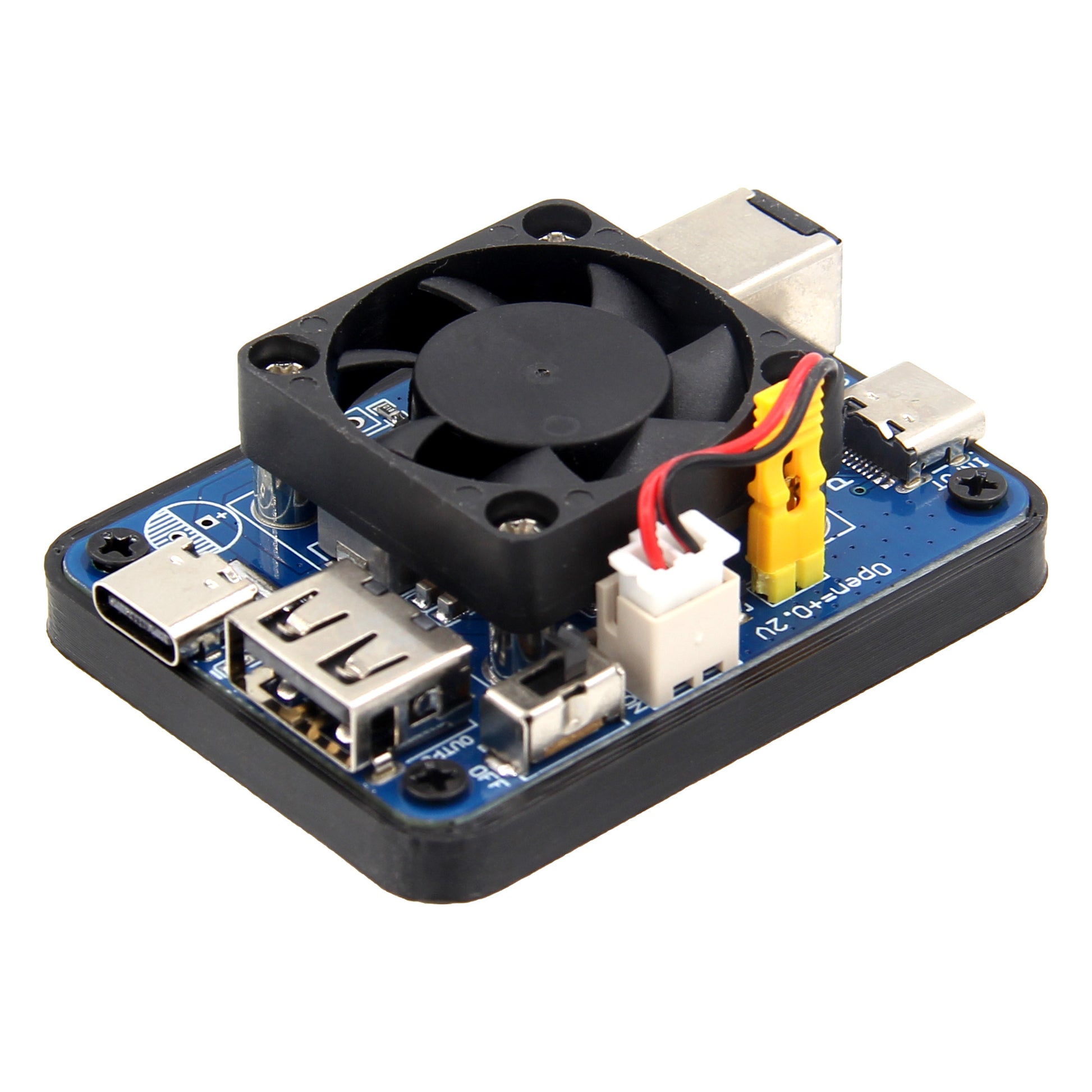

• Output Voltage Trimming: Equipped with a trimming jumper. Removing the jumper allows you to raise the output voltage by approximately 0.2V to compensate for voltage drop under high load.
• Integrated Active Cooling: Includes a standard fan for optimal thermal management. The fan is automatically unnecessary for loads below 3A, ensuring quiet operation during lighter tasks.
• Enhanced Protection & Mounting: Comes with a standard 3D-printed base for secure tabletop placement and protection of the unit.

Packing List

• 1x Power PD Activation Module for Raspberry Pi 5
