For Raspberry Pi 4, X825 V2.0 2.5 inch SATA HDD/SSD Expansion Board

Regular price
$28.00
Regular price
$29.00
Sale price
$28.00
-3%
Only 78 items in stock! Out of stock!
Item: Only X825 V2.0 Board
  • Description
  • Manual
  • Shipping Policy
  • Reviews

Note:

  • This is the new X825 V2.0 version which release at April 1st 2020, there will be a new case X825-C8 designed for X825 V2.0. The X825-C6 or X825-C7 DO NOT SUPPORT X825 V2.0.
  • For X735, please order directly from amazon shop .

User Manual:

https://wiki.geekworm.com/X825_V2.0

(Matching Case)https://wiki.geekworm.com/X825-C8

Installation Video: https://youtu.be/JxUNhIxXgj4

    Click to Order from Amazon

    Amazon US Amazon JP Amazon DE Amazon FR
    Amazon CA Amazon UK Amazon NL Amazon IT
    Amazon MX Amazon ES Amazon SE Amazon PL
    Amazon BR Amazon TR

    Overview

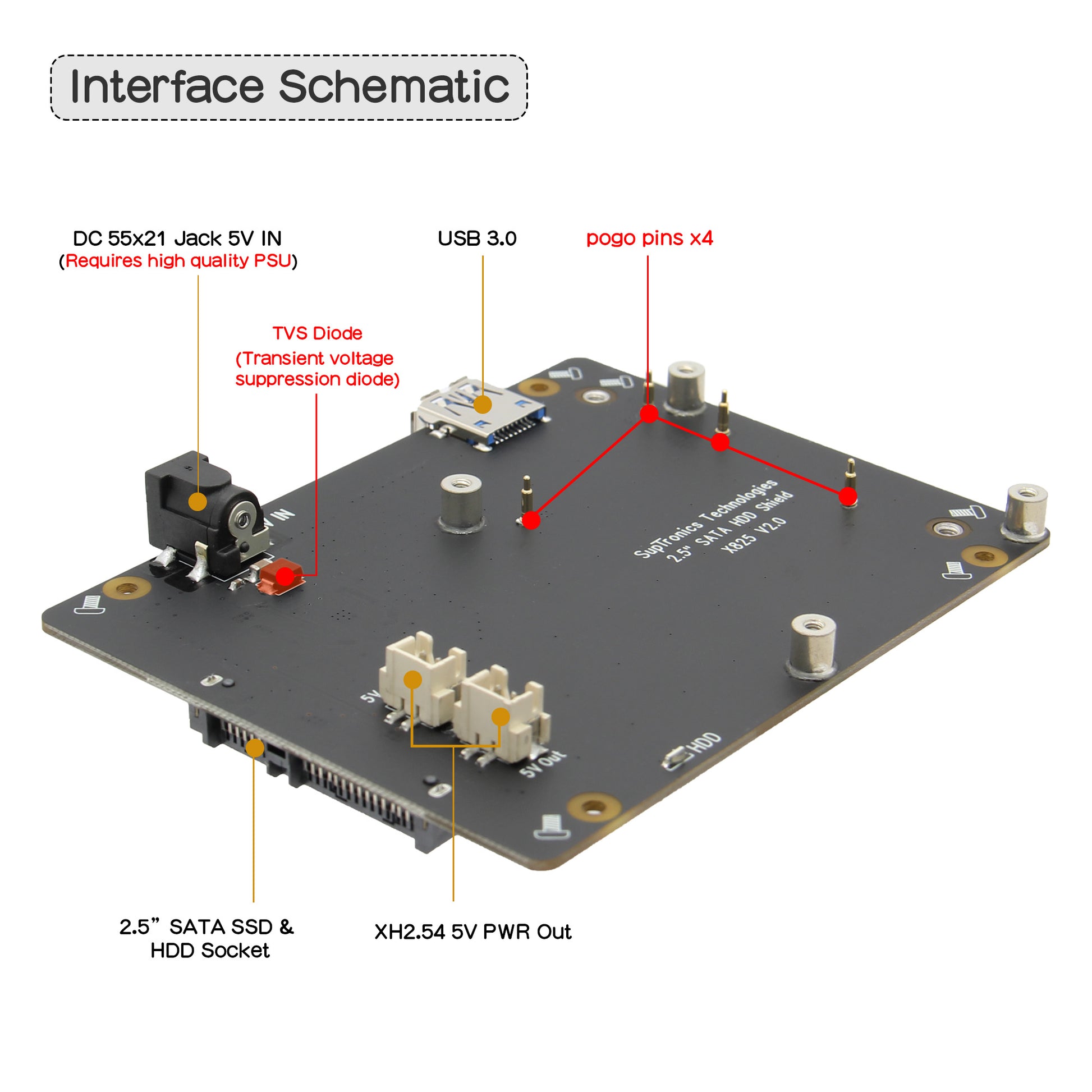

    The X825 expansion board provides a complete storage solution for newest Raspberry Pi 4 Model B, it supports up to 4TB 2.5-inch SATA hard disk drives (HDD) / solid-state drive (SSD). Only 2.5 inch SATA interface HDD/SDD hard disk is suitable for X825 Board;
    It is updated from Raspberry Pi 3B+/3B X820 V3.0 2.5 inch SATA SSD expansion board. (Please refer to X820 if you want use the 2.5 inch SATA SSD on raspberry pi 3b+/3b/2b)

    Key Features

    • Supports upto 4TB 2.5-inch SATA hard disk drives (HDD) / solid-state drive (SSD) (Theoretically it can work with 6TB or 8TB as well. But actually we do not test the X825 board with 6tb or 8tb HDD, you can have a try.)

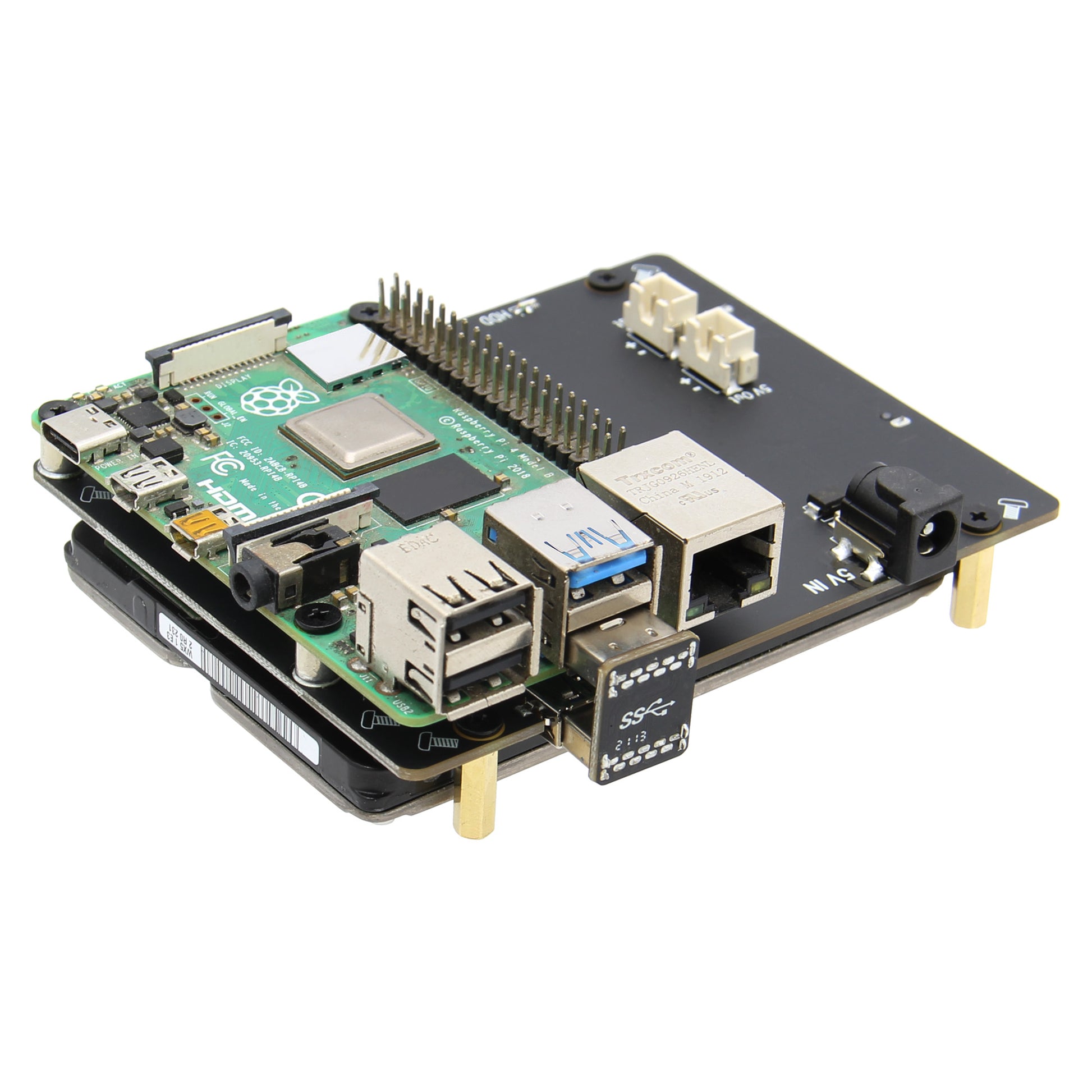

    • Ideal storage solution for Raspberry Pi 4 Model B
    • On-board push button to control power on /off (Press-ON, Hold the button pressed at least 2s -OFF)
    • Powers the Raspberry Pi via Pi's 40-pin header
    • LED red indicator indicates powered status and blue indicator indicates drive status
    • USB 3.1 Gen1 to SATA 6Gb/s Bridge Controller
    • Quick file transfer with high-speed USB 3.1 connectivity from a PC or a Mac
    • Powers the Raspberry Pi - no additional power supply for RPi 4

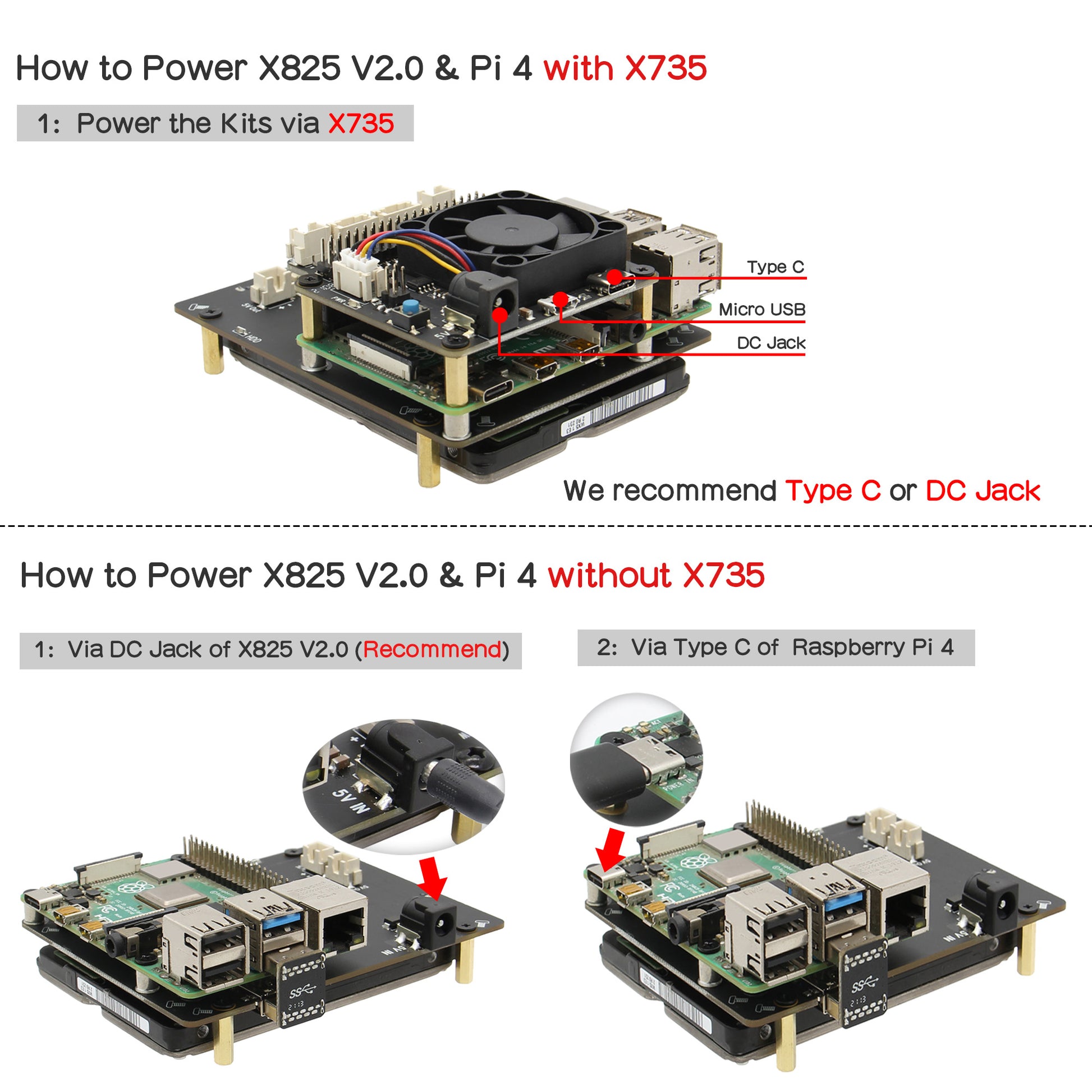

    How to Power

    • Power supply: AC 100 - 240V input 50 / 60Hz, 5V DC 4A output
    • DC Power Plug Size : 5.5*2.5mm
    • Important Note: Please use high quality DC 5V 4A power supply, the best choice is to buy the DC 5V 4A power supply that Geekworm provided. If you get low quality power supply to use, it may probably will damage your 2.5 inch HDD/SSD.

    Match Metal Case(X825-C8)

    There is new metal case X825-C8 designed for X825 V2.0 board&X735&Raspberry Pi 4.

    Note: Because we found that USB 3.0 high-speed transmission will interfere with the Raspberry Pi's 2.4G wifi signal. So if you find the 2.4G signal is unstable, please try to use WIFI 5G AP. (Please refer to: https://wiki.geekworm.com/X825#Document)
    We think this is caused by the unreliability of the Raspberry Pi's wifi design. If the Raspberry Pi Foundation reserves the SMA IPEX antenna interface, everything will become easier. We will also struggle to solve this issue in the future.

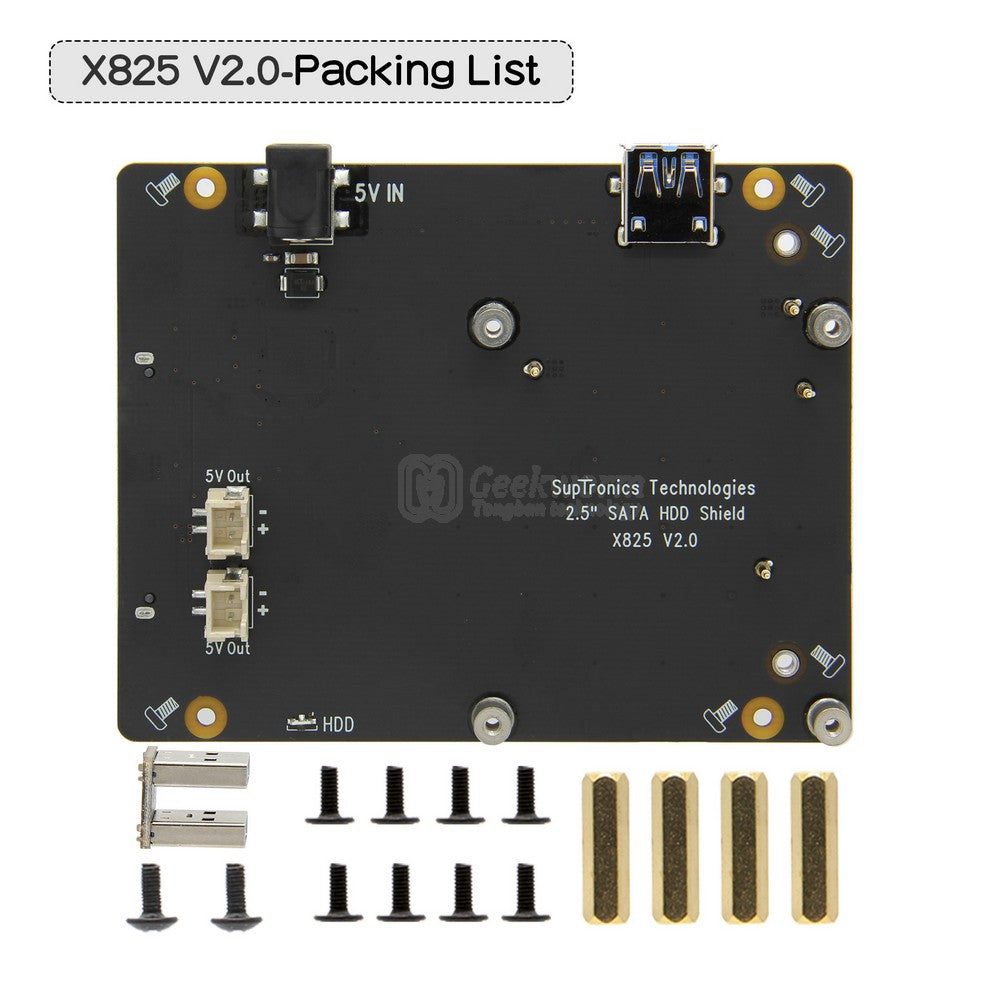

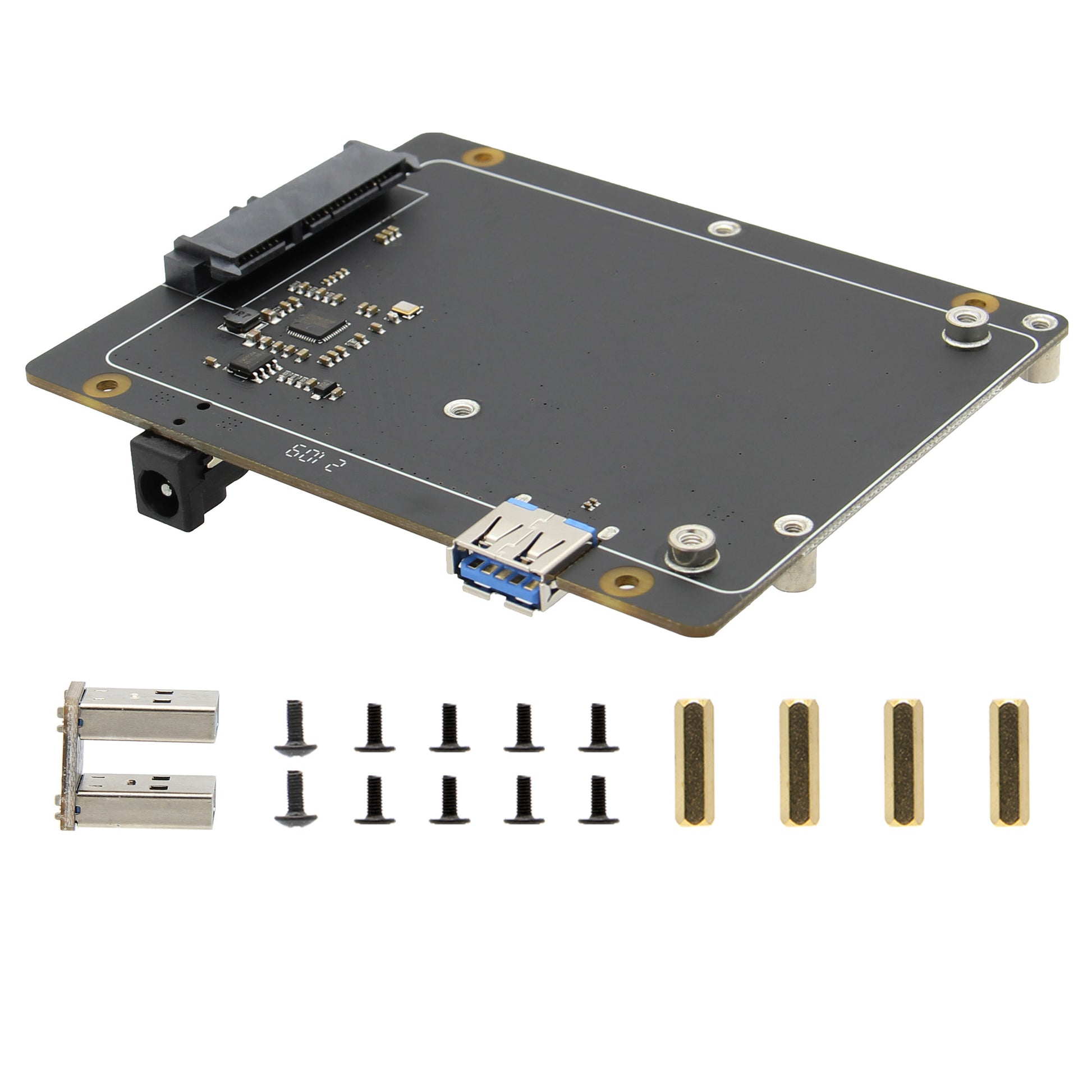

    Packing List

    Only X825 V2.0 Board:

    • 1 x X825 V2.0 Expansion Board
    • 1 x USB 3.1 connector
    • 1 x Mounting screws pack

        Only X825-C8 Case

        • 1 x X825-C8 Metal Case
        • 1 x Power Control Switch
        • 1 x 4010 Cooling Fan (Noise: 18dB)(with 4 pieces of screws)



        Refer to: https://wiki.geekworm.com/X825_V2.0

        Please email to us at info@geekworm.com if you have other questions.

        We send orders to worldwide with tracking number.

        For detail refer to Shipping Policy
