For Raspberry Pi 3B+/3B, X851 M.2 NGFF SATA SSD Storage Expansion Board Support Key-B 2280 SSD

Overview

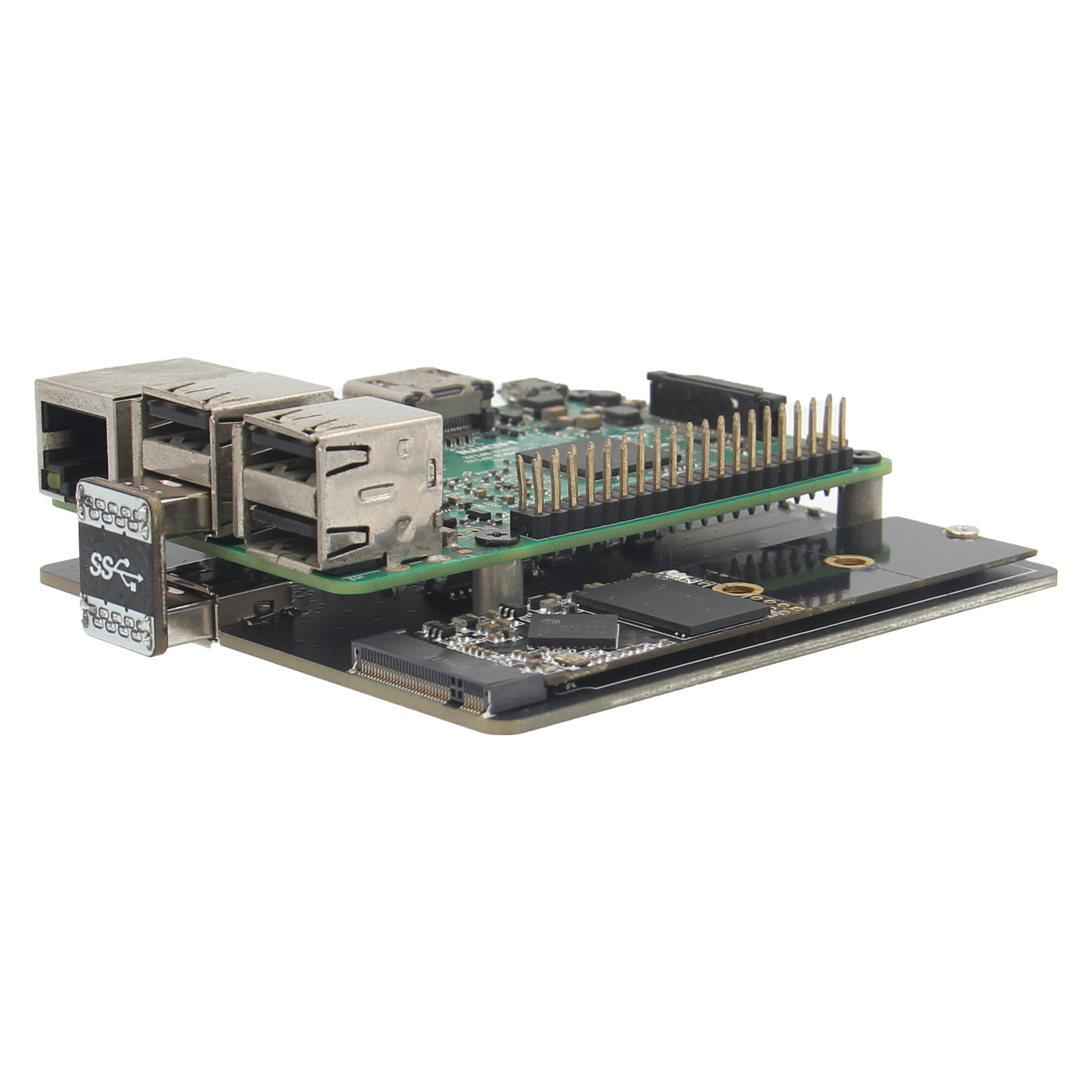

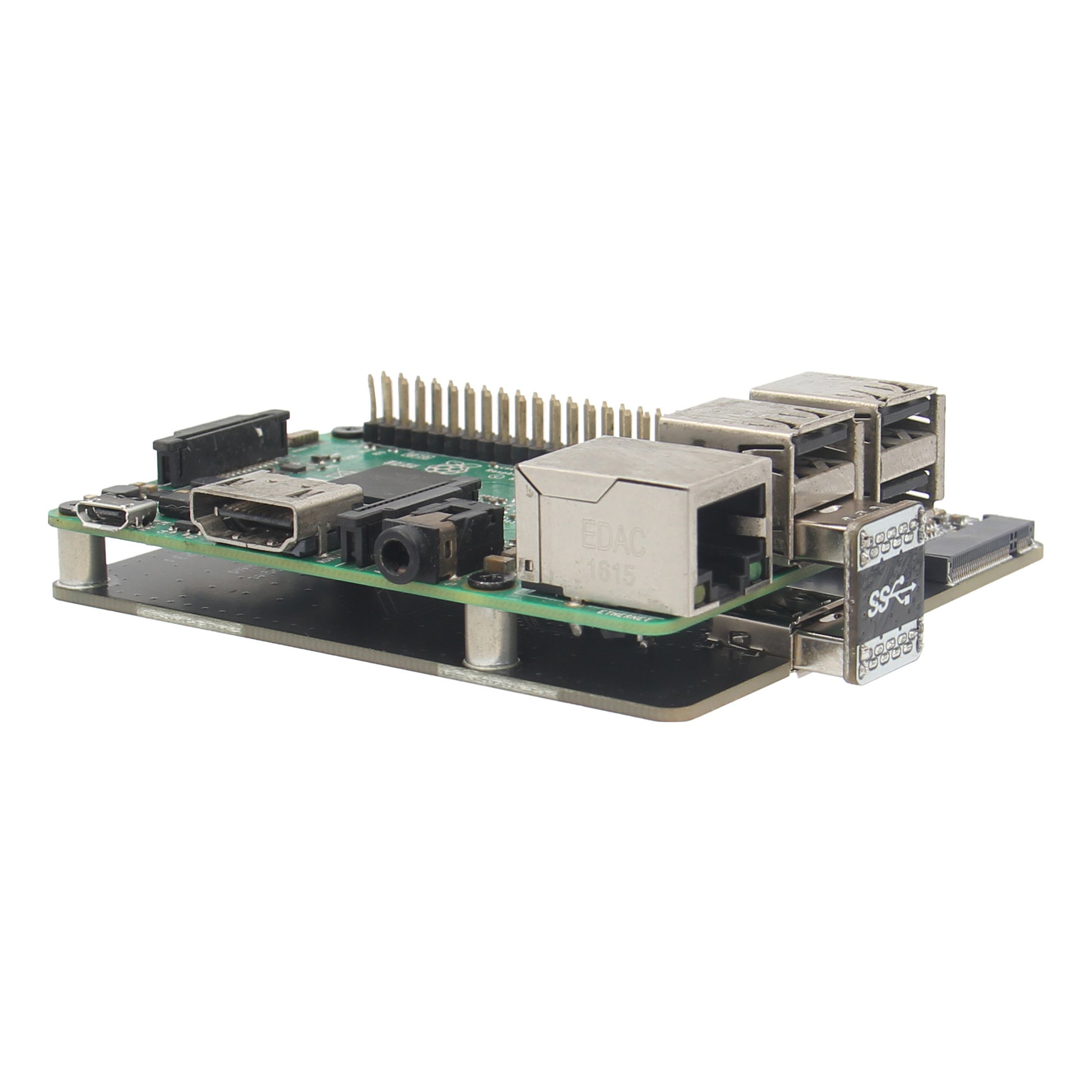

X851 is a new ultra-compact design M.2 NGFF SATA SSD Shield. It offers an easy and fast way to create storage solution with Raspberry Pi 3 B+ / 3B.
User can use X851 to build home media center and Network-attached storage (NAS) for storing and streaming your own videos, music, and digital photos around the house and even across the world.
X851 also supports operating system booting from your SSD for faster app opens, web serving and file copying.

User Manual: https://wiki.geekworm.com/X851

Features

• Ideal storage solution for Raspberry Pi 3 B+ / 3B - M.2 NGFF SATA SSD Shield

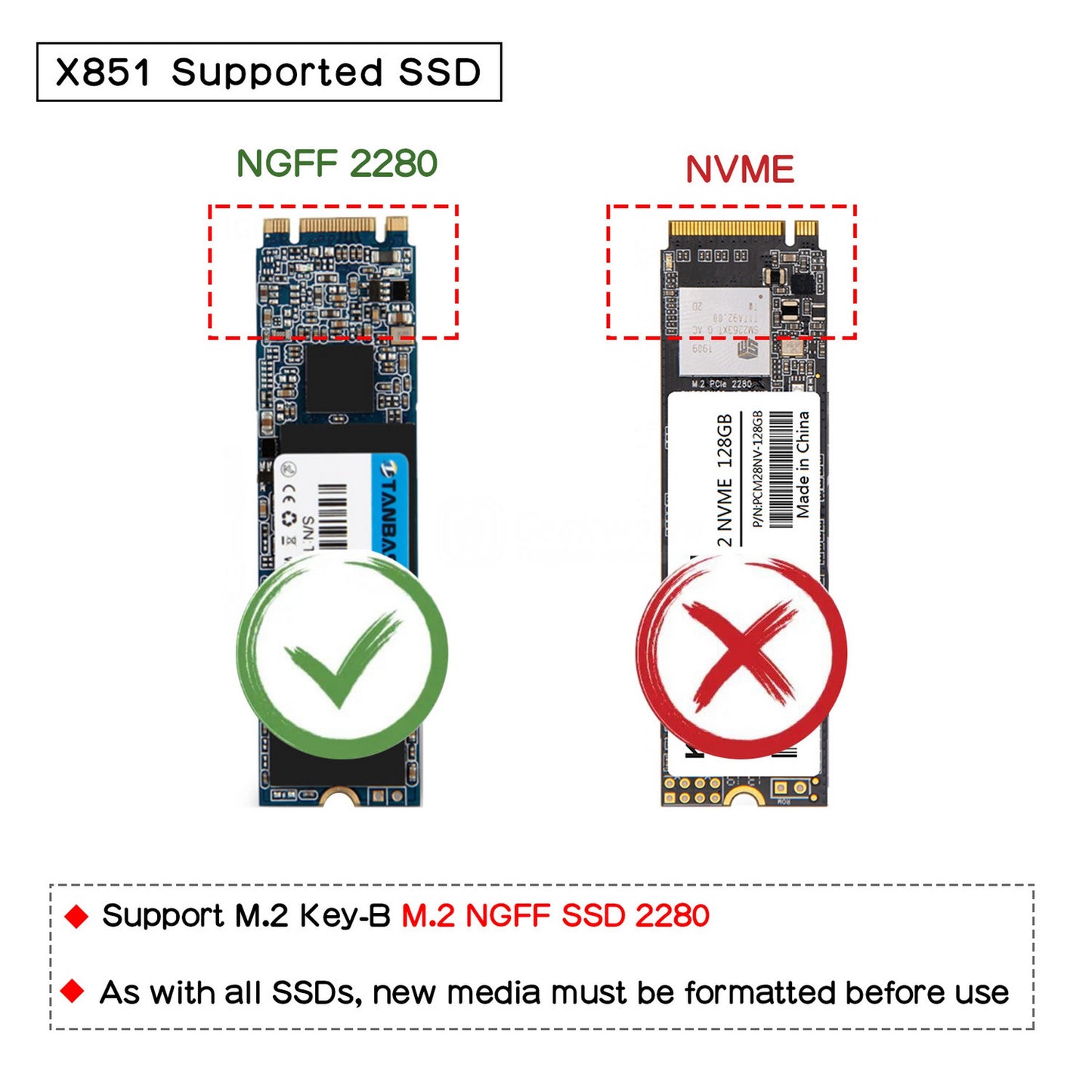

• Only supports M.2 NGFF SSD 2280 length
• UASP supported for Raspberry Pi 3
• Integrated high efficiency step-Down Converter, 3.3V max 3.5A to power the SSD
• LED blue indicator indicates drive status
• Allows booting OS from your HDD/SSD for faster app opens, web serving and file copying
• Fully compatible with X732 for power management and cooling your Raspberry Pi 3

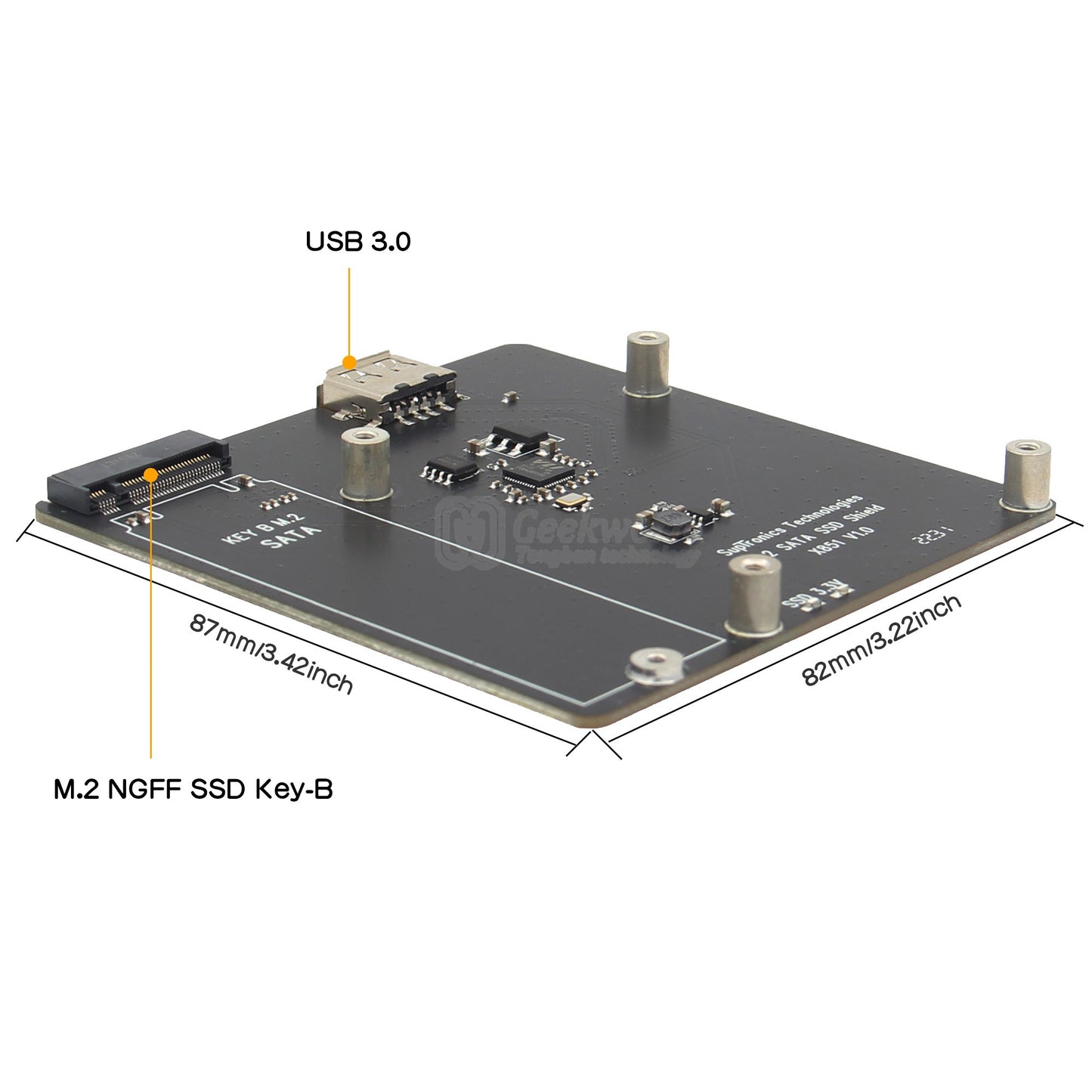

• PCB Size:82x87mm/3.22x3.42inch

How to Cool:

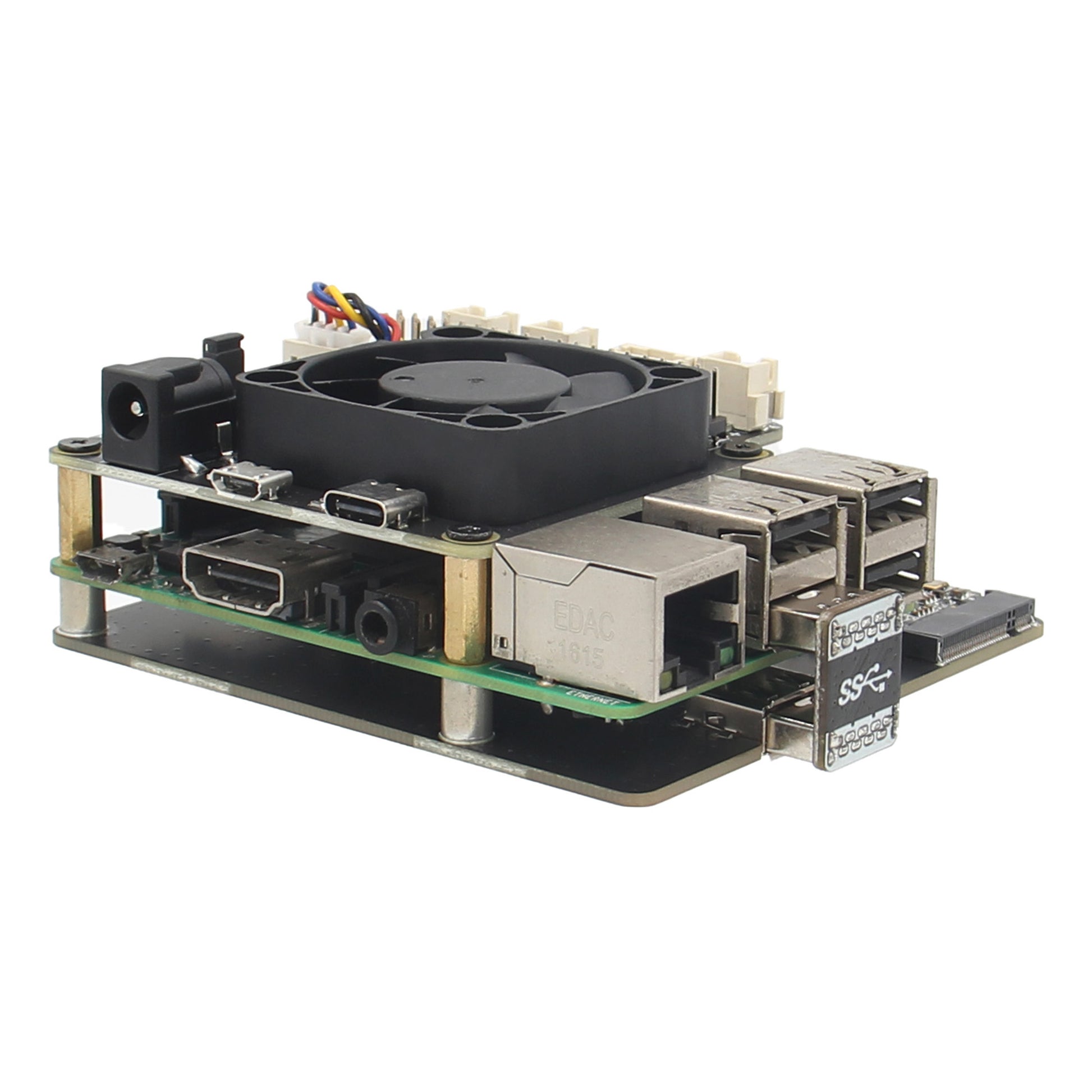

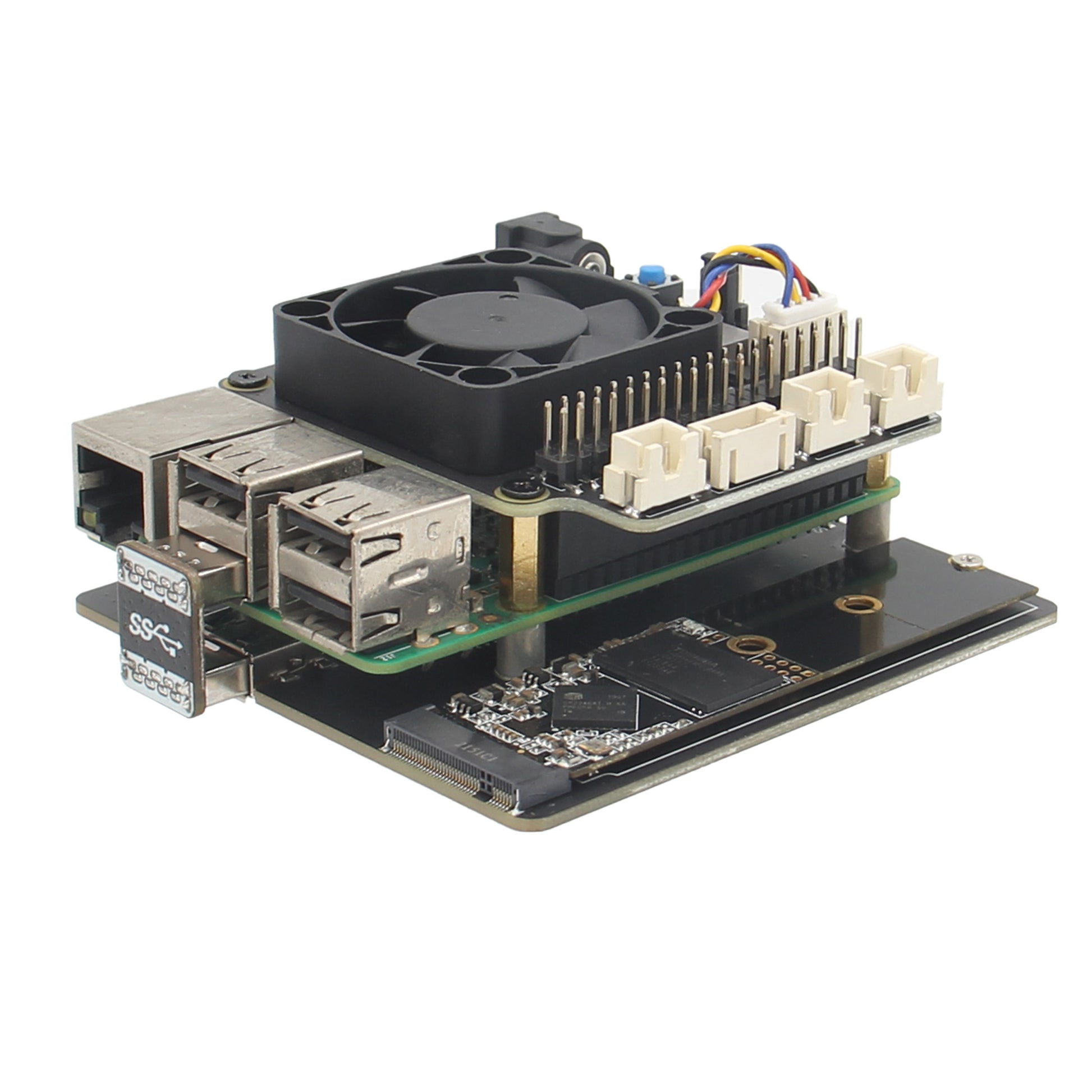

You can use X851 with X735 or X732;

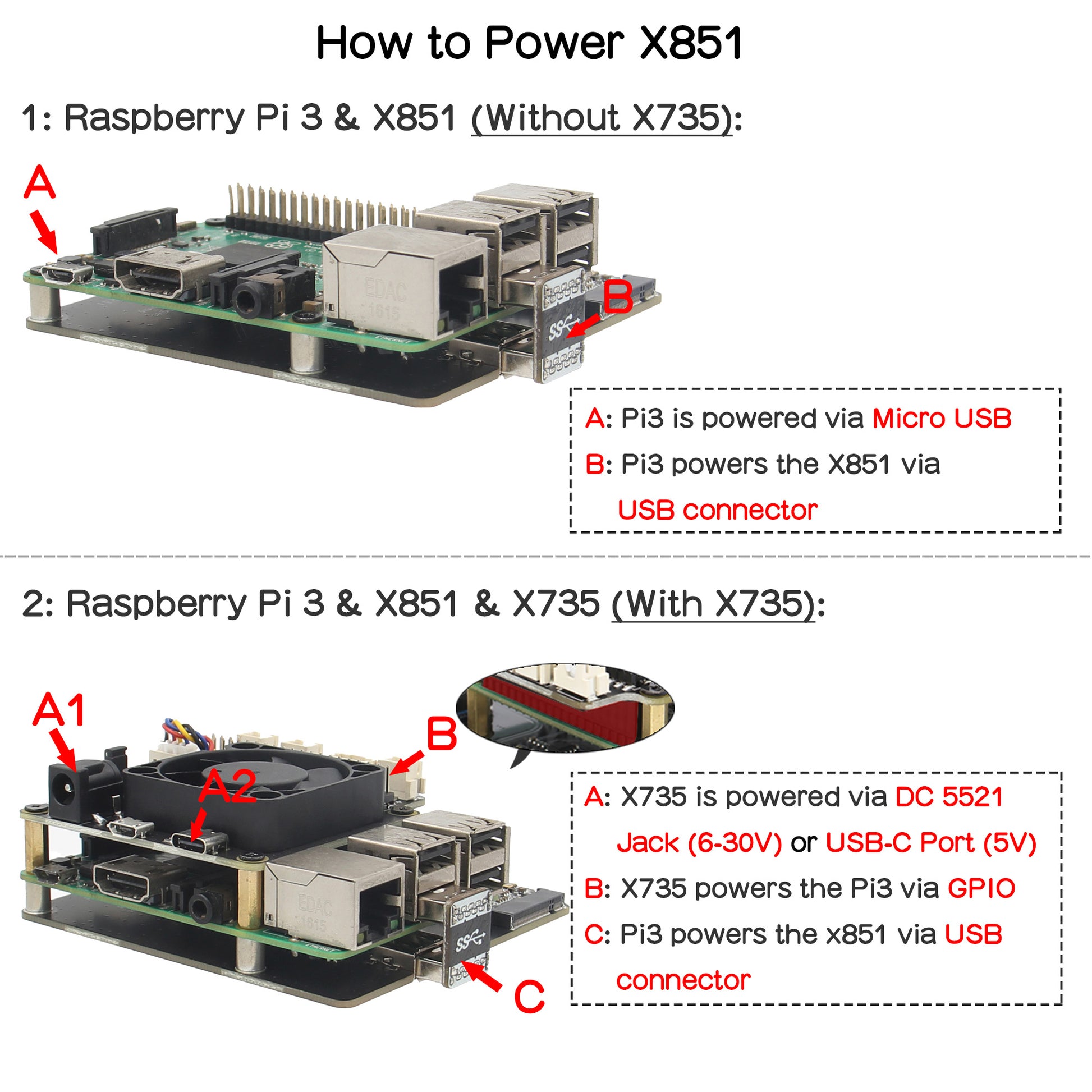

How to Power:

• 5Vdc +/-5% , ≥3A, power via micro USB port of Raspberry Pi 3B+/3B

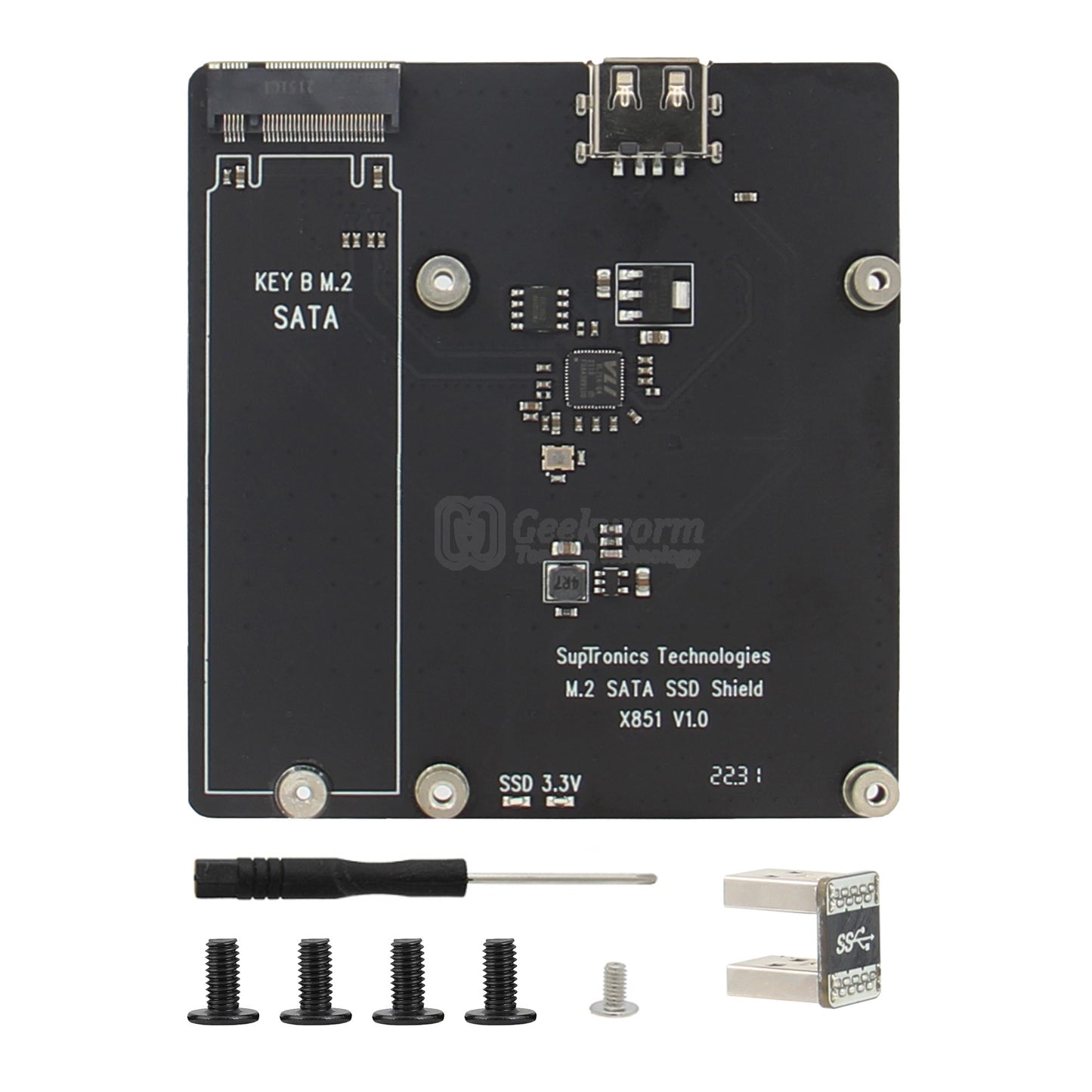

Packing List

• 1 x X851 V1.0 SATA SSD Shield
• 1 x USB3.0 Connector
• 4 x M2.5x5mm Screw
• 1 x M2x4mm Screw
• 1 x Screw driver

Matching Case

• There is no matching case for X851 yet.
