Geekworm X1507 CM5 IO Carrier Board fanless Passive Heatsink for Raspberry Pi CM5 Support Dual 2230/2242 M.2 NVMe SSD

$53.00
$53.00
Only 30 items in stock! Out of stock!
  • Description
  • Manual
  • CM5 IO Carrier Boards
  • Shipping Policy
  • Reviews

Note: The Raspberry Pi CM5 board, SSD, SD card, antenna, and power supply are not included in the packing list.

Overview

The X1507 is a compact, fanless I/O carrier board for the Raspberry Pi Compute Module 5 (CM5), featuring dual 2230/2242 M.2 NVMe slots and full HAT compatibility. All connectors are positioned on the top side, while the CM5 and components are mounted underneath, simplifying enclosure design.

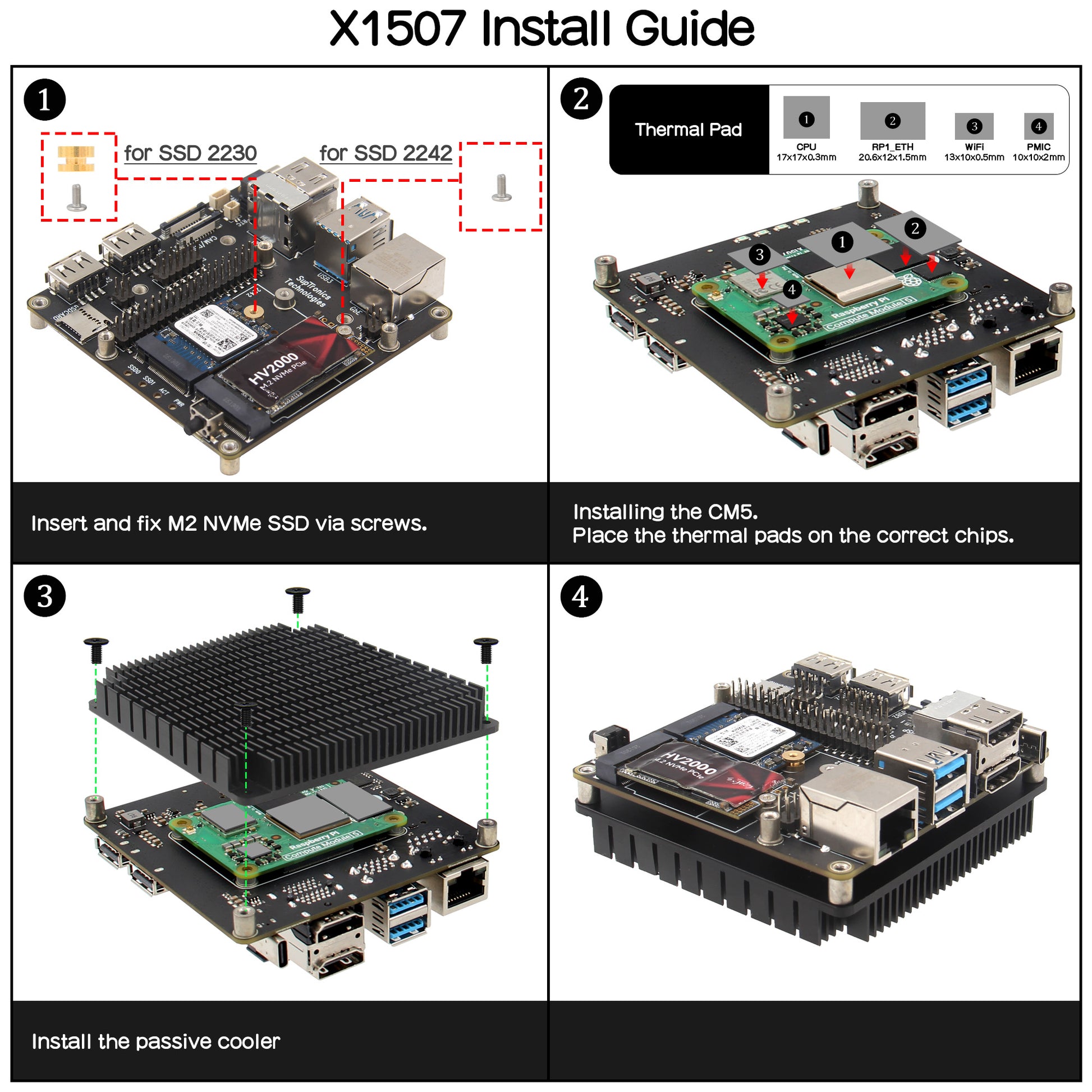

Designed for embedded, edge, and industrial applications, the X1507 supports installation in a sealed metal case, which doubles as a heatsink. This passive cooling design transfers heat directly from the CM5 to the chassis, ensuring silent, dust-free, and reliable operation in harsh environments.

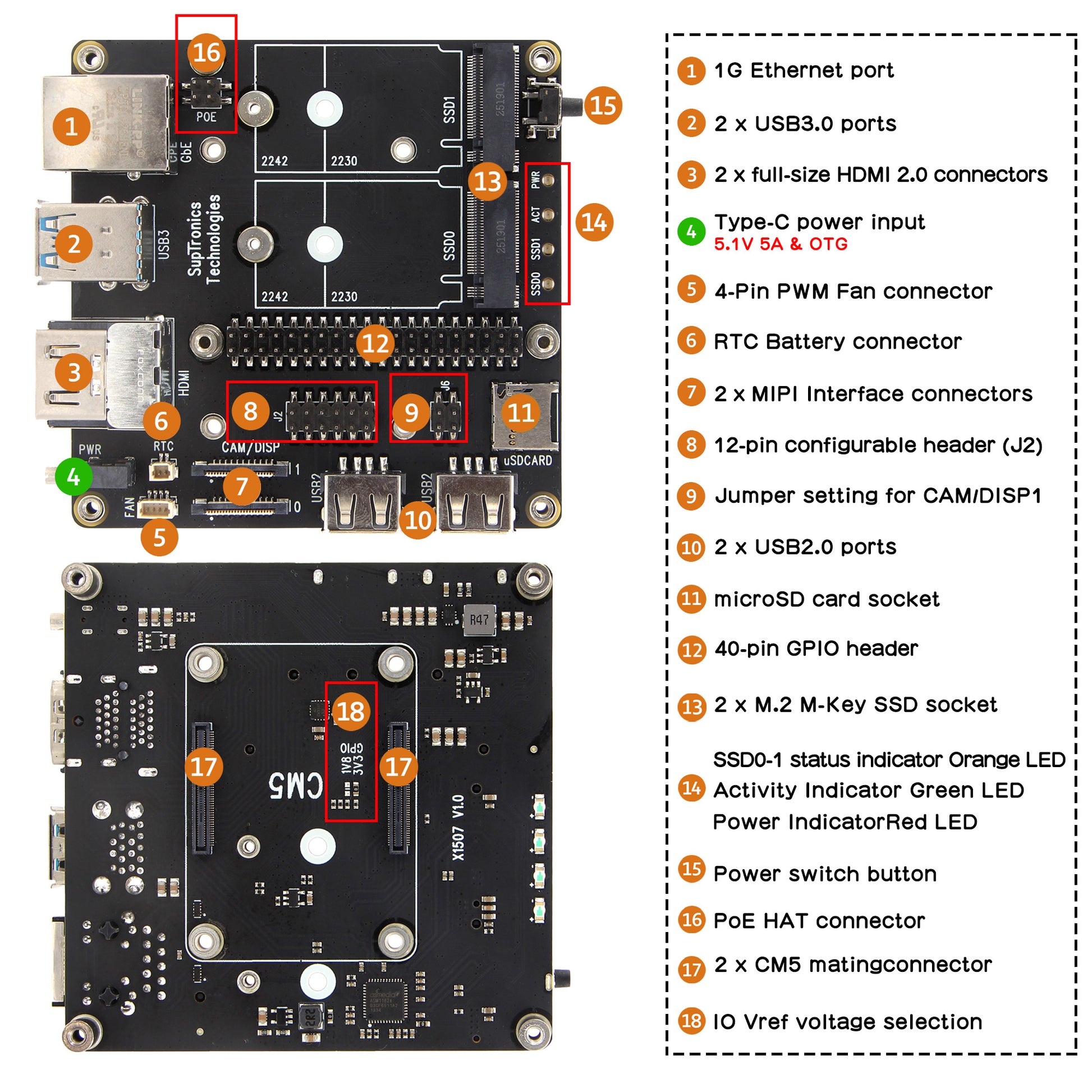

Features

  • Model: X1507
  • Compatible with Raspberry Pi Compute Module 5 (CM5) and All CM5 Variants
  • USB-C Port: Handles both power delivery and OS image loading directly into the CM5’s eMMC.
  • Gigabit Ethernet Port: Features 1GbE with PoE+ support (for simplified power delivery)

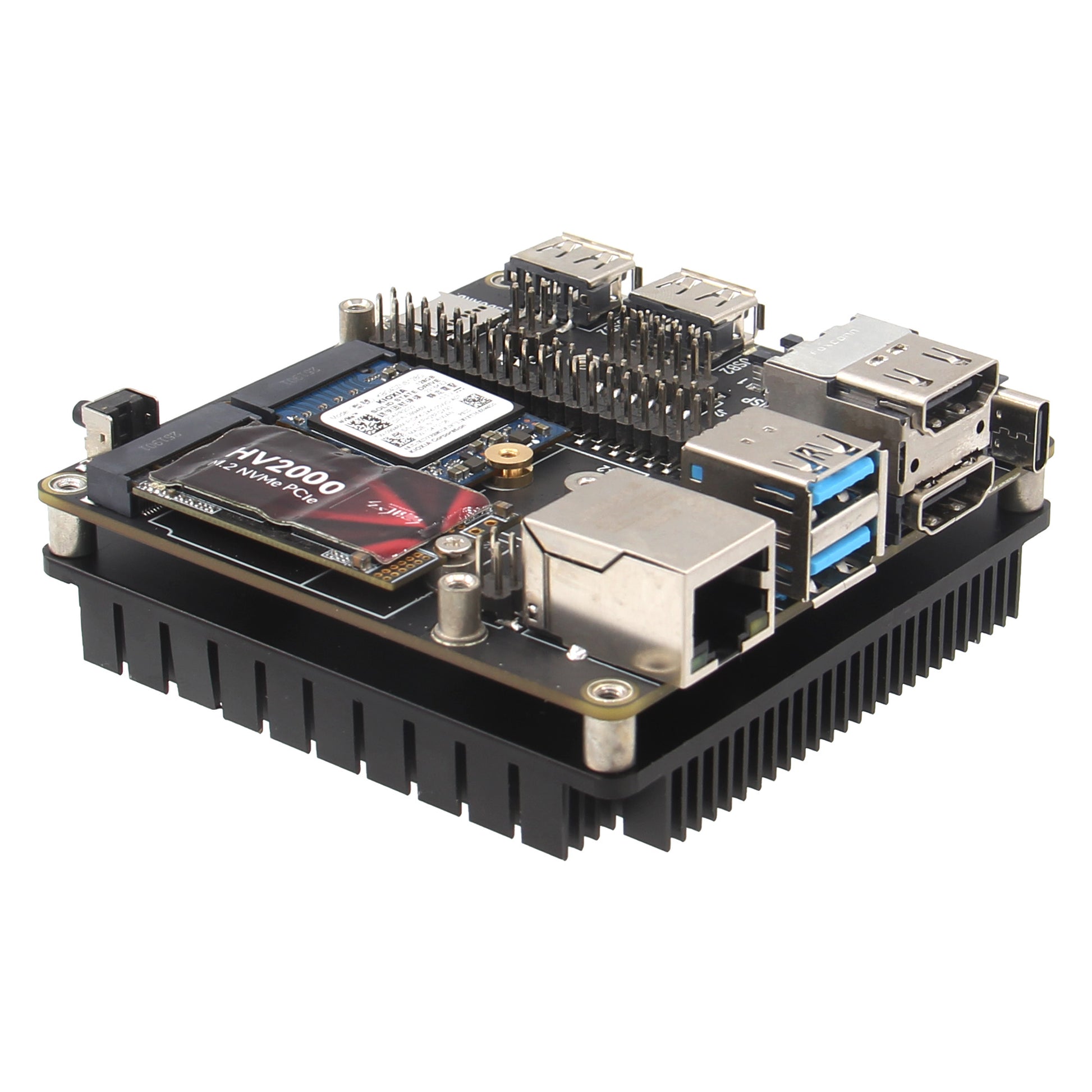

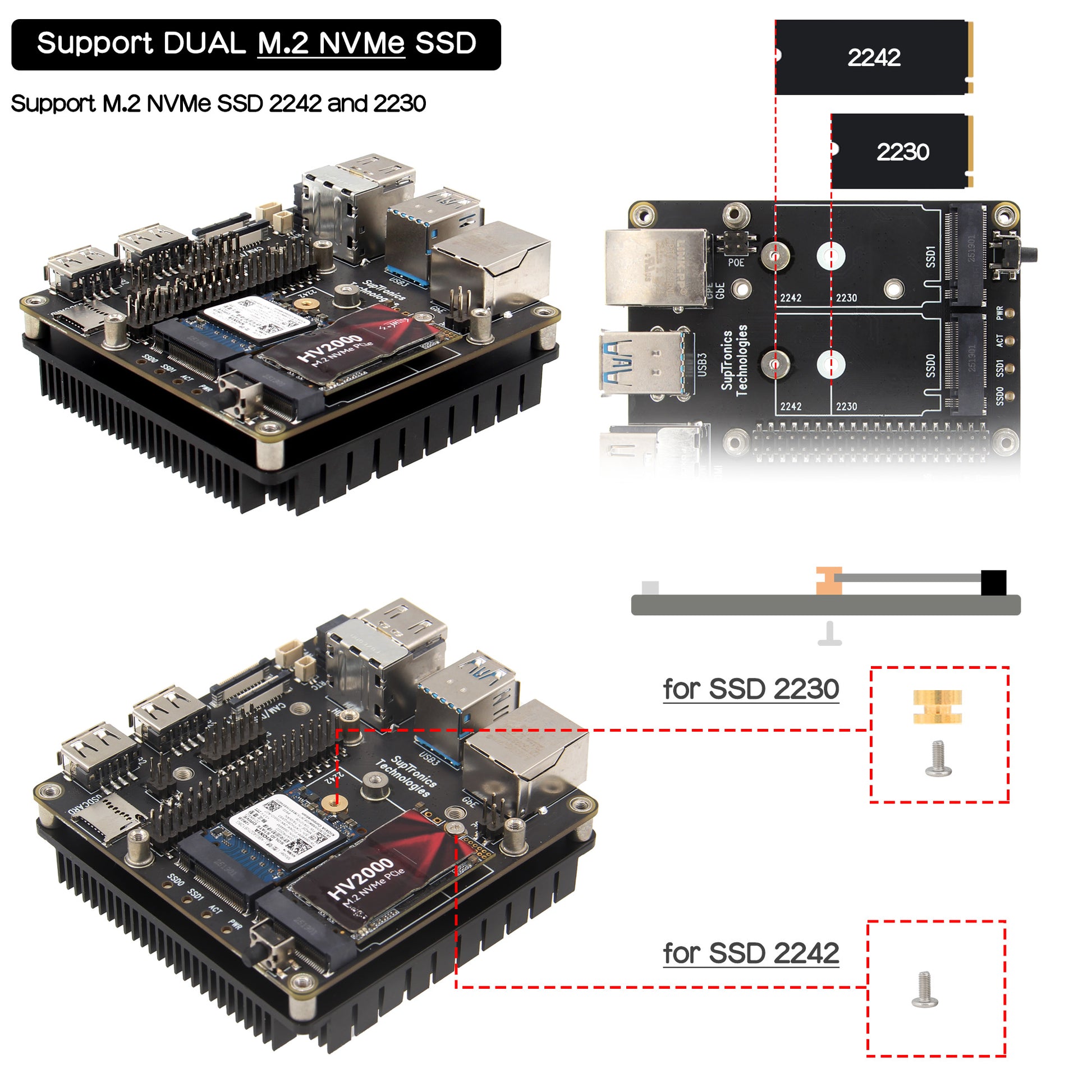

  • Dual M.2 NVMe SSD Slots: Supports up to 8TB via PCIe 2.0 (5Gbps) for fast data transfers and boot times, compatible with M.2 NVMe SSDs in 2242, and 2230 form factors.
  • Dual HDMI 2.0 Ports: Enables dual 4K display output for multimedia or industrial use cases.
  • Dual USB 3.2 Gen 1 Ports: delivering high-speed data transfer rates of up to 5 Gbps.
  • Dual MIPI DSI/CSI-2 Connectors: 22-pin FPC connectors (0.5mm pitch) compatible with Raspberry Pi 5 CSI and DSI modules for seamless camera and display integration.
  • MicroSD Card Slot: Supports Compute Module 5 Lite variants (without onboard eMMC).
  • Optimized for Fanless Operation: Ultra-compact layout with passive cooling, eliminating noise, dust, and moving parts.

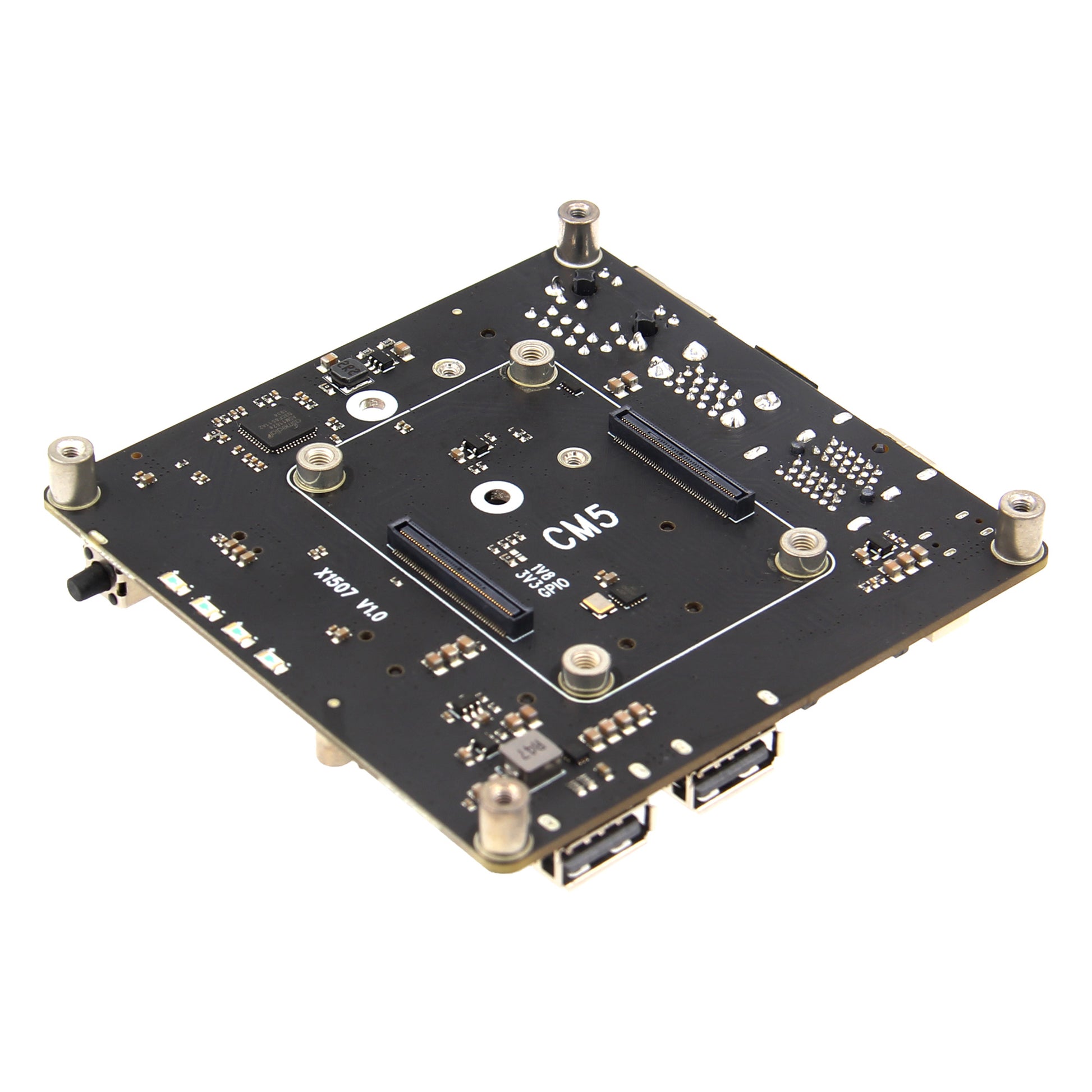

  • Streamlined System Integration: All user-facing connectors are positioned on the top side, while chip components and the CM5 are mounted underneath for easy enclosure design.
  • Thermal performance: At Standby (10 min): CPU stabilizes at 38°C, Stress test (30 min): CPU reaches 58°C
  • Raspberry Pi HAT+ Compatibility: Reuse existing Raspberry Pi HATs to save time and reduce development costs.
  • Supports the Hailo AI acceleration module
  • Convenient Power Button: Easily wake or shut down the Compute Module 5 with a single press.
  • Support RTC function: RTC port reserved for external RTC battery connection.
  • PWM Fan Support: Includes a fan power connector for adjustable cooling in demanding environments.
  • Configurable Jumpers: Allows disabling features like wireless connectivity or EEPROM writing for customization.

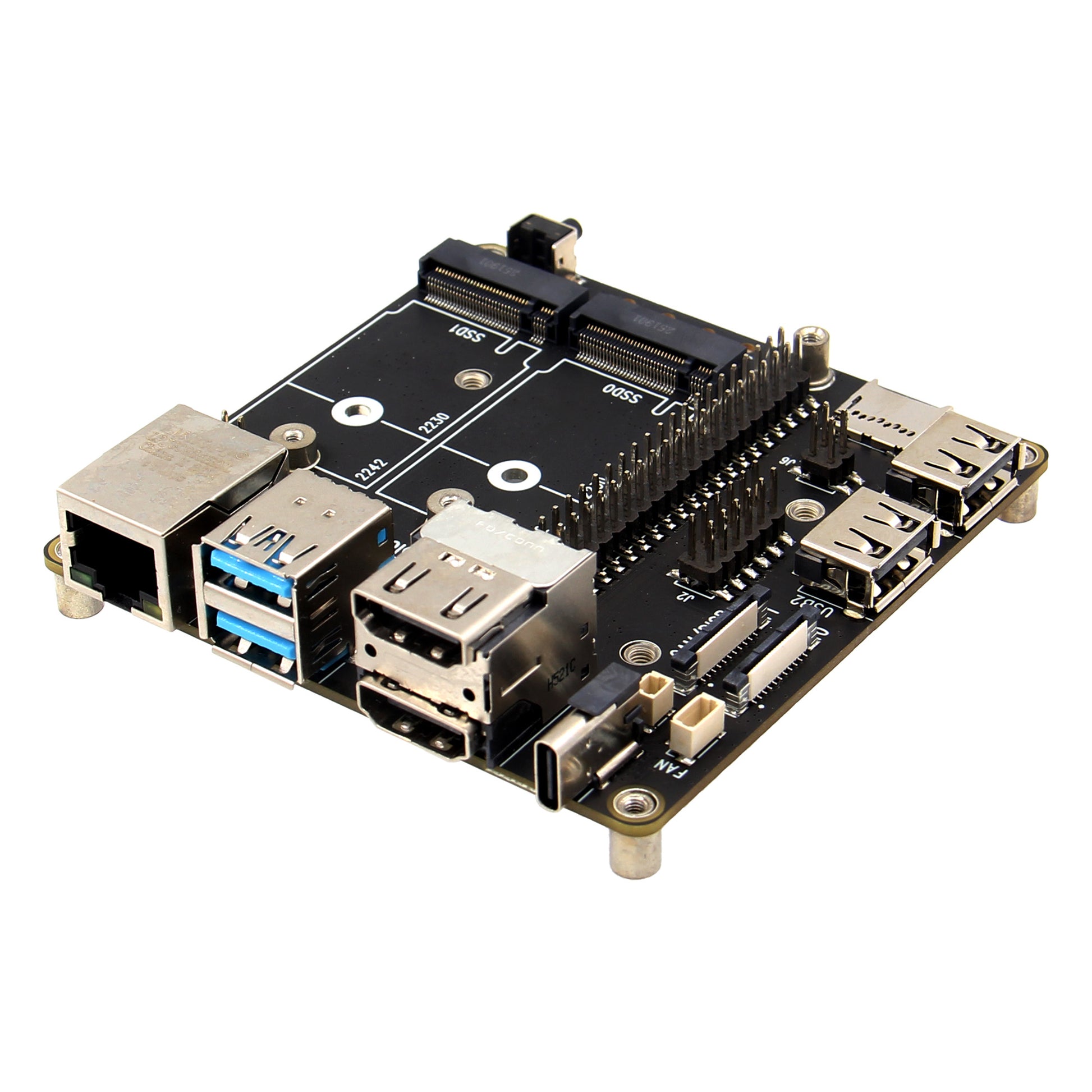

  • Streamlined Connector Layout: USB, HDMI, Ethernet, and power ports are grouped along one edge for clean cable management and easy enclosure integration.

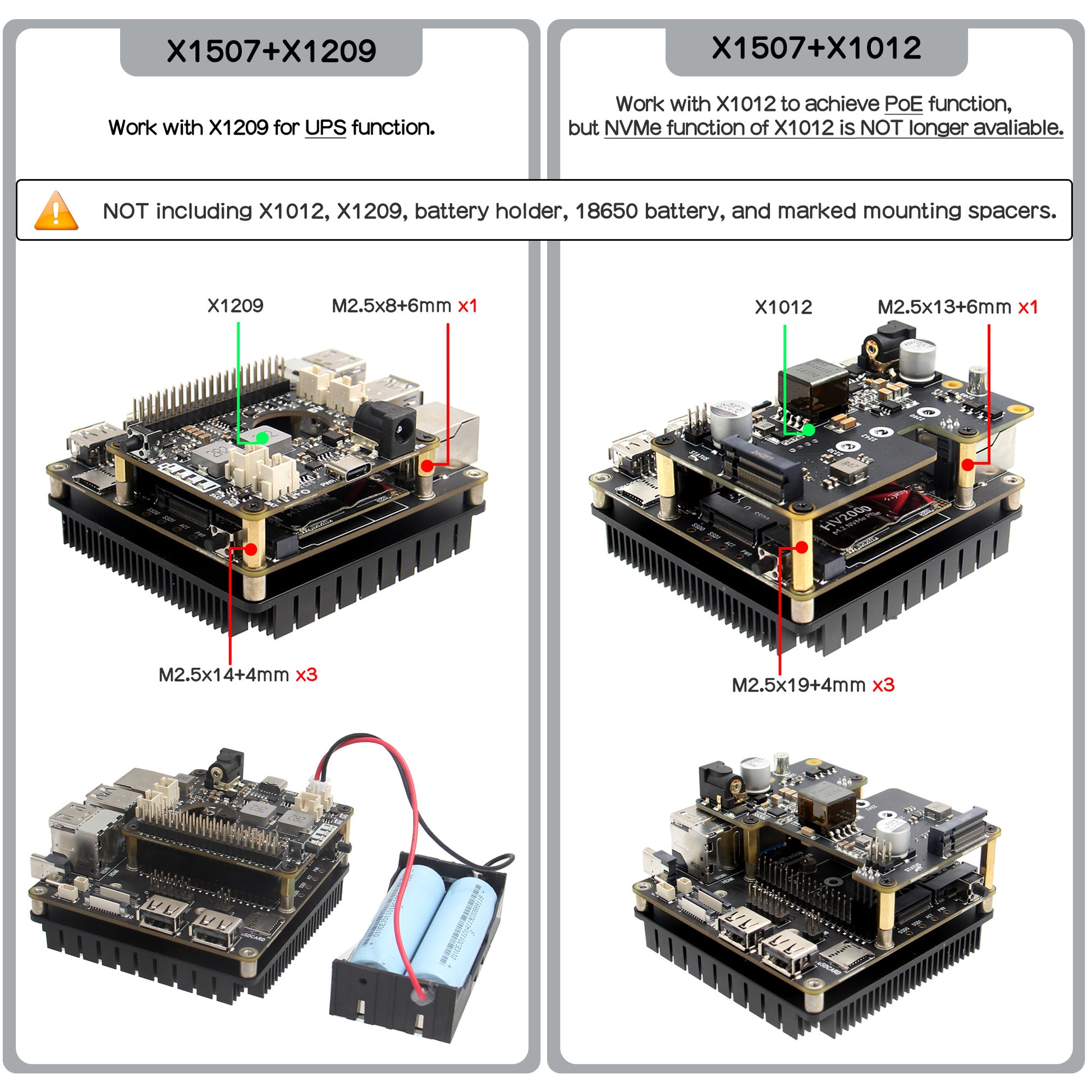

  • Compatible Accessories: X1012 POE HAT, X1207 POE+UPS, X1209 UPS
  • POE support: You can use X1012  to support POE input. There will be more POE expansion boards to support X1507 later

How to Power

  • Power via the USB-C Power Jack of X1507, recommend to use Geekworm PD 27W power supply.

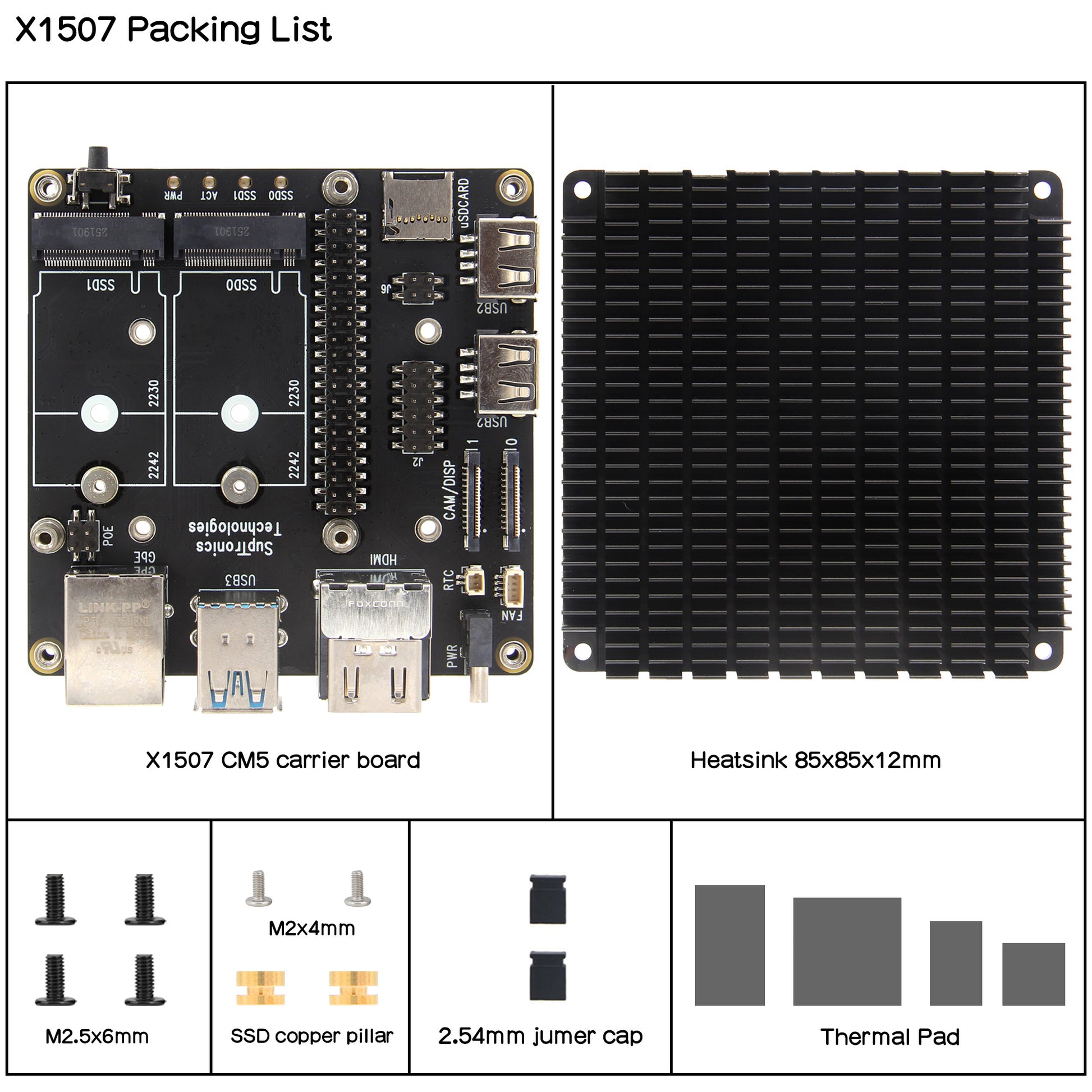

Packing List

  • 1x X1507 V1.0 CM5 carrier board

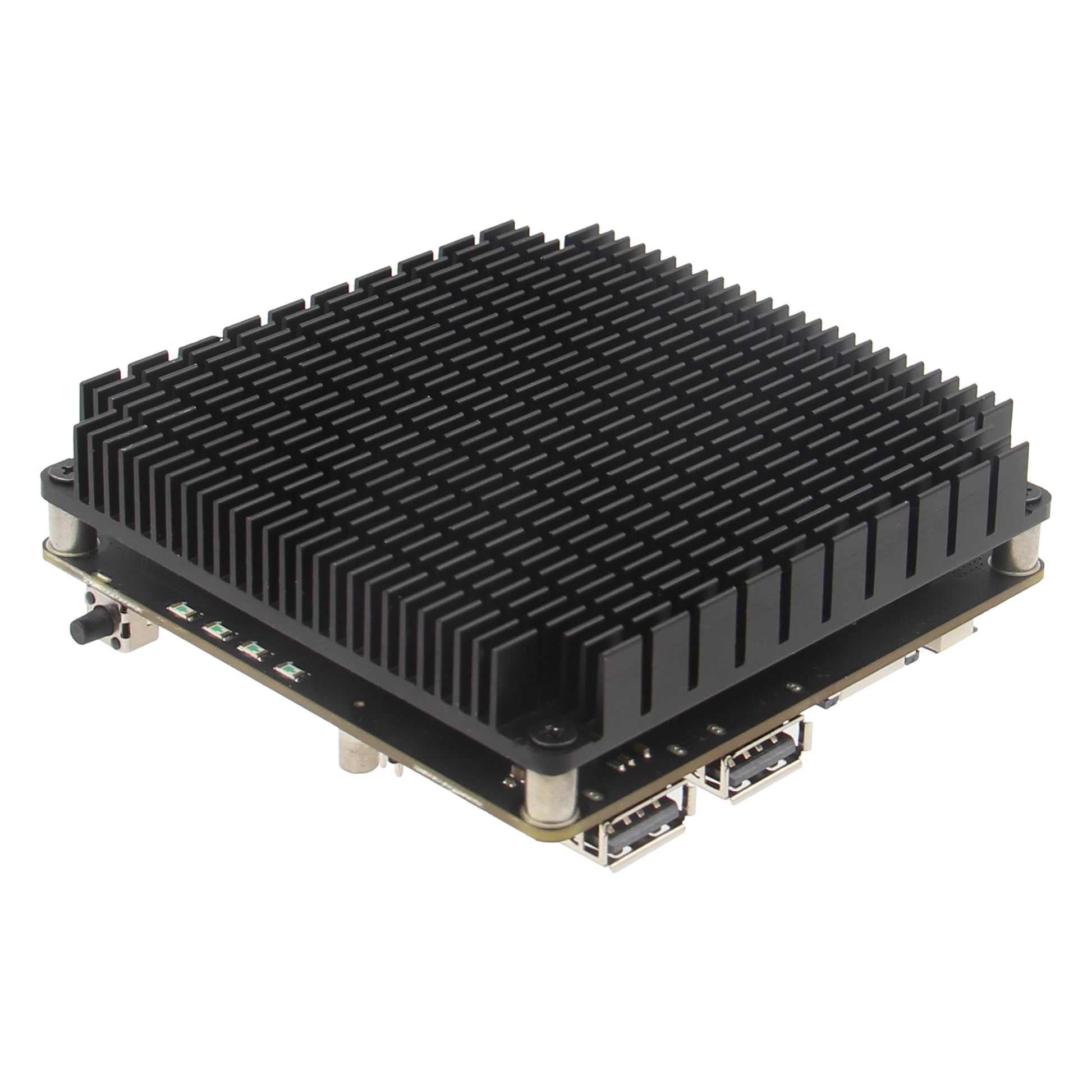

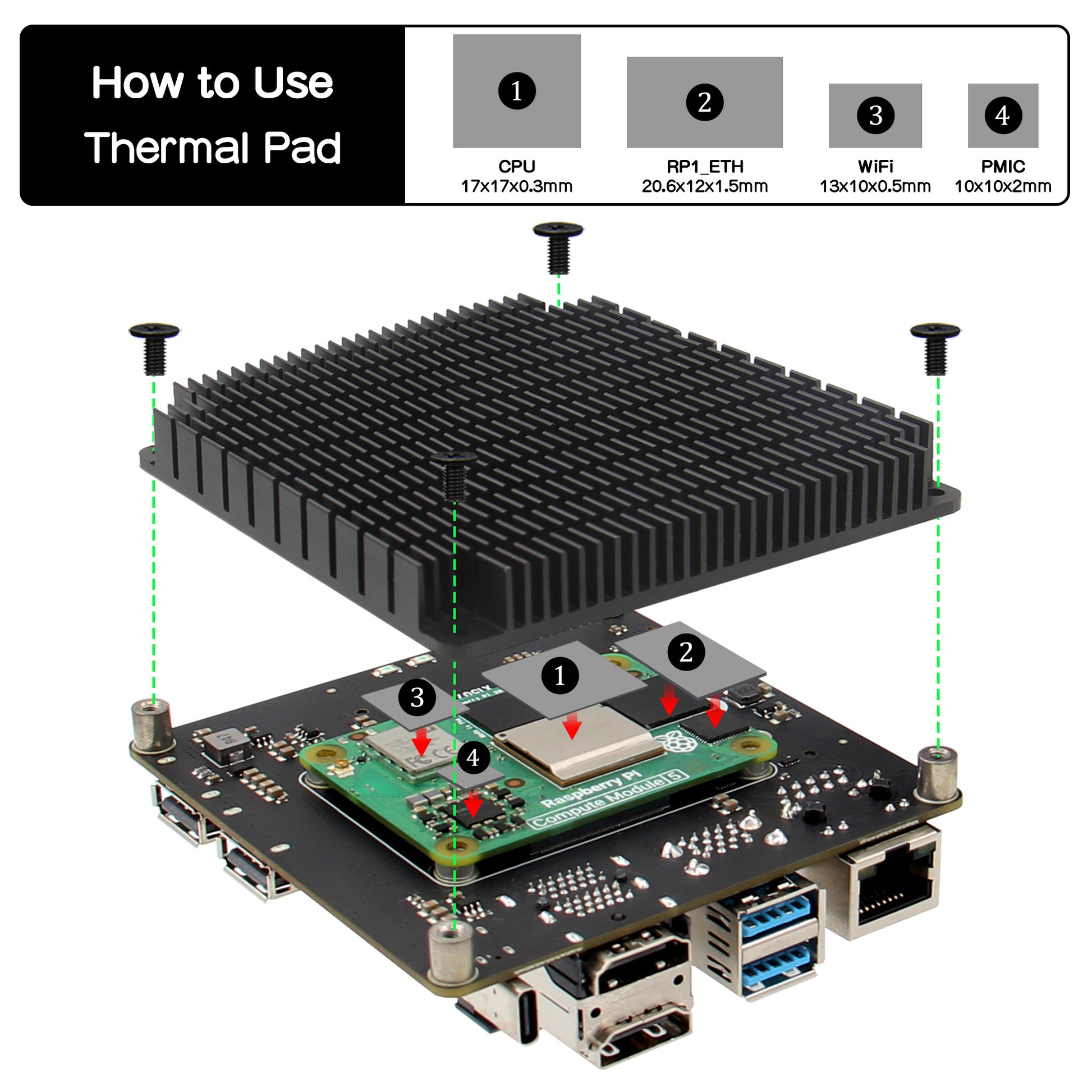

  • 1x Heatsink 85x85x12mm
  • 1x 2.54mm jumer cap
  • 1x Screw pack

Refer to: https://wiki.geekworm.com/X1507

Please email to us at info@geekworm.com if you have other questions.

The Geekworm CM5 IO Carrier Board is an innovative solution designed to enhance the functionality of the Raspberry Pi CM5 module. This carrier board provides a robust platform for developers and enthusiasts to build and prototype various applications, leveraging the power of the Raspberry Pi ecosystem.

One of the key features of the CM5 IO Carrier Board is its extensive I/O capabilities. It includes multiple GPIO pins, USB ports, and interfaces for connecting various peripherals. This allows users to easily integrate sensors, displays, and other devices into their projects. The board is designed to support a wide range of applications, from home automation systems to robotics and IoT devices.

In terms of connectivity, the CM5 IO Carrier Board offers options such as Ethernet and Wi-Fi, enabling seamless communication with other devices and networks. This is particularly important for applications that require real-time data transmission or remote monitoring capabilities. The board's design also ensures compatibility with various Raspberry Pi models, making it a versatile choice for developers.

Heat management is another critical aspect of the CM5 IO Carrier Board. Given that the Raspberry Pi can generate significant heat during operation, some model are equipped with provisions for heat dissipation. This is essential for maintaining optimal performance and longevity of the components. Users can utilize high-quality aluminum alloy heatsinks, such as those offered by Geekworm, to further enhance thermal management.

Moreover, the CM5 IO Carrier Board is built with durability in mind. It features a robust construction that can withstand the rigors of prototyping and development. This ensures that users can rely on the board for extended periods without concerns about wear and tear.

For developers looking to customize their projects, the CM5 IO Carrier Board provides ample opportunities for expansion. The board's design allows for easy integration of additional modules and components, enabling users to tailor their setups to meet specific requirements. This flexibility is a significant advantage for those working on innovative solutions in various fields.

In conclusion, the Geekworm CM5 IO Carrier Board is a powerful tool for anyone looking to harness the capabilities of the Raspberry Pi CM5 module. With its extensive I/O options, connectivity features, and robust design, it serves as an excellent foundation for a wide range of projects. Whether you are a hobbyist or a professional developer, this carrier board can significantly enhance your development experience.

Features X1500 X1501 X1502 X1507
Compatible with Raspberry Pi CM5 Raspberry Pi CM5 Raspberry Pi CM5 Raspberry Pi CM5
Ethernet Port 1GbE Ethernet Port x 1 1GbE Ethernet Port x 1,
2.5GbE Ethernet Port x 1		 1GbE Ethernet Port x 1,
2.5GbE Ethernet Port x 1		 1GbE Ethernet Port x 1
USB-C Power In Port ✔ ✔ ✔ ✔
USB-A Ports 2 x USB2.0 Type-A,
2 x USB3.0 Type-A		 1 x USB2.0 Type-A,
1 x USB3.0 Type-A		 1 x USB2.0 Type-A,
1 x USB3.0 Type-A		 2 x USB2.0 Type-A,
2 x USB3.0 Type-A
HDMI 2.0 Ports 2 x HDMI 2.0 2 x HDMI 2.0 2 x HDMI 2.0 2 x HDMI 2.0
M.2 NVMe Key-M Slot Dual
2230/2242/2260/2280		 Dual
2230/2242/2260/2280		 Four
2230/2242/2260/2280		 Dual
2230/2242
Dual MIPI DSI/CSI-2 Connectors ✔ ✔ ✔ ✔
MicroSD Card Slot ✔ ✔ ✔ ✔
Power Button ✔ ✔ ✔ ✔
RTC Battery Socket ✔ Require CR1220 ✔ Require CR1220 ✔ Require CR2032 ✔ with a RTC Battery Connector, Require CR1220 and battery holder
4Pin PWM Fan Port ✔ ✔ ✔ ✔
Support Hailo-8 AI Accelerator ✔ ✔ ❌ ✔
PoE header ✔ ✔ ❌ ✔
40pin GPIO header ✔ ✔ ✔ ✔
12pin Configurable header J2 ✔ ✔ ✔ ✔
Jumper setting for CAM/DISP1 J6 ✔ ✔ ✔ ✔
PoE HAT support Currently no compatible PoE HAT Currently no compatible PoE HAT Currently no compatible PoE HAT Currently no compatible PoE HAT
Matching Case X1500-C1 / X15-C1 X1500-C1 / X15-C1 X1502-C1 X1507-C1 was released at the end of September
Matching Cooler C519 C519 C519 Equipped with a passive cooler
