Geekworm X1500 CM5 IO Carrier Board for Raspberry Pi Compute Module 5 Support PoE+/1GbE/Dual M.2 NVMe SSD

Note: The Raspberry Pi CM5 board, SSD, SD card, CR1220 battery, power supply is not included in the packing list.

Overview

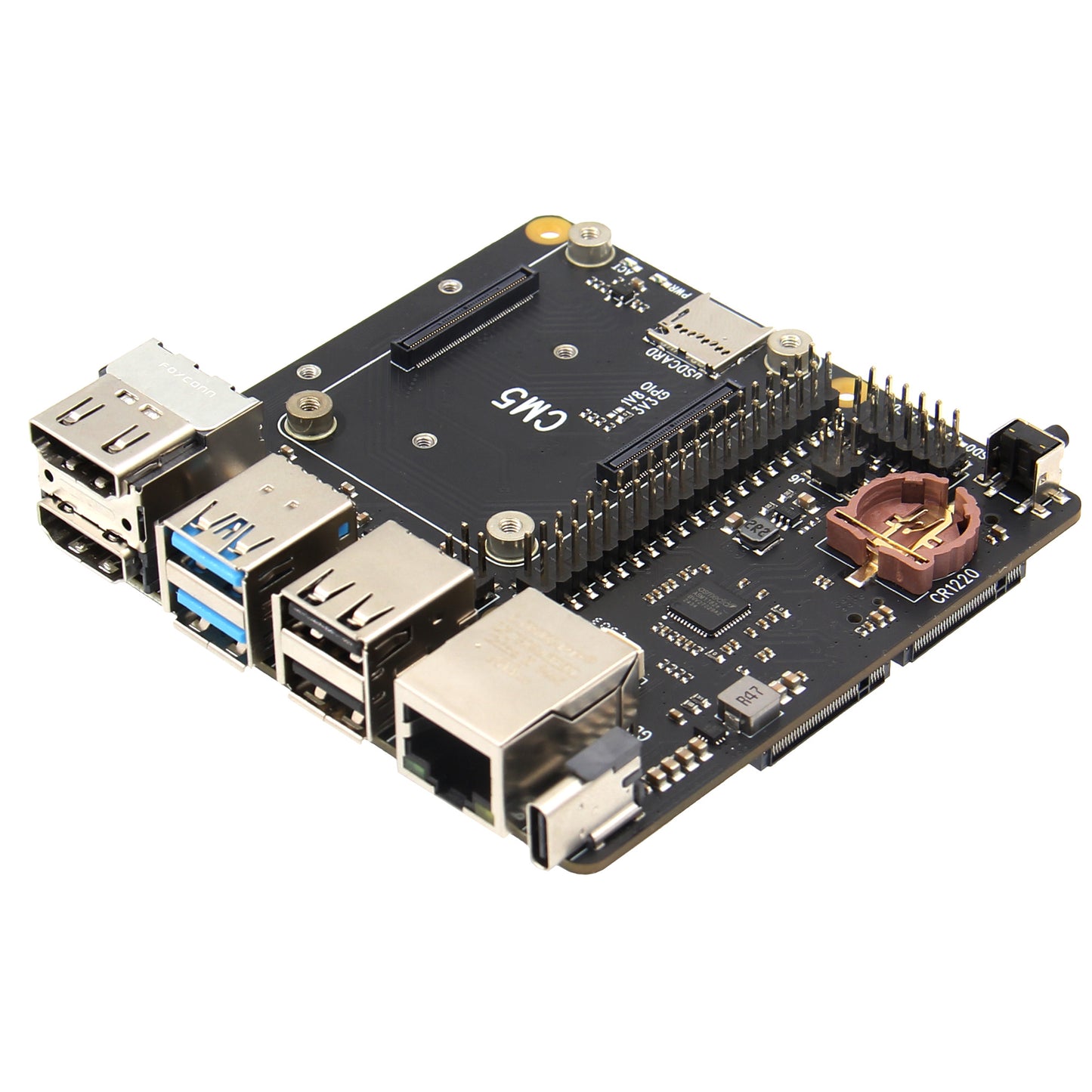

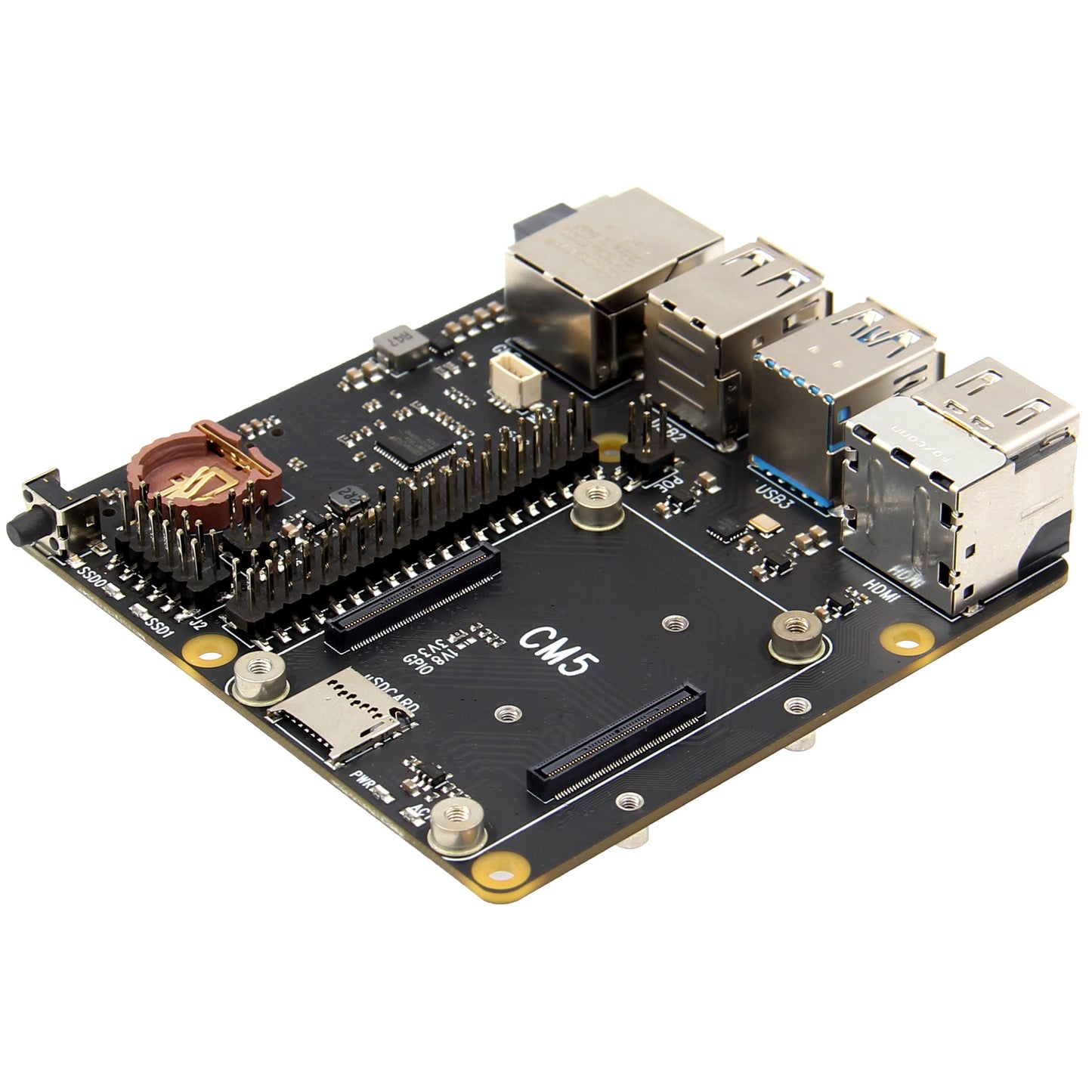

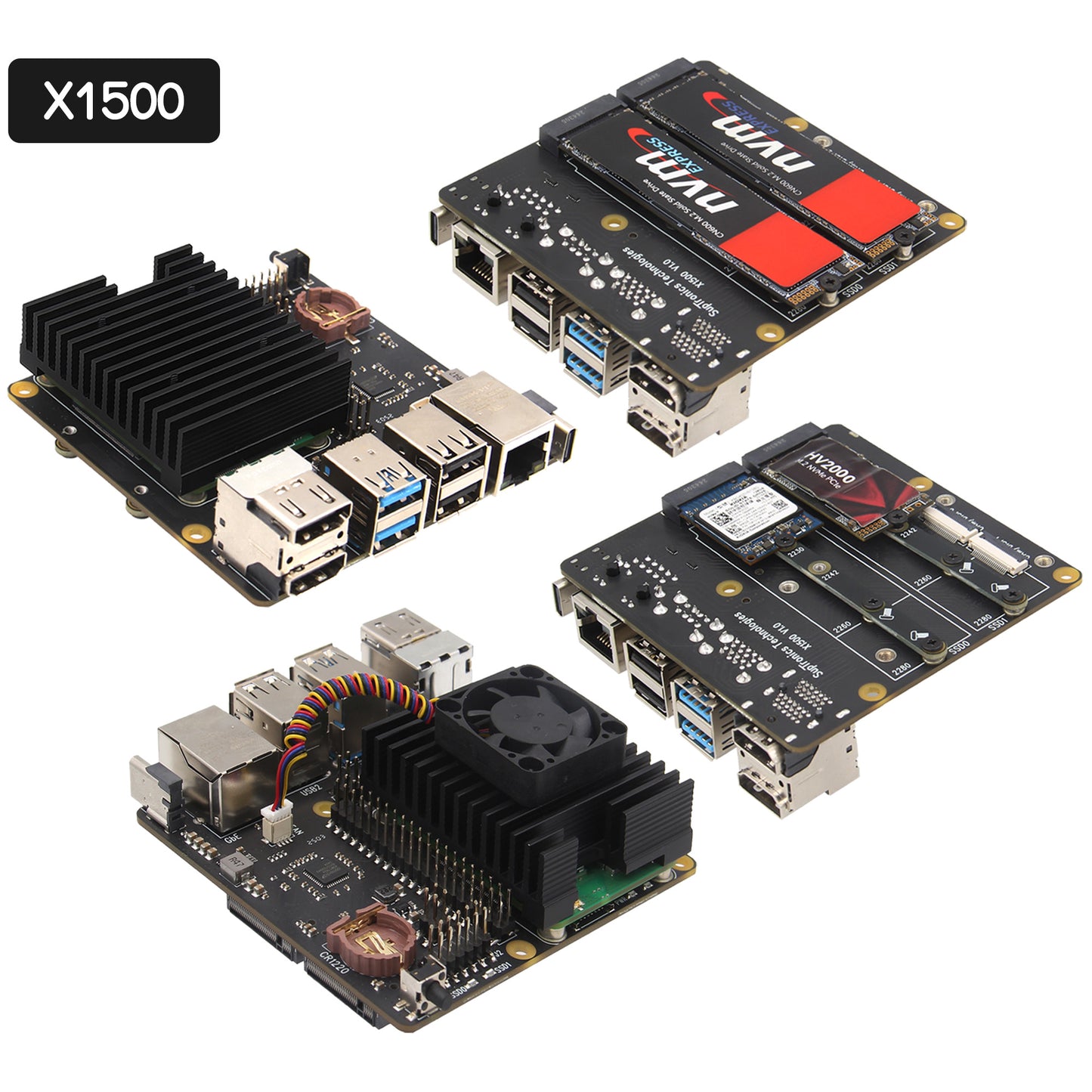

The X1500 is a purpose-built IO board tailored for the Raspberry Pi Compute Module 5 (CM5). It features two full-size M.2 NVMe slots and integrates a variety of peripherals into an ultra-compact design. This carrier board is meticulously engineered to streamline system development, allowing you to rapidly assemble solutions using readily available off-the-shelf components, such as existing Raspberry Pi HATs and M.2 NVMe devices.

For ease of integration, the board features a streamlined layout with major user connectors positioned along one edge, making enclosure design straightforward and efficient. Whether you're developing with the Compute Module 5 or deploying it as part of an embedded end product, the X1500 is designed to meet your needs with flexibility and performance.

Features

• Model: X1500

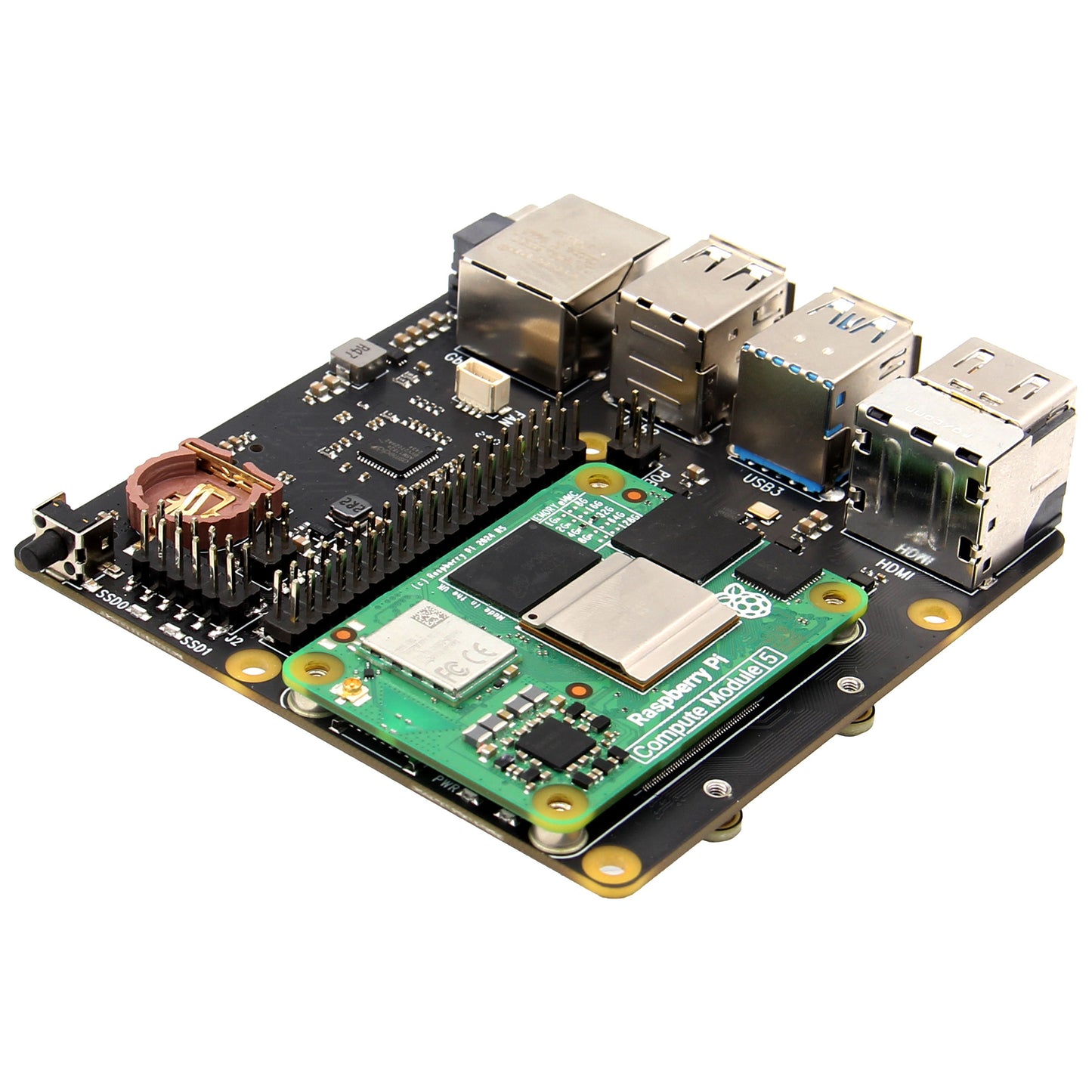

• Compatible with Raspberry Pi Compute Module 5 (CM5) and All CM5 Variants

• Compact Design (87x88x25mm): Combines a small footprint with a rich array of I/O peripherals for versatile applications.

• Gigabit Ethernet Port: Features 1GbE with PoE+ support (for simplified power delivery)

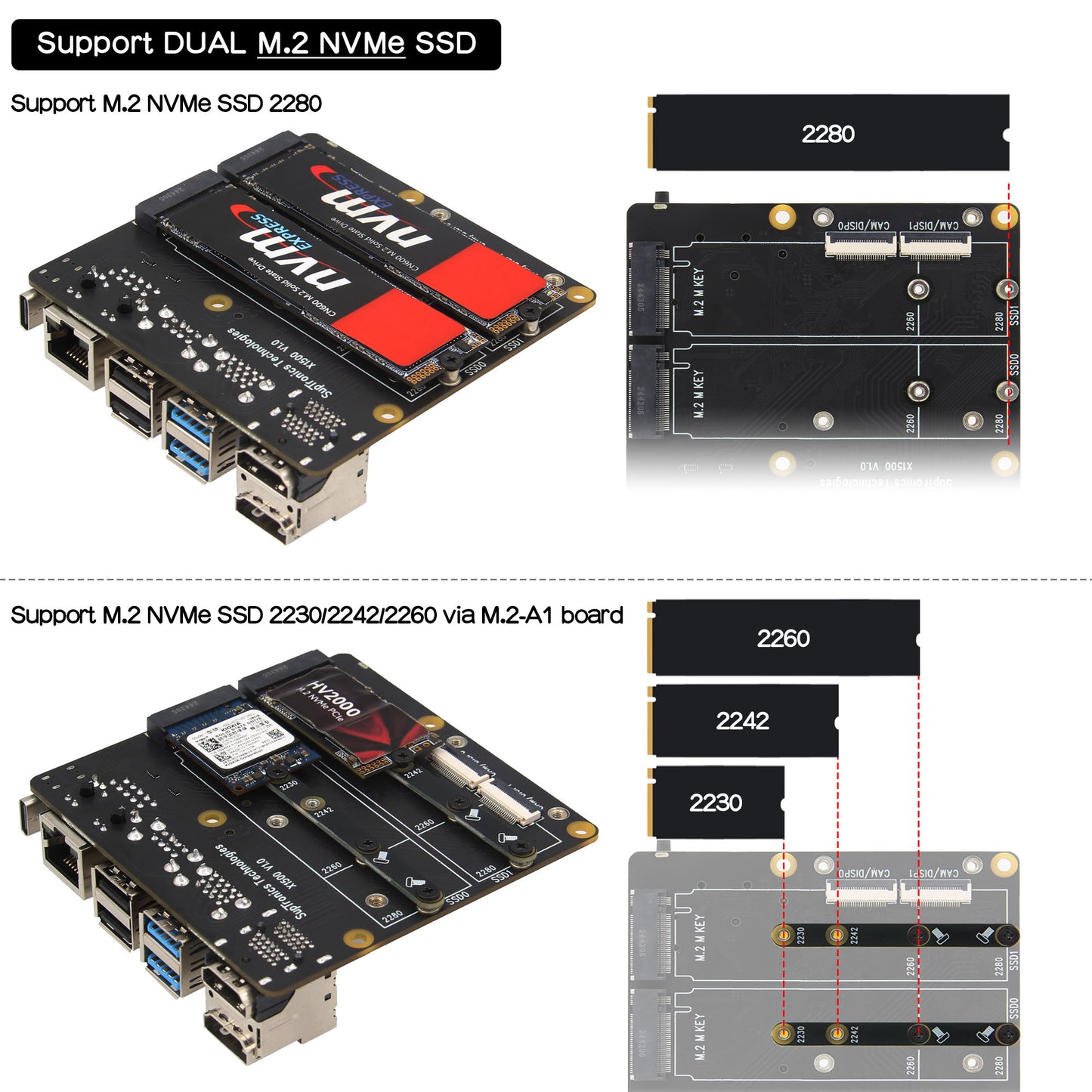

• Dual M.2 2280 NVMe SSD Slots: Supports up to 8TB (4TB+4TB) via PCIe 2.0 (5Gbps) for fast data transfers and boot times, compatible with M.2 NVMe SSDs in 2280, 2242, and 2230 form factors.

• Dual HDMI 2.0 Ports: Enables dual 4K display output for multimedia or industrial use cases.

• Dual USB 3.2 Gen 1 Ports: delivering high-speed data transfer rates of up to 5 Gbps.

• Dual MIPI DSI/CSI-2 Connectors: 22-pin FPC connectors (0.5mm pitch) compatible with Raspberry Pi 5 CSI and DSI modules for seamless camera and display integration.

• MicroSD Card Slot: Supports Compute Module 5 Lite variants (without onboard eMMC)

• Raspberry Pi HAT+ Compatibility: Reuse existing Raspberry Pi HATs to save time and reduce development costs.

• Convenient Power Button: Easily wake or shut down the Compute Module 5 with a single press.

• RTC Battery Socket (CR1220 coin battery is not included): Ensures accurate timekeeping during power interruptions.

• PWM Fan Support: Includes a fan power connector for adjustable cooling in demanding environments.

• USB-C Port: Handles both power delivery and OS image loading directly into the CM5’s eMMC.

• Configurable Jumpers: Allows disabling features like wireless connectivity or EEPROM writing for customization.

• Streamlined Connector Layout: USB, HDMI, Ethernet, and power ports are grouped along one edge for clean cable management and easy enclosure integration.

Matching Case

• The X1500-C1 Metal Case will come soon.

How to Power

• 5.1Vdc +/-5% 5A power via USB-C port of X1500

For optimal performance, please use Raspberry Pi 5 PD 27W USB-C Power Supply or an alternative power supply capable of delivering 5.1V at 5A. An incompatible power supply with a lower output voltage may fail to power on the system.

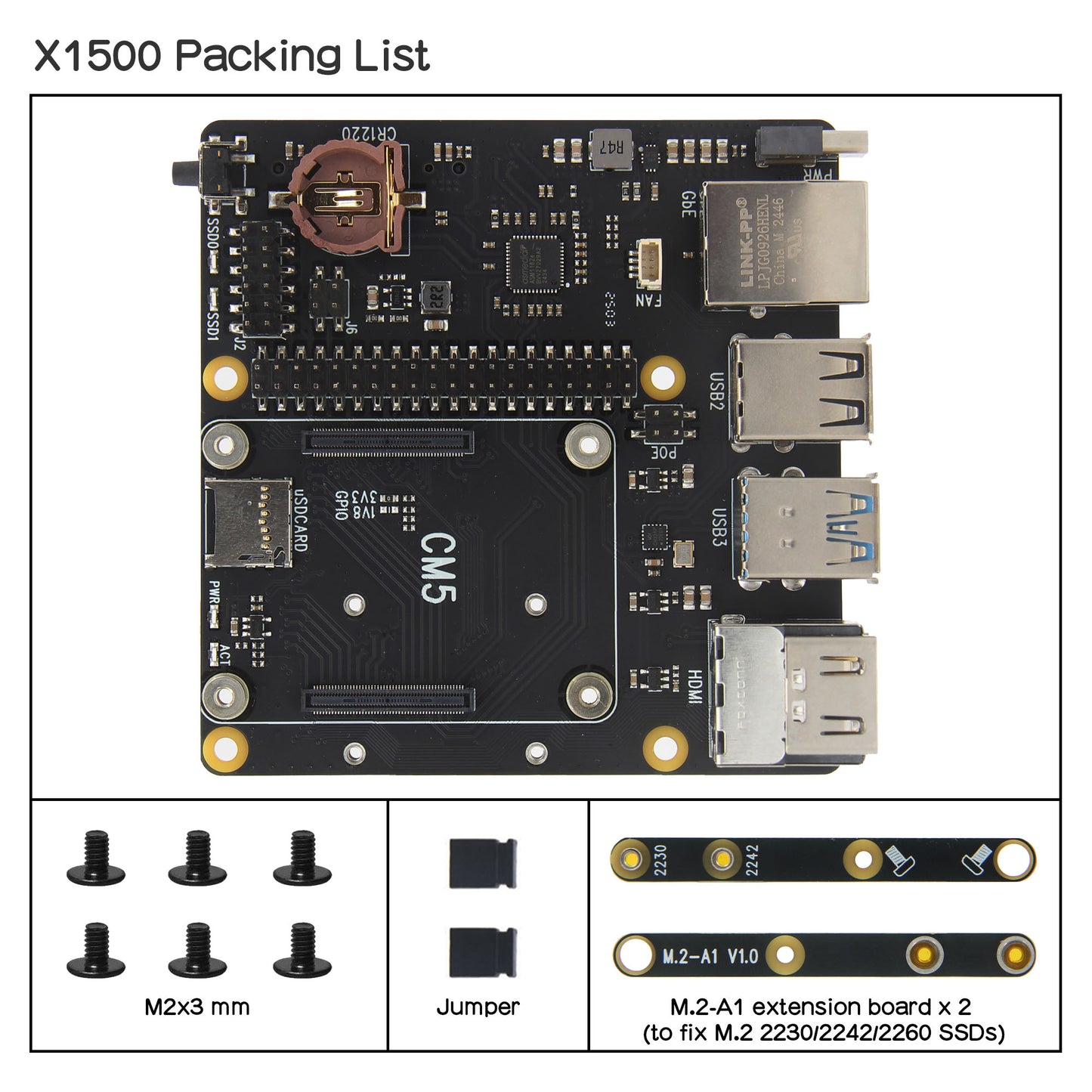

Packing List

• 1x X1500 V1.0 CM5 carrier board

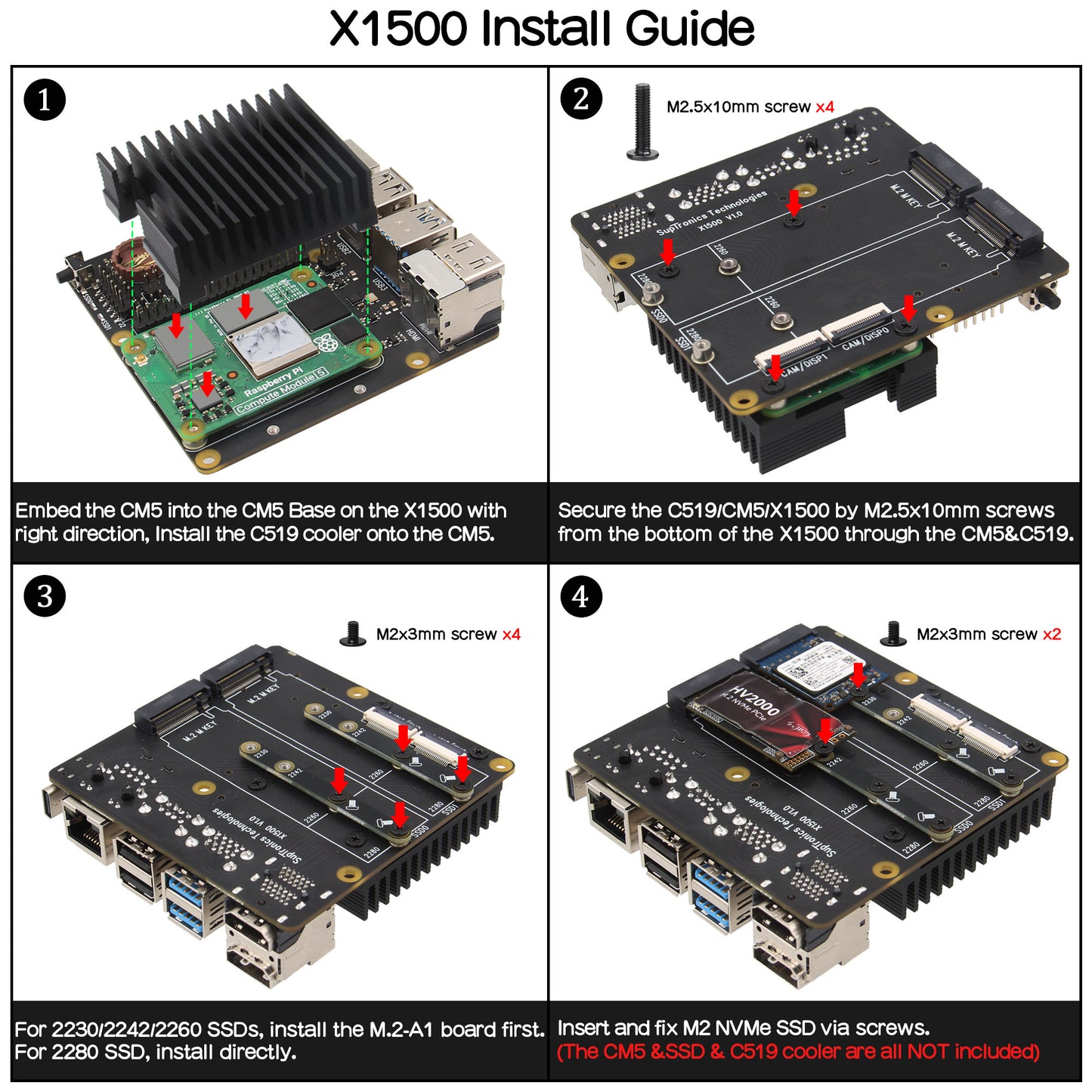

• 2x M.2-A1 extension board (to fix M.2 2230 and 2242 SSDs)

• 2x 2.54mm jumer cap

• 6x M2x3mm screw
