Geekworm X1301 HDMI to CSI-2 Shield for Raspberry Pi 5/4B/3B+/3B Support 1080P@60fps

Regular price
$36.00
Regular price
$42.00
Sale price
$36.00
-14%
Only 44 items in stock! Out of stock!
  • Description
  • Manual
  • Shipping Policy
  • Reviews

Overview

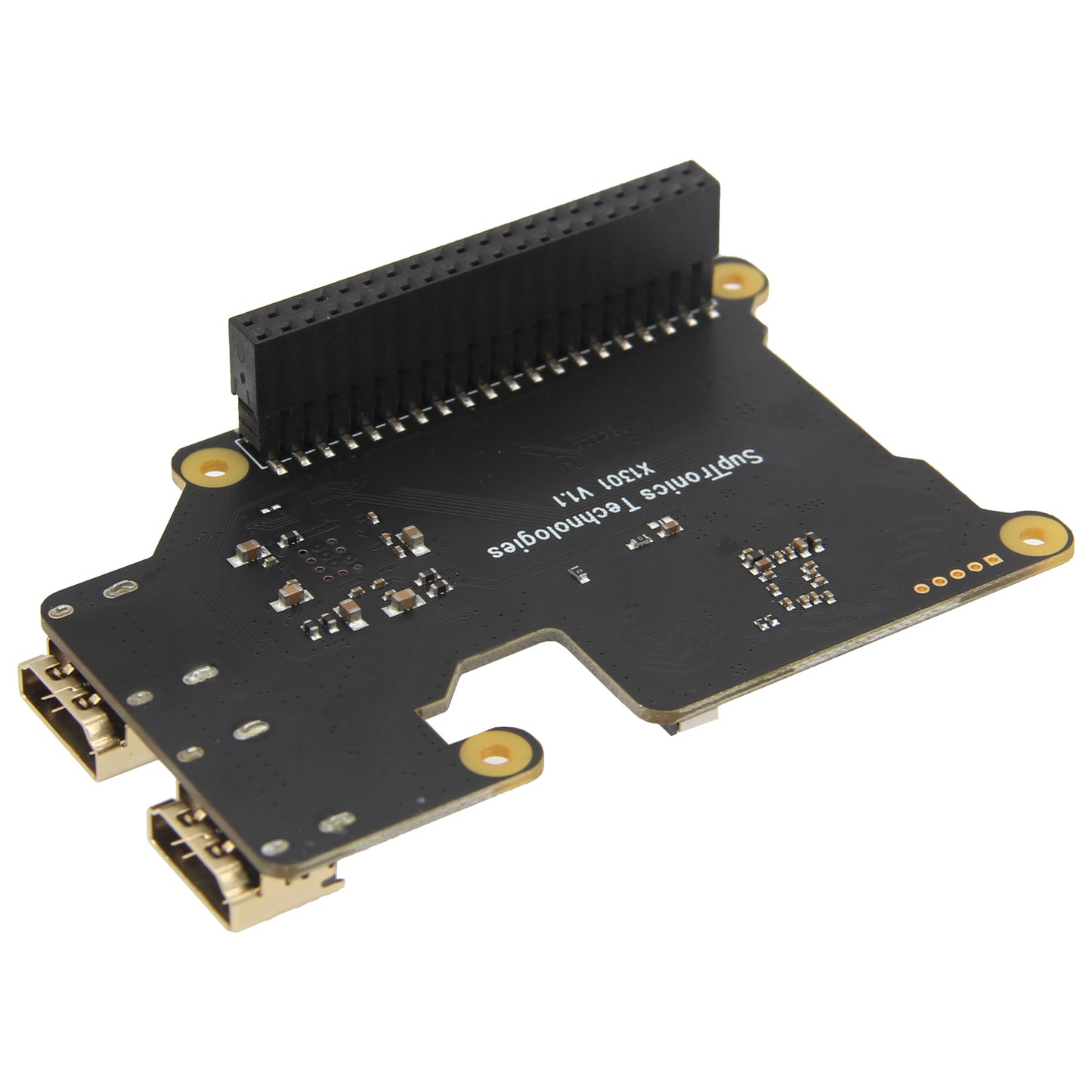

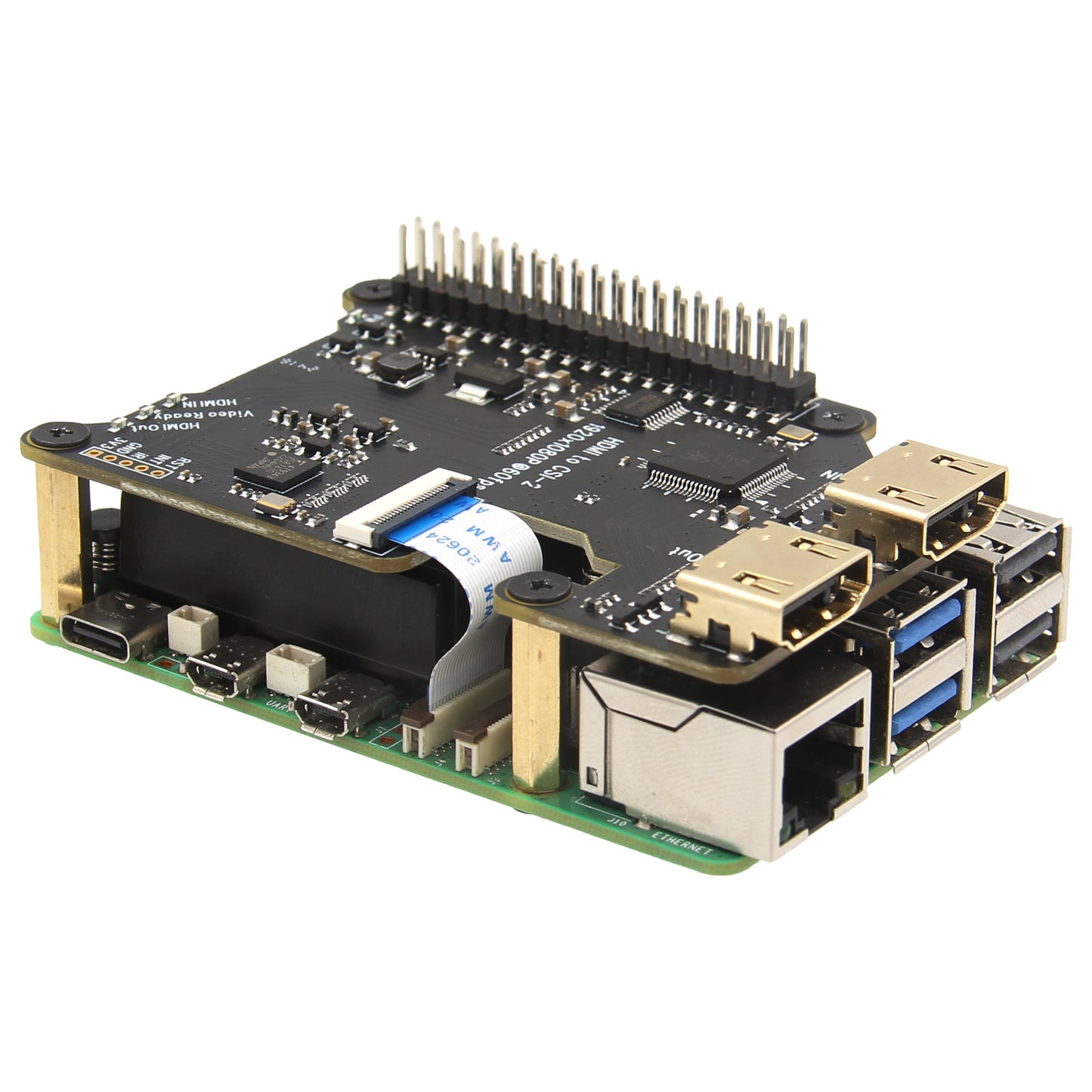

The X1301 HDMI to CSI-2 bridge with I2S audio interface is a specialized product tailored for the Raspberry Pi. It is equipped with the Toshiba TC358743XBG bridge chip and a one-to-two active HDMI splitter chip, enabling support for HDMI input and HDMI Pass-Through up to 1080P at a refresh rate of 60 fps.

With the HDMI Pass-Through feature, you can seamlessly output the HDMI signal (audio/video) from various source devices such as a Blu-ray Disc player, cable box, or satellite receiver to a TV or projector for local monitoring, even when the Raspberry Pi is in standby mode.

User Manual: https://wiki.geekworm.com/X1301

Features

  • For use with Raspberry Pi 5/4B/3B+/3B
  • Capable of handling video formats up to 2K Full HD (1920x1080, 60fps)
  • Supports HDMI Pass-Through for local HDMI display
  • Equipped with the HDMI to CSI-2 bridge chip: Toshiba TC358743XBG
  • Supports MIPI CSI-2 with 4 data lanes, each with speeds of up to 1 Gbps per lane

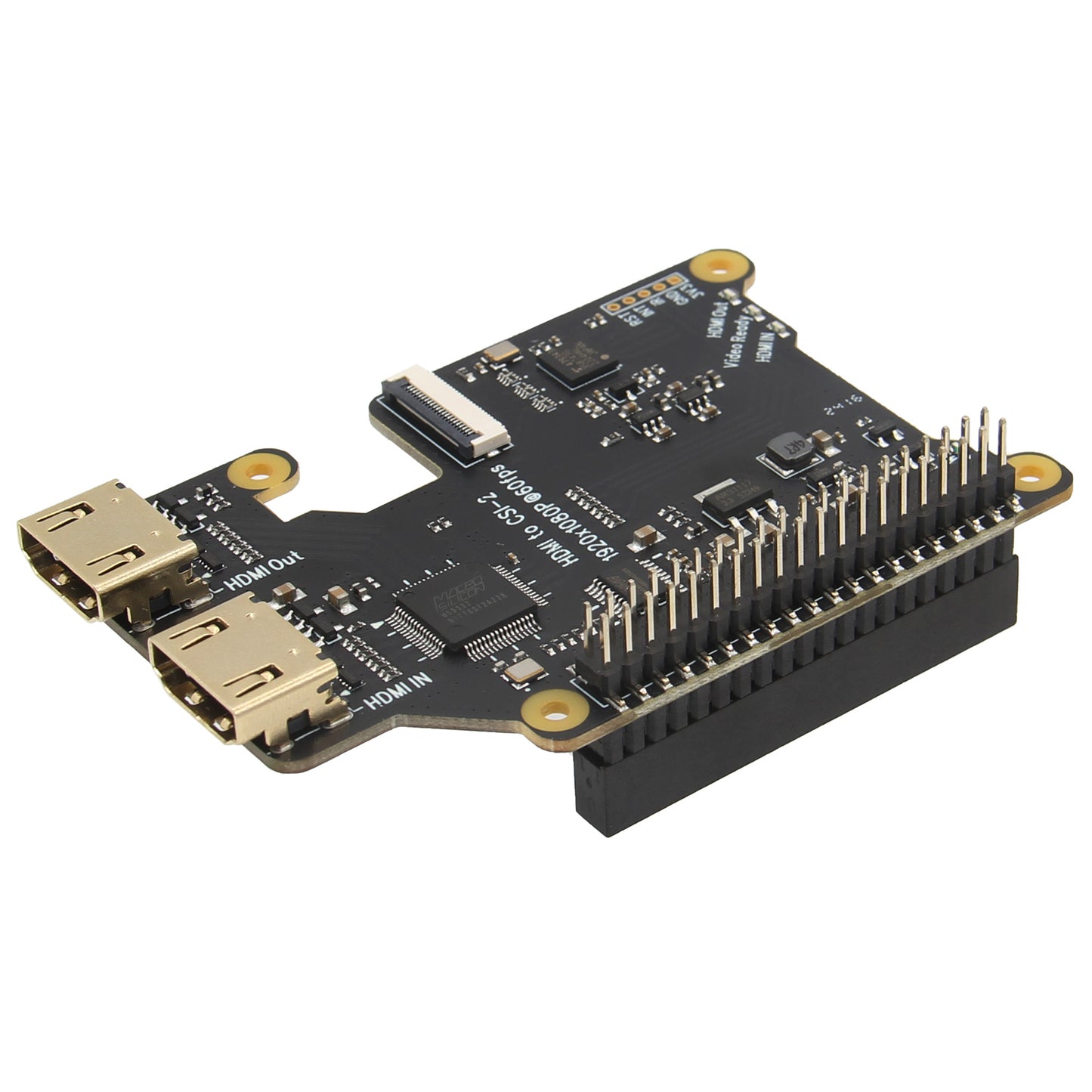

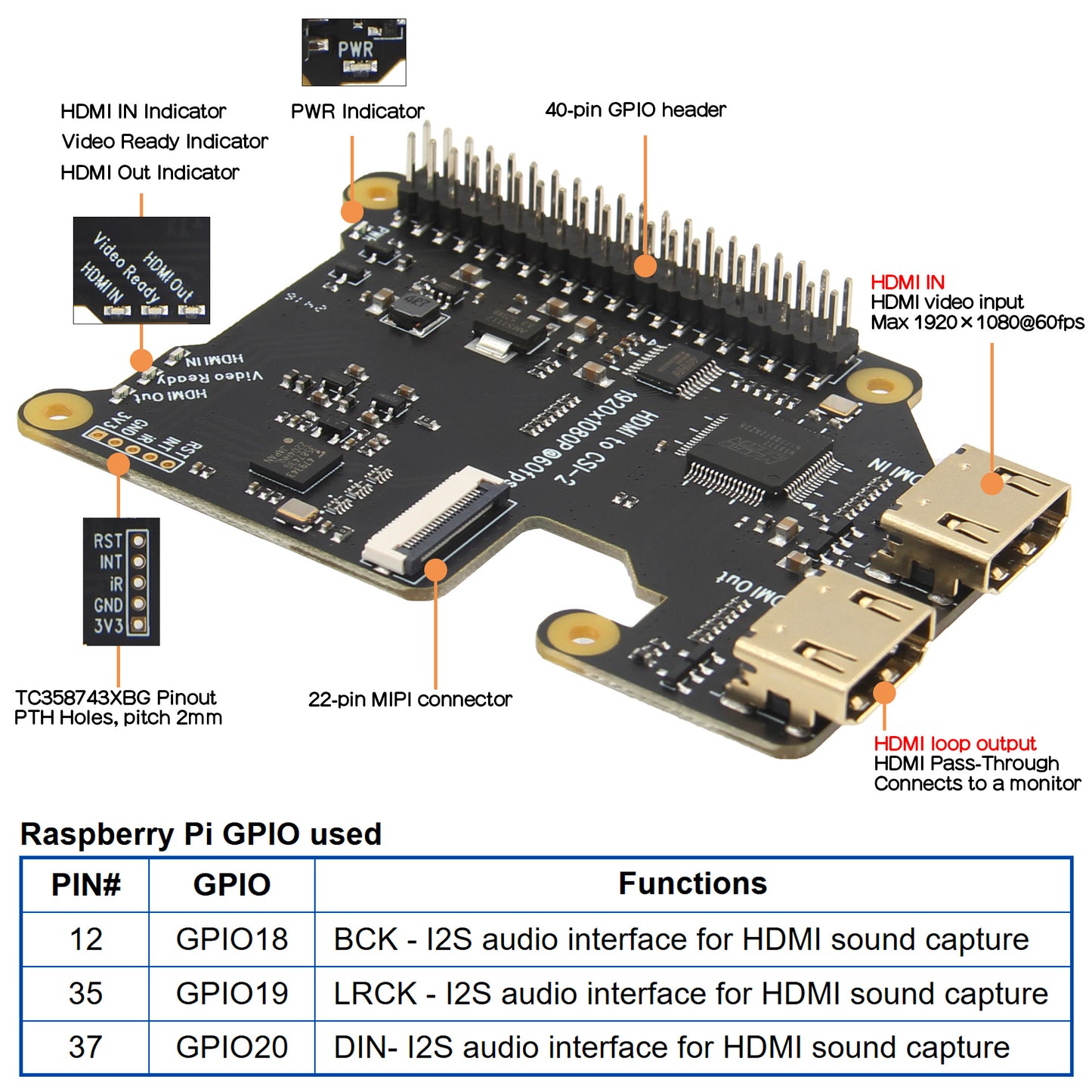

  • Enables HDMI audio input and transmission over I²S
  • Prevents HDMI backpowering to the Raspberry Pi CSI
  • Features a CSI-2 connector: 22-pin FPC with 0.5mm pitch

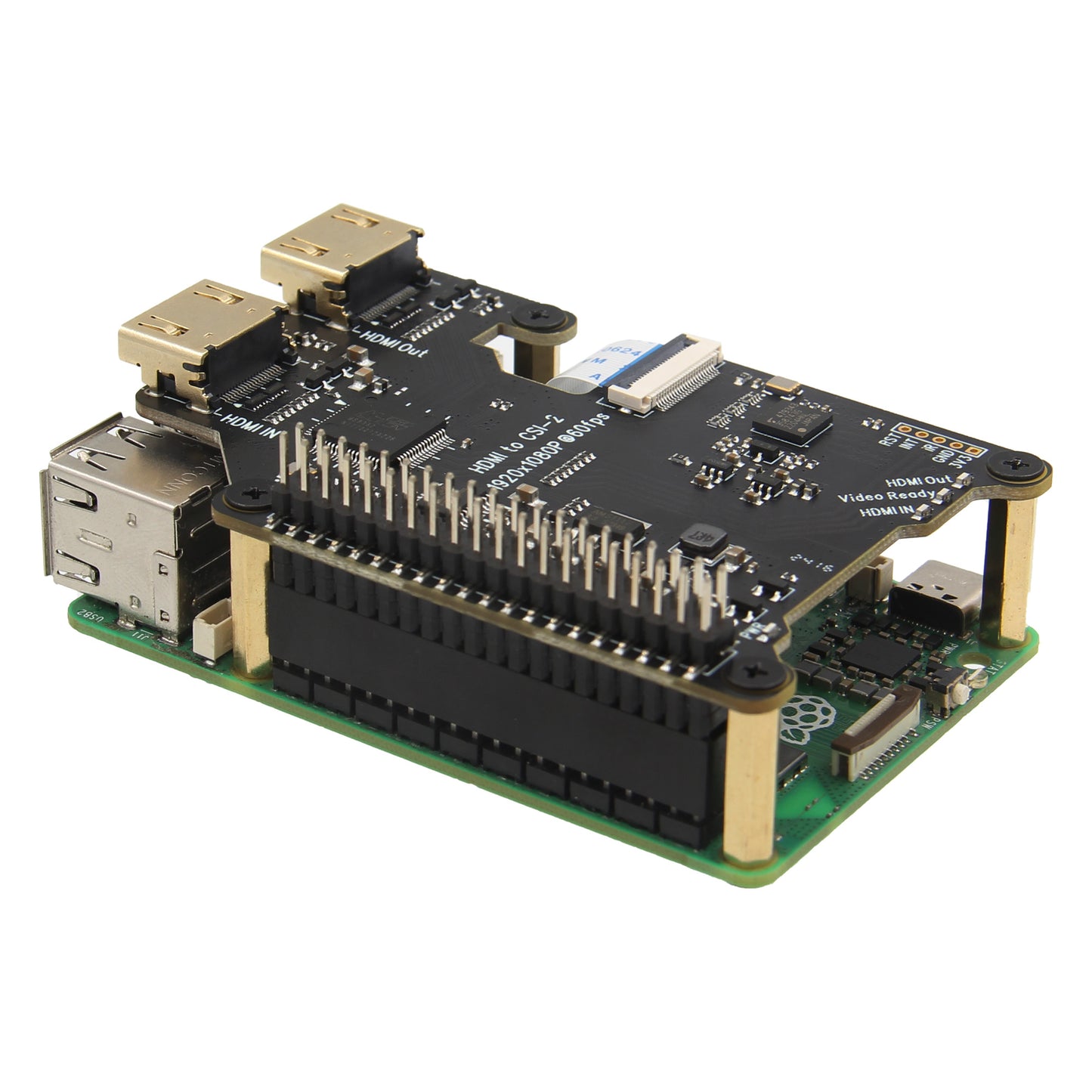

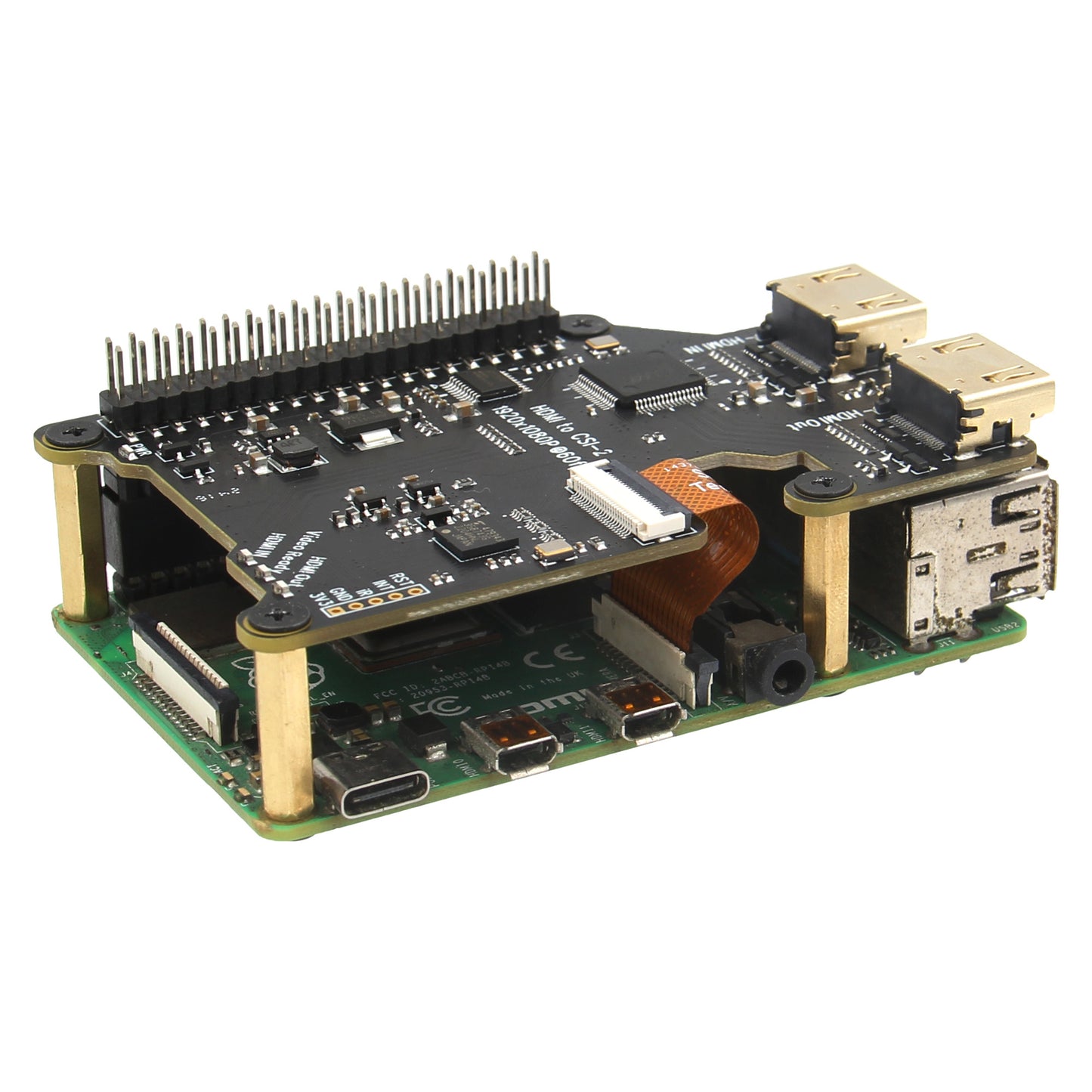

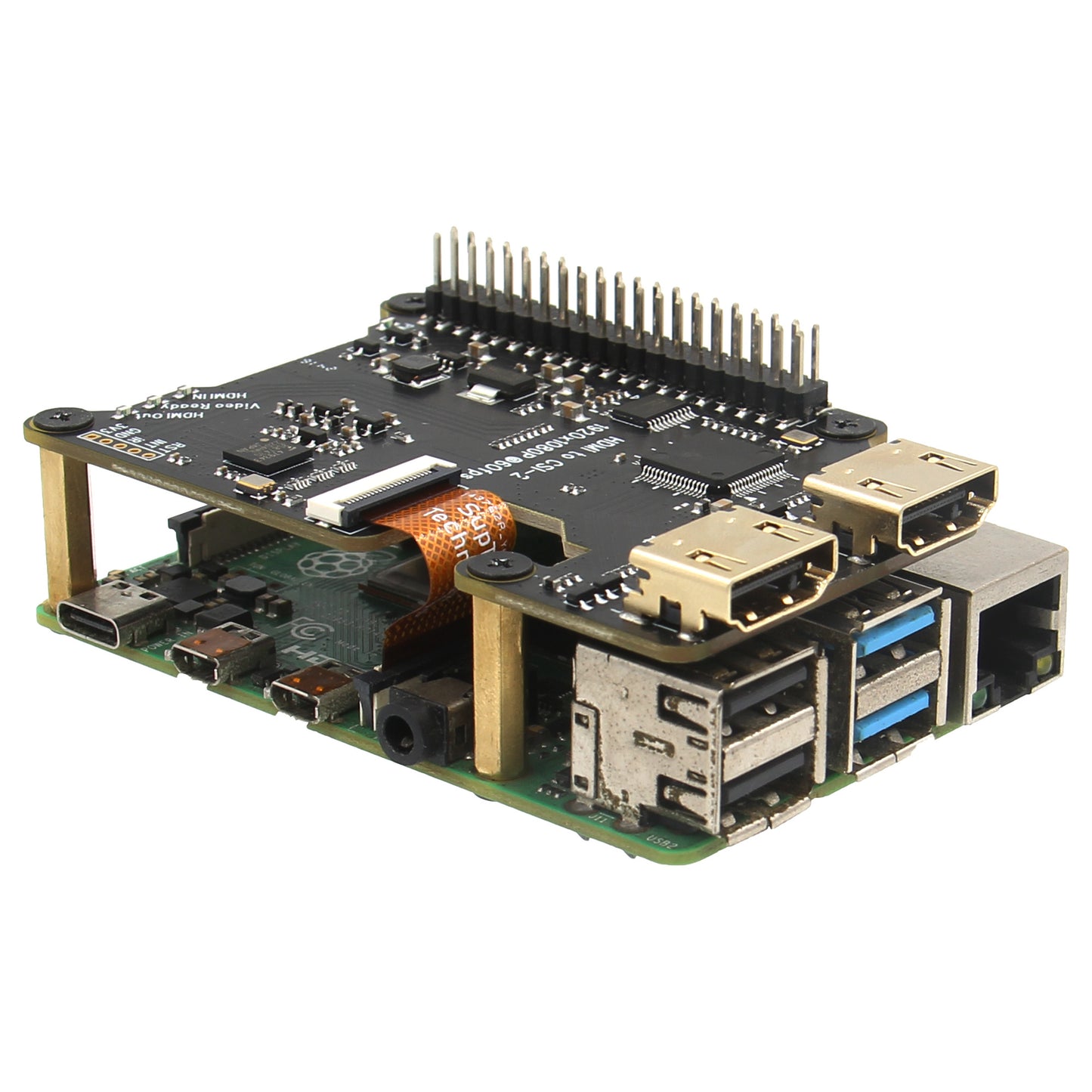

  • Designed to be attached on top, allowing stacking with other HATs
  • Compatible with the HAT+ STANDBY power state, automatically turning off when the Pi 5 shuts down
  • Easily mountable on the Raspberry Pi, allowing you to customize your perfect case
  • The Raspberry Pi 4B, 3B+, and 3B do not support the HAT+ STANDBY power state, which means they cannot automatically turn off the X1301 when the Pi shuts down.

Applications

Here are some applications of HDMI to CSI (Camera Serial Interface) conversion:

  • Digital Media Adapters: HDMI to CSI adapters allow HDMI cameras to be used just like standard Raspberry Pi CSI cameras. This is useful for digital media adapters that need to process HDMI input.
  • Smart Monitors: Smart monitors can benefit from HDMI to CSI conversion, enabling them to accept HDMI video streams and integrate them into their display systems.
    Set-Top Boxes (STBs): STBs often require video input from various sources. HDMI to CSI conversion allows STBs to handle HDMI signals efficiently.
  • Smart TVs: Some smart TVs may need to process HDMI input for features like picture-in-picture or video conferencing. HDMI to CSI bridges facilitate this integration.
    Entertainment Screens: Whether it's for gaming consoles, streaming devices, or other entertainment systems, HDMI to CSI conversion ensures compatibility with HDMI sources.
  • KVM over IP: IP-KVM (Keyboard, Video, Mouse over IP) solutions using a Raspberry Pi, This bridge allows you to capture full HD video with low latency and supports H.264 video encoding of your desktop.

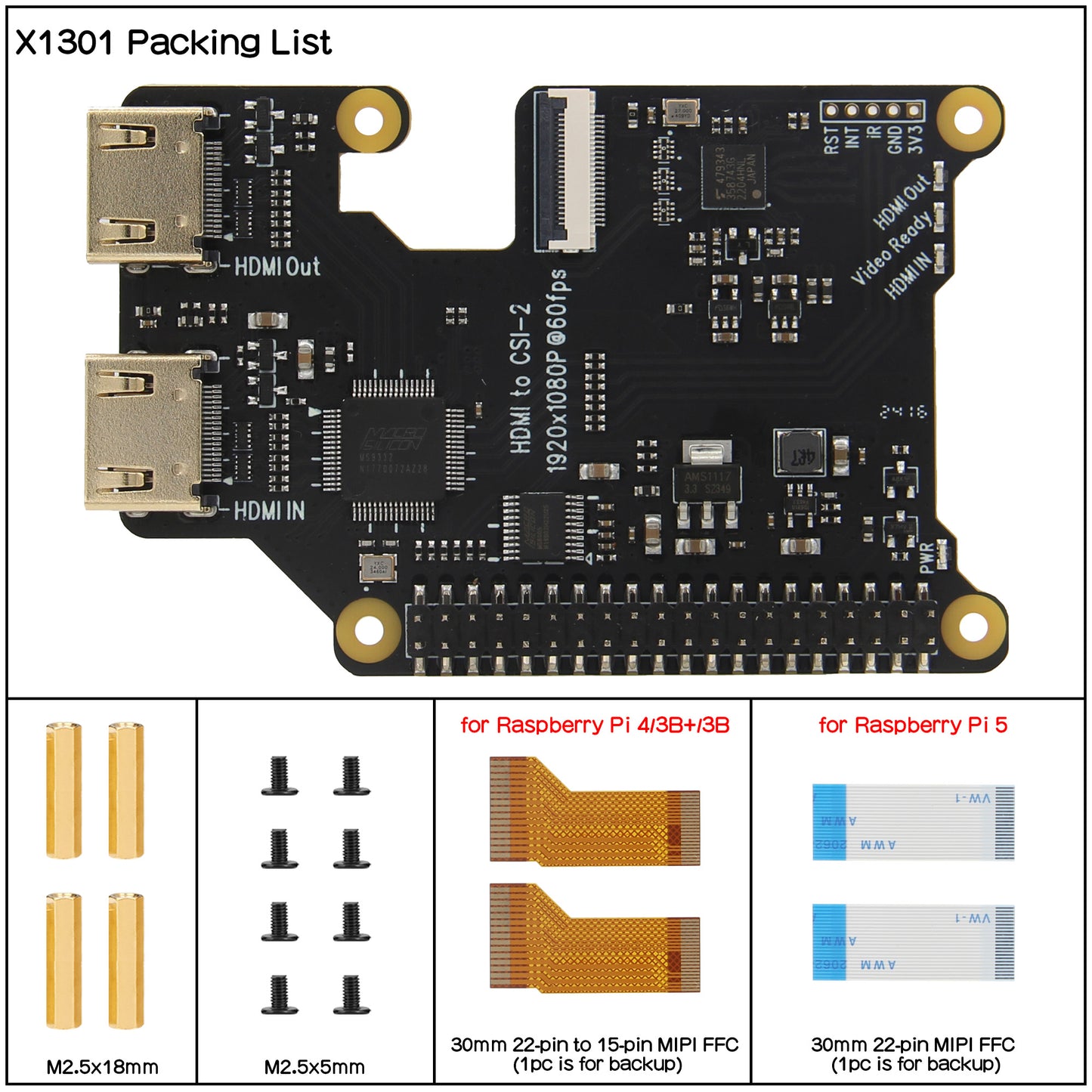

Packing List

  • 1x X1301 V1.1 HDMI to CSI-2 module
  • 2x 22-pin to 15-pin MIPI FFC 30mm (For Raspberry Pi 4B/3B+/3B)
  • 2x 22-pin MIPI FFC 30mm (For Raspberry Pi 5B)
  • 4x M2.5*19mm F/F Spacer
  • 8x M2.5*5mm Screw

Refer to: https://wiki.geekworm.com/X1301

Please email to us at info@geekworm.com if you have other questions.
