CM5-Tiny Carrier Board with CNC Aluminum Case Kit for Raspberry Pi Compute Module 5 CM5

$49.90
$55.00
$49.90
-9%
Only 20 items in stock! Out of stock!
  • Description
  • Manual
  • CM5 IO Carrier Boards
  • Shipping Policy
  • Reviews

Overview

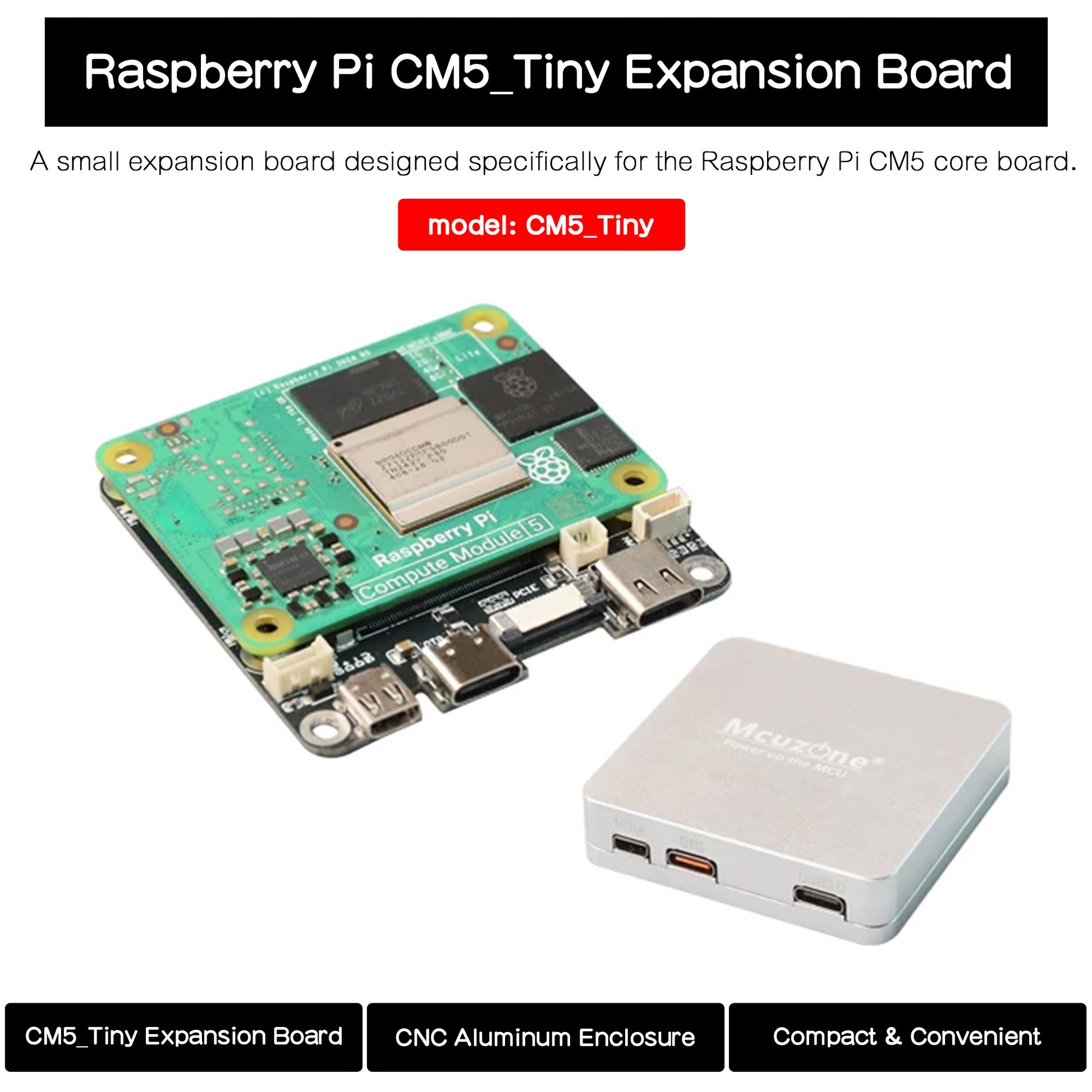

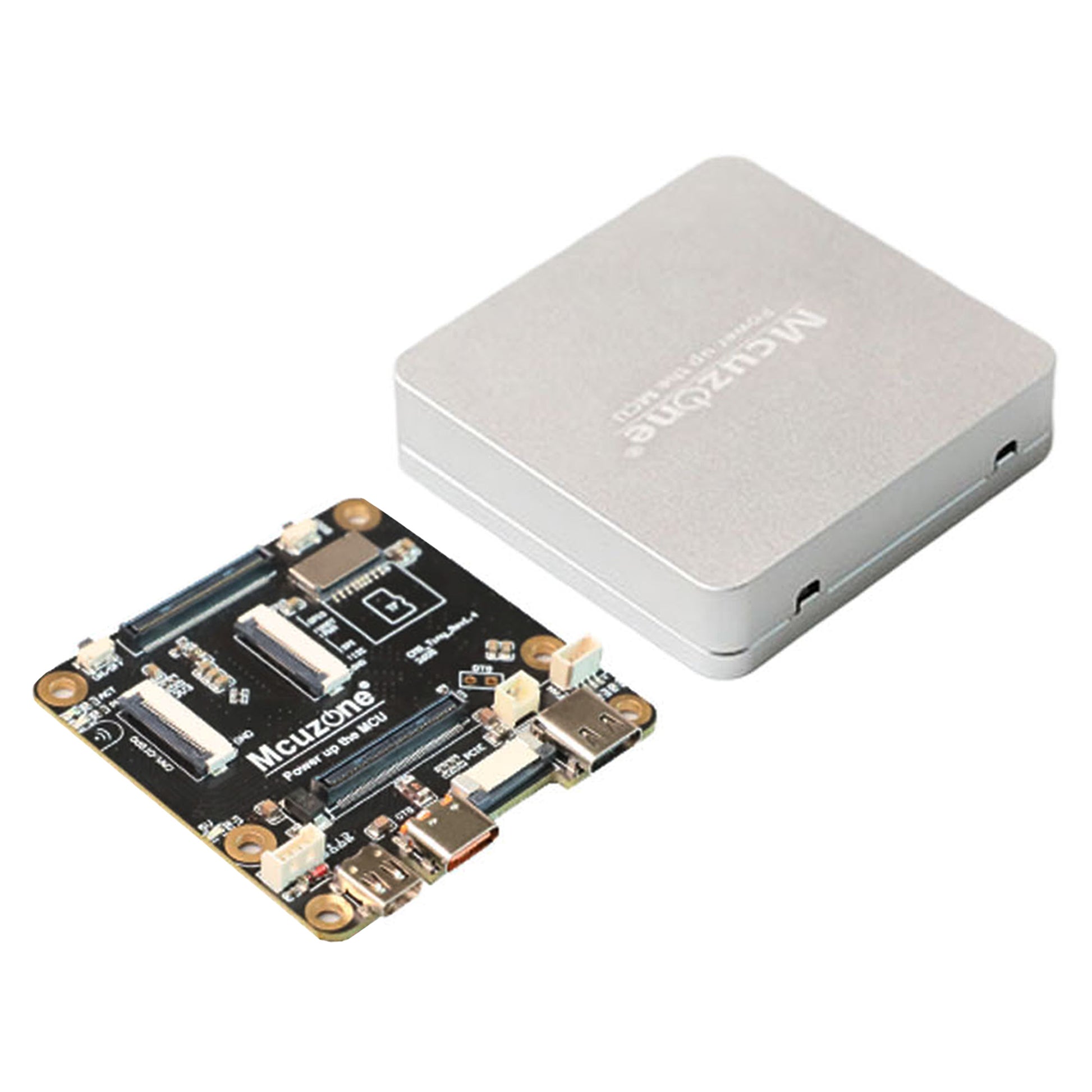

The CM5-Tiny Carrier Board + CNC Aluminum Case Kit is a purpose-built, ultra-compact mini carrier board designed exclusively for the Raspberry Pi Compute Module 5 (CM5). This premium kit bundles the high-performance Rev1.4 mainboard with a matching precision-engineered CNC aluminum alloy case, perfectly balancing rich hardware expandability with an incredibly small footprint.

Despite its mini size, it breaks out all the core interfaces of the CM5. The dedicated USB 2.0 OTG port supports both effortless system flashing and a virtual Ethernet adapter mode (ideal for OpenWrt setups). For ultimate expandability, the onboard 16-Pin PCIe slot allows you to connect NVMe SSDs, WiFi 7 modules, 2.5G network cards, Coral TPUs, and more.

Whether you are building a smart network gateway, a compact 4G router, an AI vision system, or an industrial edge computing node, the included rugged metal case ensures optimal passive cooling and maximum durability for both rapid prototype development and field deployment.

Note: The CNC Aluminum Enclosure is specifically designed for bare-board assembly. Third-party PCIe expansion modules cannot be installed inside the enclosed case.

Key Features

🚀 Ultra-Compact & Versatile I/O

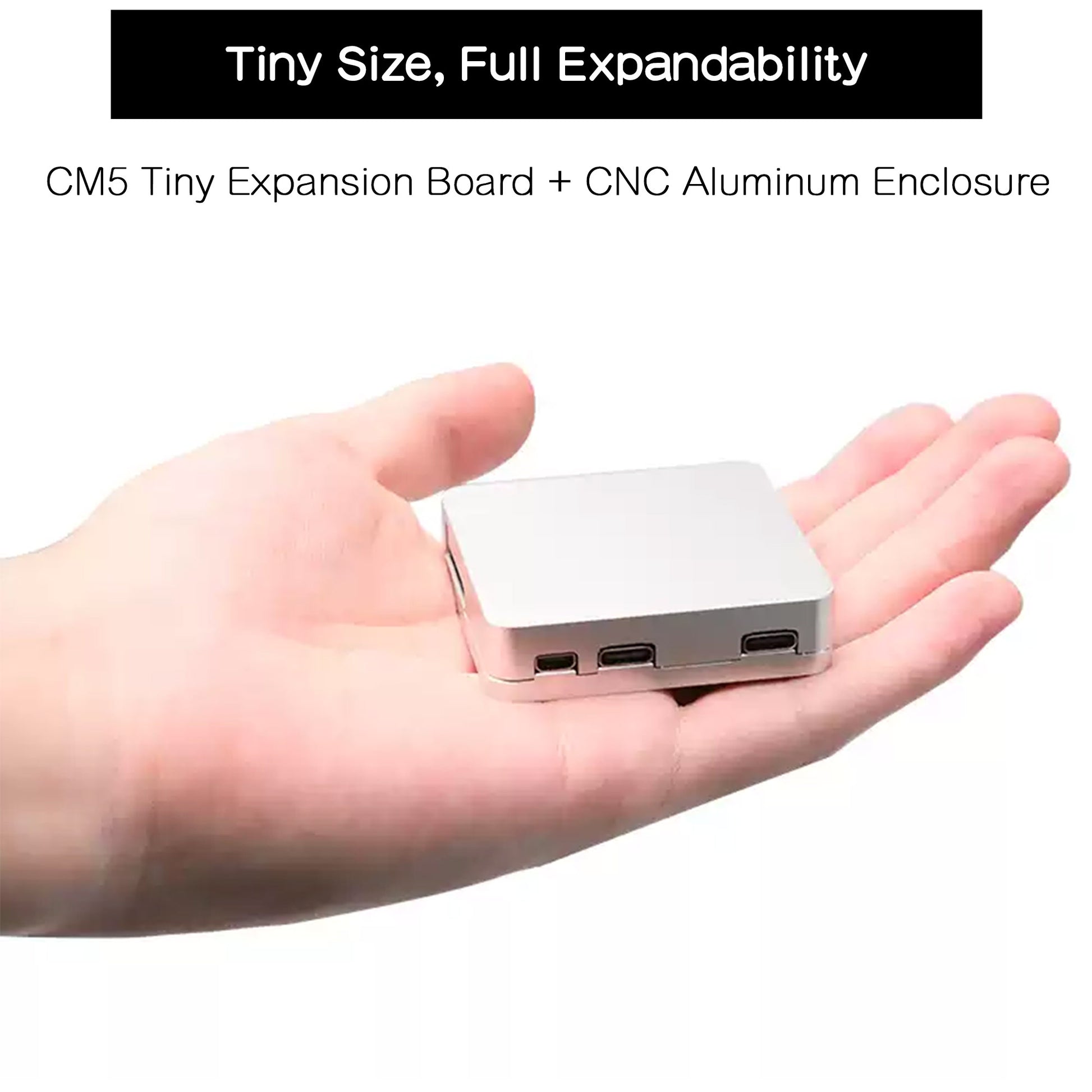

  • Mini Form Factor: Micro-sized at just 53.5×55mm—ideal for embedded systems, IoT, and space-constrained environments.

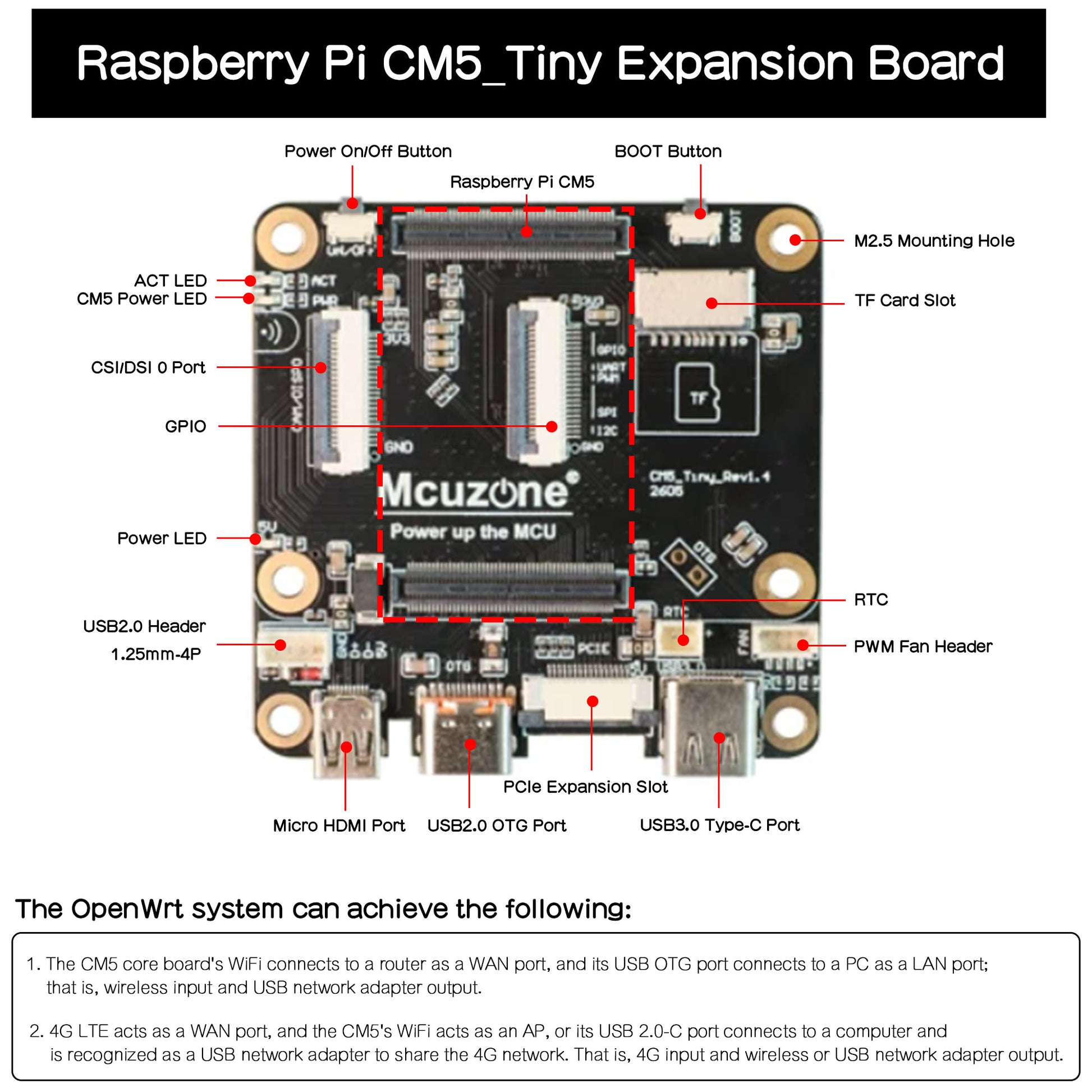

  • Full-Featured Ports: Equipped with a 4K Micro HDMI port, USB 3.0 Type-C, and a CSI/DSI combo FPC interface for camera or display modules.
  • High-Speed Expansion: Features a 0.5mm-16Pin PCIe slot to expand system capabilities with SSDs, cellular cards, or accelerators.

🛠️ Tool-Free Flashing & Flexible Boot

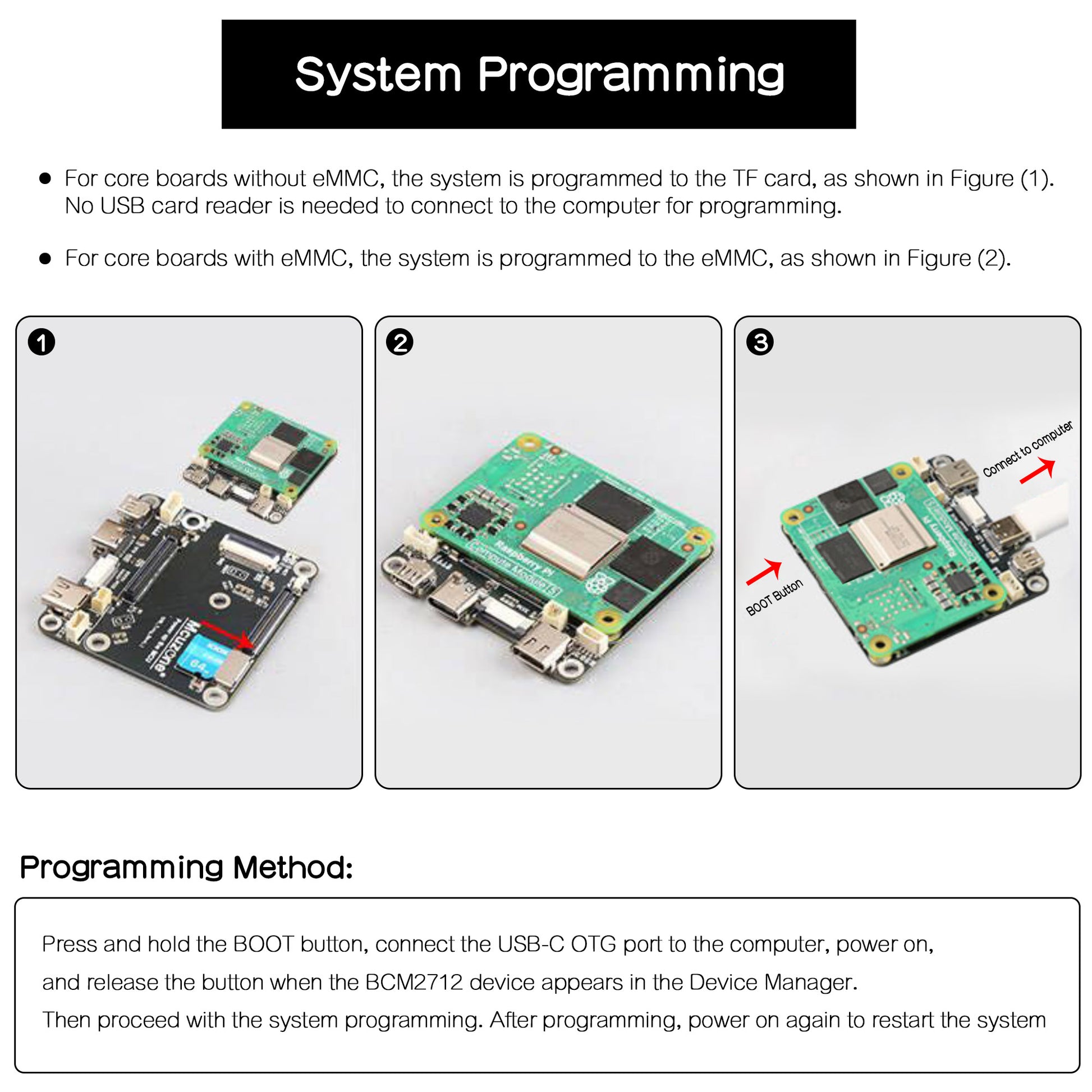

  • Driver-Free eMMC Programming: Onboard physical BOOT button lets you program eMMC or TF cards directly via the USB OTG port without jumper wires or external card readers.
  • Multiple Boot Storage: Supports booting from onboard eMMC (built-in CM5), MicroSD/TF cards (for non-eMMC CM5 variants), or NVMe SSDs via the PCIe slot.
  • MicroSD Card Slot: Onboard slot to support Raspberry Pi CM5 Lite variants (without onboard eMMC).

🛡️ Premium CNC Enclosure & Cooling

  • Heavy-Duty Protection: Precision CNC-machined aluminum alloy construction delivers an exquisite aesthetic and rugged armor.
  • Efficient Passive Dissipation: The case acts as a massive heatsink, ensuring stable, long-term CPU operation under heavy workloads.
  • Antenna Ready: Includes reserved external antenna cutouts (Note: Since the metal case blocks internal WiFi signals, an external antenna is required for wireless functions).

🌐 Multi-System & DIY Friendly

  • Rich Headers: Features a 20Pin GPIO, a 1.25mm 2-pin RTC battery header, and a 1.0mm 4-pin PWM fan header for advanced cooling setups.
  • OS Compatibility: Thoroughly tested and fully compatible with Raspberry Pi OS, Ubuntu, and OpenWrt (great for virtual NIC/gateway modes).

Power Requirements & Usage Guide

⚠️ IMPORTANT OPERATION & POWER WARNINGS:

  • Power Input: Requires a strict 5V ⎓ 3A USB-C power source.
  • Dual-Port Power Support: Power can be supplied through either the USB 3.0 Type-C port OR the USB 2.0 OTG Type-C port.
  • Wireless Signal Note: The solid metal aluminum enclosure blocks internal WiFi signals. If wireless functionality is needed, an external antenna must be connected via the case's reserved antenna slots.
Parameter Requirement
Power Input Voltage 5V DC
Recommended Current 3A Minimum
Power Interface USB Type-C (USB 3.0 or USB OTG port)

Technical Specifications

Category Specifications
Compatibility All Raspberry Pi Compute Module 5 (CM5) core boards (DF40HC3.0 connector)
Video Output 1× Micro HDMI, up to 4K resolution
USB Interfaces 1× USB 3.0 Type-C (non-reversible)
1× USB 2.0 Type-C OTG (for flashing & virtual NIC)
1× 1.25mm-4Pin USB 2.0 header (for 4G module expansion)
Expansion Interfaces 1× 0.5mm-16Pin PCIe slot (SSD / WiFi / TPU / 2.5G LAN)
1× CSI/DSI combo FPC port (camera / display)
1× 0.5mm-20Pin GPIO
Onboard Controls 1× BOOT button (for eMMC programming), 1× Power button, 1× 1.25mm 2Pin RTC header, 1× 1.0mm 4Pin PWM fan header
Storage Boot Options Onboard eMMC (via CM5), MicroSD/TF card slot (for non-eMMC CM5), NVMe SSD via PCIe expansion
Indicators Power LED, CM5 Power LED, Activity LED

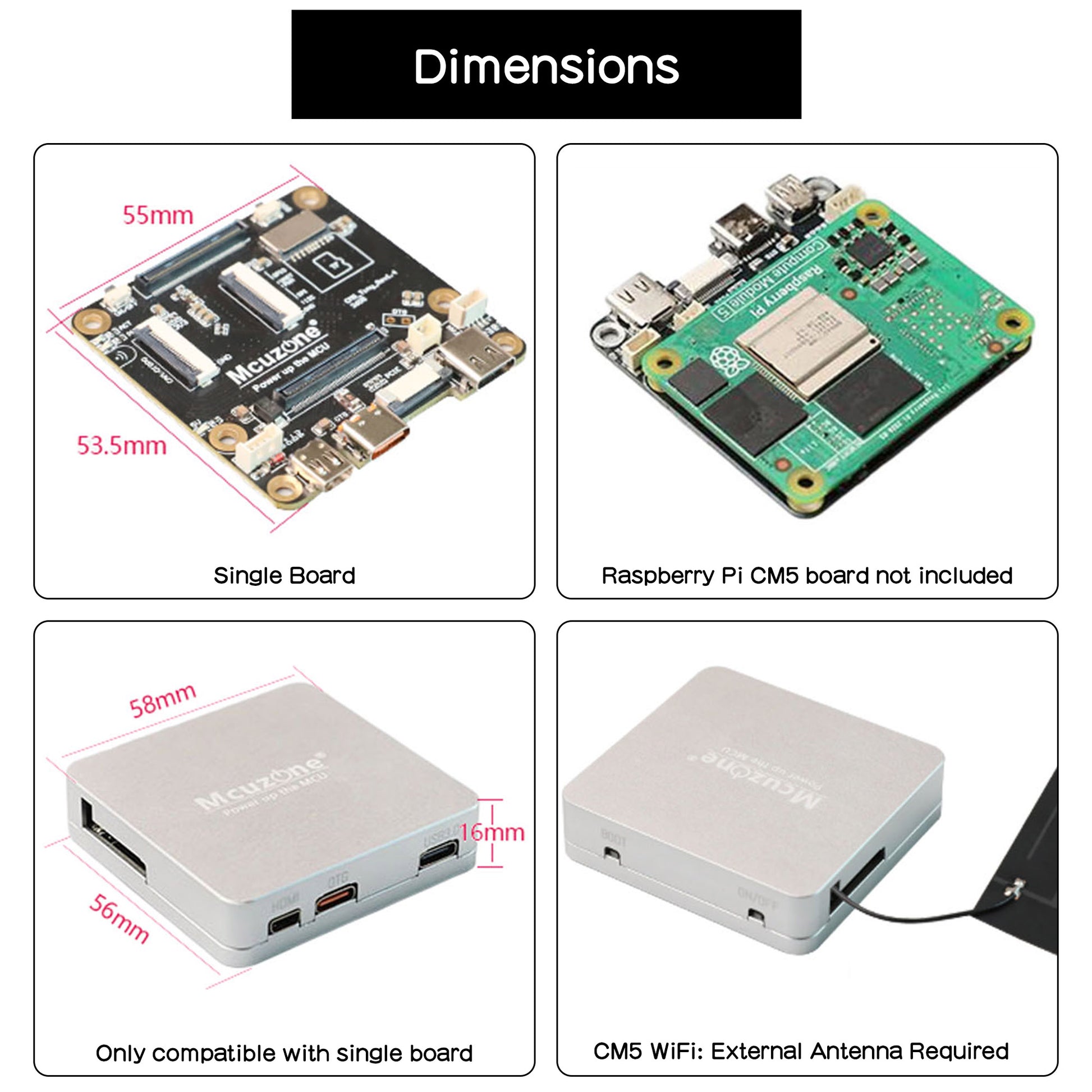

Dimensions & Build Board Size: 53.5 × 55 mm
Enclosure: Precision CNC aluminum alloy
PCB: 4-layer ENIG PCB, UL94 V-0 flame retardant, RoHS compliant
Supported Systems Raspberry Pi OS, Ubuntu, OpenWrt

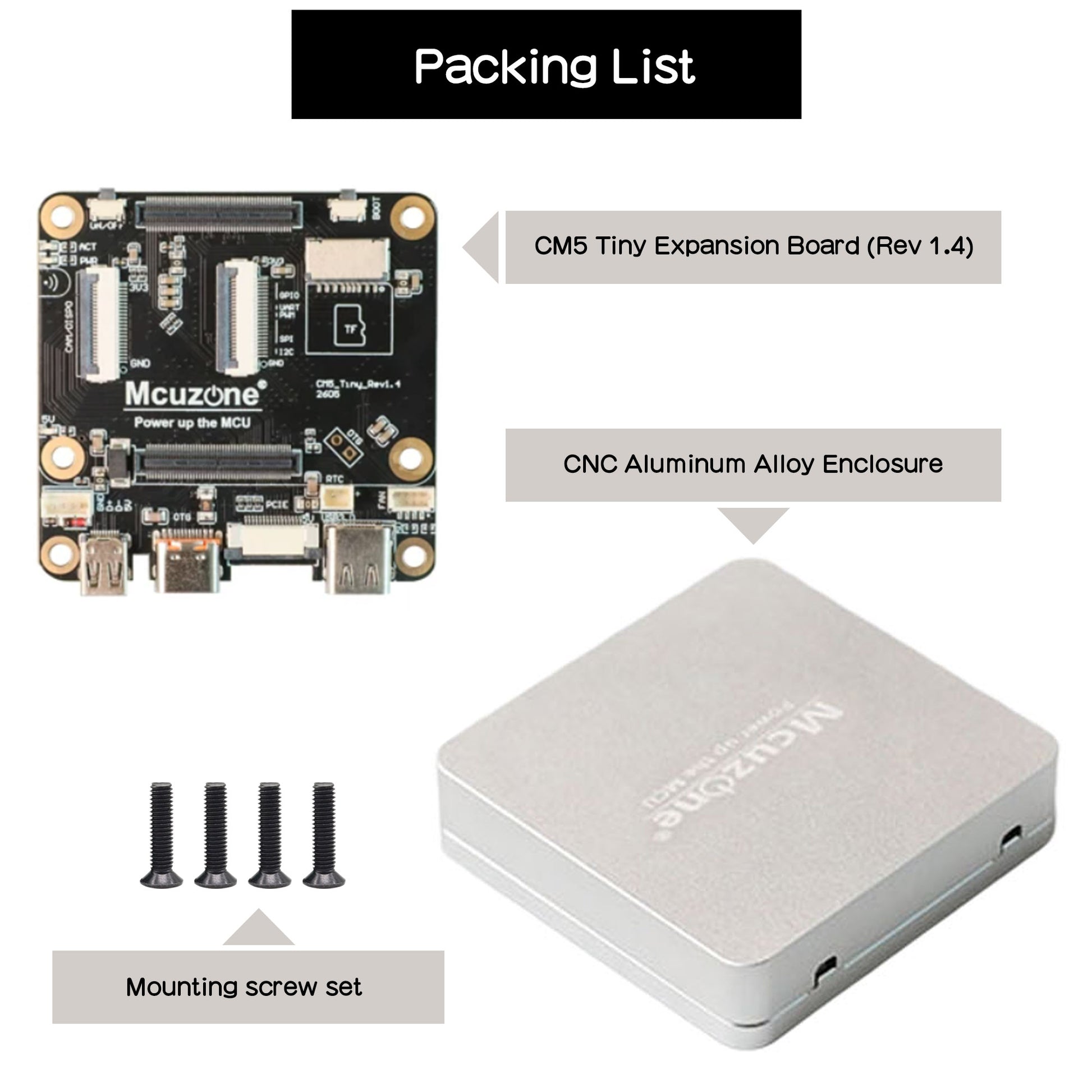

Packing List

  • 1 x CM5 Tiny Expansion Board (Rev 1.4)
  • 1 x CNC Aluminum Alloy Enclosure
  • 1 x 4pcs Mounting Screws
  • The Raspberry Pi CM5 core board, WiFi antenna, cooling fan, camera, display, and other extra expansion modules are not included in the package.

Refer to: https://wiki.geekworm.com/CM5-Tiny

Please email to us at info@geekworm.com if you have other questions.

The Geekworm CM5 IO Carrier Board is an innovative solution designed to enhance the functionality of the Raspberry Pi CM5 module. This carrier board provides a robust platform for developers and enthusiasts to build and prototype various applications, leveraging the power of the Raspberry Pi ecosystem.

One of the key features of the CM5 IO Carrier Board is its extensive I/O capabilities. It includes multiple GPIO pins, USB ports, and interfaces for connecting various peripherals. This allows users to easily integrate sensors, displays, and other devices into their projects. The board is designed to support a wide range of applications, from home automation systems to robotics and IoT devices.

In terms of connectivity, the CM5 IO Carrier Board offers options such as Ethernet and Wi-Fi, enabling seamless communication with other devices and networks. This is particularly important for applications that require real-time data transmission or remote monitoring capabilities. The board's design also ensures compatibility with various Raspberry Pi models, making it a versatile choice for developers.

Heat management is another critical aspect of the CM5 IO Carrier Board. Given that the Raspberry Pi can generate significant heat during operation, some model are equipped with provisions for heat dissipation. This is essential for maintaining optimal performance and longevity of the components. Users can utilize high-quality aluminum alloy heatsinks, such as those offered by Geekworm, to further enhance thermal management.

Moreover, the CM5 IO Carrier Board is built with durability in mind. It features a robust construction that can withstand the rigors of prototyping and development. This ensures that users can rely on the board for extended periods without concerns about wear and tear.

For developers looking to customize their projects, the CM5 IO Carrier Board provides ample opportunities for expansion. The board's design allows for easy integration of additional modules and components, enabling users to tailor their setups to meet specific requirements. This flexibility is a significant advantage for those working on innovative solutions in various fields.

In conclusion, the Geekworm CM5 IO Carrier Board is a powerful tool for anyone looking to harness the capabilities of the Raspberry Pi CM5 module. With its extensive I/O options, connectivity features, and robust design, it serves as an excellent foundation for a wide range of projects. Whether you are a hobbyist or a professional developer, this carrier board can significantly enhance your development experience.

Features X1500 X1501 X1502 X1507
Compatible with Raspberry Pi CM5 Raspberry Pi CM5 Raspberry Pi CM5 Raspberry Pi CM5
Ethernet Port 1GbE Ethernet Port x 1 1GbE Ethernet Port x 1,
2.5GbE Ethernet Port x 1		 1GbE Ethernet Port x 1,
2.5GbE Ethernet Port x 1		 1GbE Ethernet Port x 1
USB-C Power In Port ✔ ✔ ✔ ✔
USB-A Ports 2 x USB2.0 Type-A,
2 x USB3.0 Type-A		 1 x USB2.0 Type-A,
1 x USB3.0 Type-A		 1 x USB2.0 Type-A,
1 x USB3.0 Type-A		 2 x USB2.0 Type-A,
2 x USB3.0 Type-A
HDMI 2.0 Ports 2 x HDMI 2.0 2 x HDMI 2.0 2 x HDMI 2.0 2 x HDMI 2.0
M.2 NVMe Key-M Slot Dual
2230/2242/2260/2280		 Dual
2230/2242/2260/2280		 Four
2230/2242/2260/2280		 Dual
2230/2242
Dual MIPI DSI/CSI-2 Connectors ✔ ✔ ✔ ✔
MicroSD Card Slot ✔ ✔ ✔ ✔
Power Button ✔ ✔ ✔ ✔
RTC Battery Socket ✔ Require CR1220 ✔ Require CR1220 ✔ Require CR2032 ✔ with a RTC Battery Connector, Require CR1220 and battery holder
4Pin PWM Fan Port ✔ ✔ ✔ ✔
Support Hailo-8 AI Accelerator ✔ ✔ ❌ ✔
PoE header ✔ ✔ ❌ ✔
40pin GPIO header ✔ ✔ ✔ ✔
12pin Configurable header J2 ✔ ✔ ✔ ✔
Jumper setting for CAM/DISP1 J6 ✔ ✔ ✔ ✔
PoE HAT support Currently no compatible PoE HAT Currently no compatible PoE HAT Currently no compatible PoE HAT Currently no compatible PoE HAT
Matching Case X1500-C1 / X15-C1 X1500-C1 / X15-C1 X1502-C1 X1507-C1 coming soon
Matching Cooler C519 C519 C519 Equipped with a passive cooler
