Geekworm X873 V2.0 M.2 NVME SSD Storage Expansion Board for Raspberry Pi 4

Note:

• The Raspberry Pi 4, SSD, power adapter is not inlcuded in the packing list.
• The X873, a USB 3.0 devices might generate radio frequency interference that can cause Wi-Fi and other wireless devices operating in the 2.4GHz band to have issues communicating with your Raspberry Pi 4. To avoid interference on the 2.4GHz band using Wi-Fi, try using the 5GHz band instead. If problem still exists, please turn off WiFi and use the wired network instead.

Overview
The X873 V2.0 is a USB 3.0 to NVMe SSD expansion board specifically designed for the Raspberry Pi 4, providing a simple and speedy means to expand storage capacity for your Raspberry Pi 4. This compact and sleek shield facilitates effortless connection of various M.2 SSD sizes (including 2280, 2260, 2242, and 2230) to your Raspberry Pi 4. The SuperSpeed USB 3.0 port enables rapid data transfer speeds of up to 5Gbps, allowing you to move large amounts of data within seconds. Additionally, the built-in LED light indicates the reading or writing status, eliminating the need for guesswork

The X873 also includes a power button for easy power control, which is a great feature missing in the Raspberry Pi 4. A single press turns it on, while holding it for 3 seconds initiates a safe shutdown, and holding it for 7 seconds forces a power-off.

Whether you aim to establish a home media center or create a Network-attached storage (NAS) system for storing and streaming your videos, music, and photos, the X872 can function as an ideal storage solution. Moreover, it supports booting the operating system from your SSD, leading to quicker application launches, web serving, and file copying.

Key Features

• Model: X873 V2.0
• Compatible with Raspberry Pi 4 Model B Only
• Supports high-capacity M.2 NVMe solid-state drives up to 4TB
• Accommodates various M.2 NVMe SSD form factors, including 2280, 2260, 2242, and 2230
• Supporting booting OS from your SSD for faster app opens, web serving and file copying
• Integrated USB 3.1 Gen1 to SATA 6Gb/s bridge controller USB3.1 Gen1 5Gb/s connectivity offers plug-and-play functionality on your Raspberry Pi
• Compatible with USB 2.0
• LED blue indicator indicates drive status
• On-board button to control power on, reboot and safe shutdown
• On-board LED shows the status of power on, reboot and shutdown
• Supports safe shutdown and full poweroff through software
• Supports auto power-on
• Powering via both GPIO pin header and USB port, ensuring sufficient power supply without any worries
• Designed to be attached on bottom, allows using your favorite HATs alongside it
• Specially-made USB3.1 jumper to connect with Raspberry Pi - no additional cables needed
• PCB Size: 87.3mm x 72mm

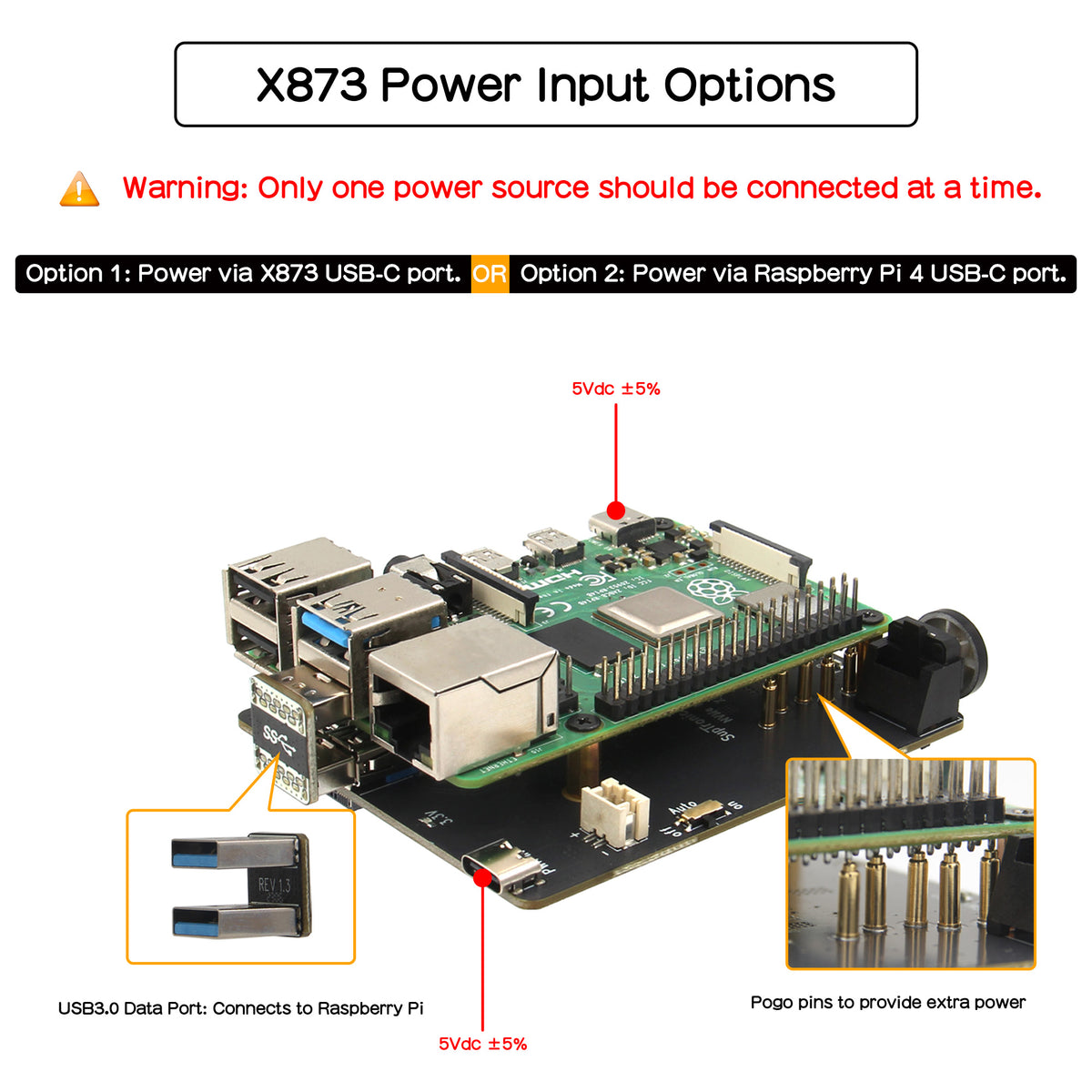

How to Power

• 5Vdc +/-5% via USB3 port & GPIO pin header

Matching Case

• There is no matching case for X873, the X863-C1 does not support X872 or X873.

Packing List

• 1x X873 V2.0 shield
• 1x USB3.0 Connector
• 4x M2.5x9.5mm F/F Spacers
• 4x M2.5x5+6mm F/M Spacers
• 4x M2.5x5mm Screws
• 1x M2x4mm Screw
