Geekworm X635 HDMI to CSI-2 & M.2 NVMe/SATA SSD Carrier Board for Raspberry Pi CM4

Overview

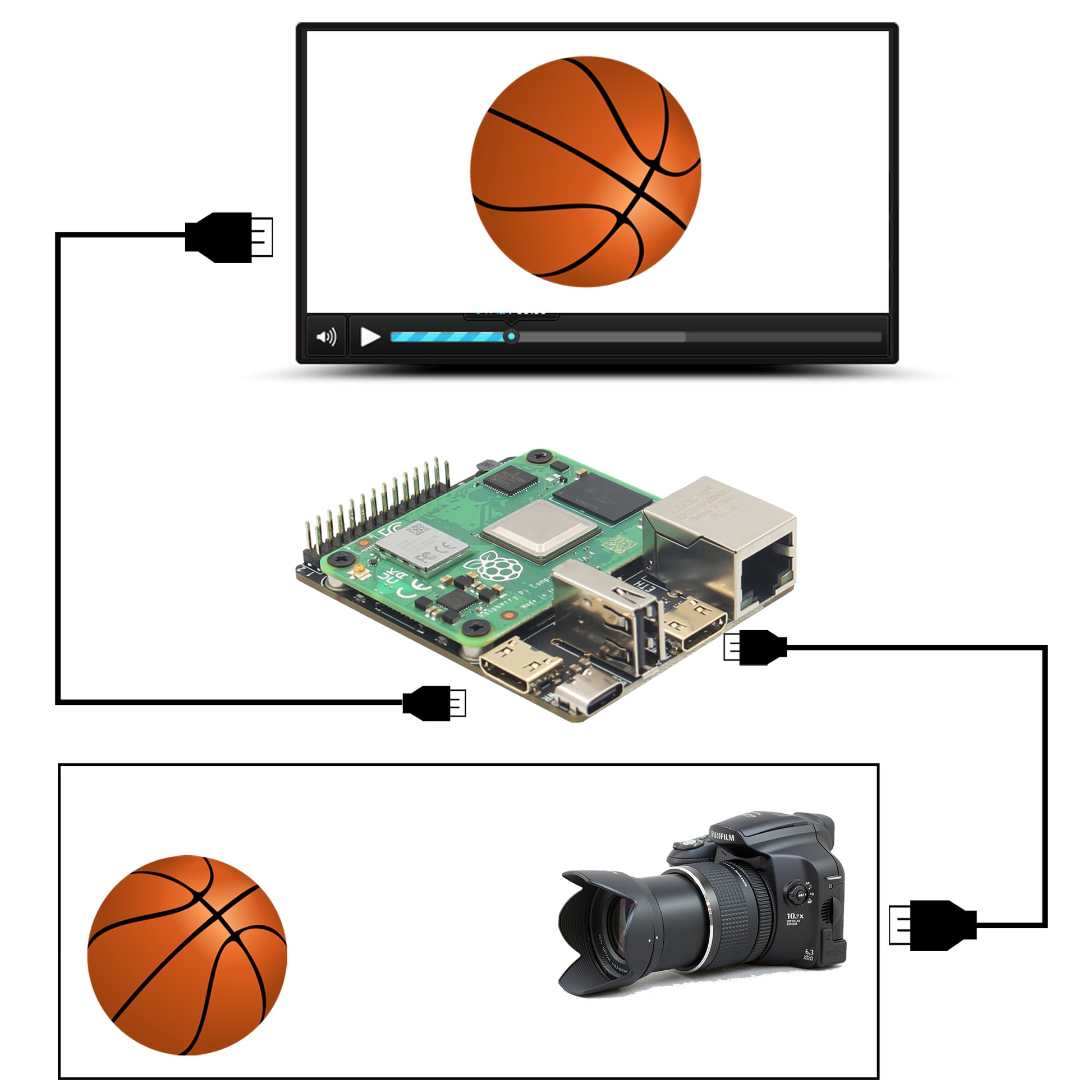

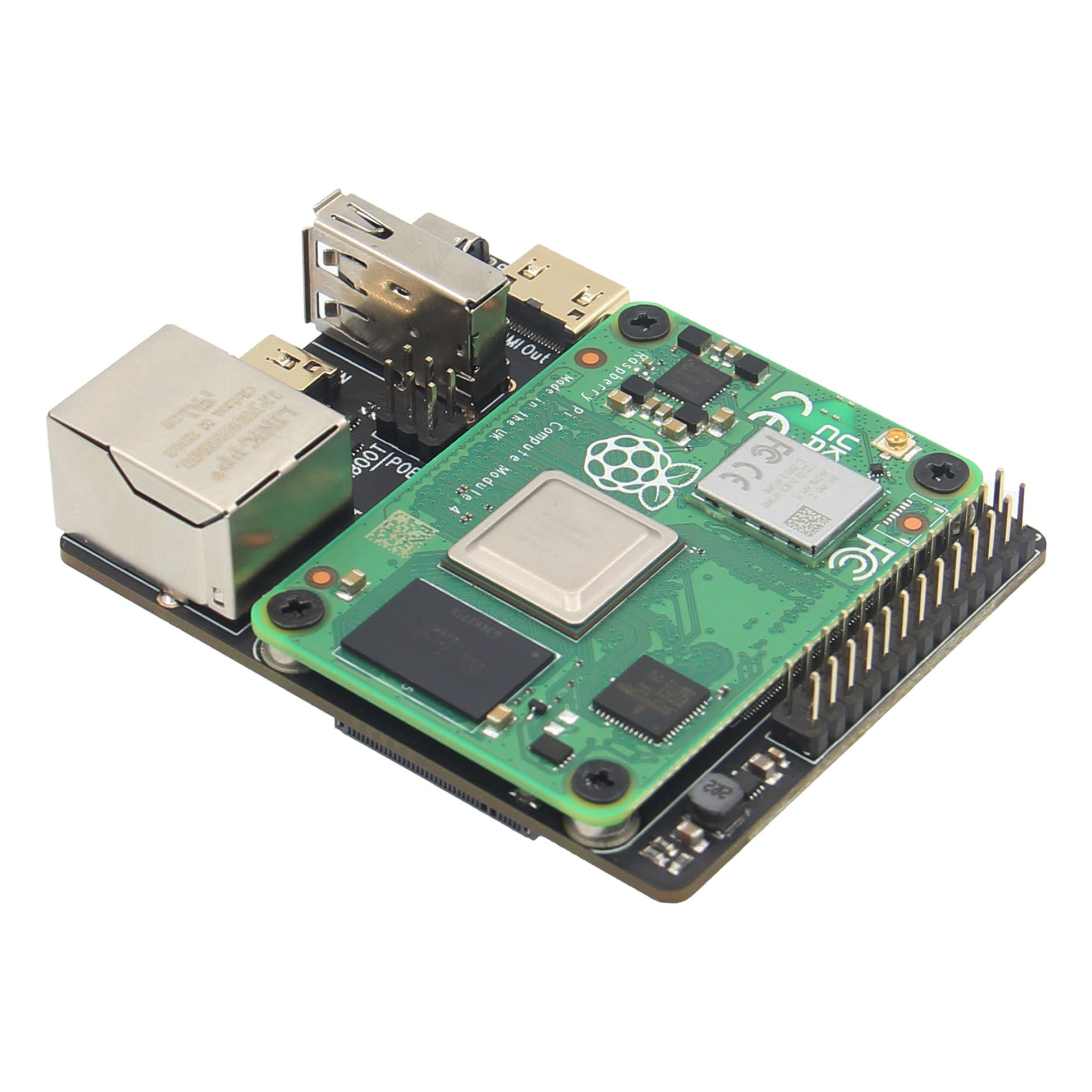

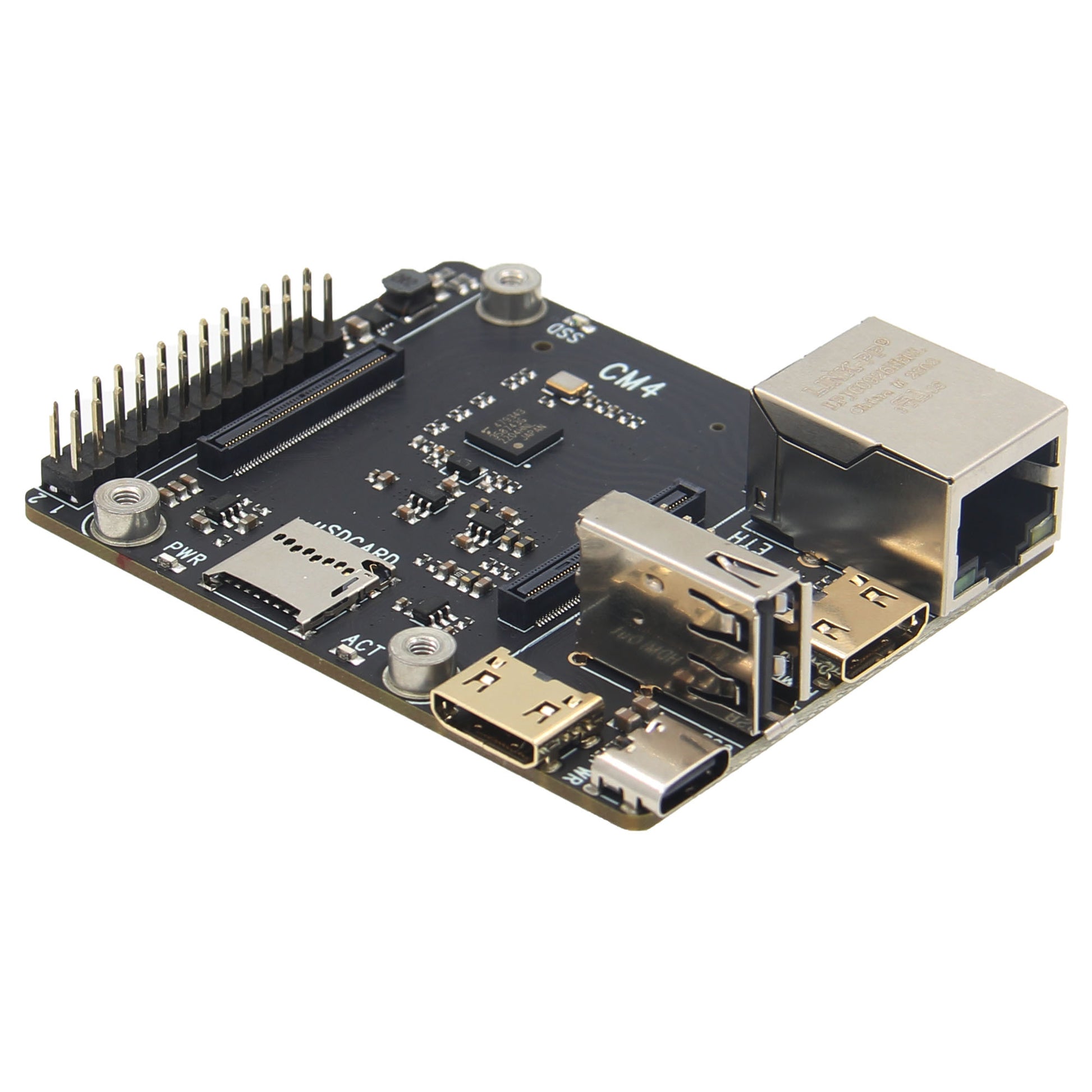

The X635 is an ultra-compact carrier board specifically designed for the Raspberry Pi Compute Module 4 (CM4). It integrates an M.2 NVMe SSD expansion interface and an HDMI-to-CSI-2 bridge, making it ideal for video capture, storage expansion, and embedded applications requiring HDMI video input.

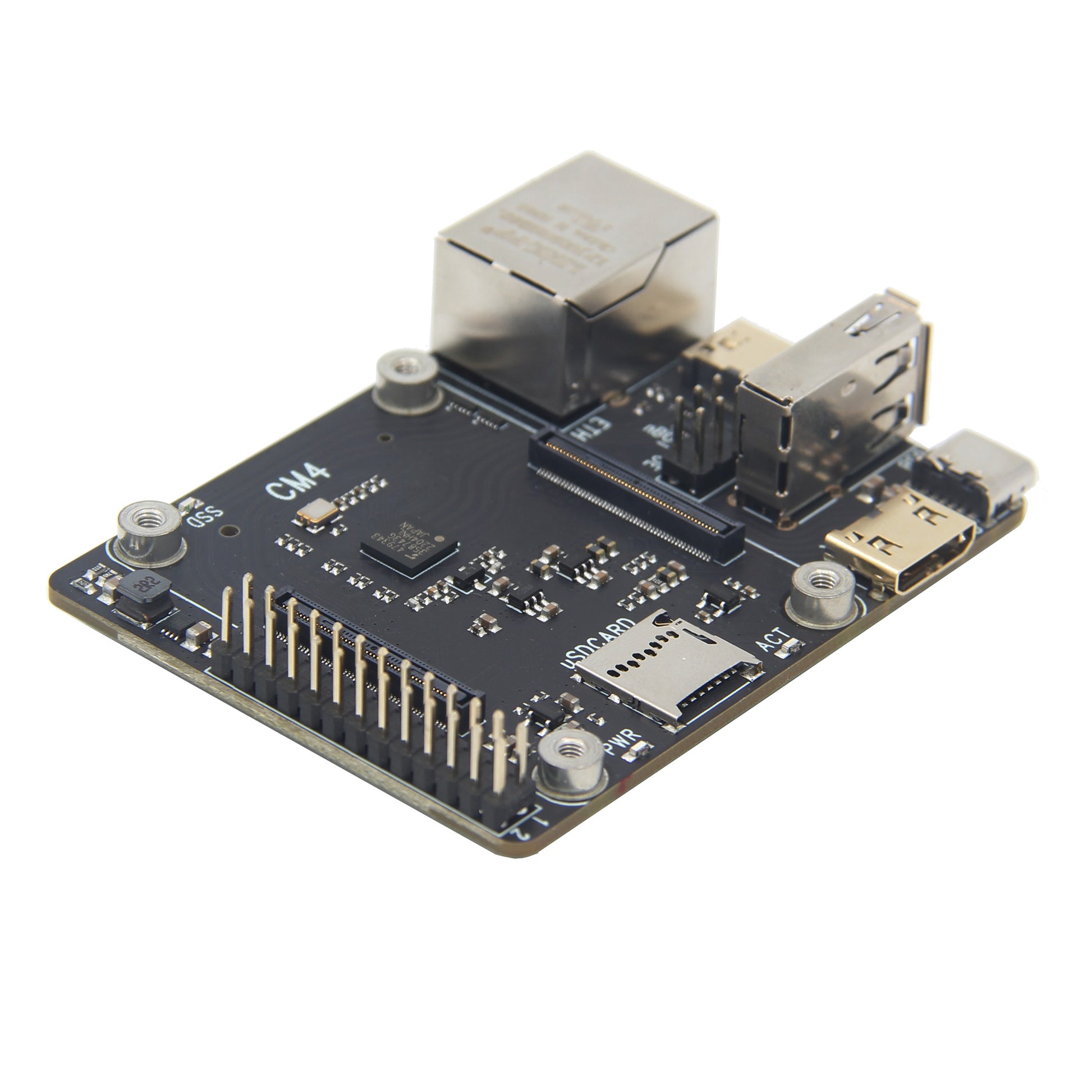

The onboard TC358743 chip converts HDMI video streams into MIPI CSI-2 TX signals, allowing the CM4 to receive HDMI video input through its CSI camera interface.

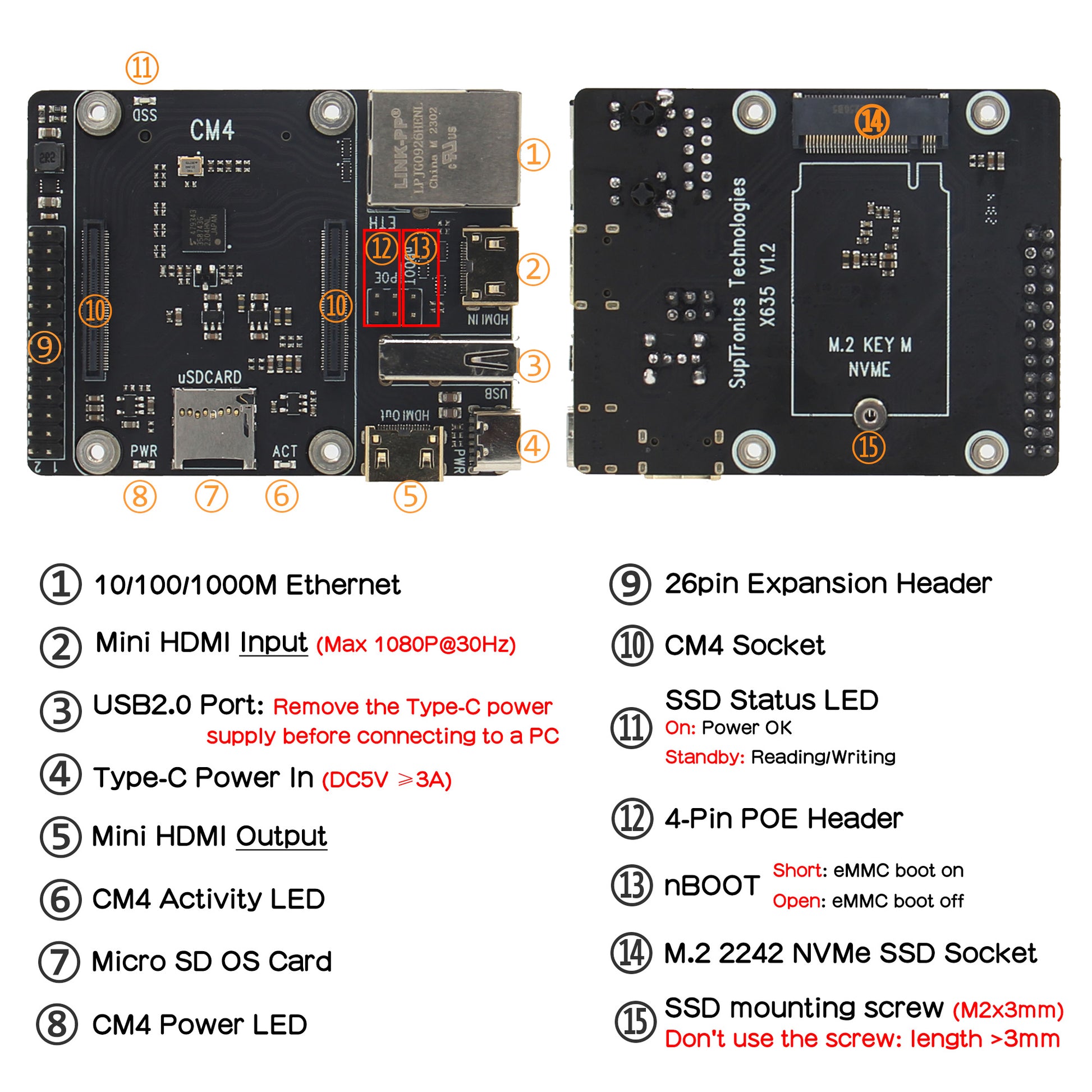

Features

• Designed for Raspberry Pi Compute Module 4 (CM4)
• Compatible with all Raspberry Pi CM4 variants
• HDMI to CSI-2 bridge for HDMI video capture applications
• TC358743-based HDMI Full HD capture solution
• Supported HDMI input resolutions:
  • 1080p30 / 1080p25
  • 720p30 / 720p25
• Supports HDMI audio capture via I2S

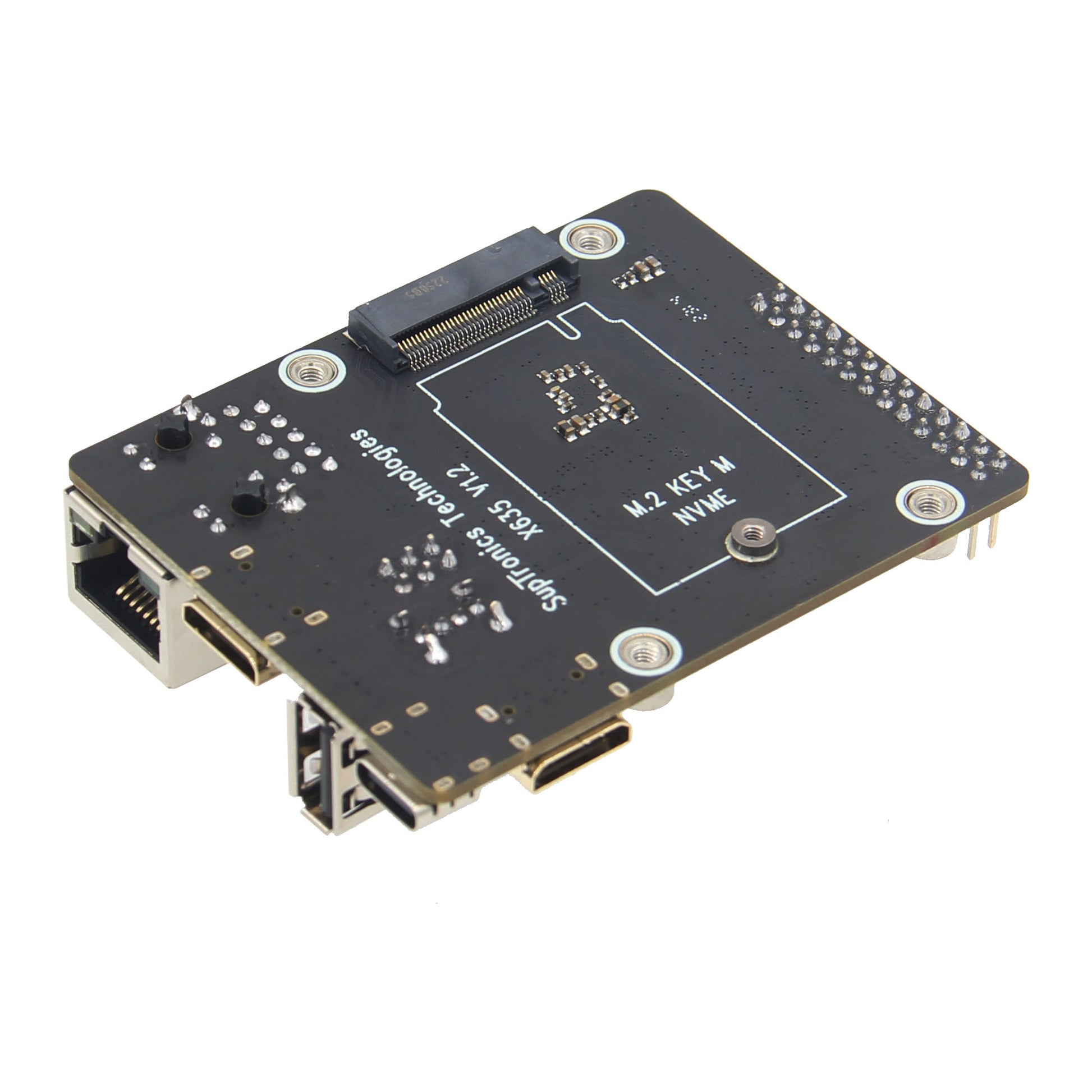

• M.2 2242 Key-M socket for NVMe SSD expansion
• Supports booting from Micro SD, eMMC, and NVMe SSD
• Gigabit Ethernet port with PoE expansion support
• Mini HDMI output supporting up to 4K display
• USB 2.0 Type-A port for CM4 eMMC programming and USB expansion
• USB Type-C power input
• 26-pin GPIO expansion header
• Compact size: 55 × 70 × 18 mm

Notes

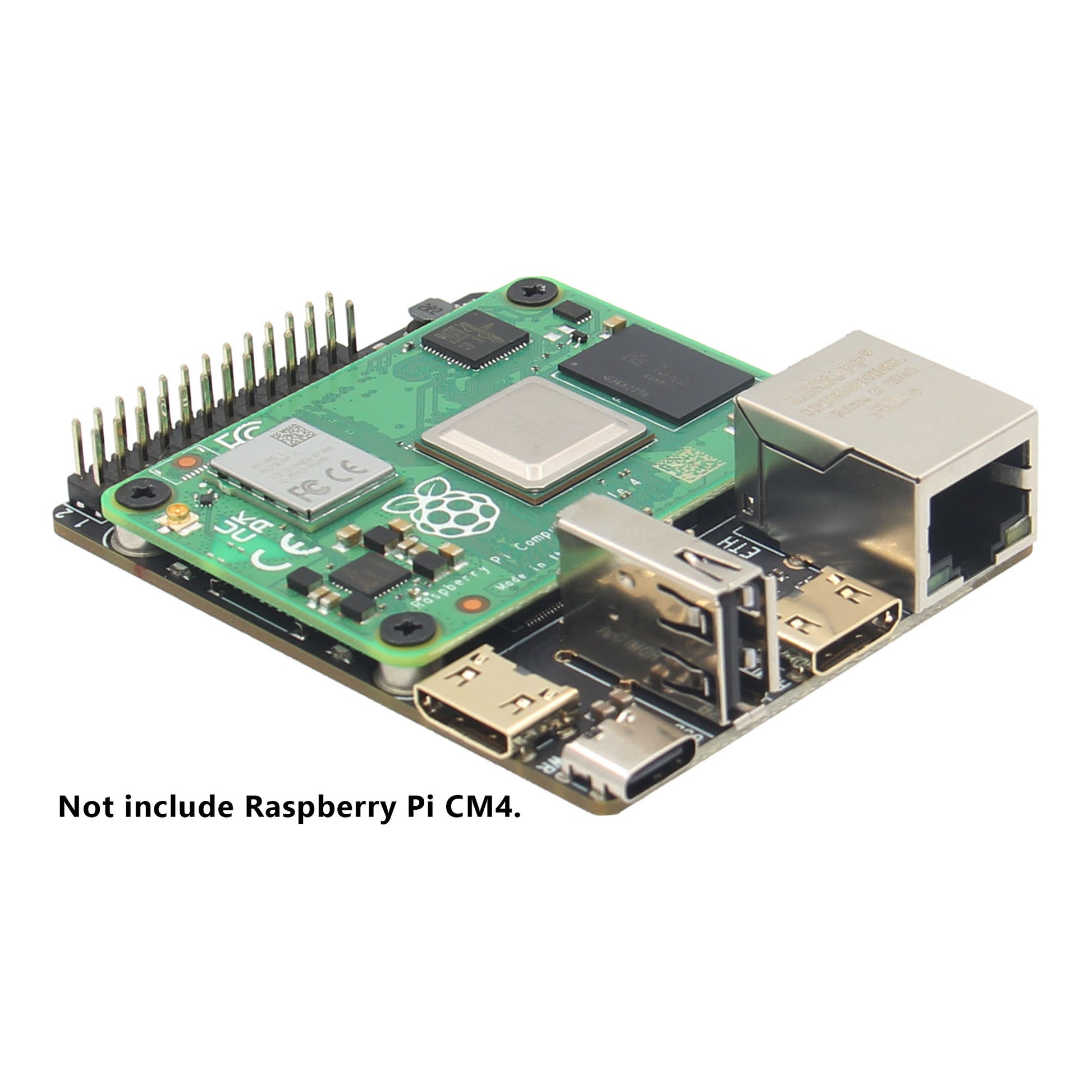

• Raspberry Pi CM4 module, Micro SD card, SSD, and power supply are NOT included.
• Do NOT power the X635 through the USB Type-C port when it is connected to a PC via the USB Type-A port.
• To enable CM4 programming via rpiboot, place a jumper cap between the nBOOT and GND pins on the 6-pin header.
• Please use only the included M2x3mm SSD mounting screws. Screws longer than 3mm may damage the Micro SD card or card socket.

How to Power

• Power the X635 via the USB Type-C 5V input.
• If the USB Type-A port is connected to a PC, the PC USB port will supply power to the X635.
• Do NOT connect an additional power supply to the USB Type-C port while connected to a PC via USB Type-A.

Cooling Solution

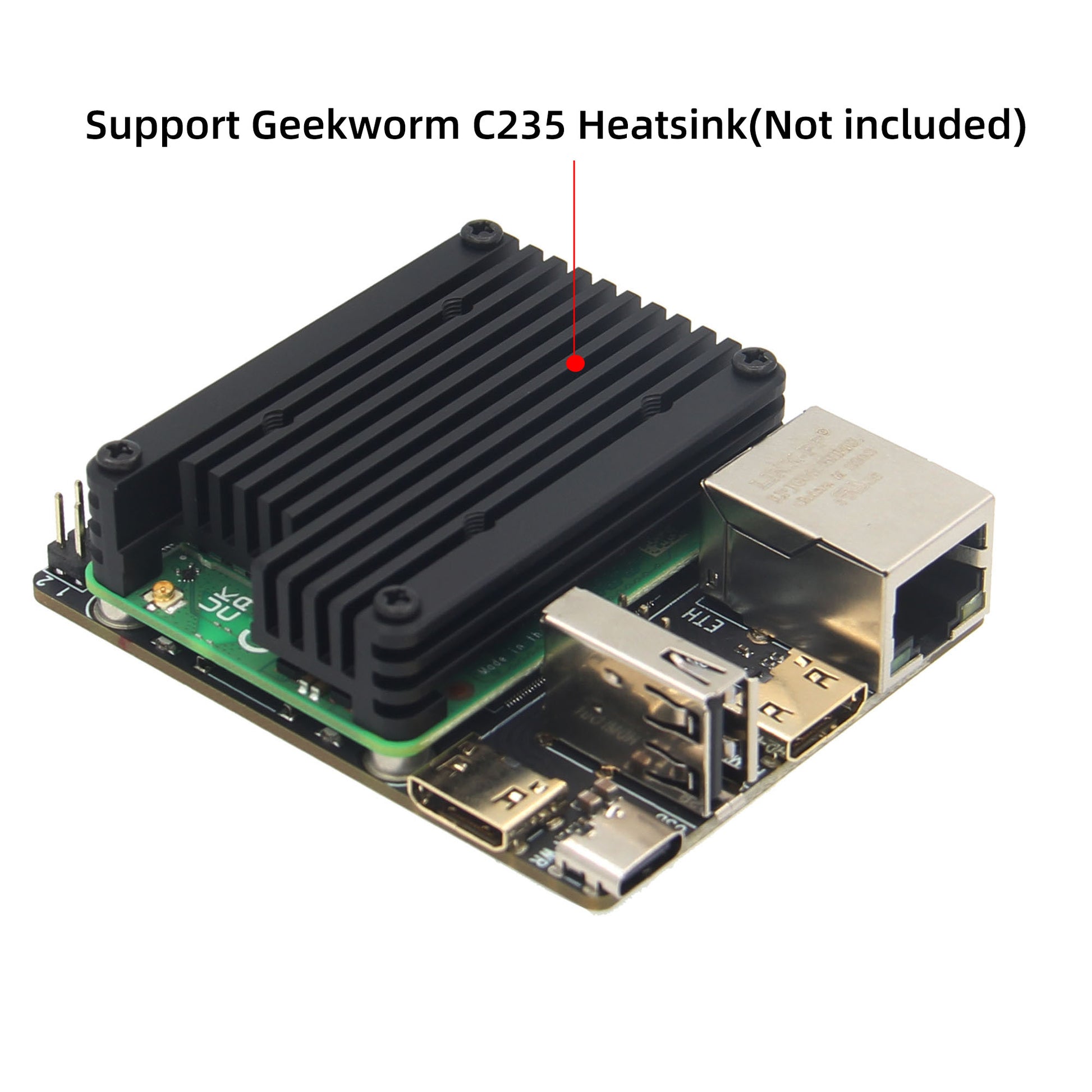

For better thermal performance, the X635 can be used together with the C235 aluminum heatsink designed for Raspberry Pi Compute Module 4.

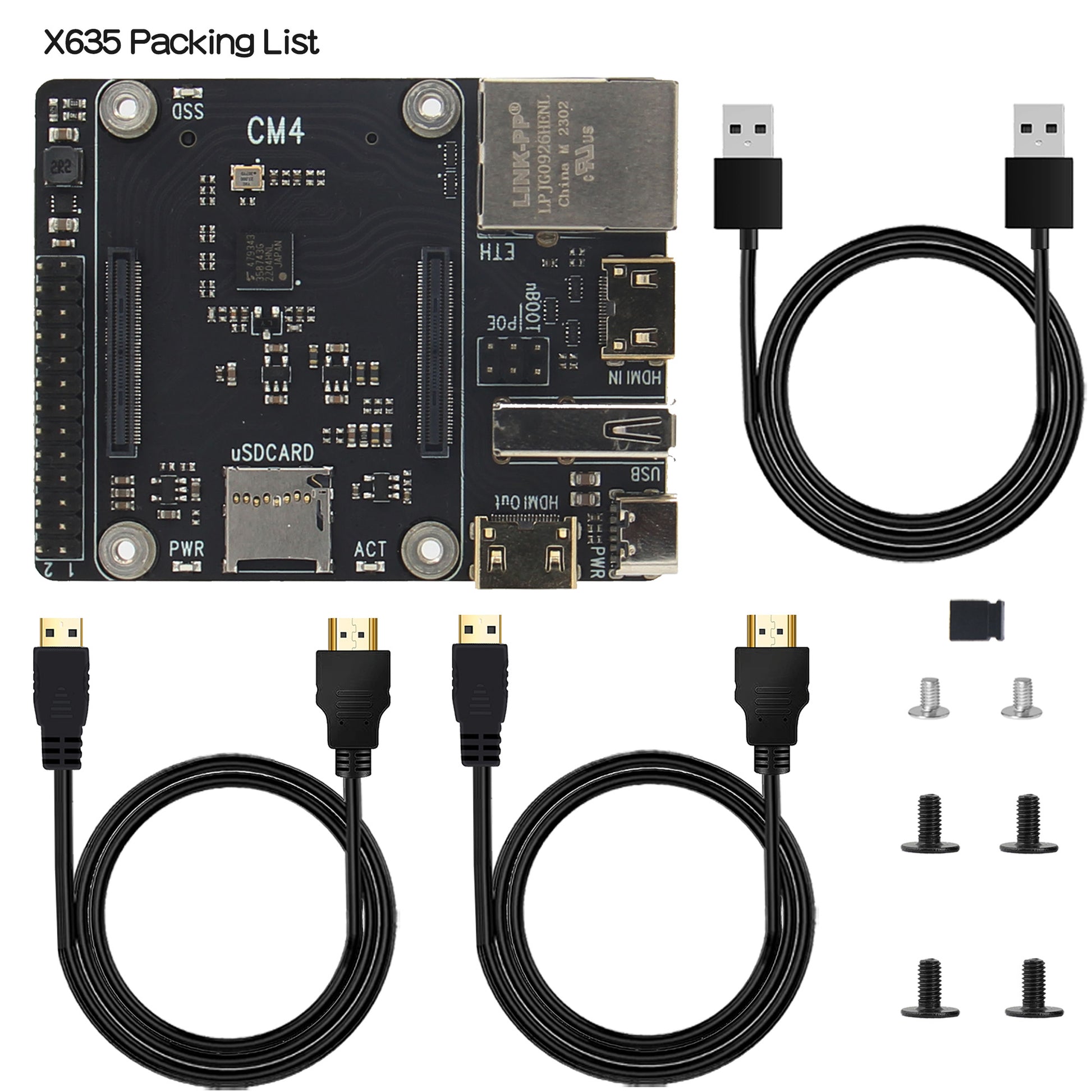

Packing List

• 1 × X635 V1.2 Expansion Board
• 1 × USB 2.0 Cable (45cm / 17.72in)
• 2 × Mini HDMI to HDMI Cable (50cm / 19.69in)
• 1 × Screw Pack
