Geekworm X515 M2 SATA&NVMe SSD Expansion Board for Raspberry Pi Compute Module 4

Regular price
$53.00
Regular price
Sale price
$53.00
Only 9 items in stock! Out of stock!
Item(Not include CM4): X515
  • Description
  • Manual
  • Shipping Policy
  • Reviews

Note:  The Raspberry Pi CM4, OLED, heatsink or power adapter is not included in the packing list.

Overview

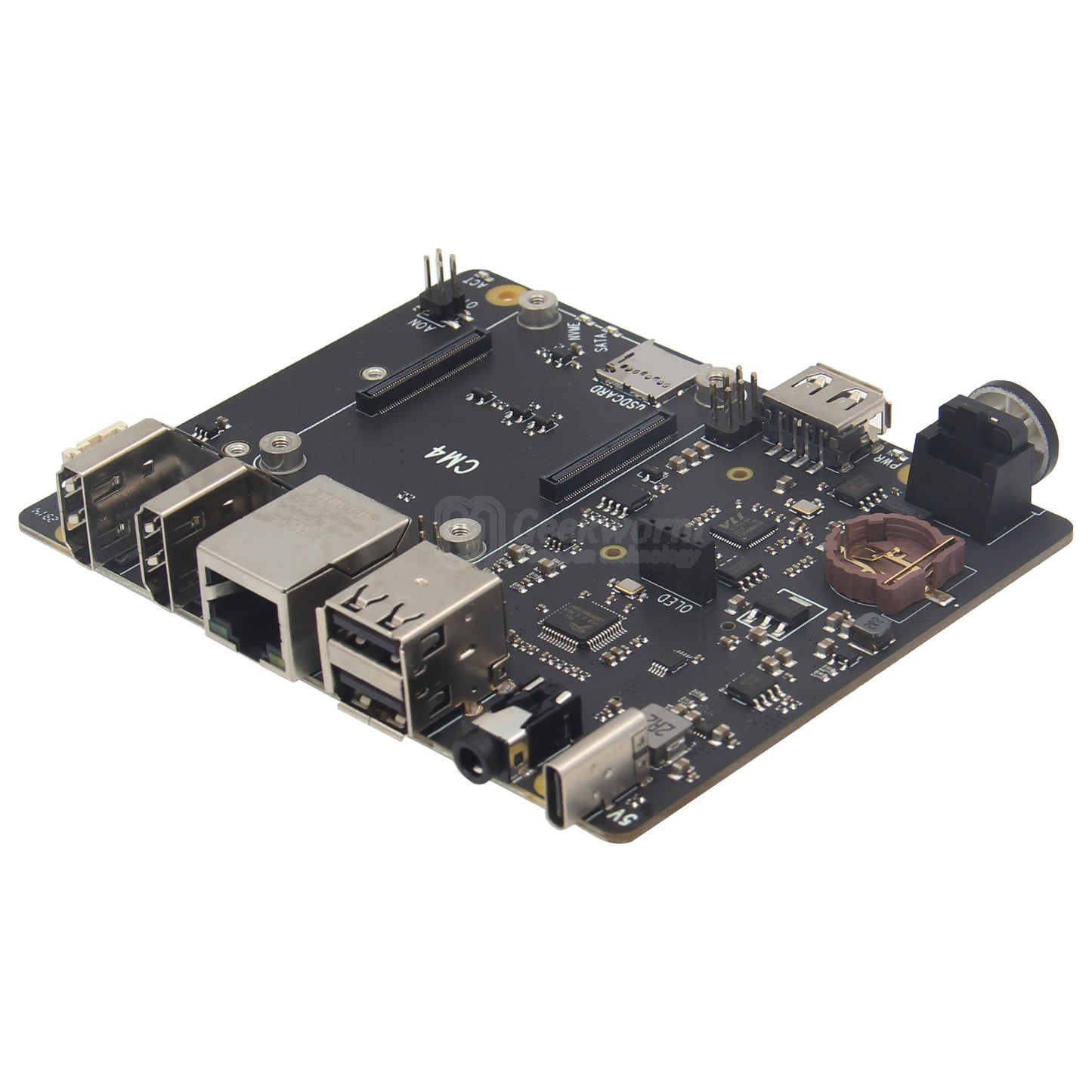

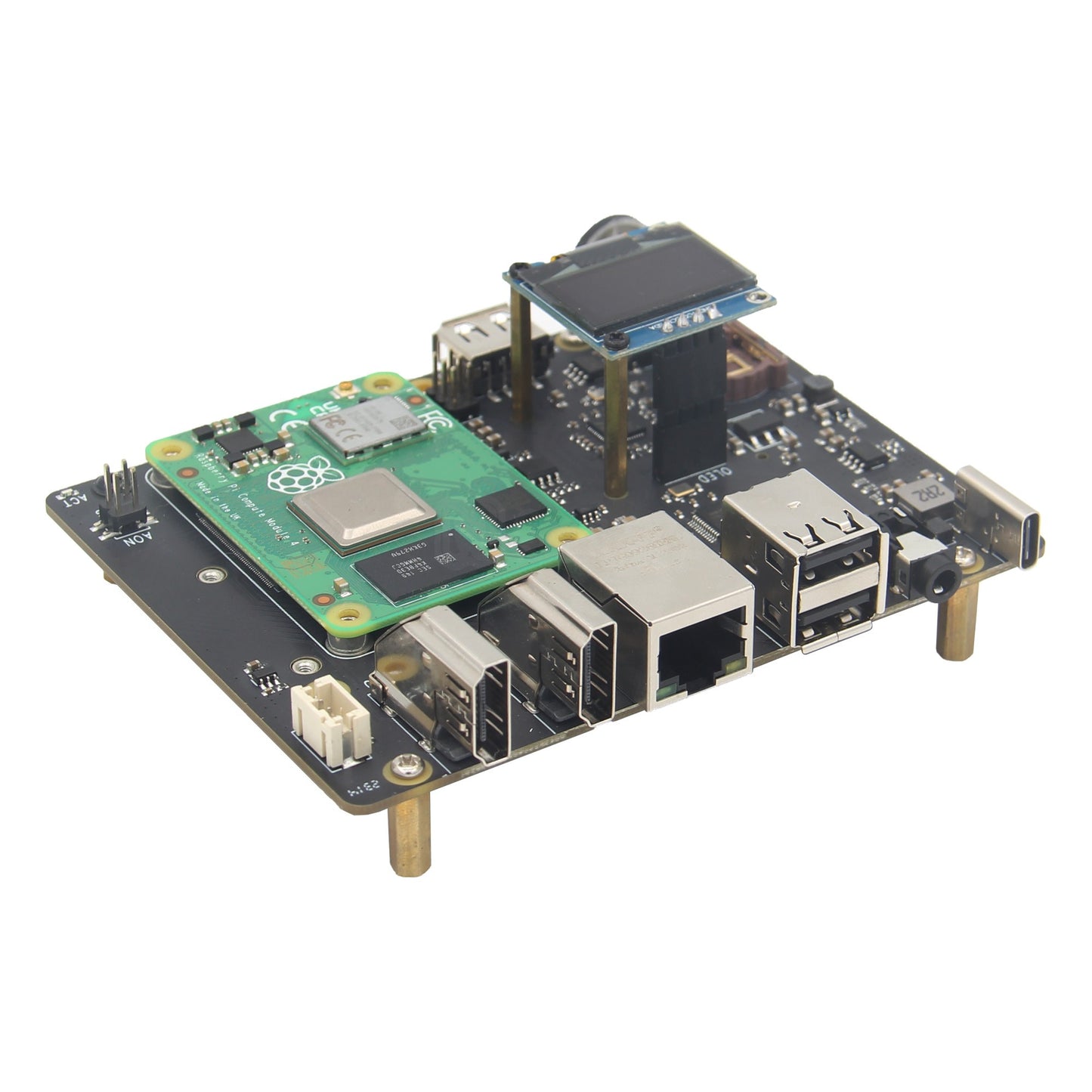

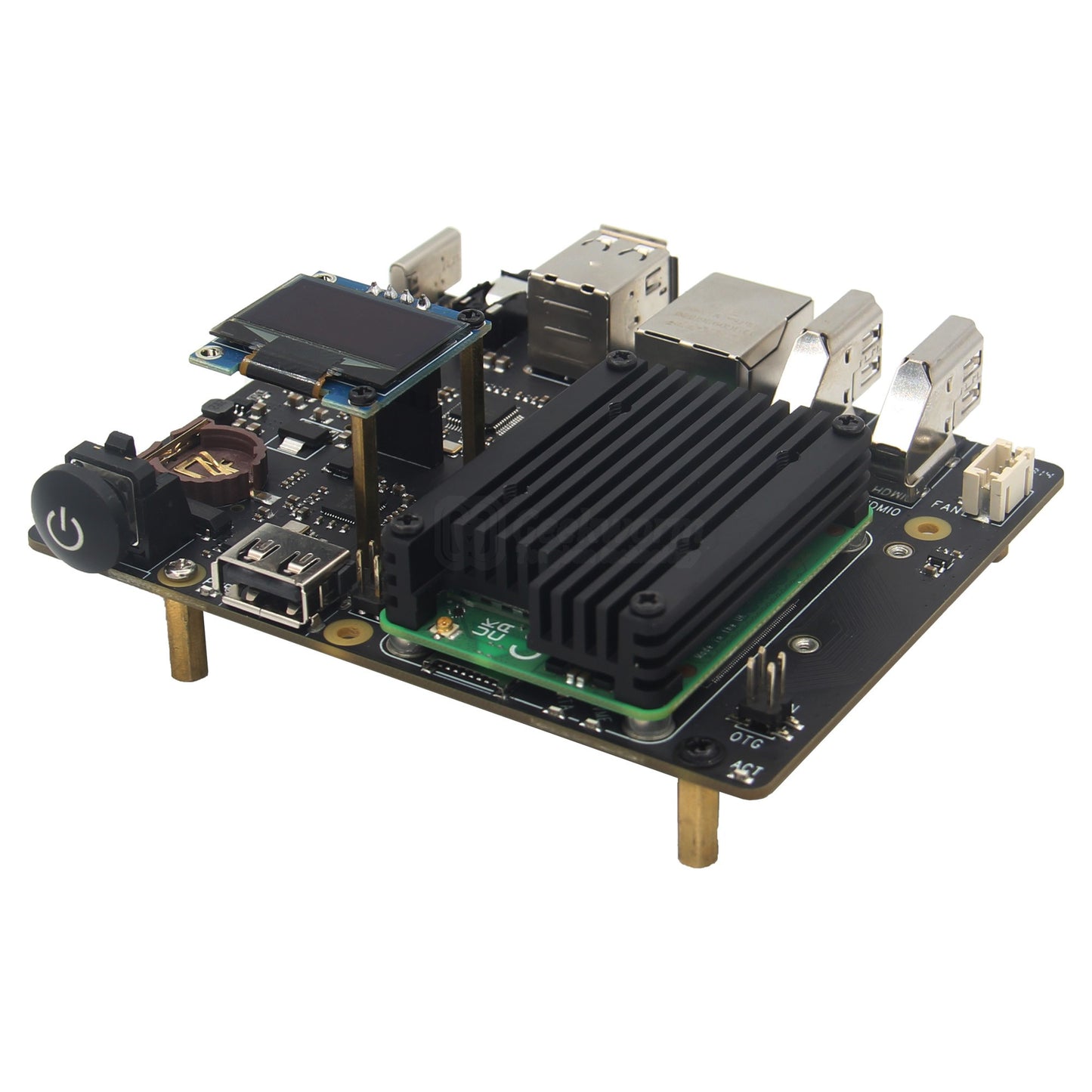

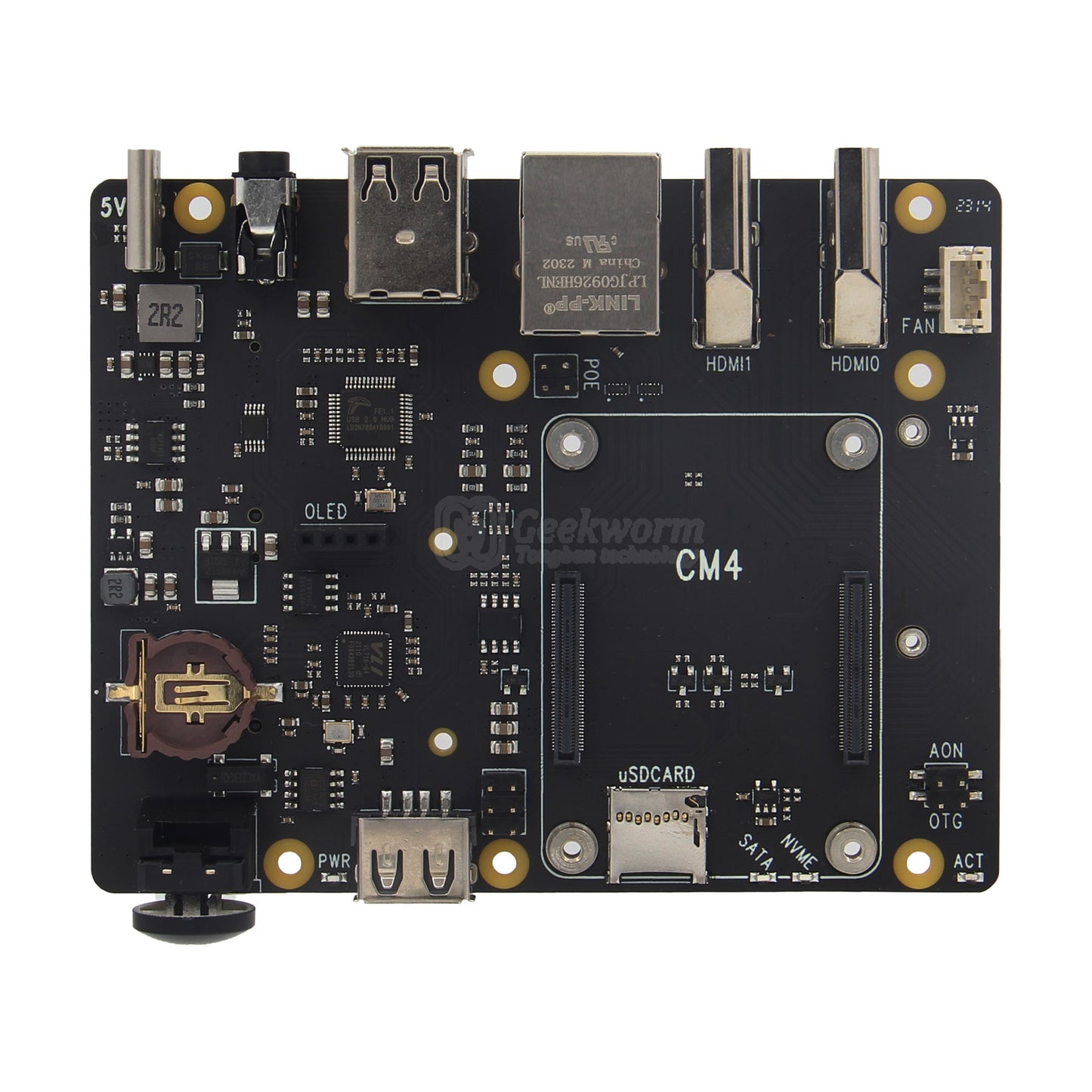

The X515 is designed and based on Raspberry Pi CM4 all series. It has a M2 KEY-M (NVME) SSD interface and a M2 KEY-B (NGFF) SSD interface. Also provides 3 USB 2.0 ports and 2 full-size HDMI ports, supports safe shutdown (requires installation script).

User Manual: wiki.geekworm.com/NASPi-CM4-M2

Software Guide: wiki.geekworm.com/XScript

Features

  • Model: X515

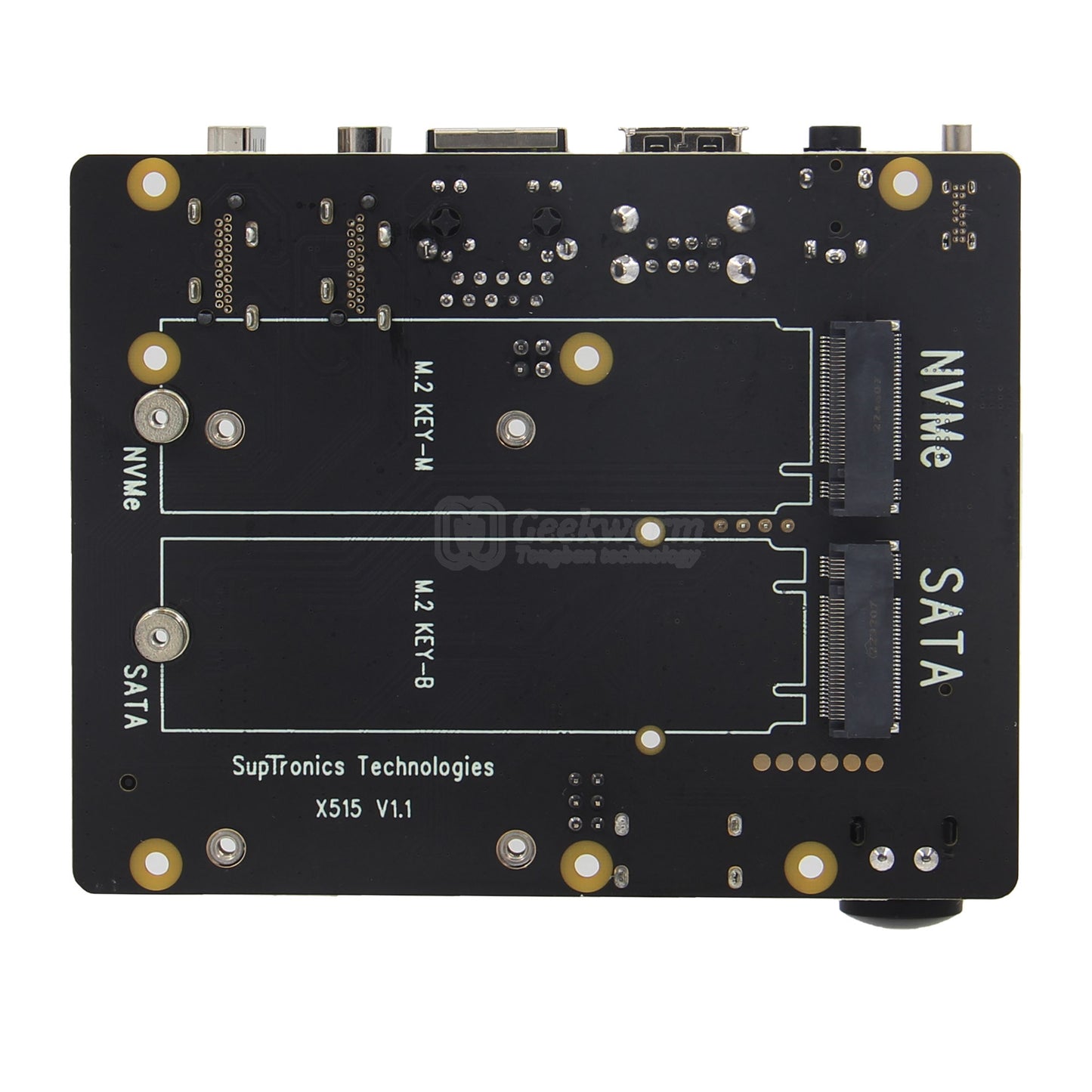

  • Compatible with M2 NVME Key-M SSD or M2 SATA Key-B SSD(Only support 2280 length SSD installation)
  • Comes with an 12mm thickness aluminum alloy heatsink C235 for CM4 passive cooling
  • Support software safe shutdown & auto power on & RTC function

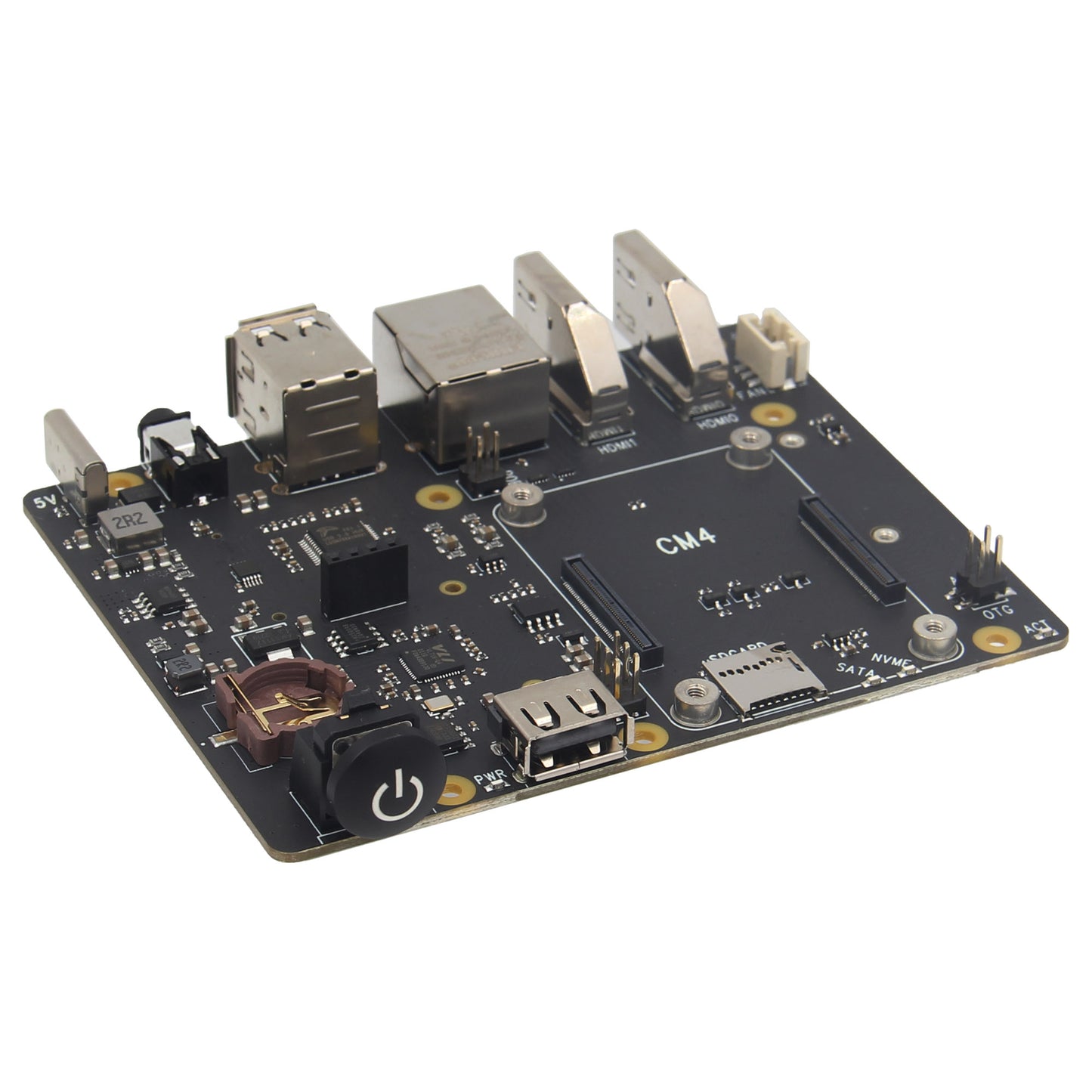

  • On-board blue light button switch to control power ON/OFF
  • Press button switch to turn on, hold for 1~2 seconds to reboot, hold for 3 seconds to safe shutdown, hold for more than 8 seconds to force shutdown

How to Power

  • Power supply: 5Vdc +/-5% , ≥3A (Via Type-C Port of X515)

Recommend to use Geekworm 20W 5V 4A Type-C power adapter PSU20.

How to Cool

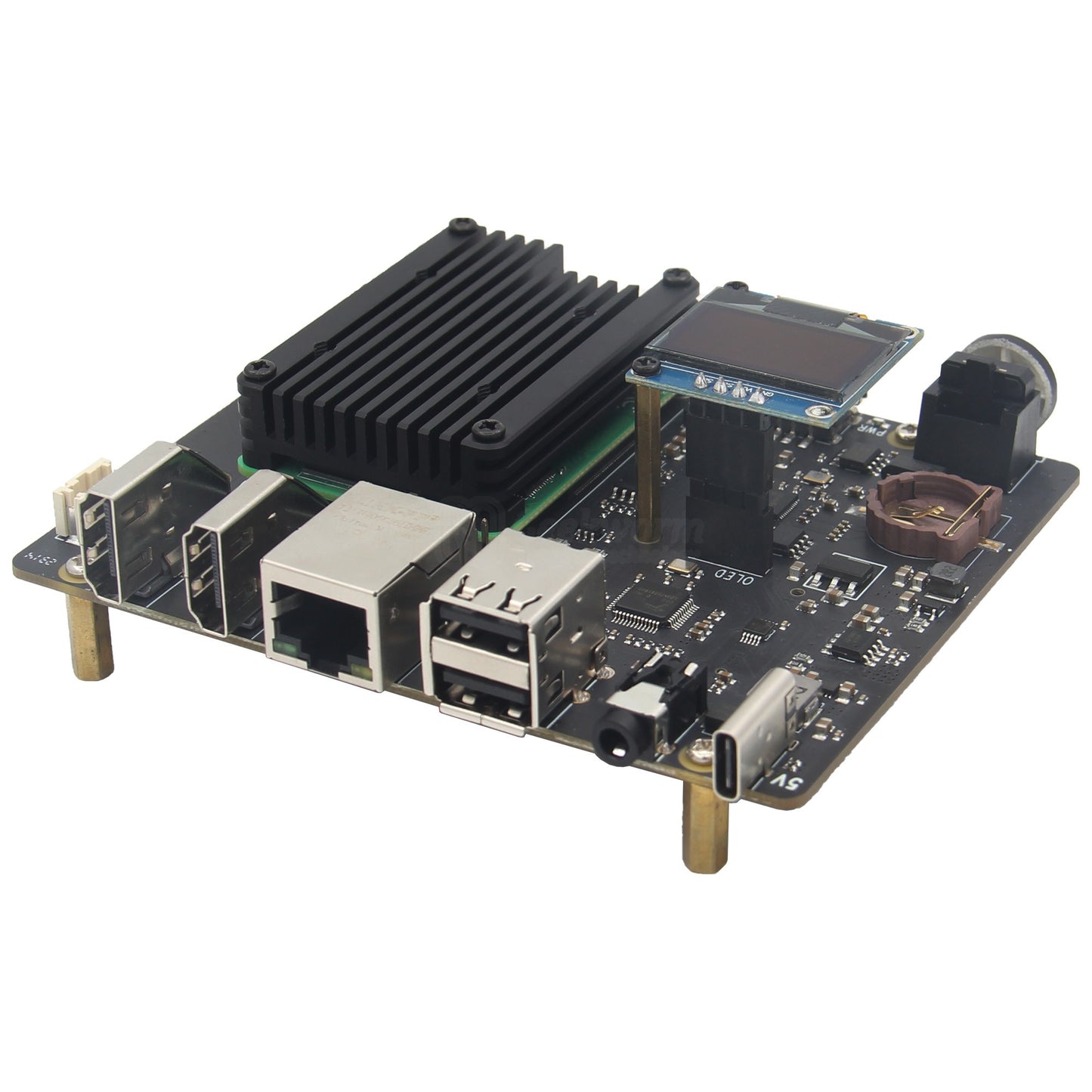

  • Recommend to use a 12mm thickness aluminum alloy heatsink C235 for passive cooling of Raspberry Pi CM4, the C235 heatsink can satisfy large file copy and video playback application, and it is recommend to use CPU silicone grease to replace thermal pad for better cooling effect.

Packing List

X515

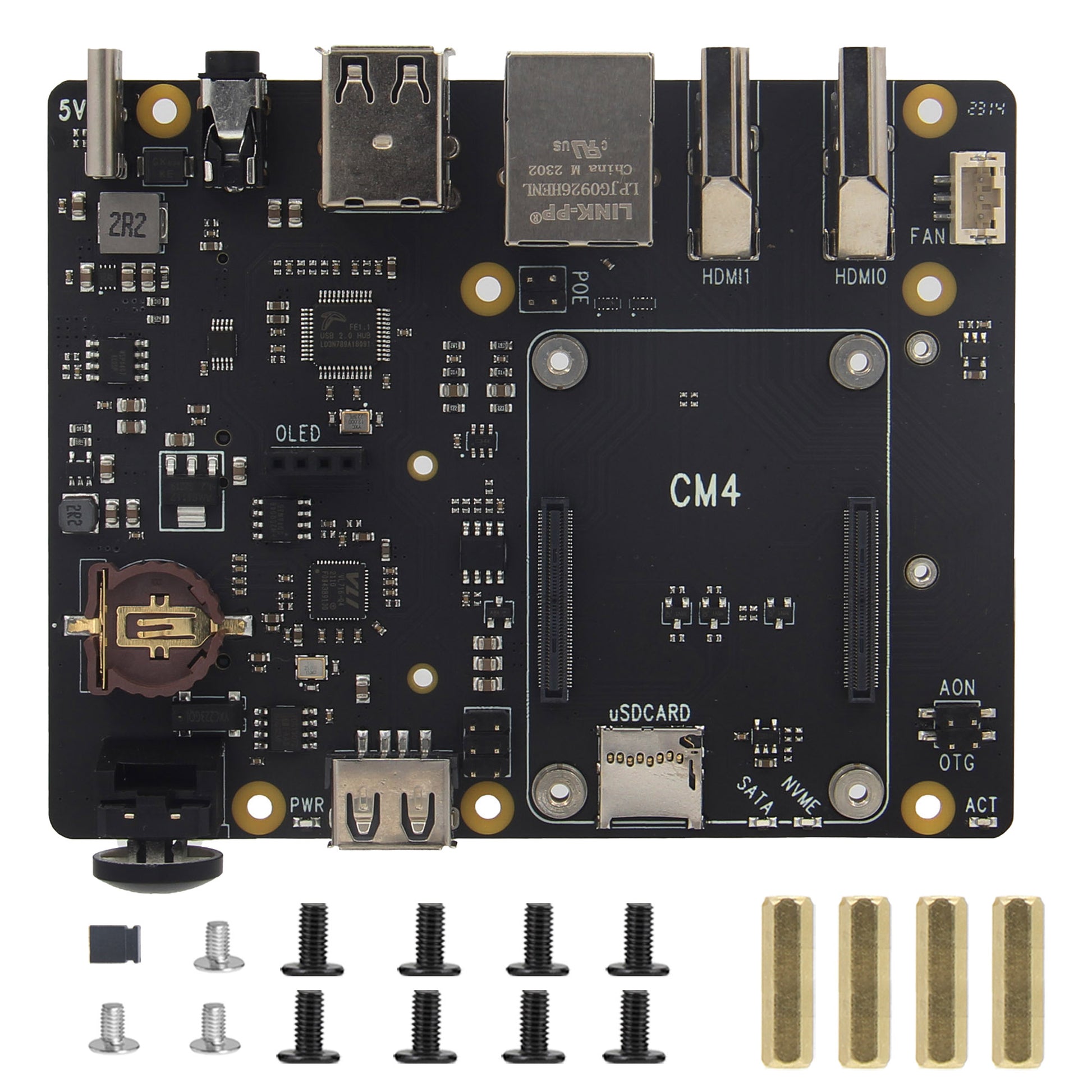

  • 1 x X515 expansion board
  • 1 x Screws Pack

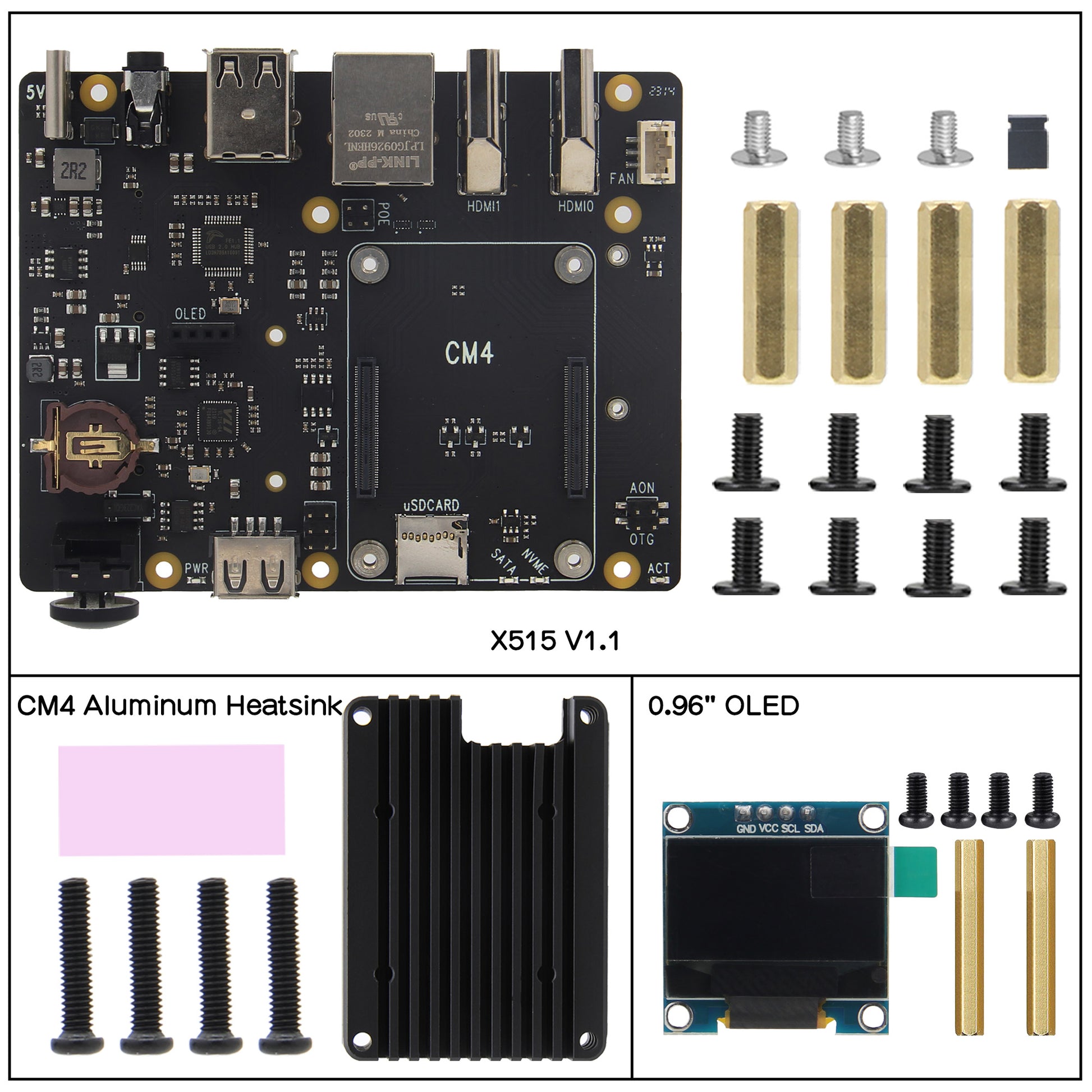

X515+OLED+Heatsink

  • 1 x X515 expansion board
  • 1 x 0.96 inch OLED
  • 1 x Aluminum Heatsink C235
  • 1 x Assembly Pack

    Refer to: https://wiki.geekworm.com/X515

    Please email to us at info@geekworm.com if you have other questions.
