Geekworm X1300-A2 I2S Audio Accessory Auxiliary Board for X1300 / X630

Regular price
$12.00
Regular price
$15.00
Sale price
$12.00
-20%
Only 49 items in stock! Out of stock!
  • Description
  • Manual
  • Shipping Policy
  • Product Reviews

Overview

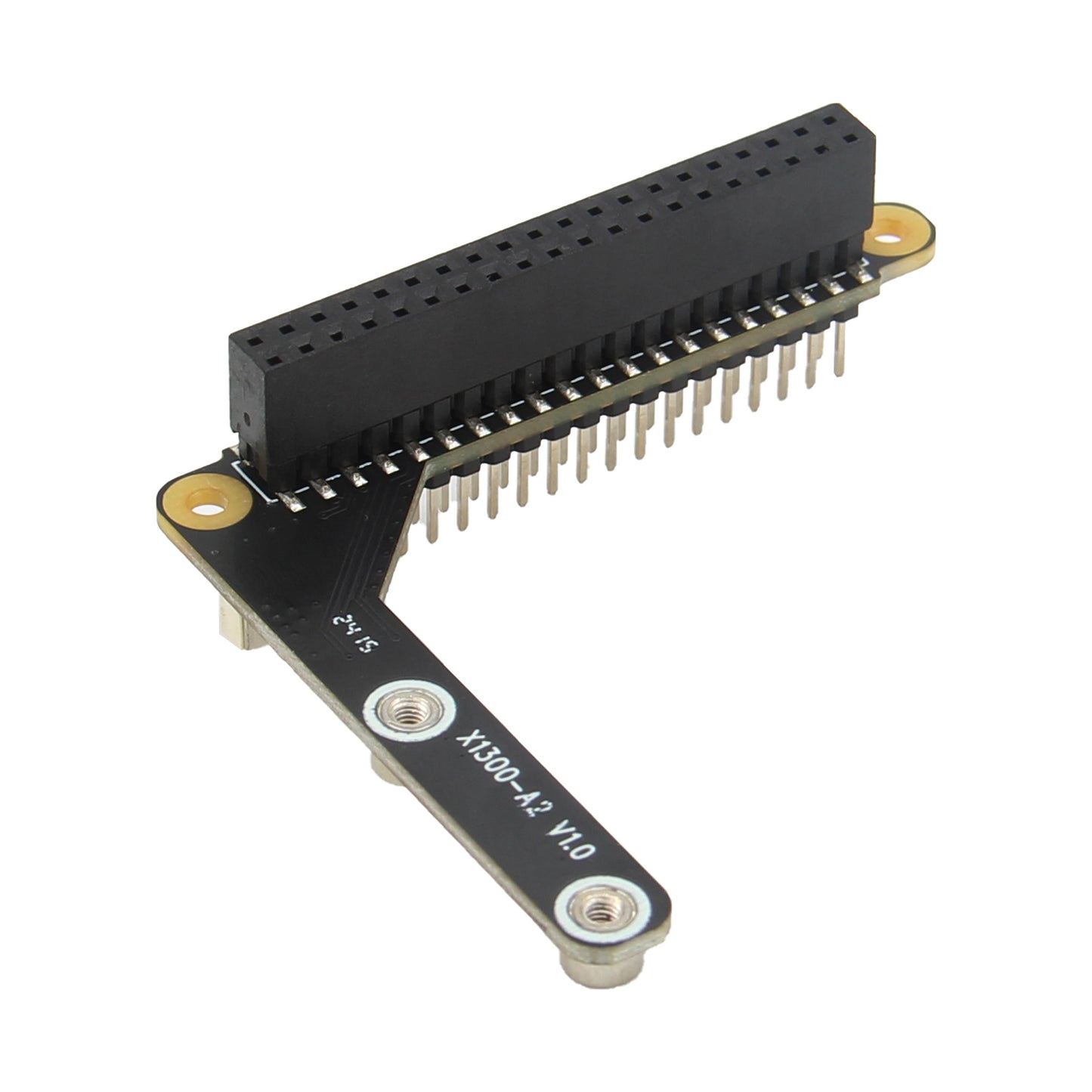

The X1300-A2 is an I2S audio accessory auxiliary board designed for the X1300 and X630 shield, enabling HDMI audio capture through the I2S interface. It is specifically designed to be placed on top of the Raspberry Pi, similar to a traditional HAT, and it provides a 40-pin header for easy access to the GPIO.

User Manual

https://wiki.geekworm.com/X1300-A2

Features

For use with

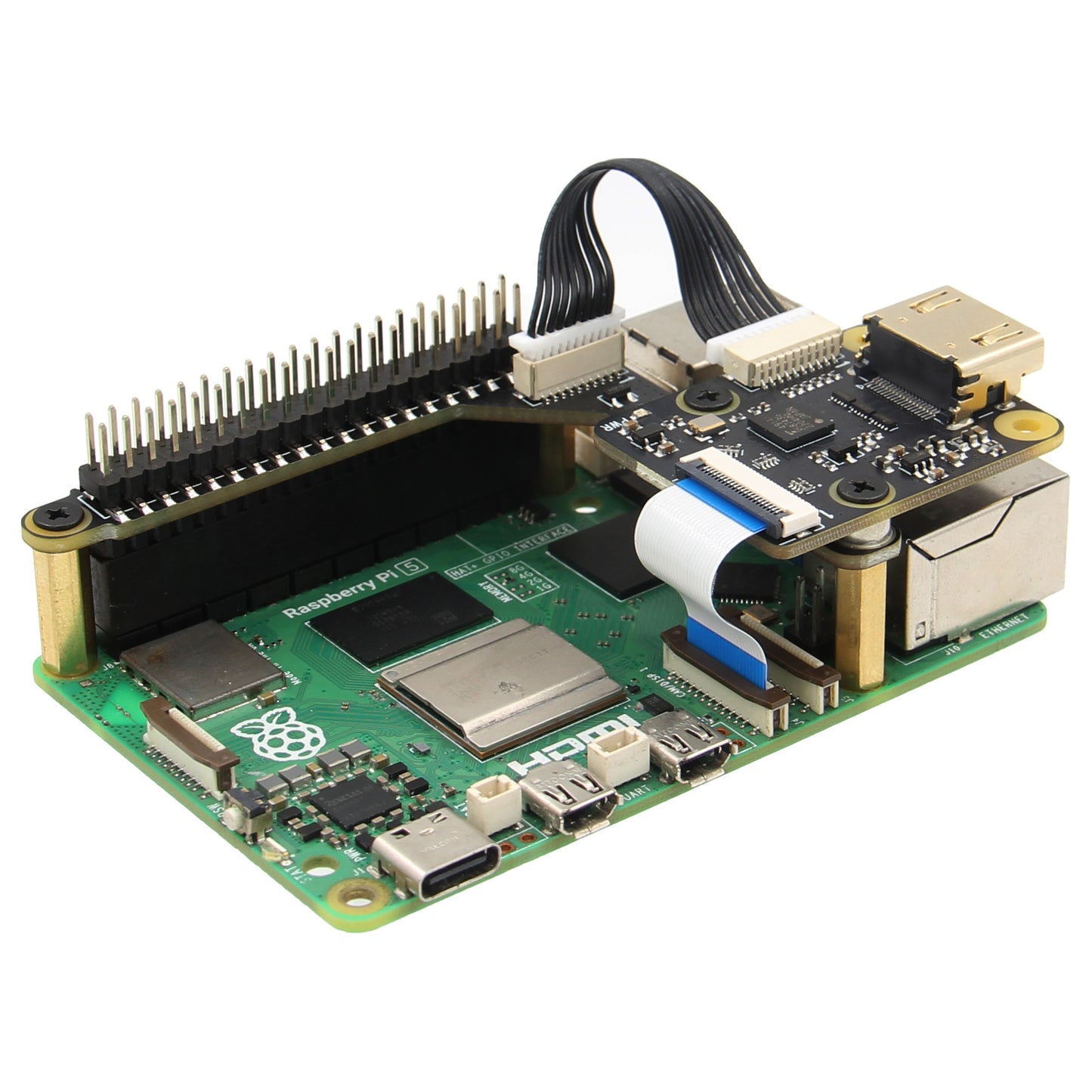

  • X1300 HDMI to CSI-2 for Raspberry Pi 5B, CM4 IO board
  • X630 HDMI to CSI-2 for Raspberry Pi 4B, 3B+ and 3B
Key Features
  • Enables HDMI audio capture through the I2S interface
  • Offers additional advanced functions, including HDMI cable detection, bridge chip reset, and interrupt capabilities
  • No soldering or complicated wiring needed

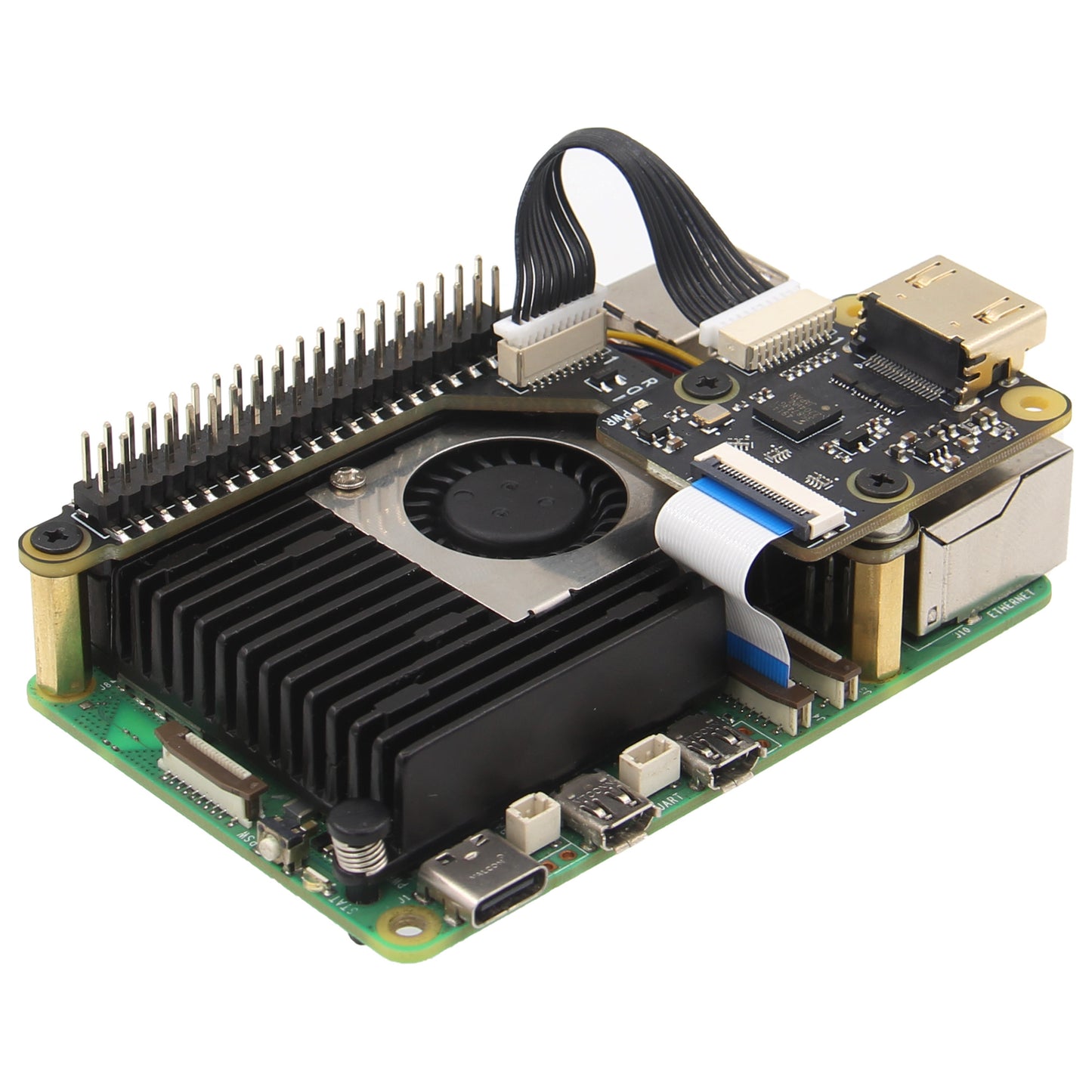

  • Ultra-compact design that includes reserved space for installing a CPU heatsink
  • Stackable design allows for attachment on bottom of other HATs
  • Easily mountable on the Raspberry Pi, allowing you to customize your perfect case
Technical Specification

Ports & Connectors:

  • GPIO header x1 - 40pin pitch2.54mm
  • 10-pin functional connector x1 - 10-pin 1.0pitch

10-pin I2S cable length: 50mm

PCB Size: 65mm x 57mm

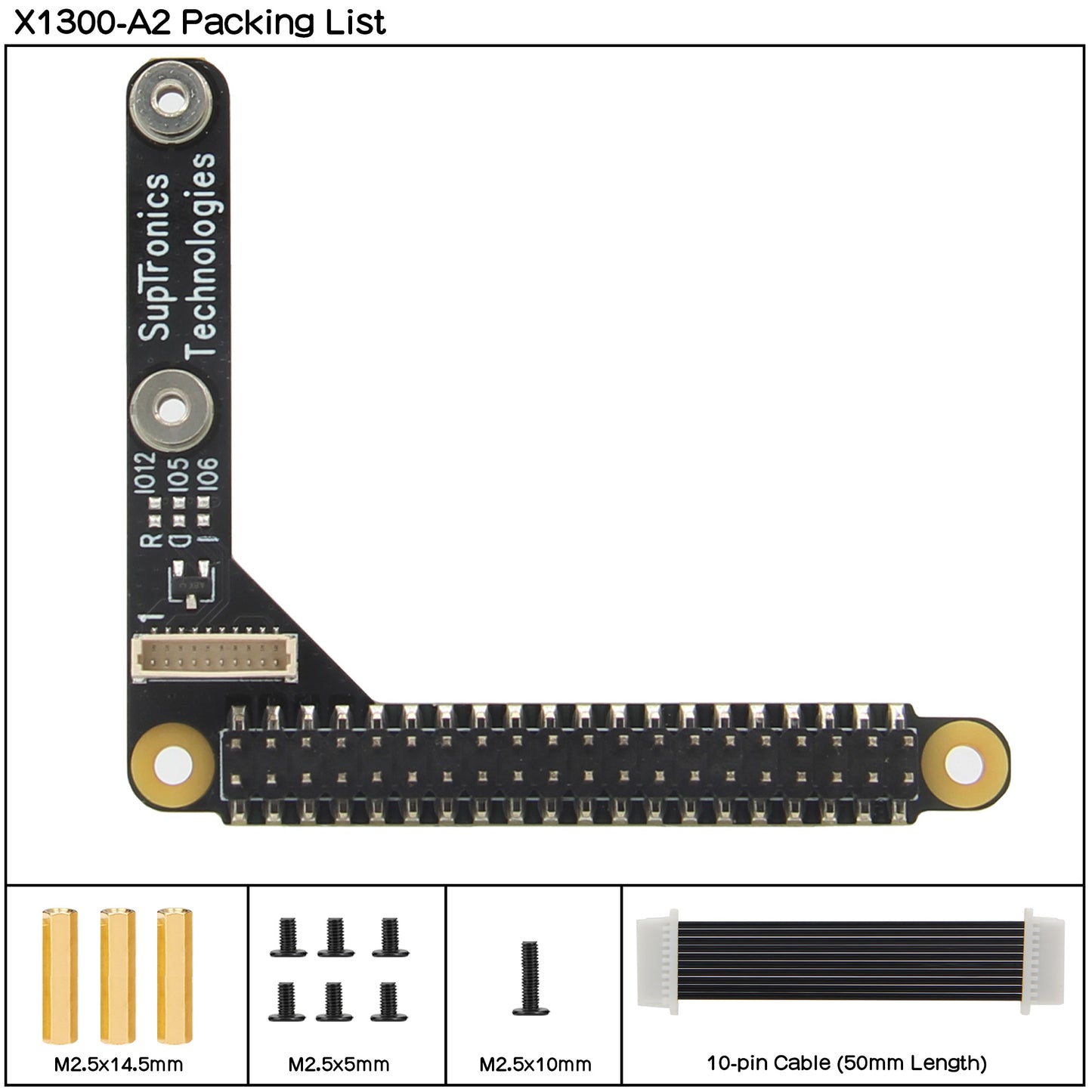

Packing List

  • X1300-A2 V1.0 accessory board x 1
  • 10-pin I2S cable x 1
  • M2.5* 14 F/F Spacers x 3
  • M2.5* 5 Screws x 6
  • M2.5* 10 Screw x 1



Refer to: https://wiki.geekworm.com/X1300-A2

Please email to us at info@geekworm.com if you have other questions.

We send orders to worldwide with tracking number.

For detail refer to Shipping Policy
