Raspberry Pi Zero W Use BadUSB USB-A Addon Board /w Case Kit

[BadUSB Overview]

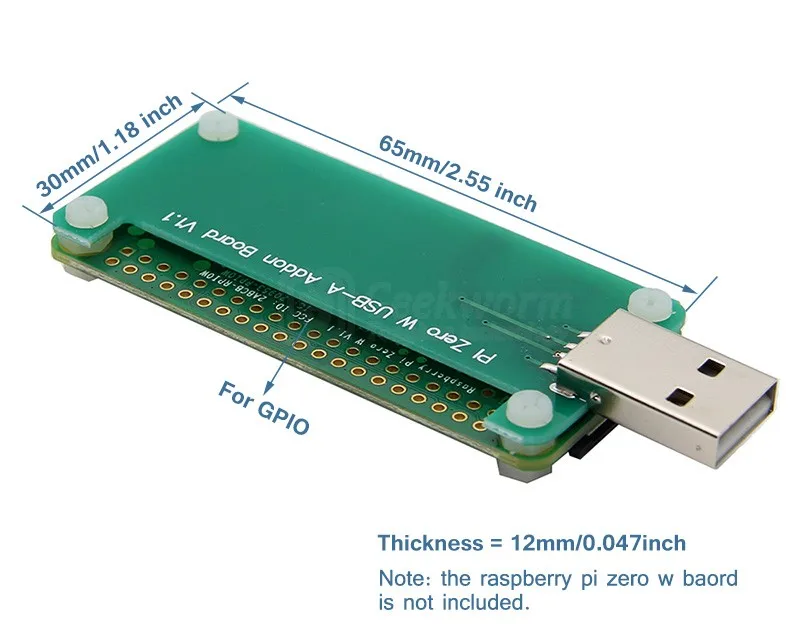

• This Raspberry Pi Zero|Zero W BadUSB USB-A Addon Board USB Connector RPi0 to U Disk Expansion Board is used to connect a Raspberry Pi Zero (RPi0) or Zero W (Wireless) via pogo pins to provide a full sized, USB Type-A connector.
• It is compatible with Raspberry Pi Zero mother board and Raspberry Pi Zero W board.
• You can change Raspberry pi zero or Raspberry pi zero W as a U disk via P4wnP1 P4wnP1 project, and you can use it as BadUSB device also.
• With this type of setup you can have a portable device to execute Responder or PoisonTap type attacks.

[Application]
Please refer to :
https://wiki.geekworm.com/B100K

[Case Overview]

• This case is made of acrylic with protective film, compatible with raspberry pi USB-A addon board ( BadUSB board ) , you can assemble it with raspberry pi USB-A addon board and raspberry pi zero w.
• In fact, you can use it to raspberry pi zero board (sku:483344) also, but the heatsilk is not be use on raspberry pi zero board.
• You can lengthen the screws by yourself if you need the more long screws., the specification of the current screw is PM2.5*14 mm.
• Comes with install screws for easy installation.
• With Openings for all interfaces of raspberry pi zero w board and badusb expansion board.

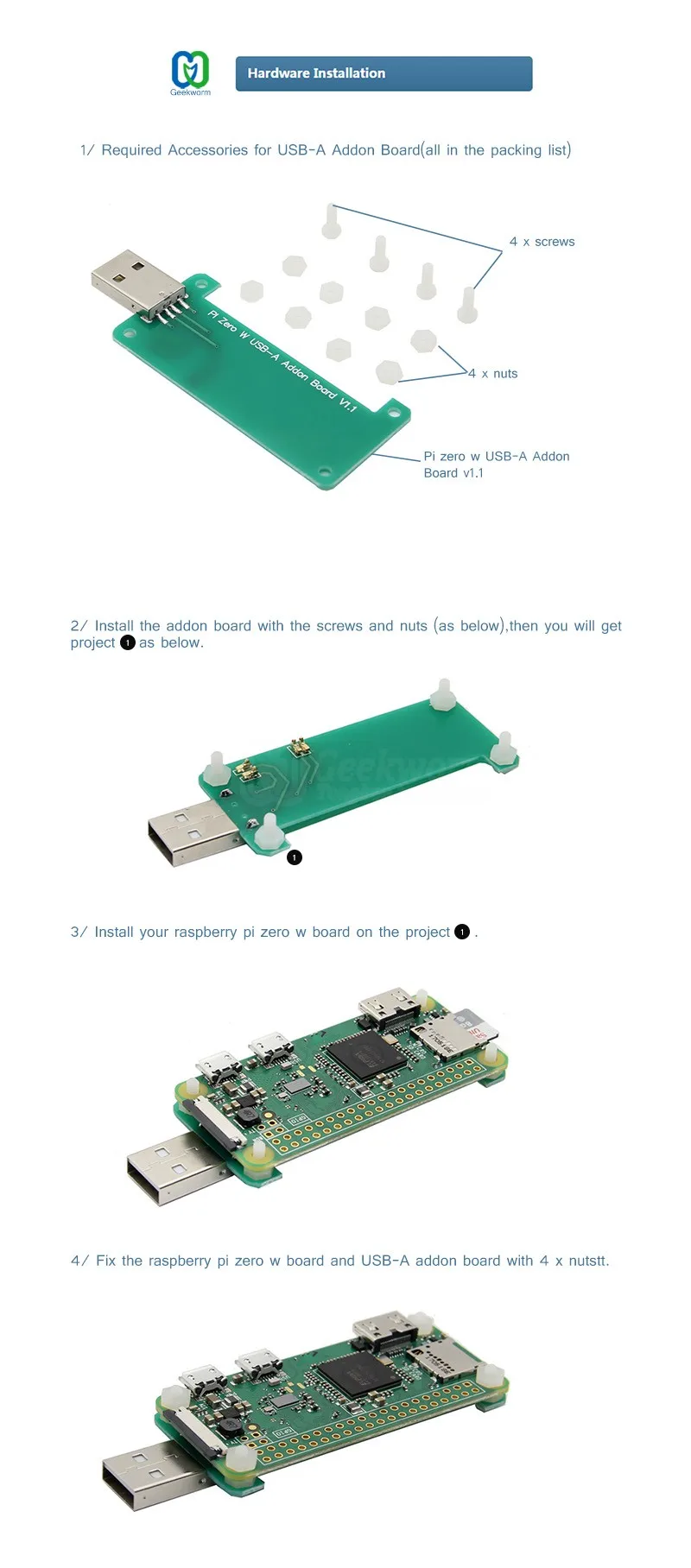

[How to install]

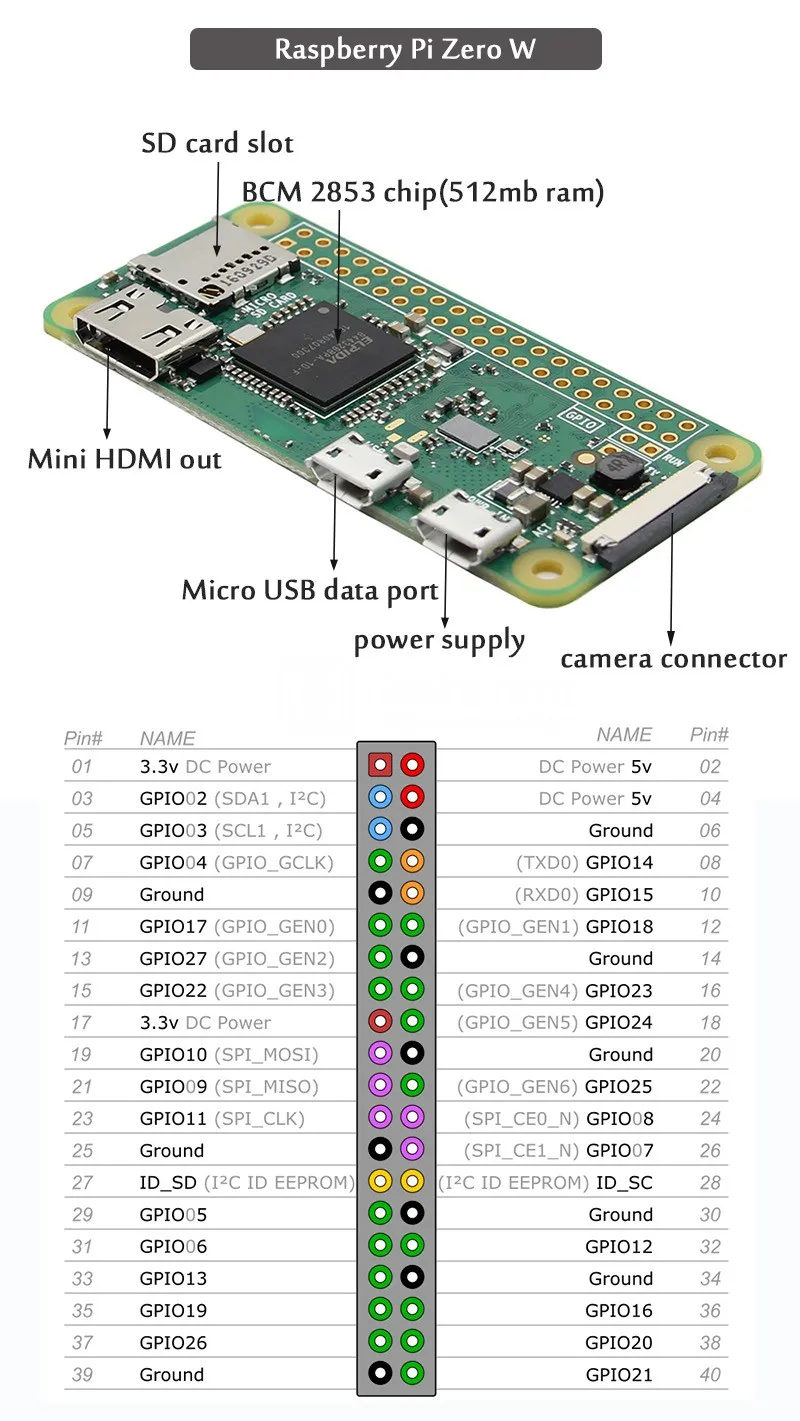

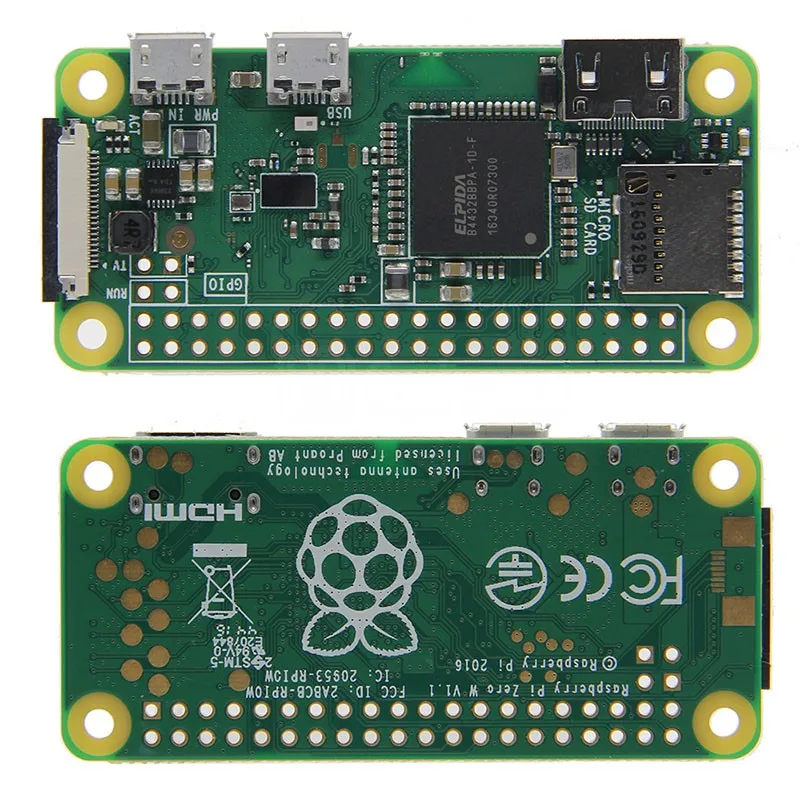

Pi Zero W

Packing List:

BadUSB+Case:

• 1x BadUSB USB-A Addon Board for Raspberry Pi Zero/ Zero W
• 1x Acrylic Case with install screws

BadUSB Board:

• 1x BadUSB USB-A Addon Board for Raspberry Pi Zero/ Zero W

Acrylic Case:

• 1x Acrylic Case with install screws

BadUSB+ Pi Zero W:

• 1x BadUSB USB-A Addon Board for Raspberry Pi Zero/ Zero W
• 1x Raspberry Pi Zero W Board
