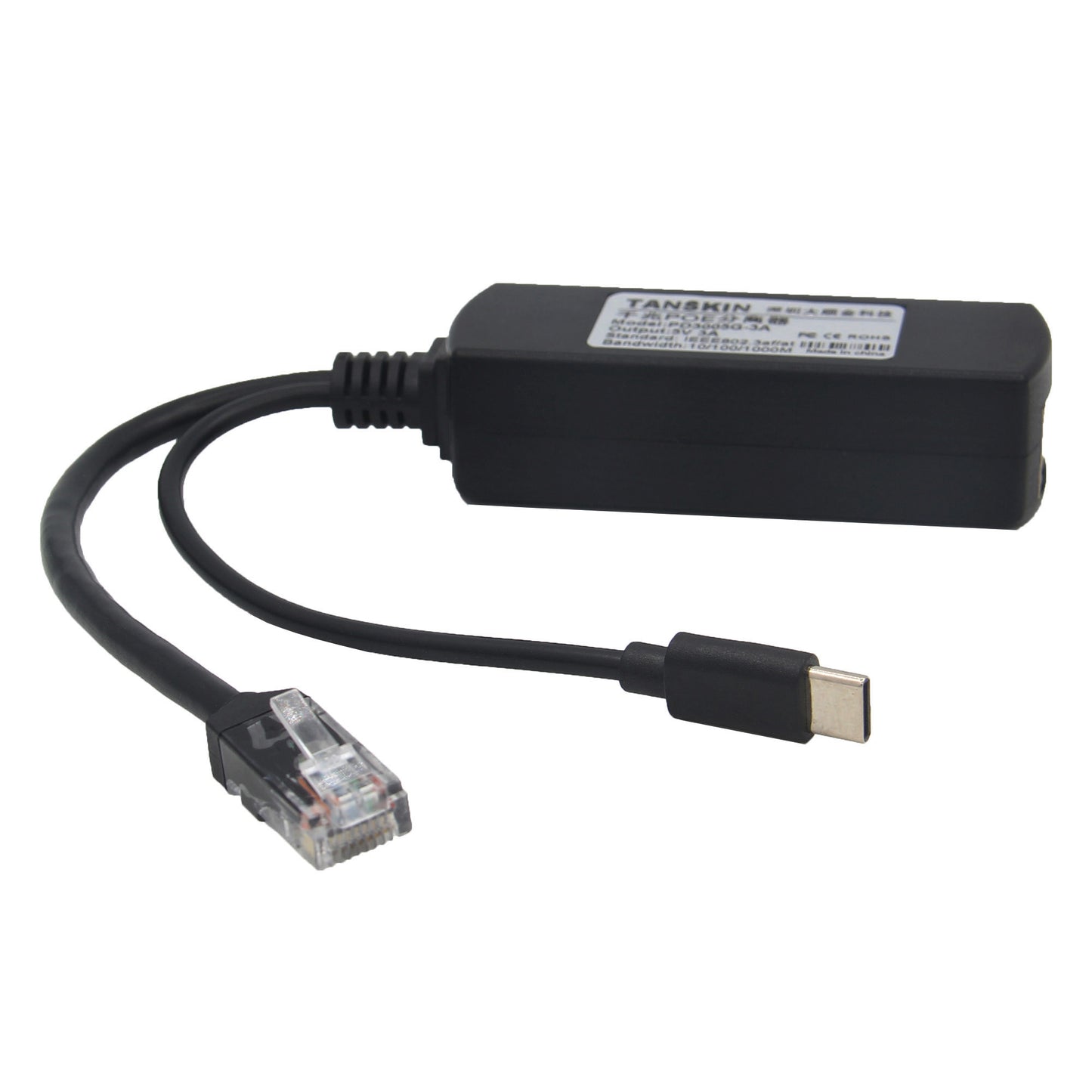

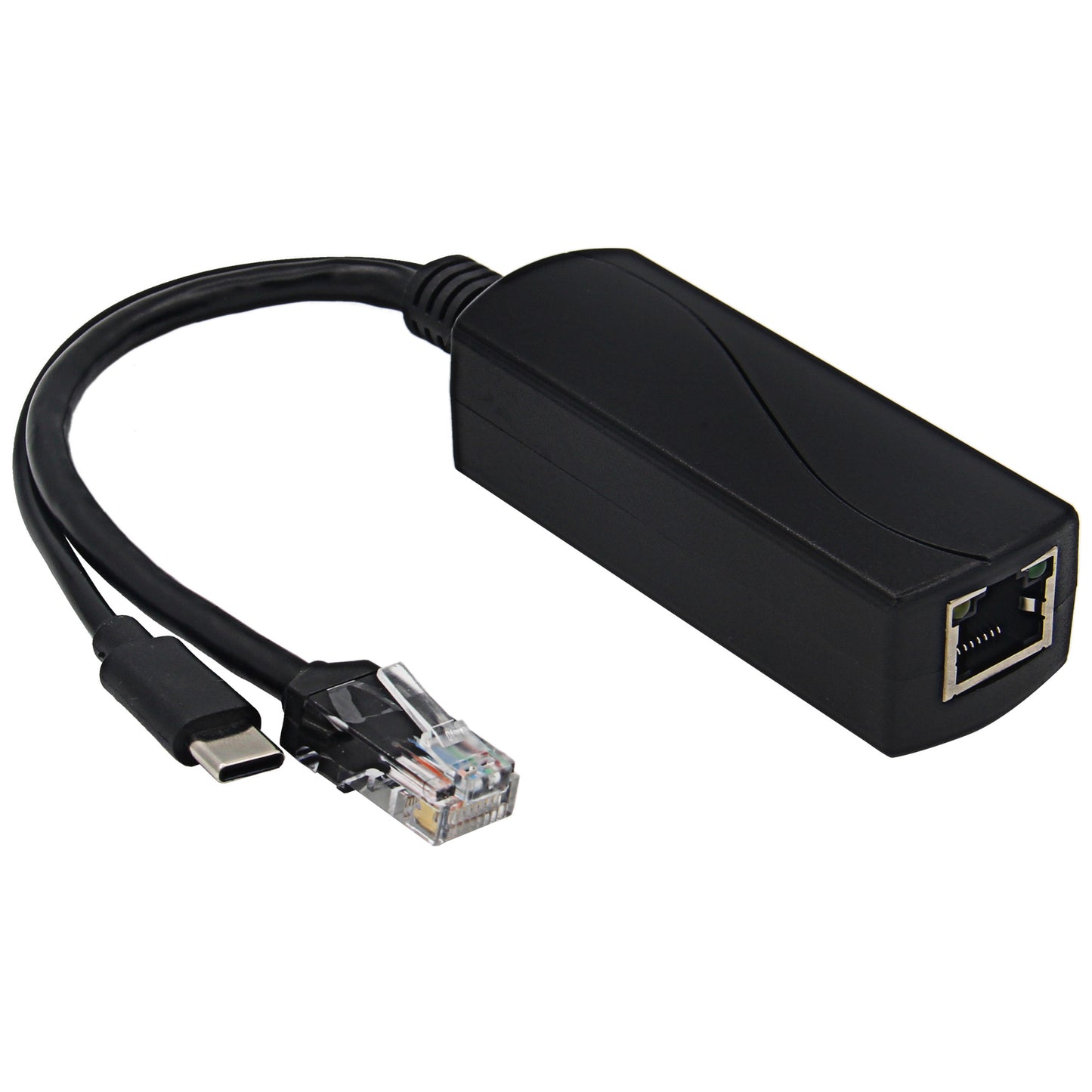

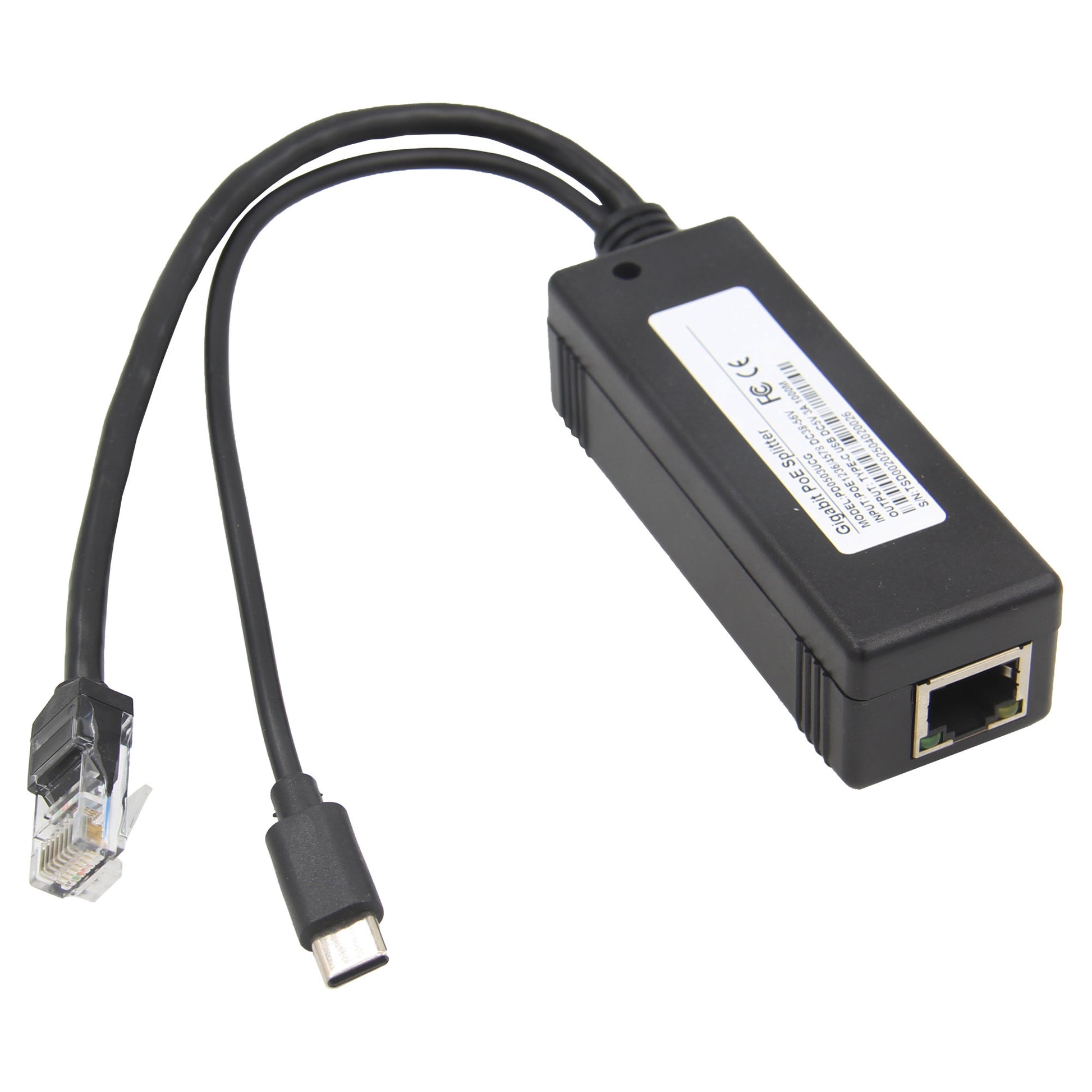

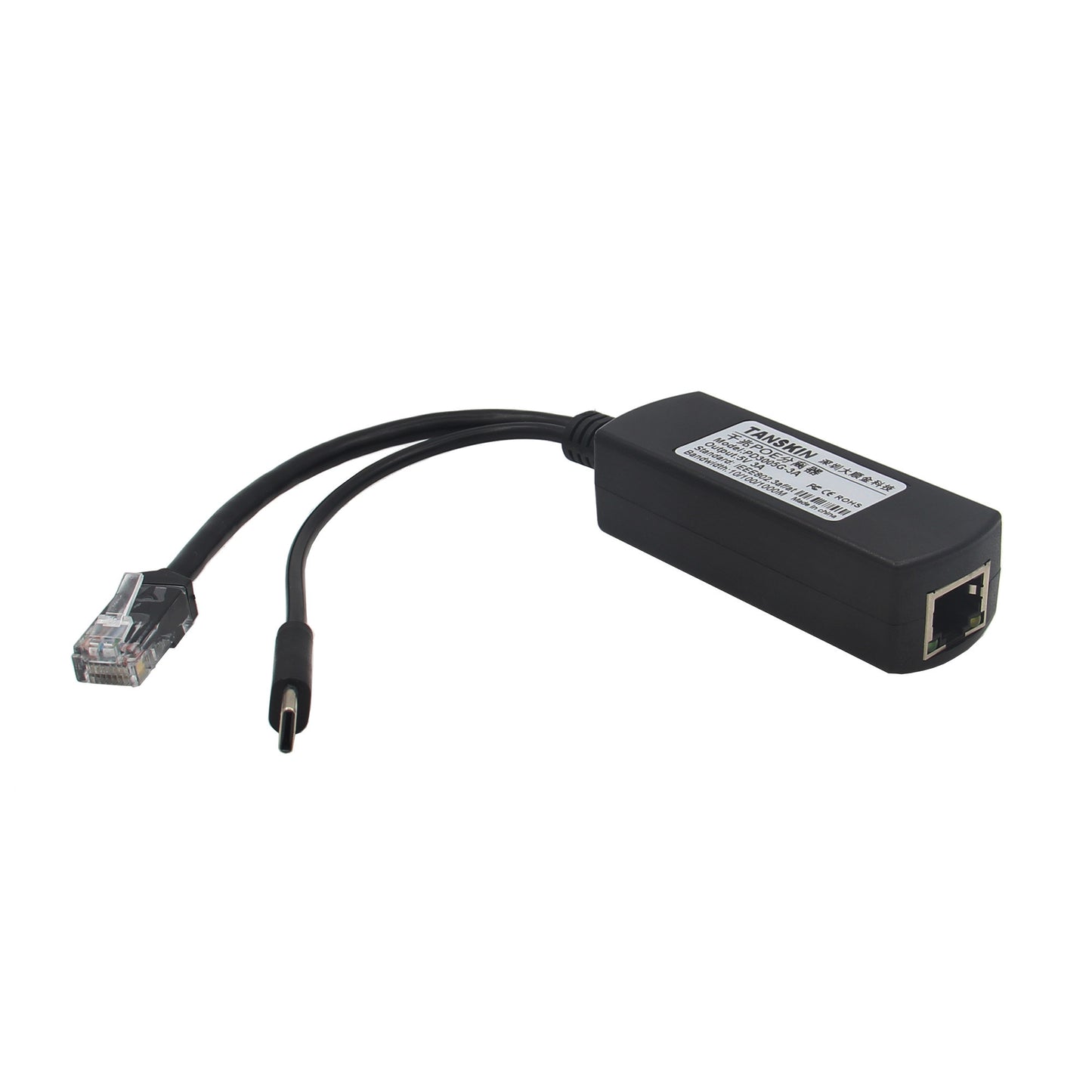

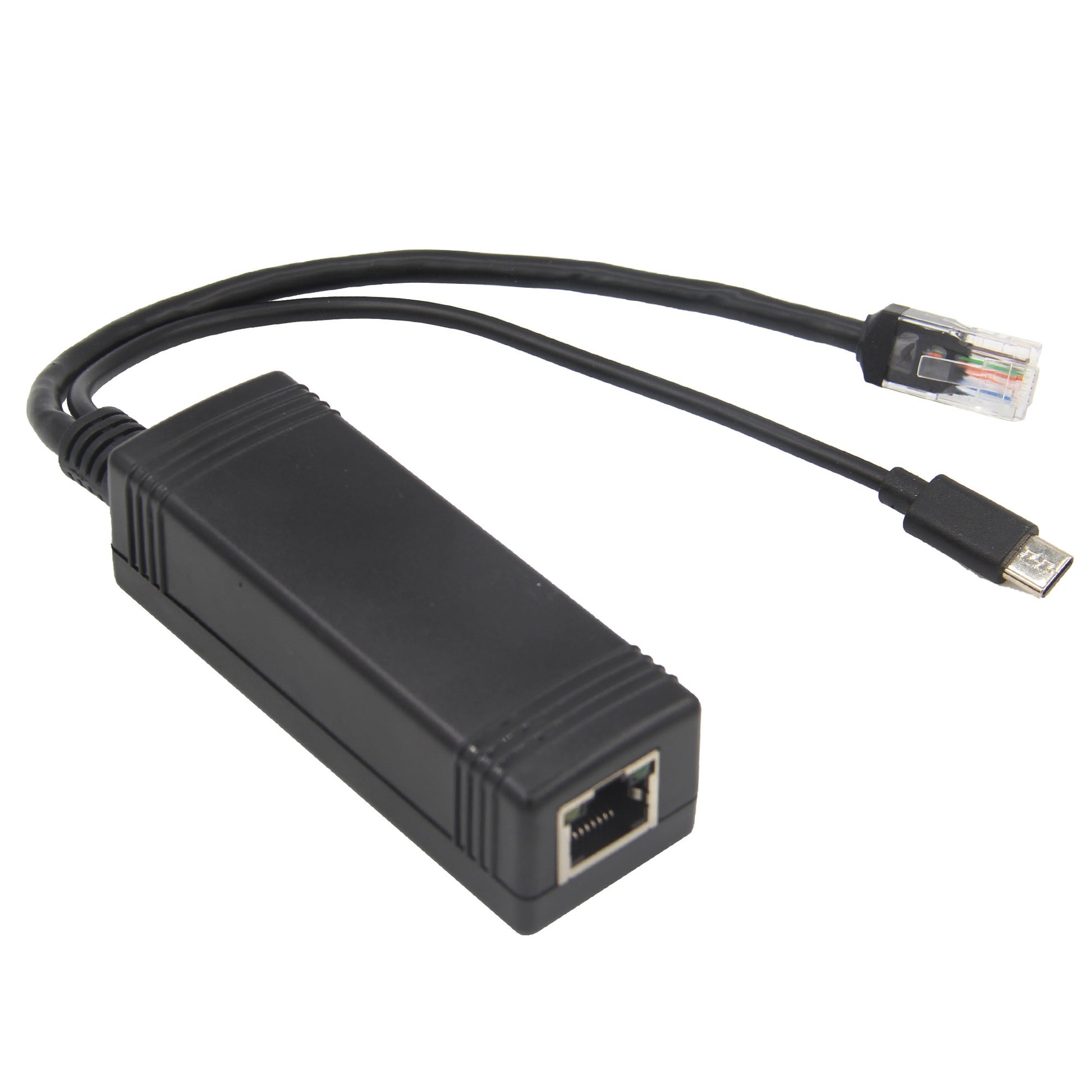

Geekworm PoE Splitter 10/100/1000Mbps 5V 3A Type C Connector for Raspberry Pi 4/X650/X635

Note: The POE splitter is not waterproof.

Overview

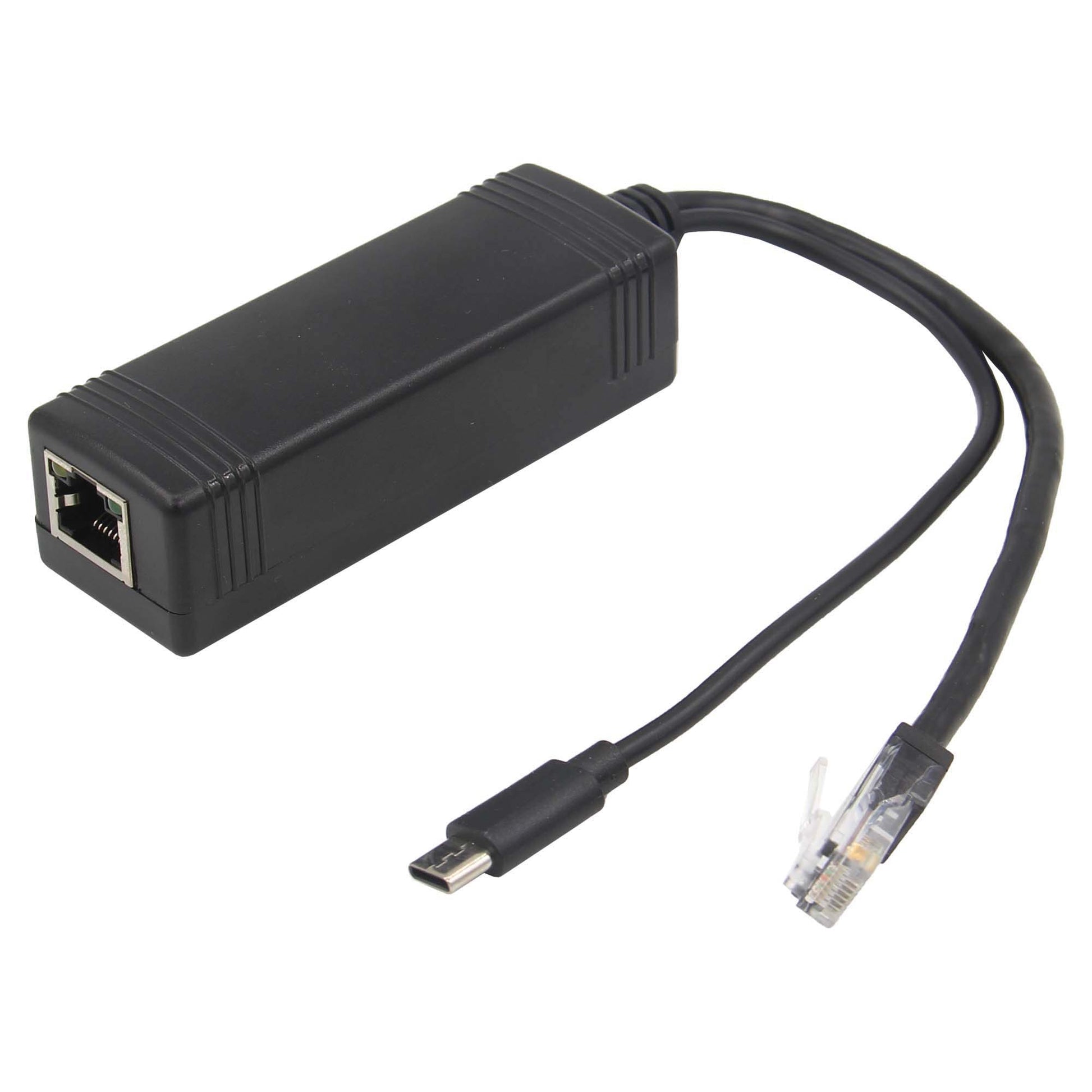

PD3005G-3A is a 48V to 5V standard POE splitter, which complies with the IEEE 802.3af standard. It can separate the power and data signals transmitted through the network cable.
It has low power consumption and stable signal transmission. The POE splitter is used with power supply equipment that complies with the IEEE 802.3af standard，which can provide data and power for network equipment that does not support PoE at the same time.

User Manual: https://wiki.geekworm.com/PD3005G-3A

Features

• Model: PD3005G-3A

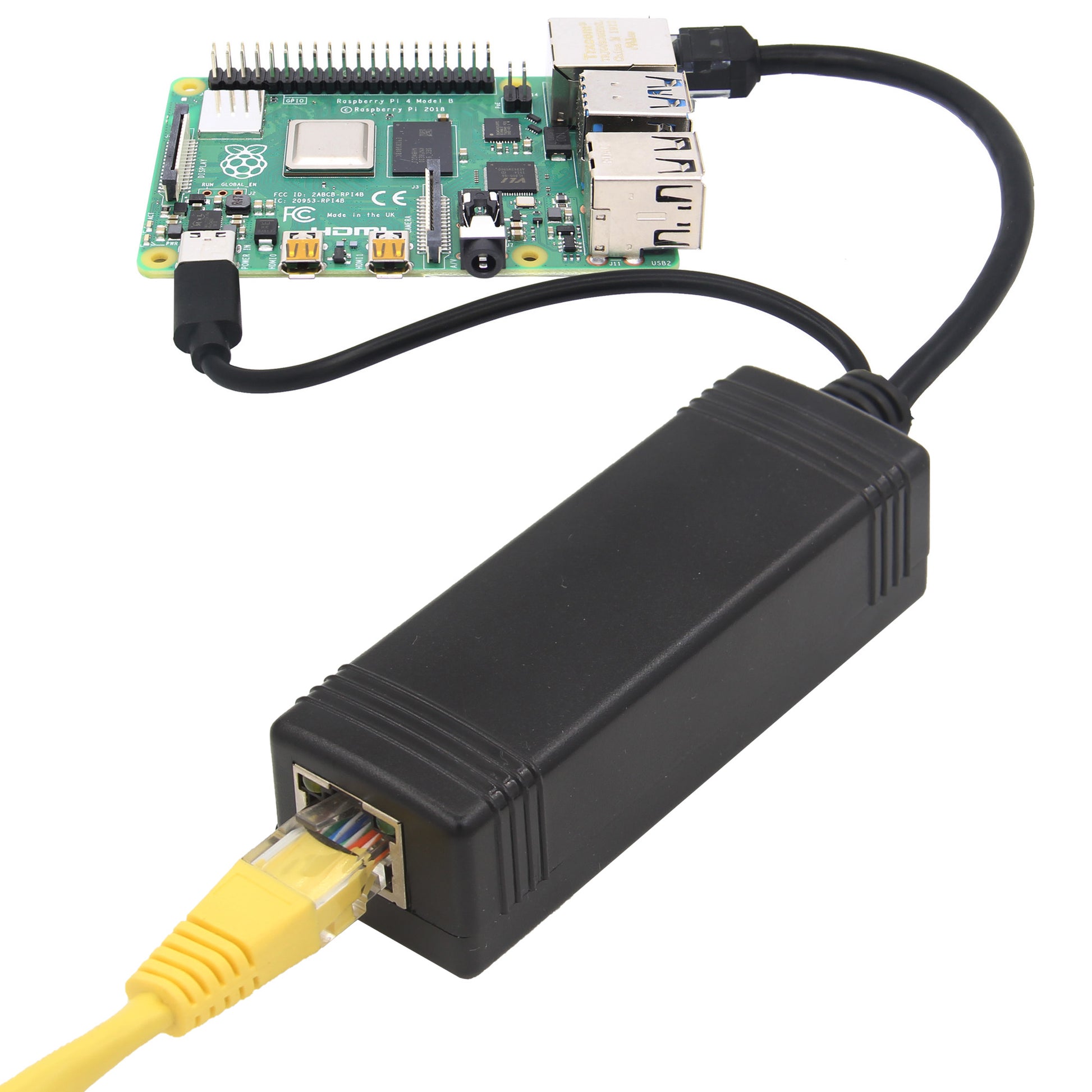

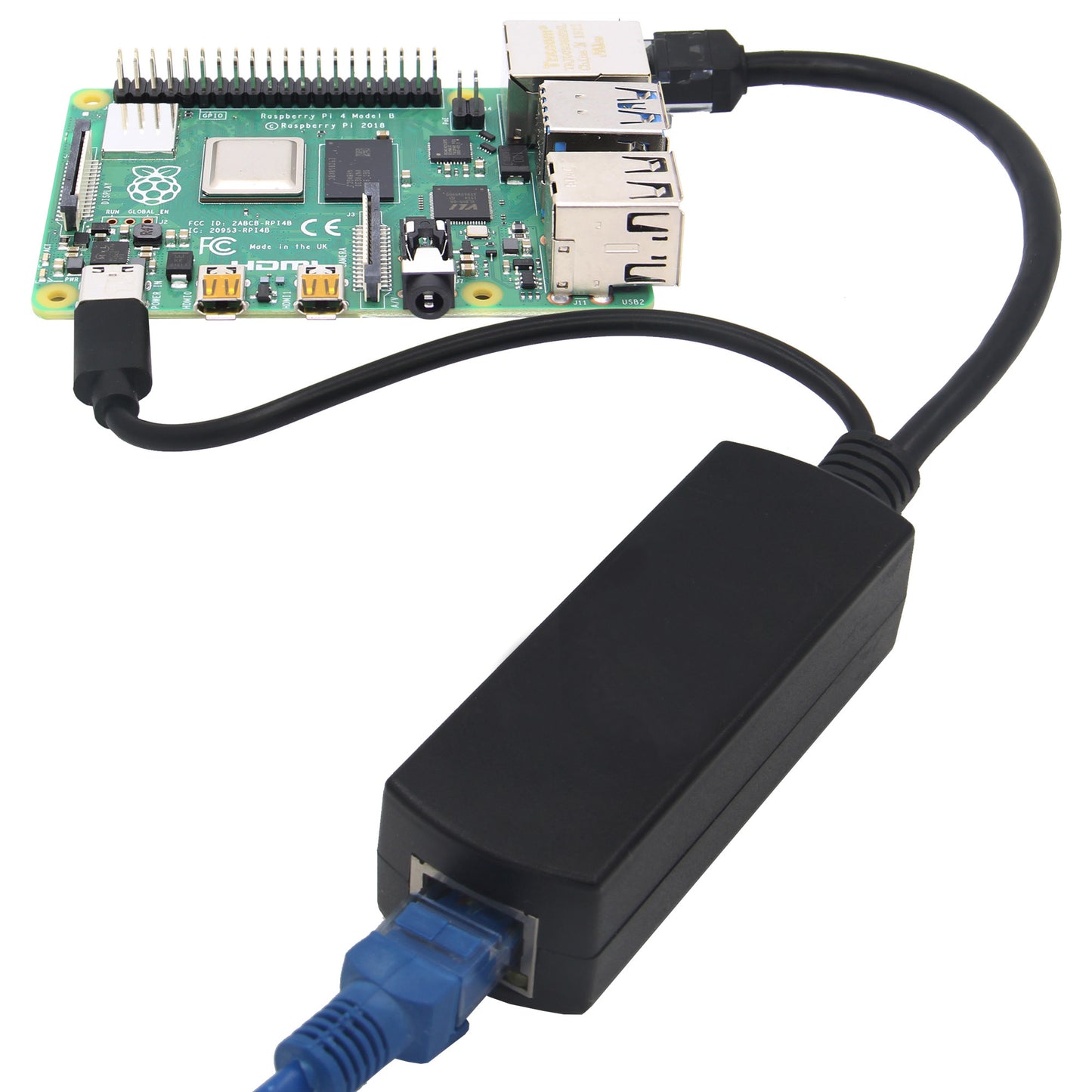

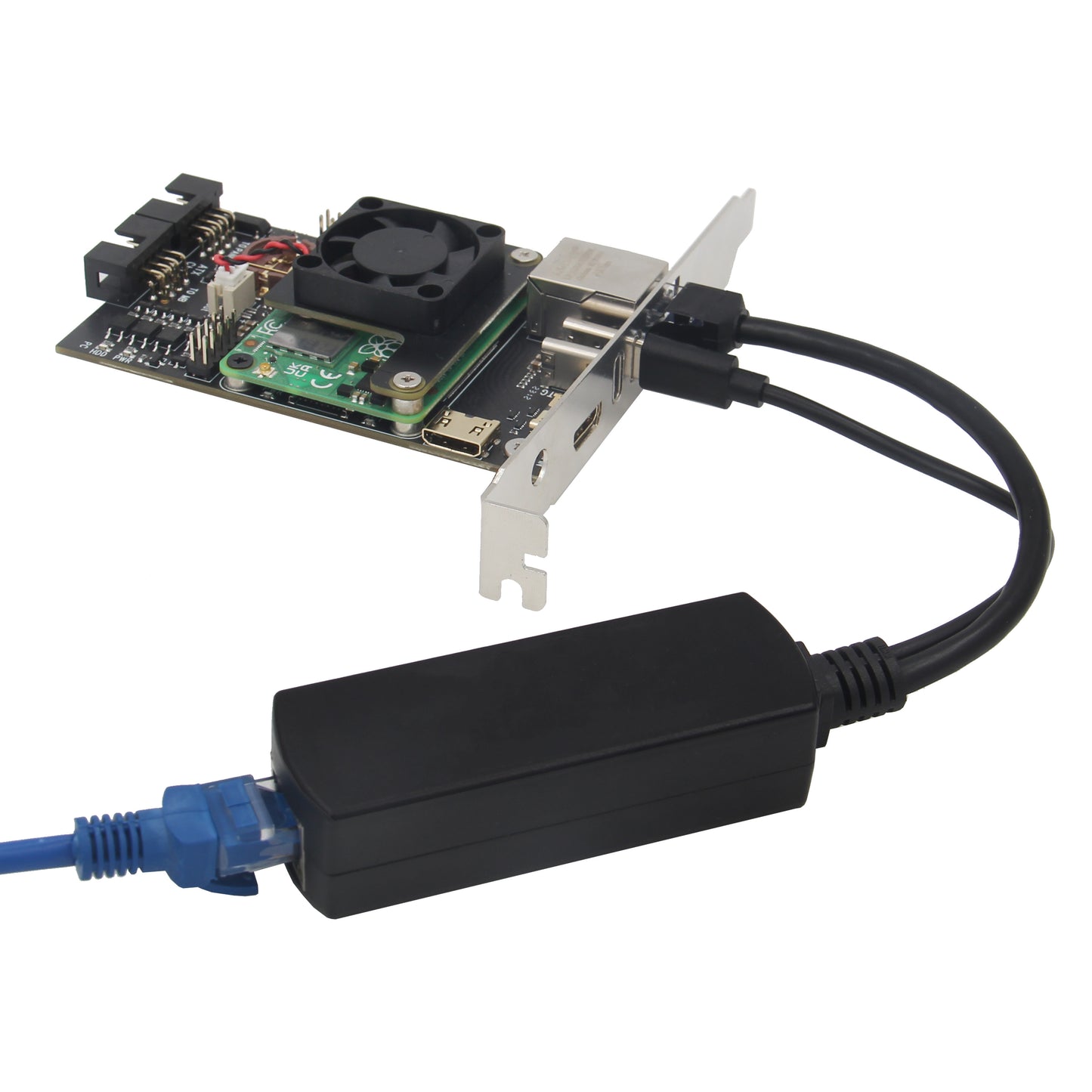

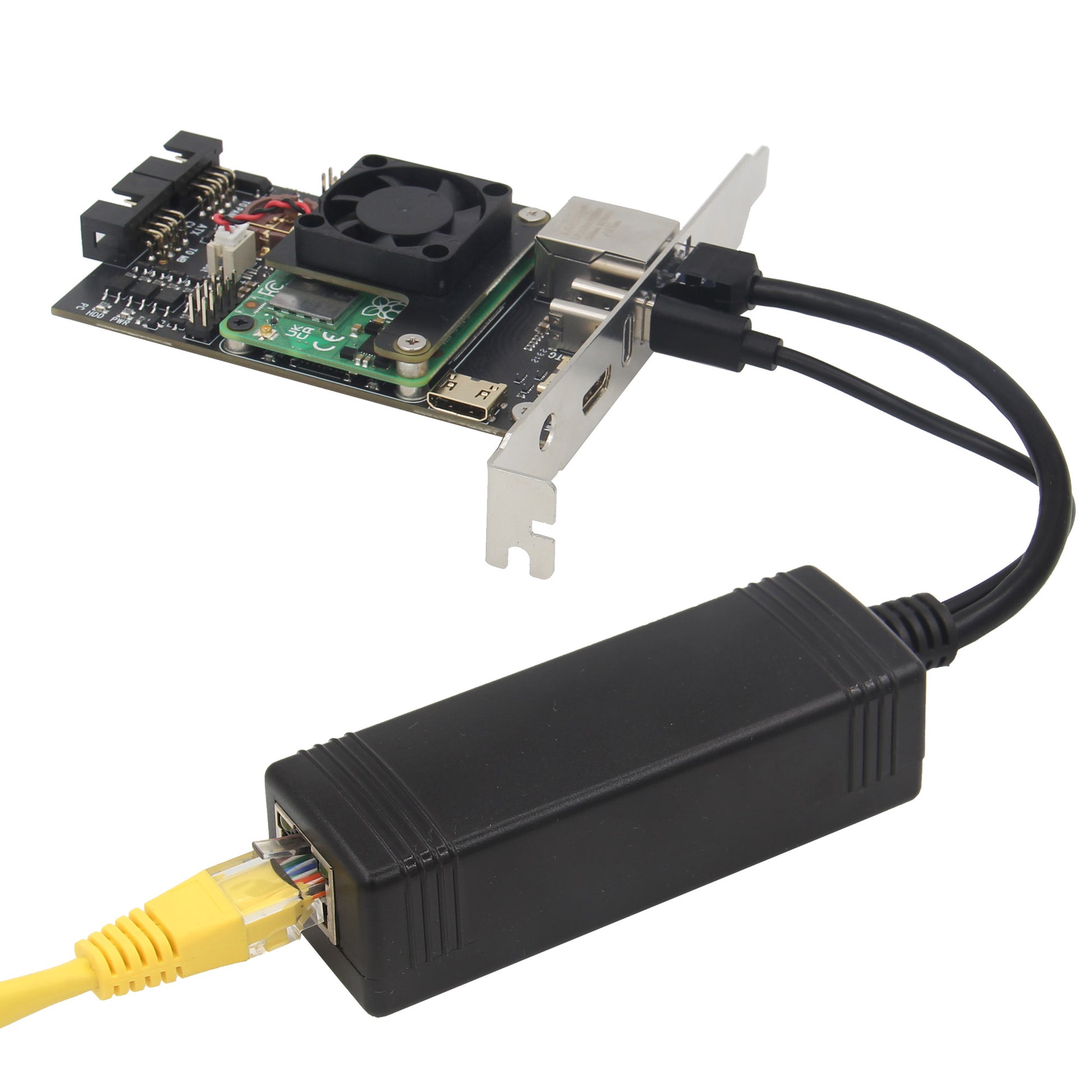

• Compatible with Raspberry Pi 4/3B+/3B/X650/X635/ASUS Thinker board/other device with Type-C power port and network port
• Interface Type：1*Network Interface +1*Type-C Port
• Compatibility: IEEE802.3-AF/AT standard
• Bandwidth:10/100/1000M
• Data speed: 10/100/1000Mbps
• Input: DC48-57V
• Output: 5V 3A
• Power Supply: 12W Max
• DC Jack: TYPE-C
• Dimension: 80x30x22mm
• Cable length: 15.5cm(Network Interface) /14.5cm(Type-C Port)

Packing List

• 1x POE Splitter
