Orange Pi Zero 3 Metal Case (N502)

Regular price
$10.00
Regular price
$14.00
Sale price
$10.00
-29%
Only 138 items in stock! Out of stock!
  • Description
  • Manual
  • Shipping Policy
  • Reviews

The N502 will come in stock at the end of August!

Note:

  1. The Orange Pi Zero 3 motherboard, power adapter or antenna is not included in the packing list. Please refer to packing list.
  2. Only compatible with Orange Pi Zero 3, not compatible with Orange Pi Zero and Orange Pi Zero 2 !!!!

Overview

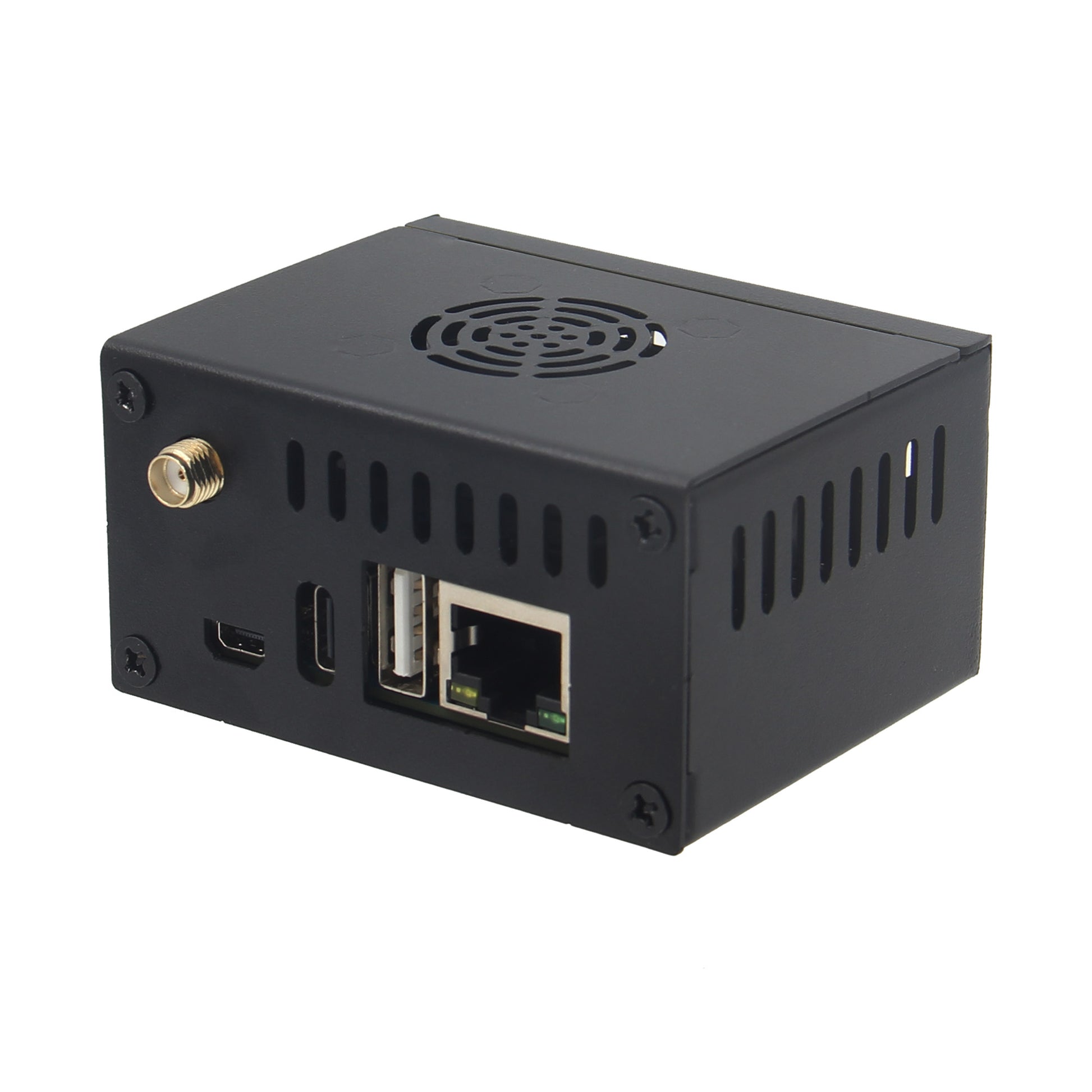

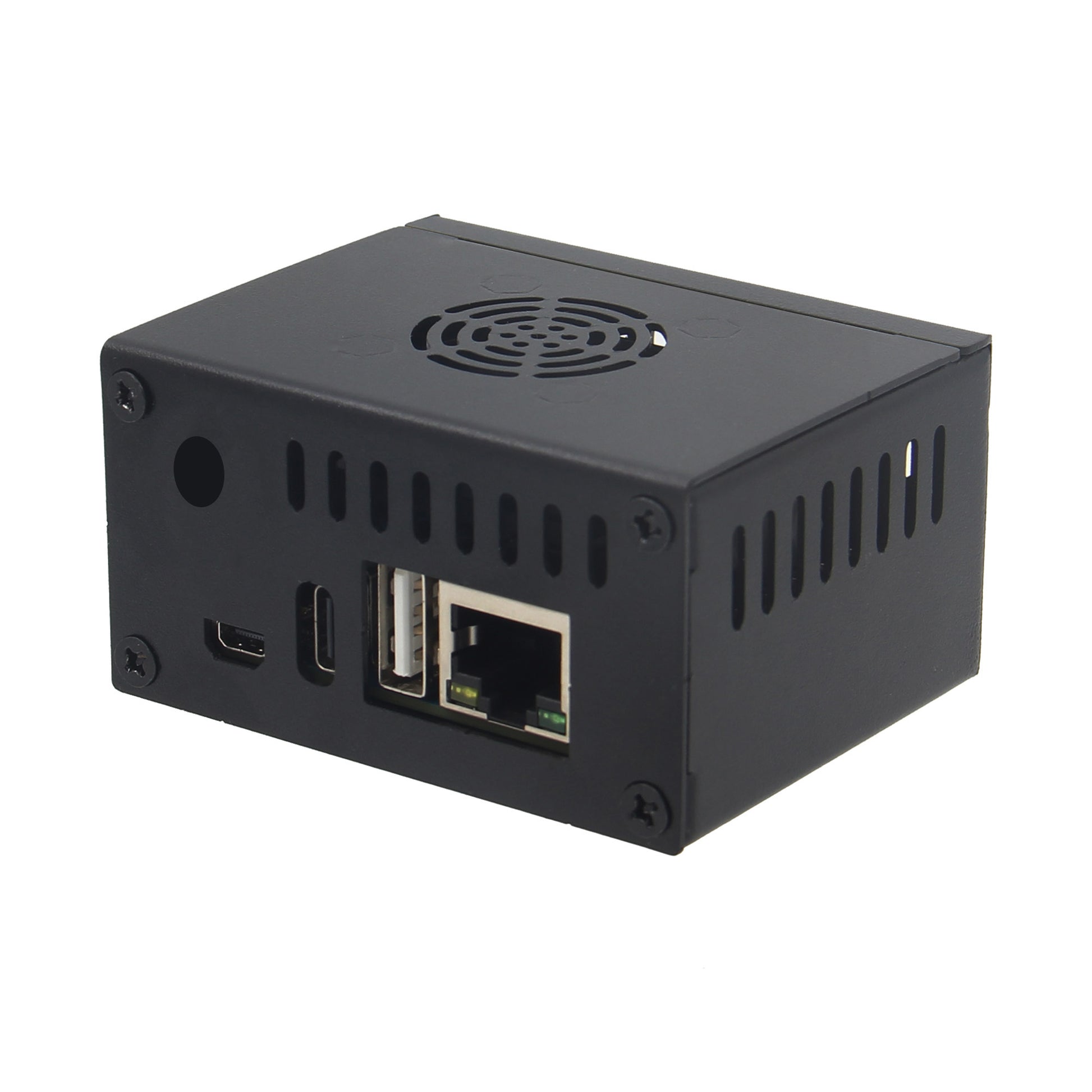

This is a metal case specially designed for Orange Pi Zero 3, we name it as N502. It reserves all the interfaces of the Orange Pi Zero 3 motherboard, supports the 3010 5v cooling fan, supports the extraction of the GPIO cable, and also reserves the antenna hole for you to facilitate the installation of antenna.

Features

  • Model: N502
  • High quality metal material with surface galvanized process

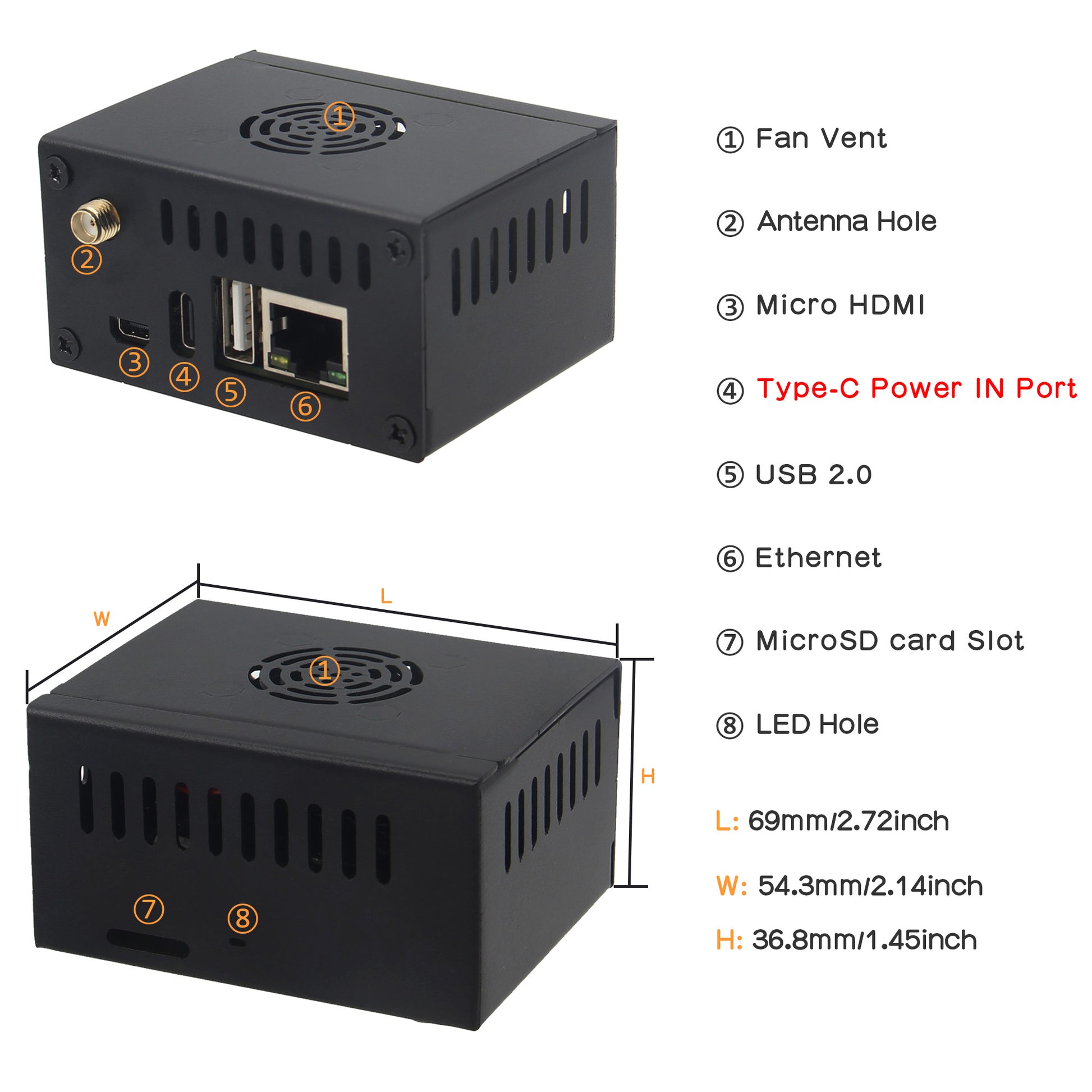

  • All ports and slots of the case can match with Orange Pi Zero 3 board

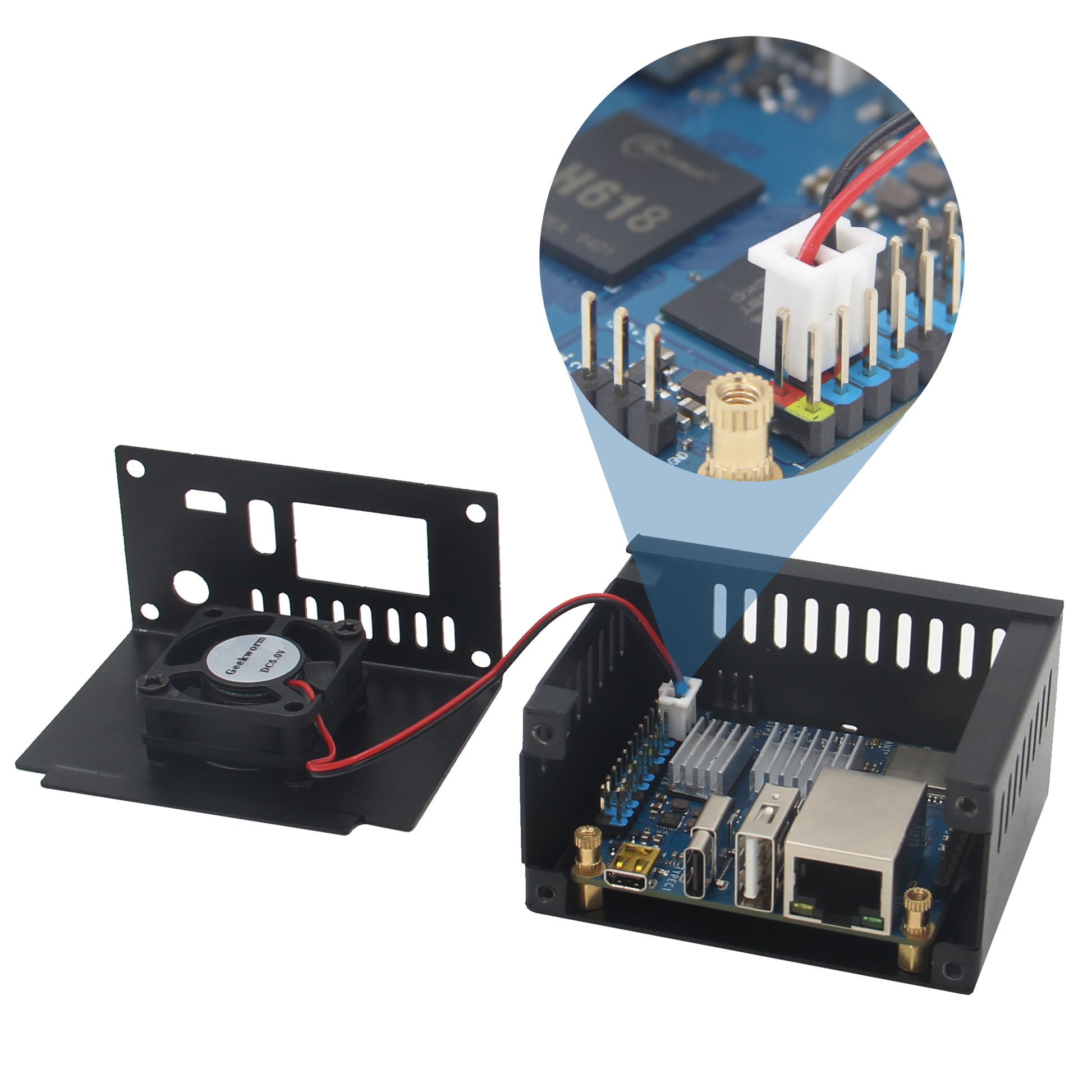

  • Good heat dissipation, can use 3010 5V active cooling fan and 2pcs passive aluminum heatsink at the same time
  • Reserved GPIO cable hole

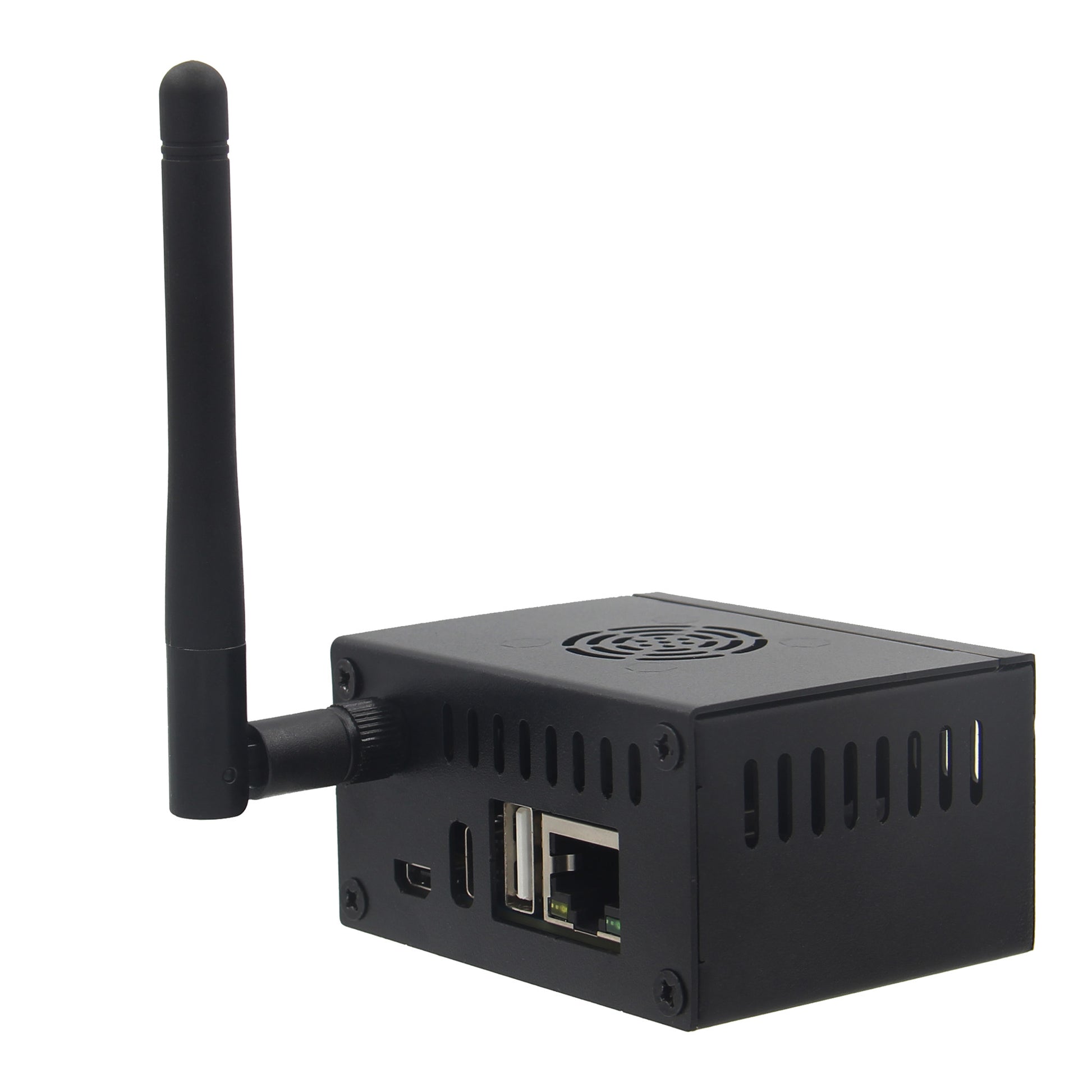

  • The antenna hole is reserved to facilitate the installation of antenna

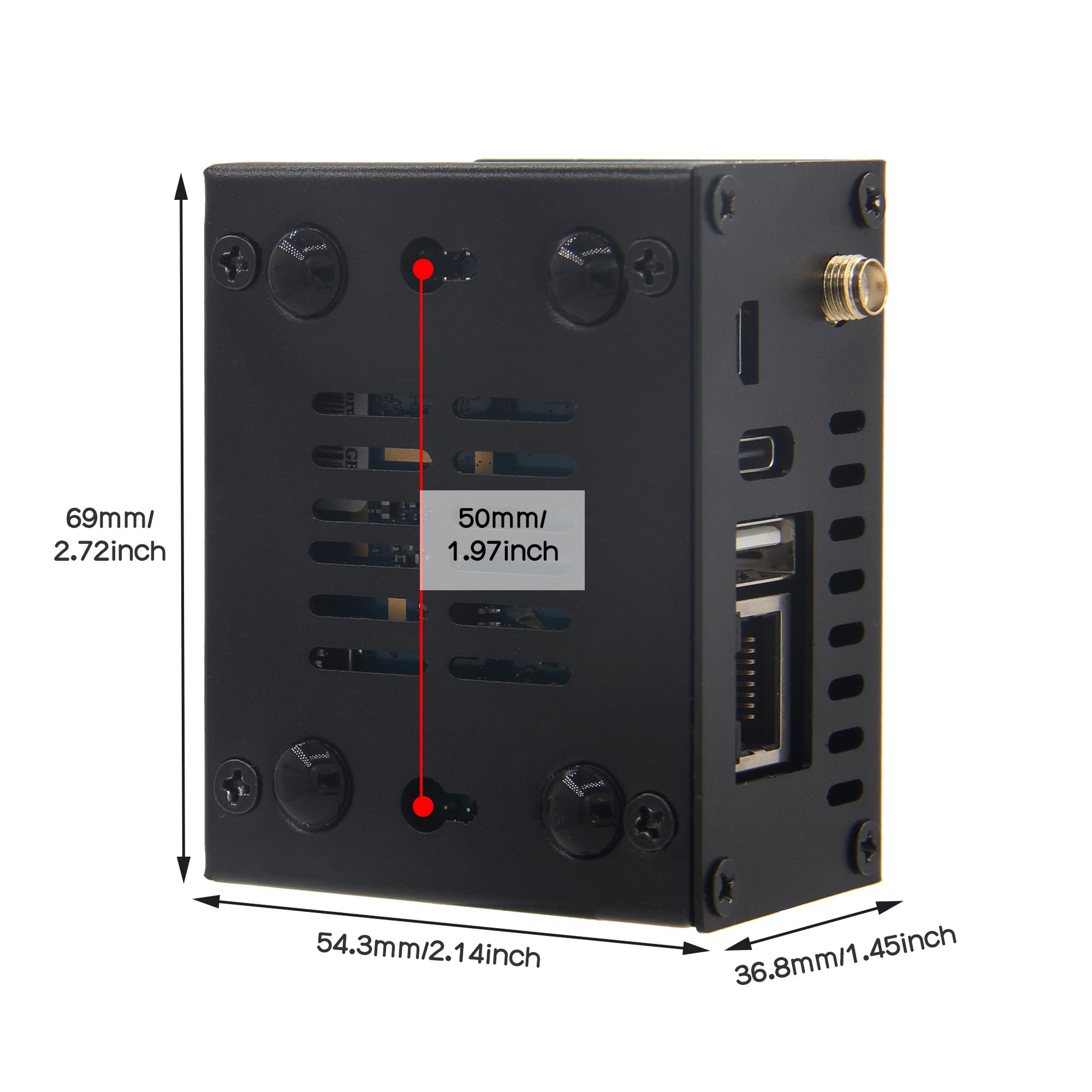

  • Case Dimensions: 69*54.3*36.8mm/2.72*2.14*1.45 inch

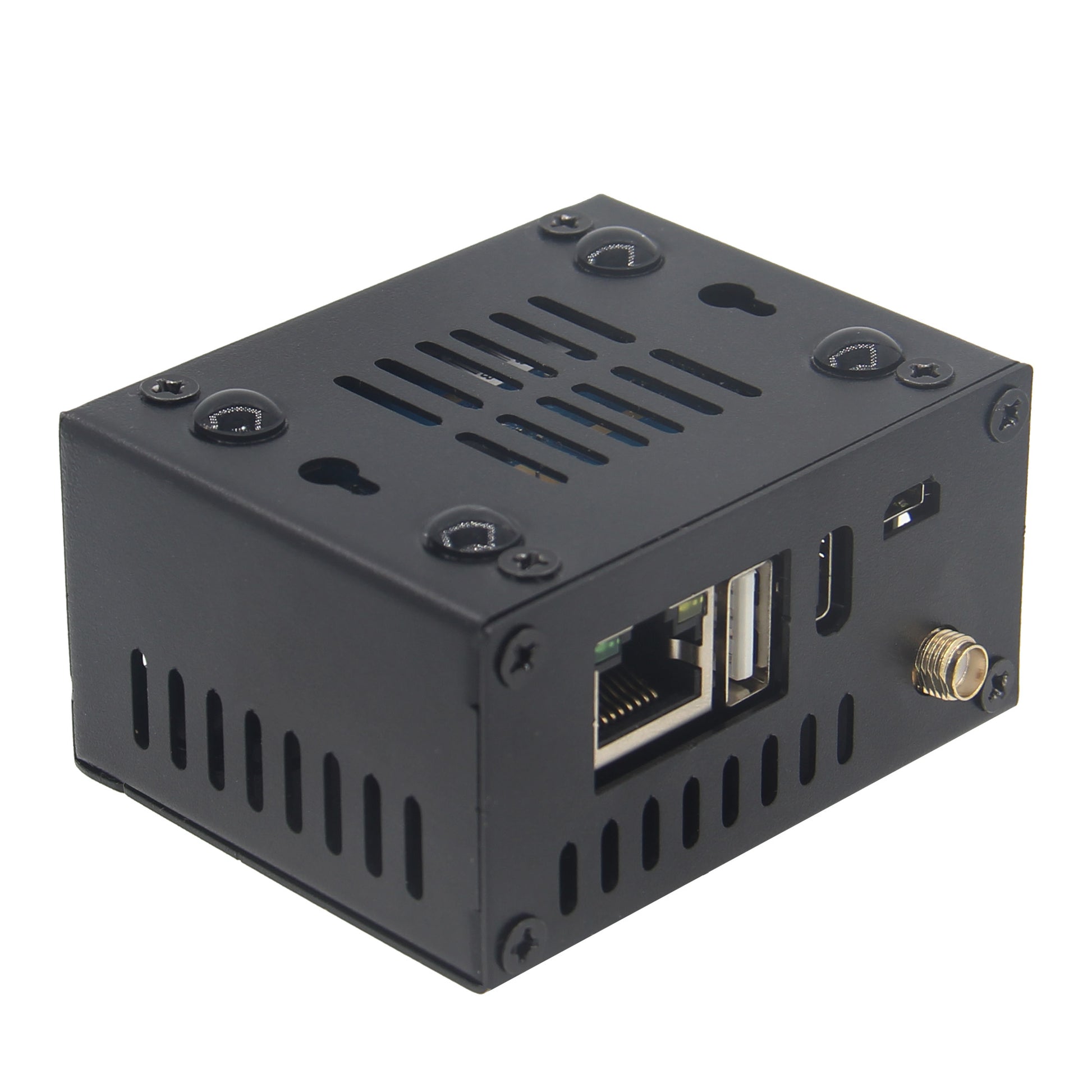

  • With mounting hole (50mm distance), you can hang it on the wall or somewhere you want

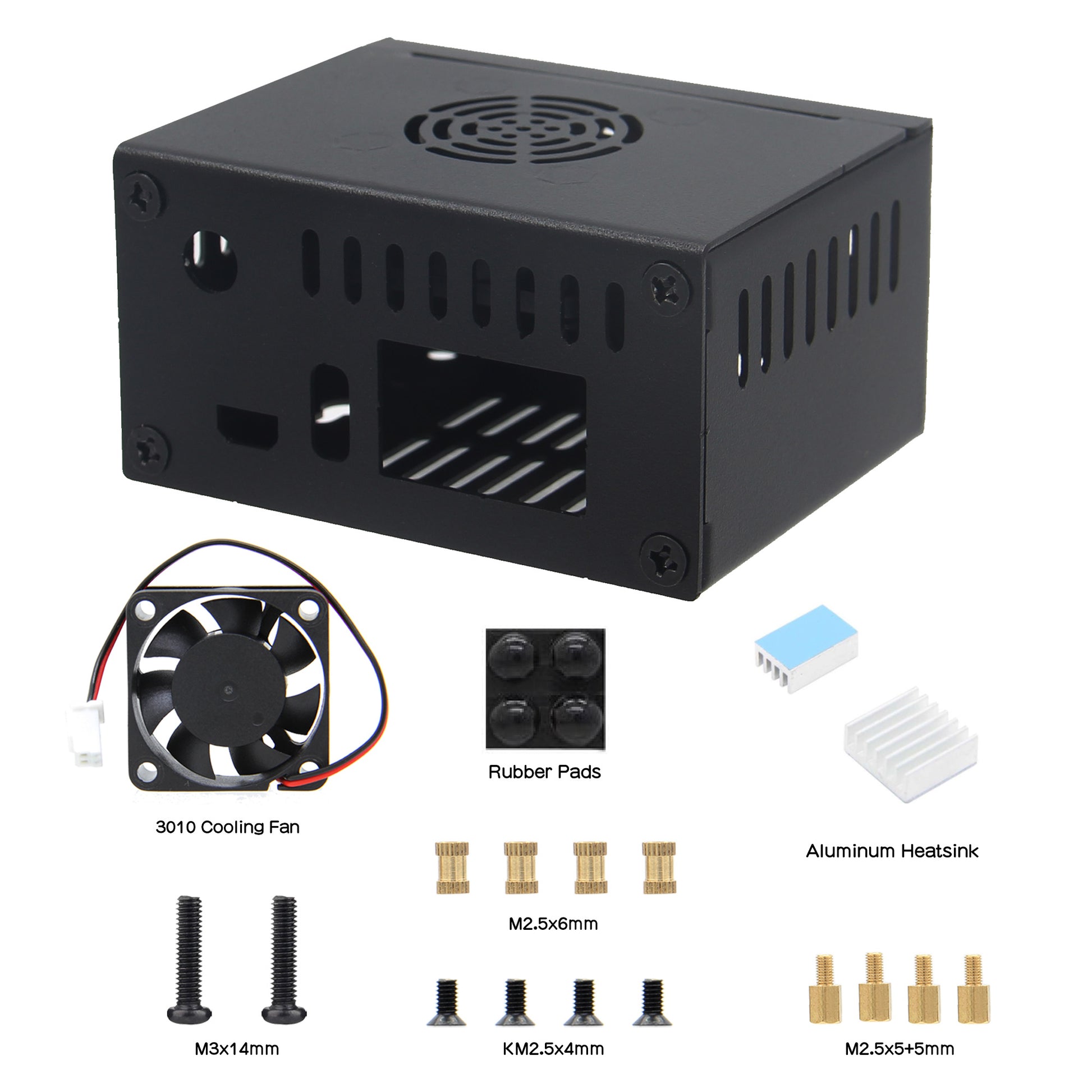

Packing List

  • 1 x N502 Metal Case
  • 1 x 3010 Cooling Fan
  • 1 x 2pcs Aluminum Heatsinks(silver)
  • 1 x 4pcs Rubber Pads
  • 1 x Screw packs

Refer to: https://wiki.geekworm.com/N502

Please email to us at info@geekworm.com if you have other questions.

We send orders to worldwide with tracking number.

For detail refer to Shipping Policy
