Geekworm N100 Metal Case with Power & Reset Control Switch for Jetson Nano A02/B01/2GB/4GB/ Jetson Xavier NX/Jetson Orin Nano

Update History:

1. The camera holder bracket has been removed since Feb. 2023.
2. In November 2022, N100 has been updated to N100-V12, N100-V12 ONLY added a DC power hole to support the T201 UPS shield. When use the N100-V12 and T201 at the same time, the RESET switch hole and antenna holes cannot be used because they are blocked by the 18650 battery.
3. In November 2020, the N100 case has been updated to new version N100-V11, we update the case to support the latest Jetson nano 2GB version, NOW it support Jetson nano A02/B01/2GB version, also support Jetson Xavier NX. Note: Please remove the 2pcs metal cover when use N100-V11 with Jetson Nano A02 and B01 and Jetson Xavier NX.
4.  In March 21st 2020, the N100 case has been updated to new version, the new version support both Jetson nano A02 and B01 version.
5. The N100 case does not support T208/T150/T130/T300.

Overview
This is a metal case specially designed for NVIDIA Jetson Nano Developer Kit (support both A02&B01 version now), and it supports power switch and reset switch, and it's reserve the GPIO hole and the installation space of the fan, and easily assemble it.

The N100 case is also support to install the NVIDIA Jetson Xavier NX Developer Kit, but you will need these extra 2pcs WiFi Antenna with IPEX MHF4 to RP SMA Female Extension Cable. To use this WiFi antenna, it need to remove the buttom holder of NVIDIA Jetson Xavier NX.

we recommend that you read the introduction to the power supply in the official documentation before you assemble this case, thus you can understand deeply this case.
Please refer to : https://developer.nvidia.com/embedded/learn/get-started-jetson-nano-devkit for NVIDIA Jetson Nano.

User Manual: https://wiki.geekworm.com/N100

Click to Order from Amazon

Key Features:

• Equipped with power control switch and reset switch, and it is convenient to start with one button.
• The power switch has LED indicator.
• The reset switch is placed on the back to prevent accidental touch.
• Support to install a cooling fan, reserve 22mm high fan installation height, easy to install the official recommend fan.
• ONLY one antenna hole is reserved to facilitate the arrangement of  the external antenna. (as the antenna in the photo is not included if you need to use you have to buy it yourself)
• Support to install ribbon GPIO cable and camera

For use with

• NVIDIA Jetson Nano 2GB Developer Kit
• NVIDIA Jetson Nano Developer Kit (support both A02&B01 version)
• NVIDIA Jetson Xavier NX Developer Kit( Need extra WiFi Antenna with IPEX MHF4 to RP SMA Female Extension Cable )
• NVIDIA Jetson Orin Nano

FAQ

Q1:How to assemble this NVIDIA Jetson Nano case?
A: Please refer to the picture on our wiki: wiki.geekworm.com/N100

Q2: Is it supported to install a cooling fan?
A: Yes, it is support for fan installation, 22mm high fan installation height is reserved. It is support  to install Noctua NF-A4x20 5V PWM fan. (We test this fan it is ok to use and a good choice.)

Q3: How do I use the jumper cap?
A: Because this case has a power switch, you need to disable the AUTO ON function first. Please insert the jumper cap into the AUTO ON position of the J40 pin to disable the AUTO ON function.(On the back of your board there is words " AUTO ON DIS")

Q4: Why was the MICRO SD card slot cancelled?
A: N100-V9 is compatible with both A02 and B01 versions now. We must increase the distance between the JETSON NANO motherboard and the front panel of the case to install the switch. We found that even if we kept the TF card slot, we couldn’t insert the TF card by hand or plastic tweezers, so we have to cancel this card slot;
We hope that the official NVIDIA will adjust the position of J50 in subsequent versions. For more questions, please refer to the official forum link: https://forums.developer.nvidia.com/t/stop-shipping-the-nvidia-jetson-nano-development- kit-b01-j50-is-on-the-wrong-side/112066

Note:
The NVIDIA Jetson Nano Developer Kit and antenna are not included, and the 4-pin cooling fan is not included aslo!

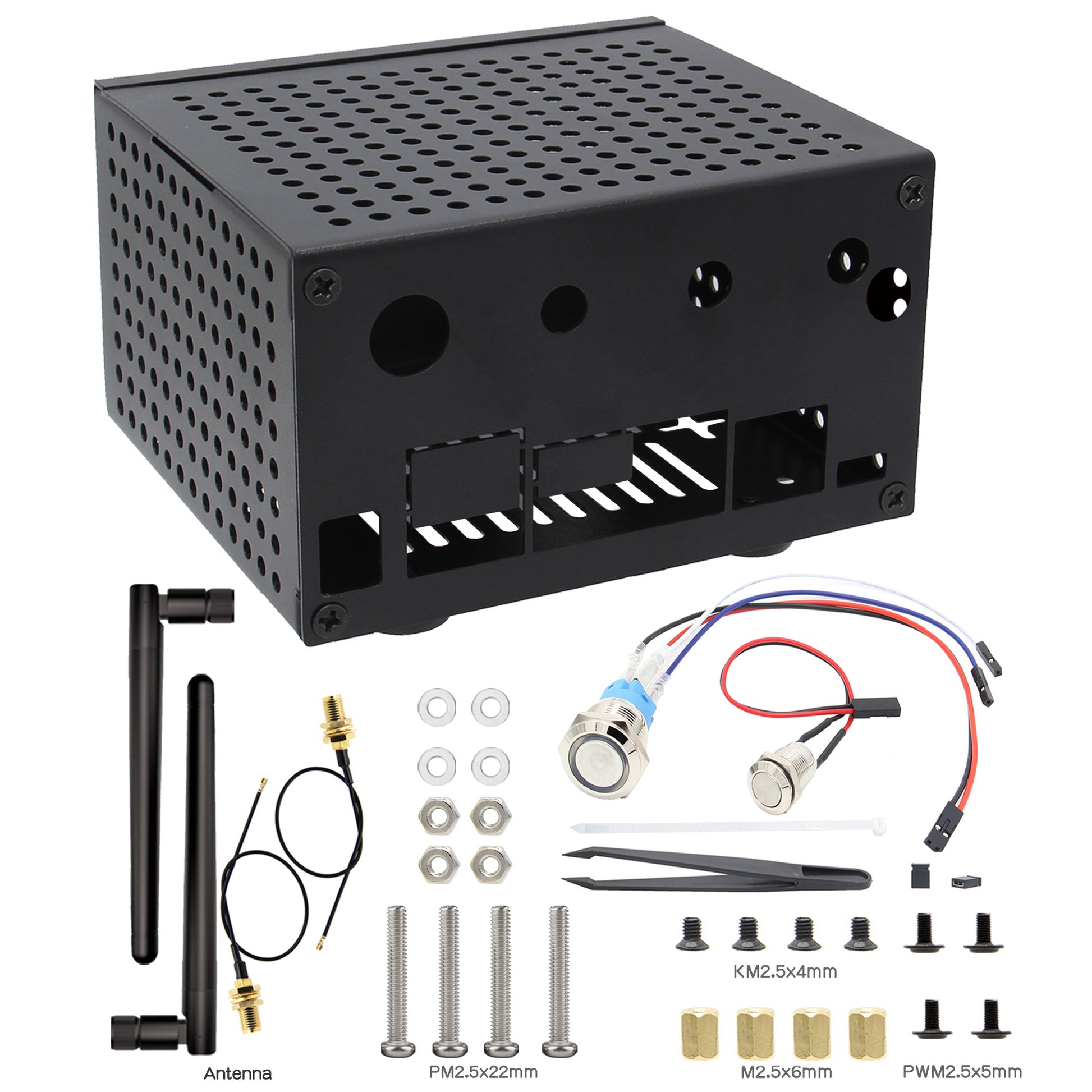

Packing List

N100 Case for Jetson Nano

• 1 x Metal Case for NVIDIA Jetson Nano A02&B01 Board
• 1 x Power Switch(Momentary switch, power on the board)
• 1 x Reset Switch (Momentary switch, reset the board)
• 2 x Jumper (Disabled the AUTO ON, and toggle the power supply between Micro USB and DC Jack)
• 1 x Screws Pack
• 1 x ABS Tweezers (It is useful when you install a fan only)

N100 Case+ 2pcs Antennas for Jetson Xavier NX

• 1 x Metal Case for NVIDIA Jetson Xavier NX
• 1 x Power Switch(Momentary switch, power on the board)
• 1 x Reset Switch (Momentary switch, reset the board)
• 2 x Jumper (Disabled the AUTO ON, and toggle the power supply between Micro USB and DC Jack)
• 1 x Screws Pack
• 1 x ABS Tweezers
• 2 x 6dBi RP-SMA male (Hole in Center) Antenna for 2.4GHz 5.8GHz. 6.69 inch(17cm)
• 2 x M.2(NGFF) U.FL to RP-SMA Female connector cable. 5.7 inch(14.5cm)

Installation Video for Jetson Nano B01:

For NVIDIA Jetson Xavier NX Developer Kit

For the Jetson Nano storage solution, please refer to blog:

2019 New NVIDIA Jetson Nano Developer Kit 2.5 inch SATA HDD/SSD and NVMe M.2 SSD Shield Storage Expansion Board
