Raspberry Pi CM5 Tiny GPIO Adapter | 0.5mm 22-Pin FPC to 2.54mm 20-Pin

Overview

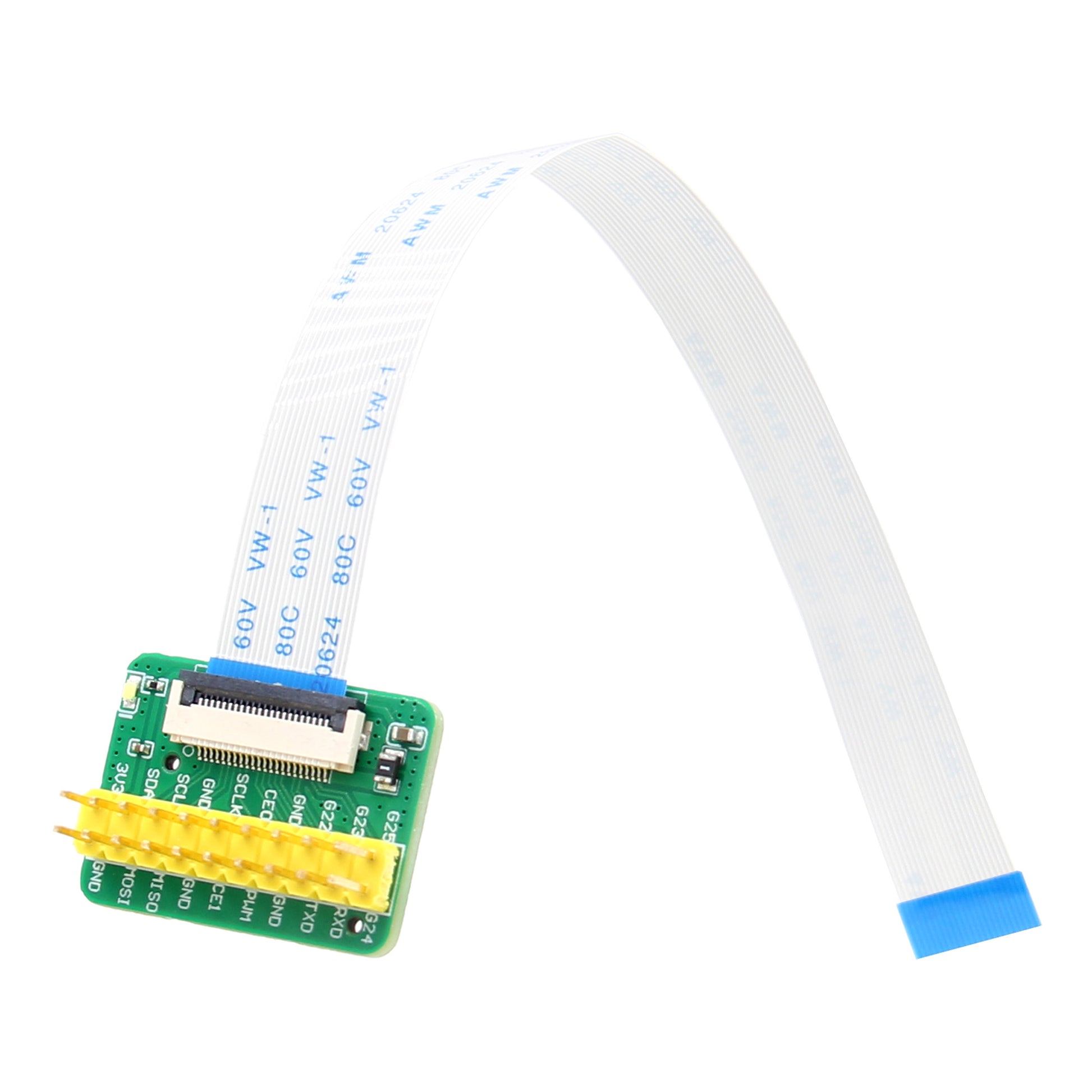

The GPIO Breakout Adapter is a purpose-built accessory designed exclusively for the Raspberry Pi CM5 Tiny Carrier Board (Rev1.4). By converting the compact onboard 0.5mm 22Pin FPC GPIO connector into a standard, maker-friendly 2.54mm 2×10 male header, it provides a seamless interface for your development projects.

With 20 active pins breaking out essential signals—including UART, SPI, PWM, 3.3V, and GND—this board is fully compatible with standard Dupont wires, sensors, and relay modules. By eliminating messy flying wires, it simplifies your embedded prototyping and hardware testing.

Whether you are building custom IoT nodes, testing sensors, or integrating relay controls, this breakout adapter is the perfect tool to keep your CM5 Tiny setups neat, organized, and professional.

This package includes a matching 22Pin FPC flexible cable to ensure a complete, out-of-the-box prototyping connection.

Key Features

🔌 Seamless FPC to Header Conversion

• Standard 2.54mm Pitch: Converts the mini 0.5mm 22Pin FPC connector to a standard 2.54mm 2×10 male header for easy connection.
• 20 Active Signal Pins: Breaks out essential hardware resources including UART, SPI, PWM, 3.3V, and GND.
• Dupont Wire Friendly: Works flawlessly with standard Dupont wires, eliminating the need for custom micro-wiring.
• Clean Prototyping: Replaces messy direct-soldering or flying wires with a neat, robust connection board.

🛠️ Flexible Sensor & Module Integration

• Wide Component Support: Easily connect external sensors, displays, relay modules, and actuators to your CM5 Tiny board.
• Plug & Play Connection: Quickly swap connections during the R&D and coding phases of your project.

Technical Specifications

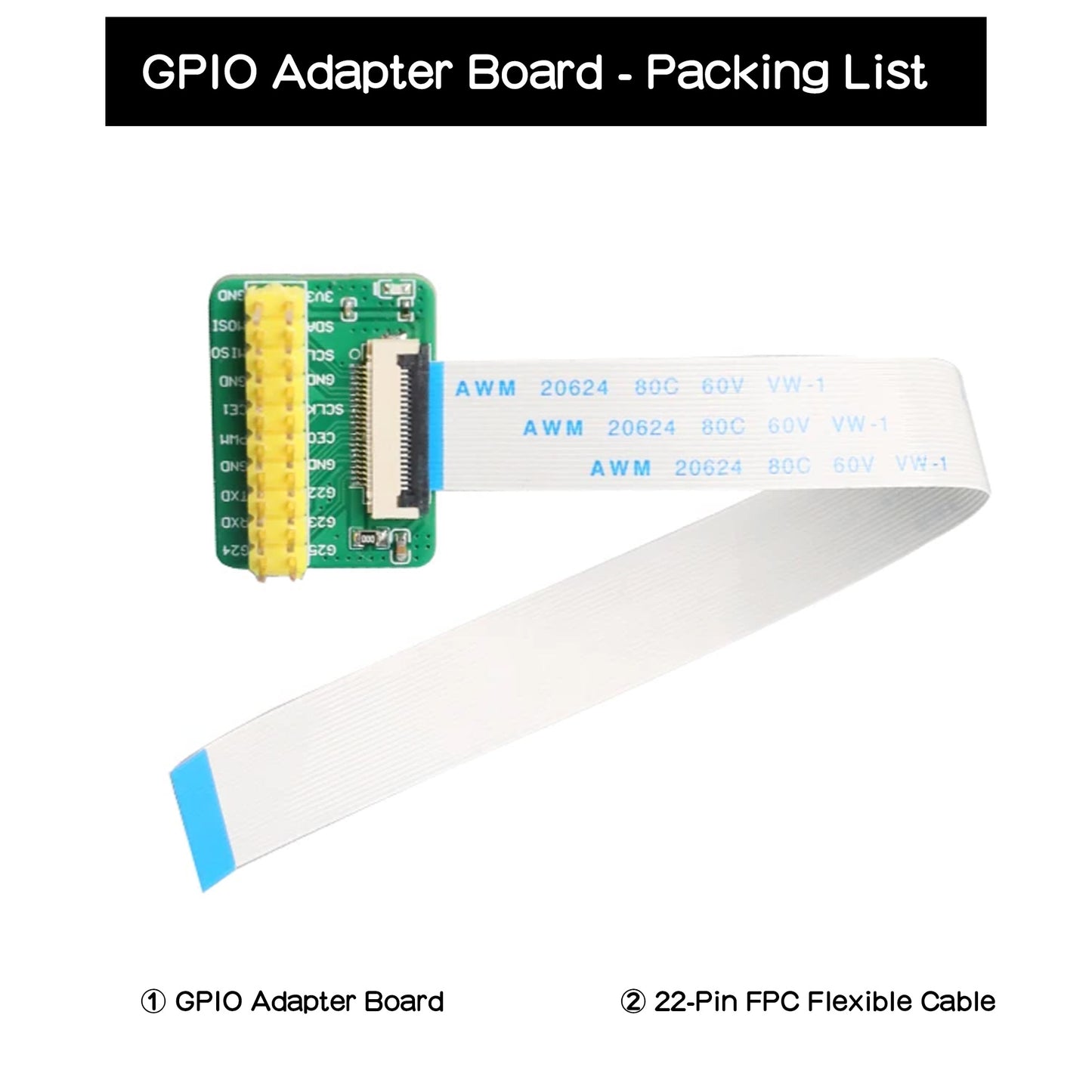

Packing List

• 1 x GPIO Adapter Board
• 1 x 22Pin FPC Cable
• The CM5 Tiny carrier board, Raspberry Pi CM5, or other electronics are not included in the packing list.
