Geekworm AMPi Audio Player Kit for Raspberry Pi 4 Model B

Note: the Raspberry Pi is not included in the packing list.

Overview

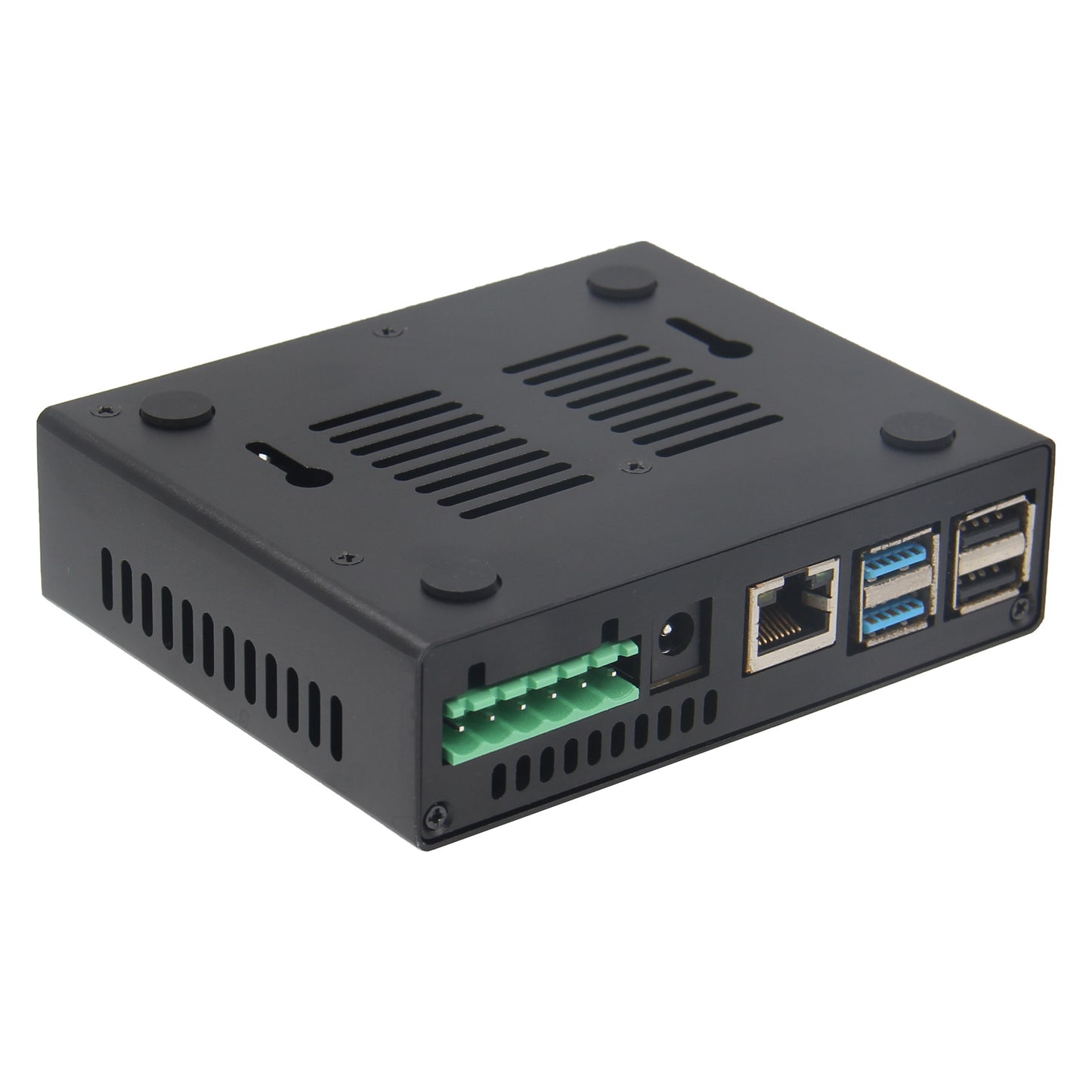

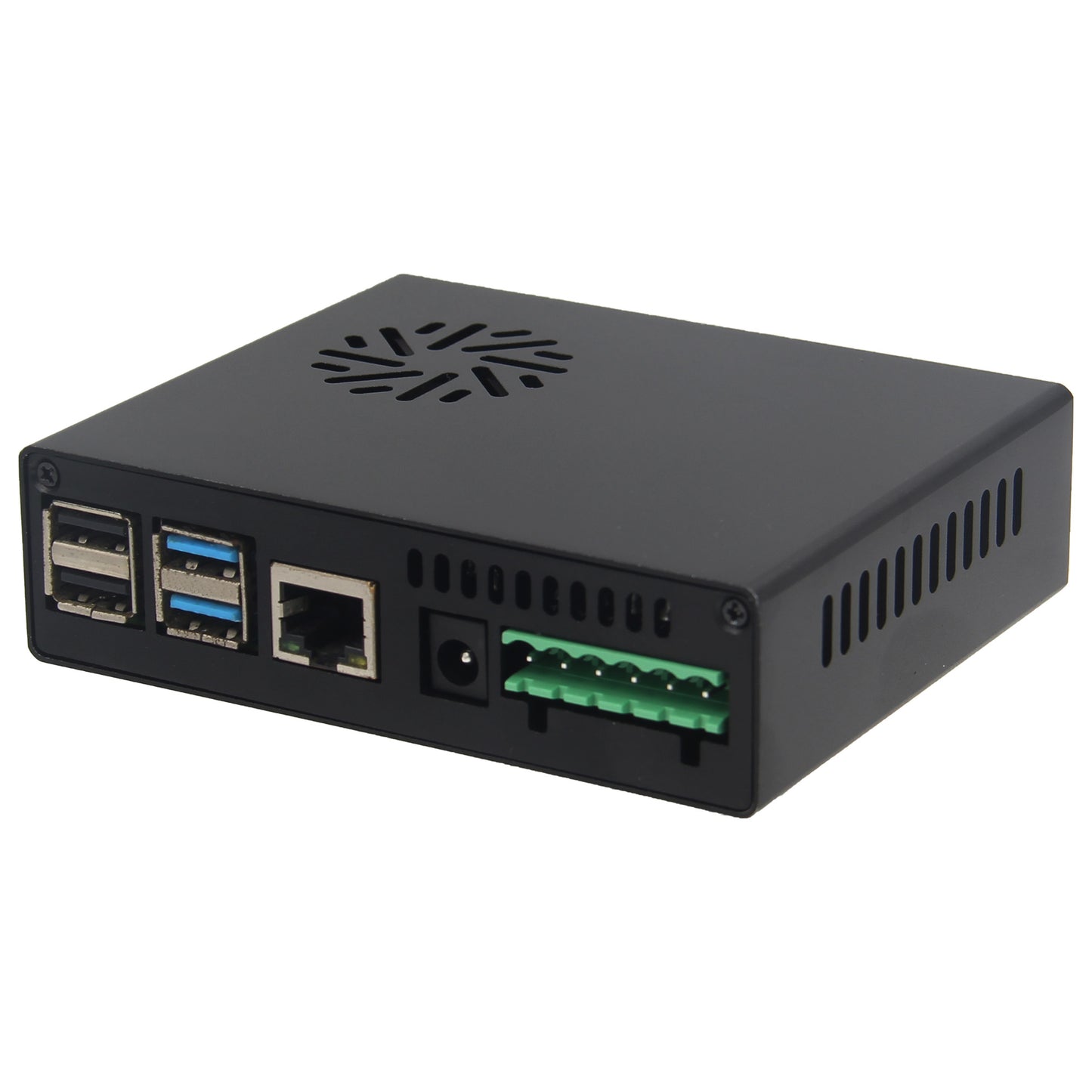

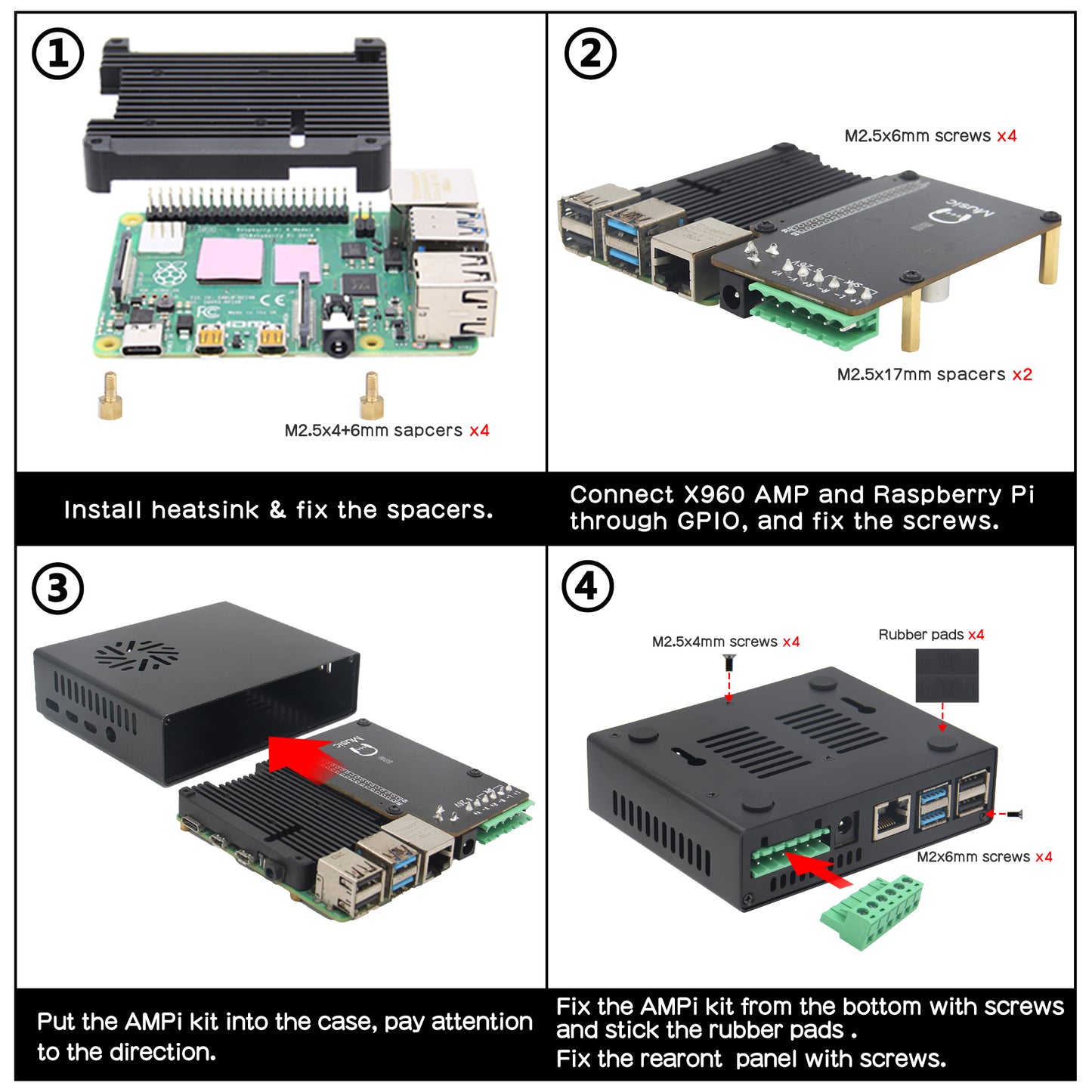

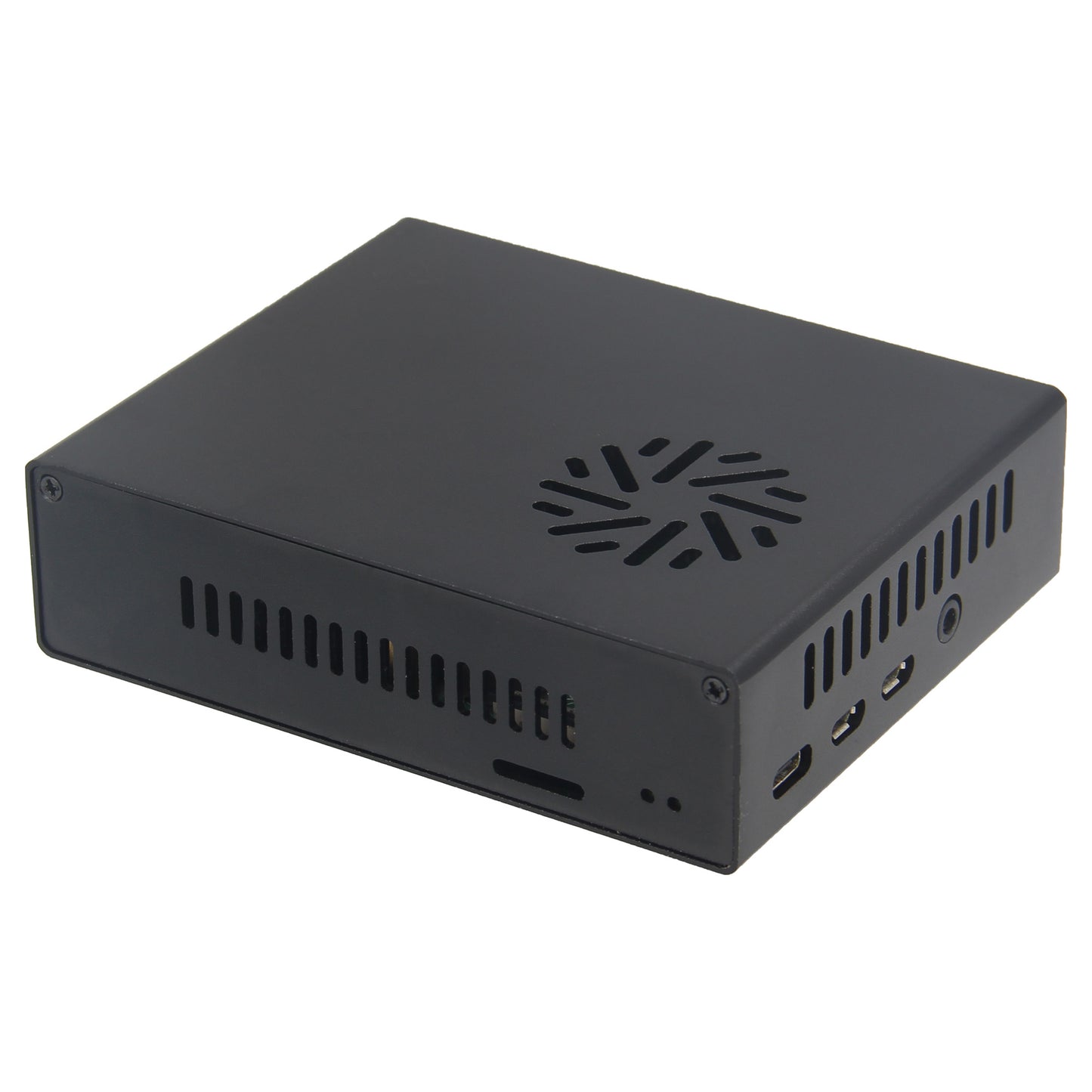

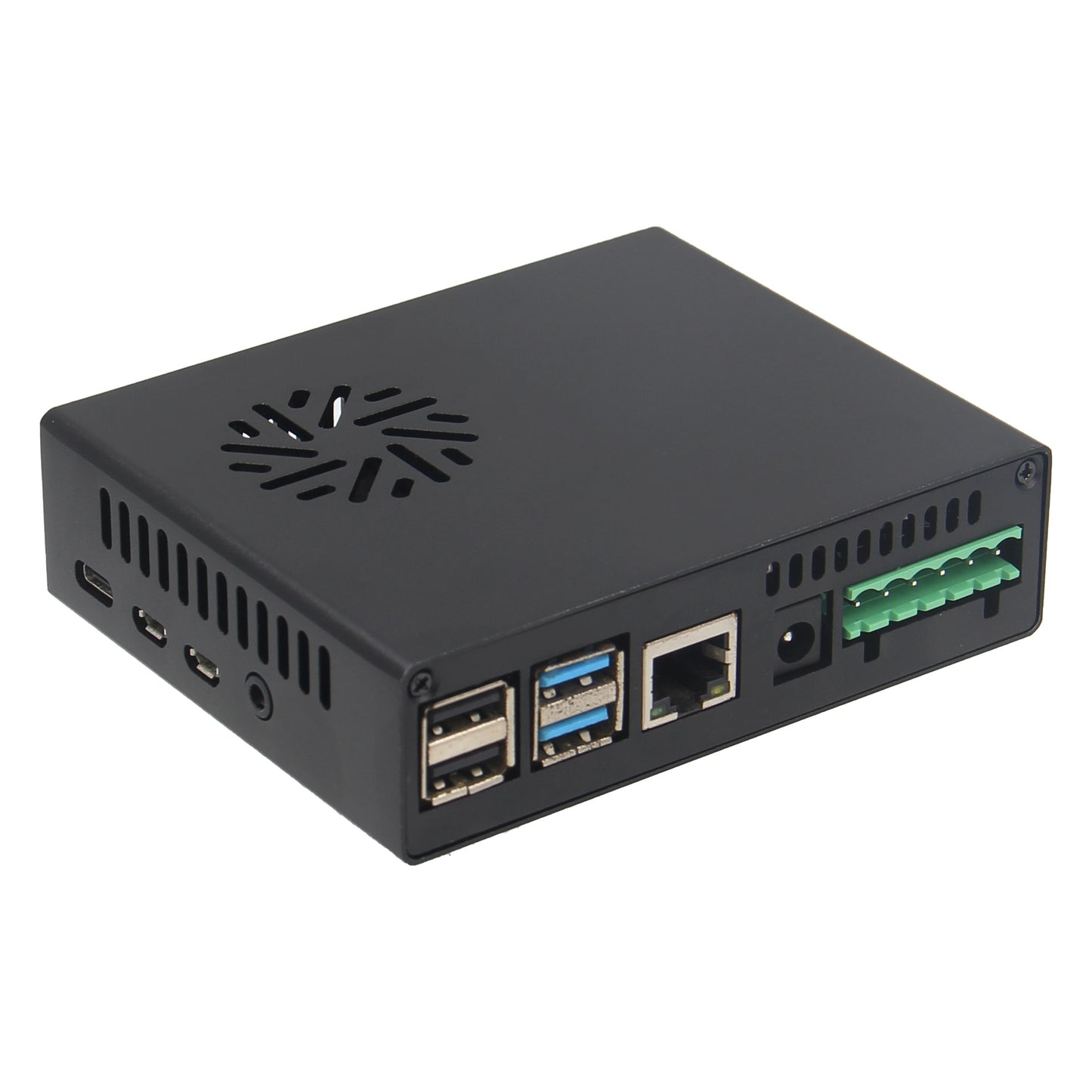

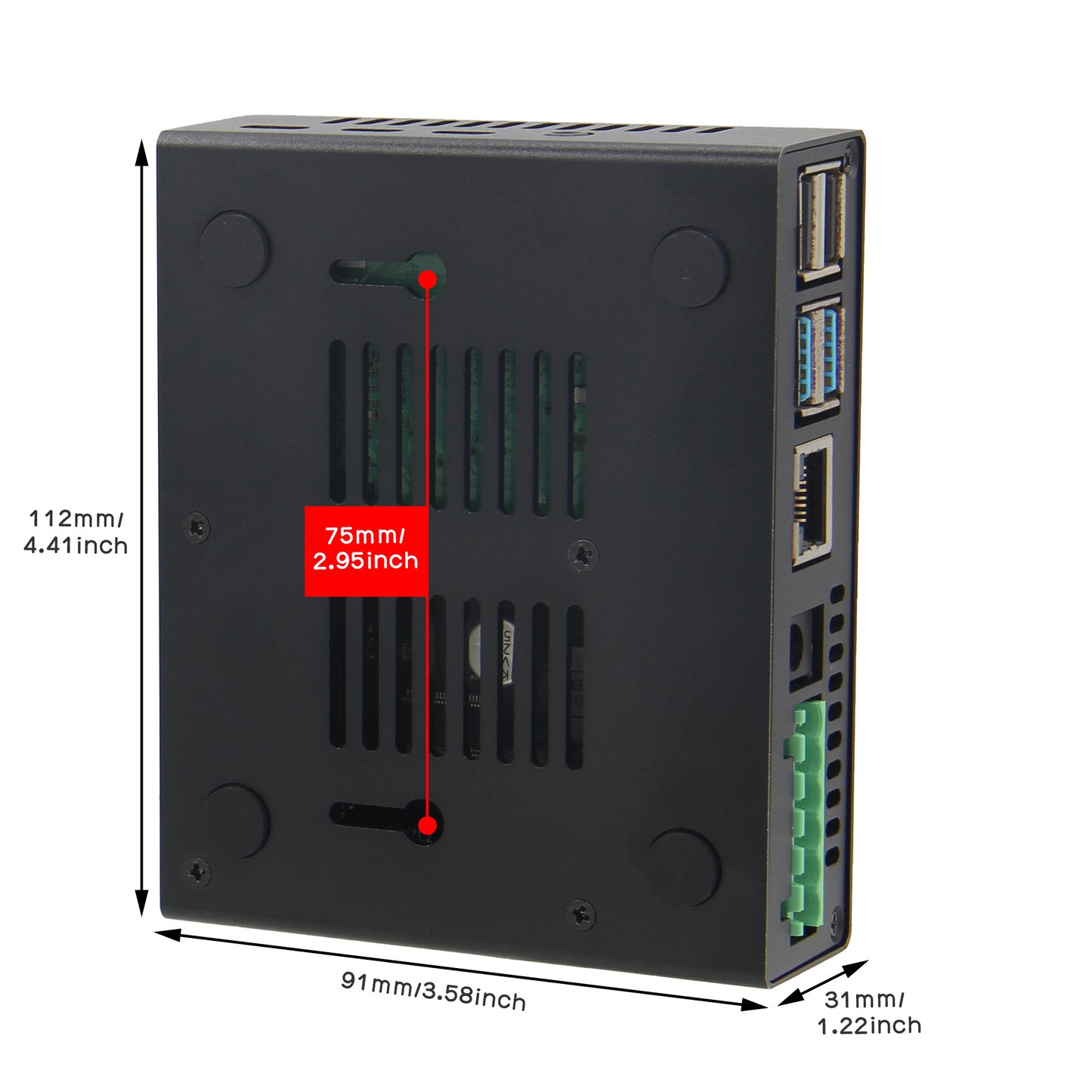

Geekworm AMPi is an ultra-thin desktop AMP kit based on Raspberry pi 4, which is ideal to use in Raspberry Pi-based hi-fi systems. It composed of three parts: X960 AMP board, cooling system ( P165-B aluminum heatsink), and a NUC style aluminum case. Just simply assemble them with the Raspberry Pi 4 motherboard.

User Manual: wiki.geekworm.com/AMPi

Features

• Model: AMPi
• Compatible with Raspberry Pi 4
• NUC style aluminum alloy case
• High resolution network music player

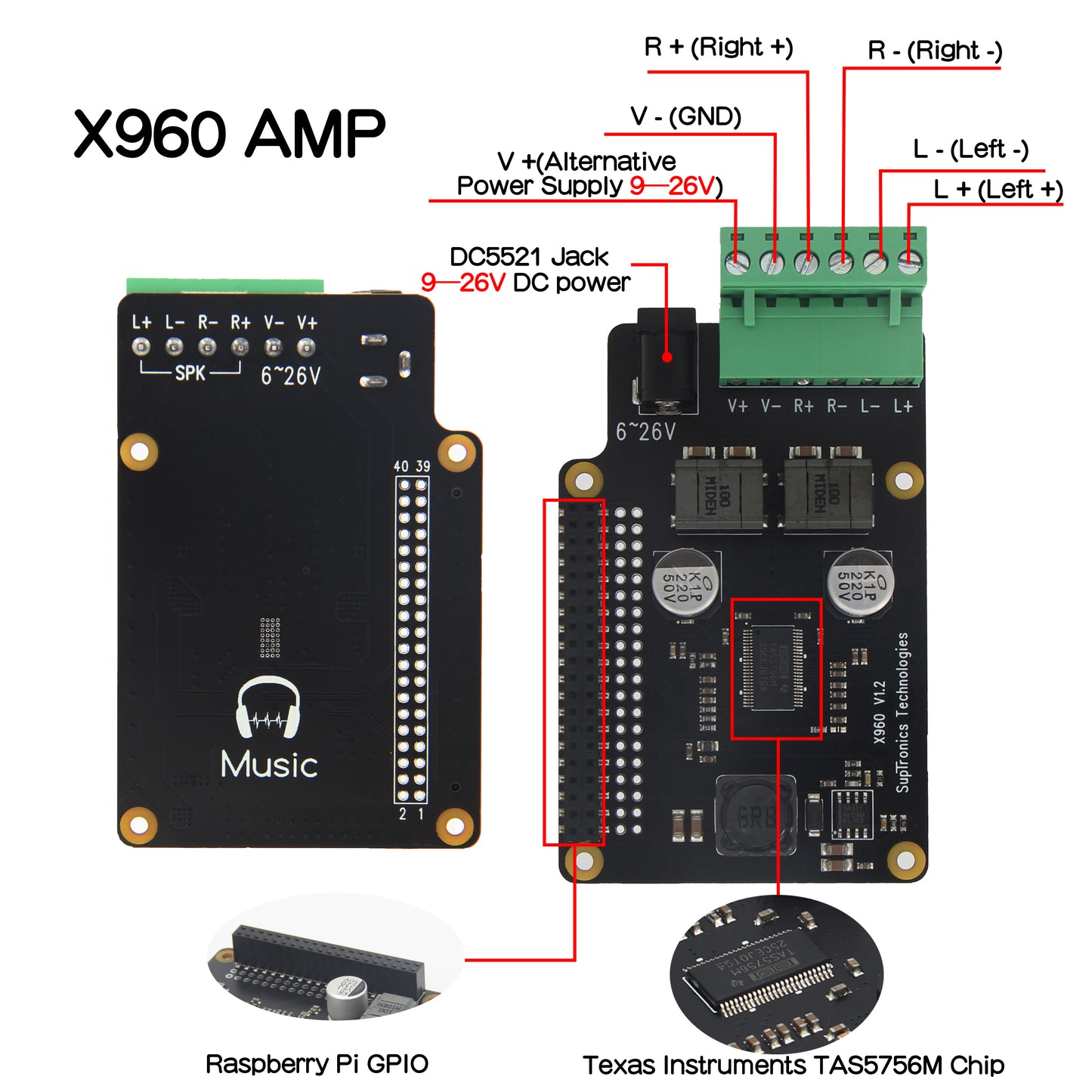

• Full high definition 24-bit 192kHz Texas Instruments TAS5756M digital audio codec
• Input power: DC 9–26V

For Use With

• Raspberry Pi 4 Model B Only

(X960 is compatible with Raspberry Pi 3 also, but both AMPi case and P165-B are not compatible with Pi 3.)

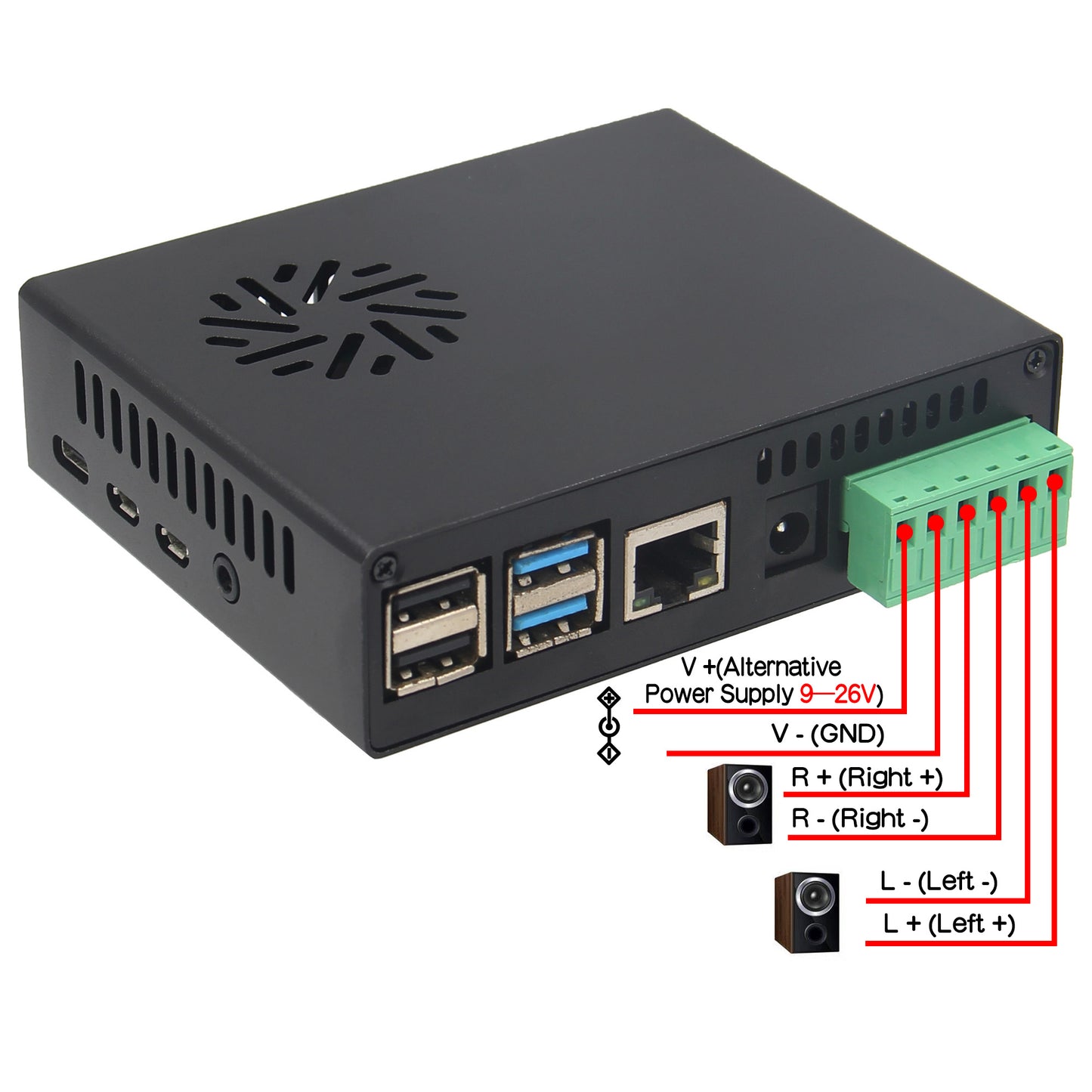

How to Power

• Powered by an external 9–26V DC power supply（via X960 DC Jack)

(Recommended to use Geekworm 12V max.5A 60W power adapter PSU60)

Warning about power supply:

1. Don't use that adjustable voltage power supply.
2. Don't use the same power supply used on LED strips.

The above two are absolute garbage power supply, can not be used!!!

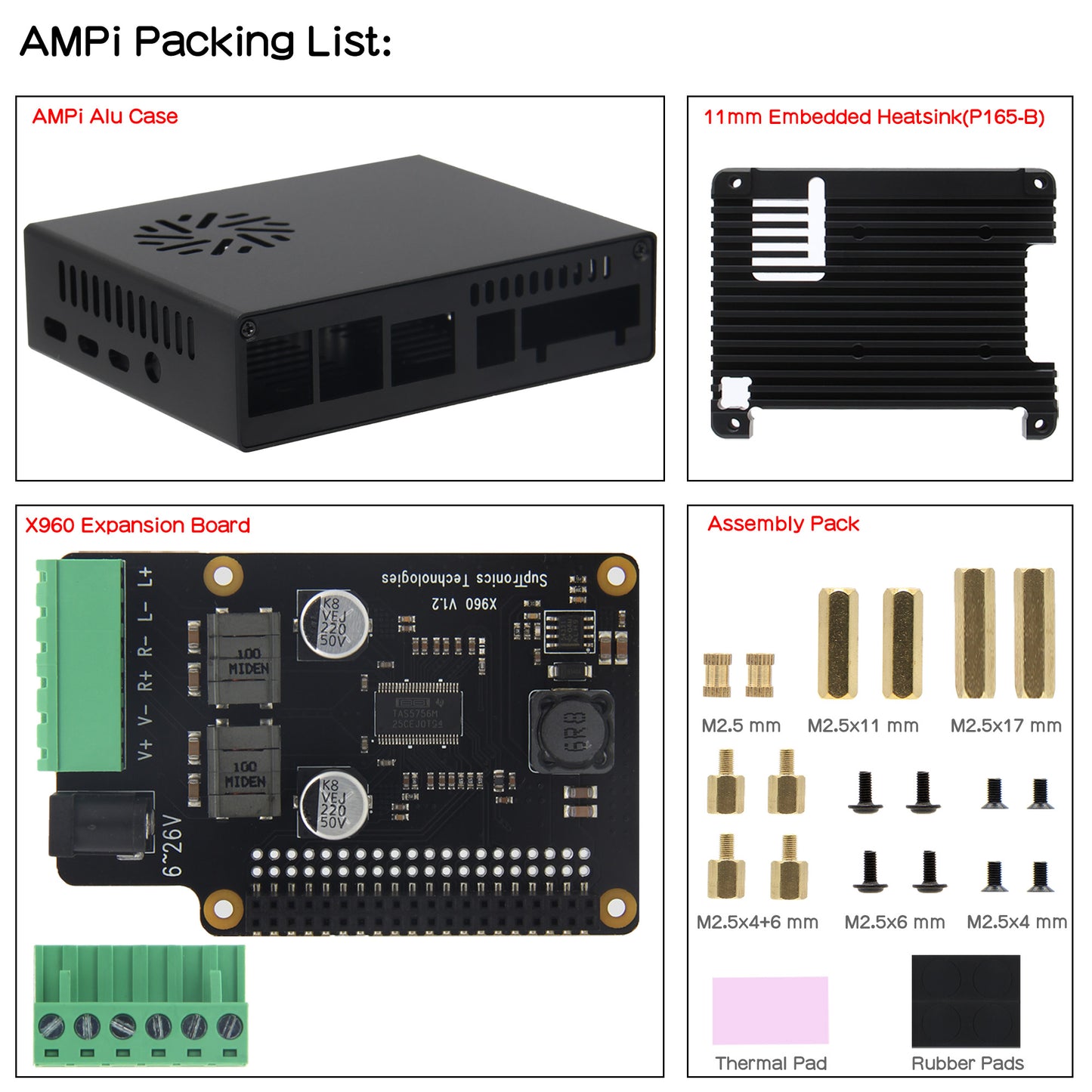

Packing List

AMPi+US Power Adapter

• 1 x AMPi
• 1 x Type-C 5V 4A Power Adapter-US Plug

AMPi+EU Power Adapter

• 1 x AMPi
• 1 x Type-C 5V 4A Power Adapter-EU Plug

AMPi

• 1x AMPi Aluminum Alloy Case
• 1x X960 V1.2 AMP Expansion Board
• 1x P165-B Heatsink
• 1 x screws pack
