Raspberry Pi 4B/3B+/3B 3.5 inch 60+FPS High-Speed 800x480 HD TFT LCD Display w/ IR
Raspberry Pi 4B/3B+/3B 3.5 inch 60+FPS High-Speed 800x480 HD TFT LCD Display w/ IR
Raspberry Pi 4B/3B+/3B 3.5 inch 60+FPS High-Speed 800x480 HD TFT LCD Display w/ IR
Raspberry Pi 4B/3B+/3B 3.5 inch 60+FPS High-Speed 800x480 HD TFT LCD Display w/ IR
Raspberry Pi 4B/3B+/3B 3.5 inch 60+FPS High-Speed 800x480 HD TFT LCD Display w/ IR
Raspberry Pi 4B/3B+/3B 3.5 inch 60+FPS High-Speed 800x480 HD TFT LCD Display w/ IR
Raspberry Pi 4B/3B+/3B 3.5 inch 60+FPS High-Speed 800x480 HD TFT LCD Display w/ IR
Sold Out

    Raspberry Pi 4B/3B+/3B 3.5 inch 60+FPS High-Speed 800x480 HD TFT LCD Display w/ IR

    $38.99

      This raspberry pi 3 3.5 inch 800x480 HD TFT LCD supports multiple system: Raspbian,Ubuntu, OSMC,RetroPie, Lakka and so on.

      [Packing List]

      • 1 x 3.5 inch 60+ Fps High-Speed LCD Screen

      Compatible with:

      • Raspberry Pi 4 Model B
      • Raspberry Pi 3 Model B+
      • Raspberry Pi 3 Model B
      • Raspberry Pi 2 Model B
      • Raspberry Pi 1 Model B+

      Note:

      This 3.5 inch LCD supports raspberry pi 4 computer model b, you only need to modified the config.txt to use this lcd. please refer to 3.5 inch TFT 800x480@60fps#How to use this screen on Pi 4B

      w800

      [Features]

      • Support multiple system: Raspbian / Ubuntu / OSMC / RetroPie / Lakka and so on.
      • Demensions: 85mm×56.5mm;
      • Resolution: 800 x 480, 3.5 inch;
      • 267ppi High PPI display screen;
      • 11ms High Response Time(more than 60 fps);
      • 160° Wide Viewing Angle;
      • 900:1 High Contrast Ratio;Sunlight Readable;
      • Backlight can change;
      • With 2 keyboards;
      • With IR function;
      • With I2C Master;
      • Without touch

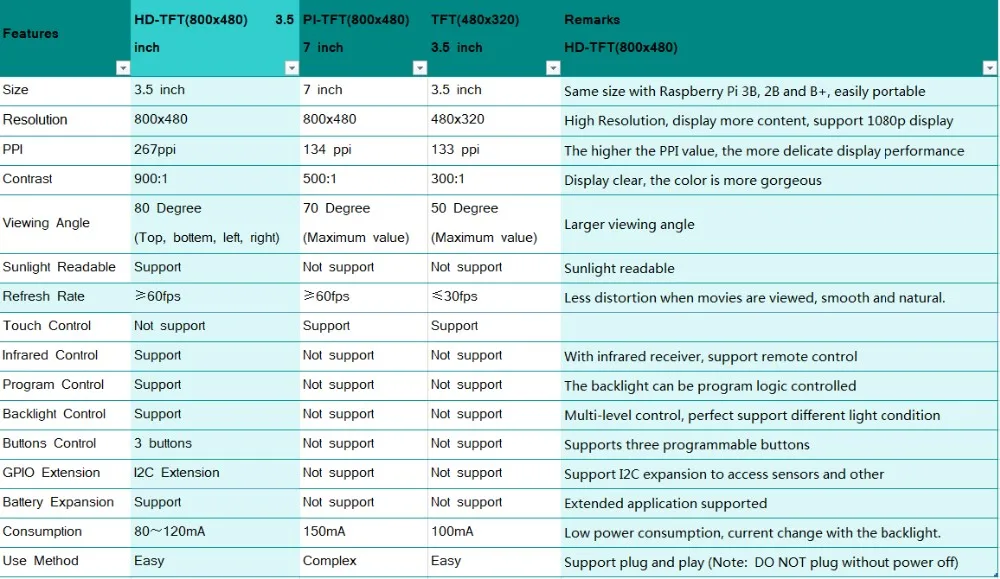

      ​[Specification]

      222

      111

      [Note]

      If you are using Pi 3, please add this to the config.txt files;(This setting is to shield the interference of Bluetooth interface. We will update the system later.)
      dtoverlay=vga666
      dtoverlay=pi3-disable-bt-overlay


      [How to use use this screen]

      Easy method (advised!!)
      Use the full firmware with driver from: https://sourceforge.net/projects/u-geek/files/HATs/Raspi_HD-TFT/ orhttp://raspberrypiwiki.com/download/RPI-HD-35-INCH-TFT/, download 2016-05-27-raspbian-jessie-HD.7z file,
      We advise you verify the big image file via MD5 file after yor download the file;
      MD5.txt: http://www.raspberrypiwiki.com/download/RPI-HD-35-INCH-TFT/md5.txt
      (Easy method, and this is the advised use method;
      How to write firmware into your TF card please refer to:http://www.raspberrypiwiki.com/index.php/How_to_install_the_image_to_your_pi)

      DIY method
      step 1.
      Download the official firmware, then upgrade to the latest kernel
      sudo rpi-update
      step 2.
      Down the file from url:
      http://raspberrypiwiki.com/download/RPI-HD-35-INCH-TFT/dt-blob.bin (recommend)
      Or
      Copy the file( File:Dt-blob.zip, unzip it)in the /boot
      PS: Please use File:Dt-blob-for-zero-w.zip if you use raspberry pi zero w
      sudo cp  dt-blob.bin  /boot
      step 3. Config file to enable HD-TFT
      sudo nano /boot/config.txt
      Add the following line:
      framebuffer_width=800
      framebuffer_height=480
      dtparam=spi=off
      dtparam=i2c_arm=off
      enable_dpi_lcd=1
      display_default_lcd=1
      dpi_output_format=0x6f015
      dpi_group=2
      dpi_mode=87
      hdmi_timings=480 0 16 16 24 800 0 4 2 2 0 0 0 60 0 32000000 6
      display_rotate=3
      Note: If you are using Pi 3, please add this to the config.txt files;(This setting is to shield the interference of Bluetooth interface. We will update the system later.)
      dtoverlay=vga666
      dtoverlay=pi3-disable-bt-overlay
      step 4.
      Save then restart;
      [Other User Guide]
      1/ how to How to change the backlight, push the button
      2/ How to use 2 keys,like gpio
      3/ How to use the I2C master(I2C_3)
      4/ How to use the IR function
      Please refer to:

      [More details please refer to raspberrypiwiki.com]

      www.raspberrypiwiki.com/index.php/3.5_inch_TFT_800x480@60fps
