Raspberry Pi 60Fps 320x480-1920x1080 OSD 3.5 inch HDMI IPS Touch Screen Display + Acrylic Case Kit

Regular price $28.99 Sale

Availability: Available Unavailable

Product Type: Raspberry pi

Product Vendor: Geekworm

Product SKU: 467017

[Overview] This raspberry pi 3.5 inch IPS touch screen has a 320 x 480 Physical resolution,adjust up to 1920x1080; 60Fps High speed, support game and playing video ect. With headphone jack, OSD menu, it can not only be used with...

Product Details

[Overview]

This raspberry pi 3.5 inch IPS touch screen has a 320 x 480 Physical resolution,adjust up to 1920x1080;
60Fps High speed, support game and playing video ect.
With headphone jack, OSD menu, it can not only be used with Raspberry pi, but also support WIN7/WIN10;

[Features]

  • Resistive touch screen
  • IPS wide viewing angle display
  • Designed for Raspberry Pi, easy to use
  • Compatible with any version of Raspberry Pi (PS: As we know, the position of HDMI port of PI zero w is different with raspberry pi 3 model b, so you need to use another HDMI cable to connect the this LCD and Pi zero, for mini HDMI adapter)
  • Can be used at computer WIN7/WIN10(Touch cann't work at computer but work well at Pi)
  • Driver provided (Refer to Donwload Link)
  • Physical resolution: 320 x 480
  • Adjustable resolution: 320x480 - 1920x1080 (Default value is be set to 800x480 resolution) (how to set the resolution refer to Donwload Link)
  • 60Fps high speed, support playing game and playing video etc;

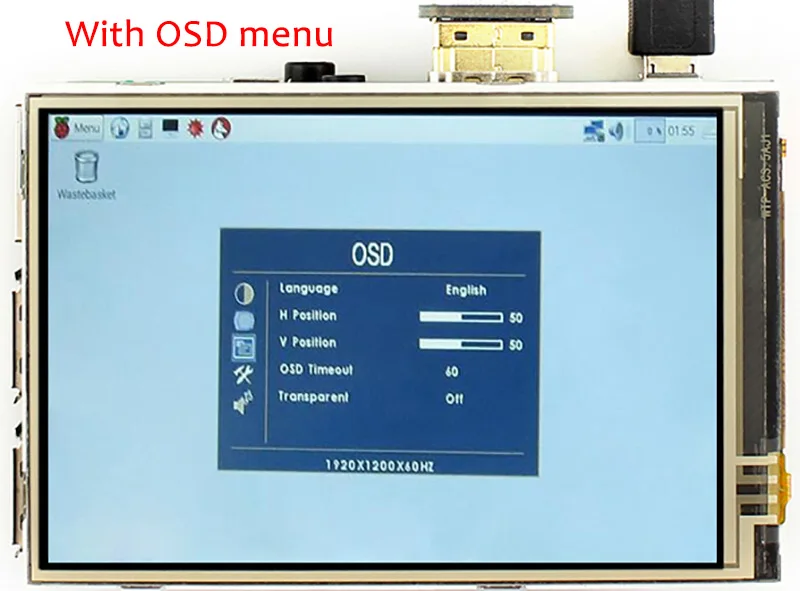

  • With OSD menu, support multi languages OSD menu, for power management, brightness/contrast adjustment, etc.

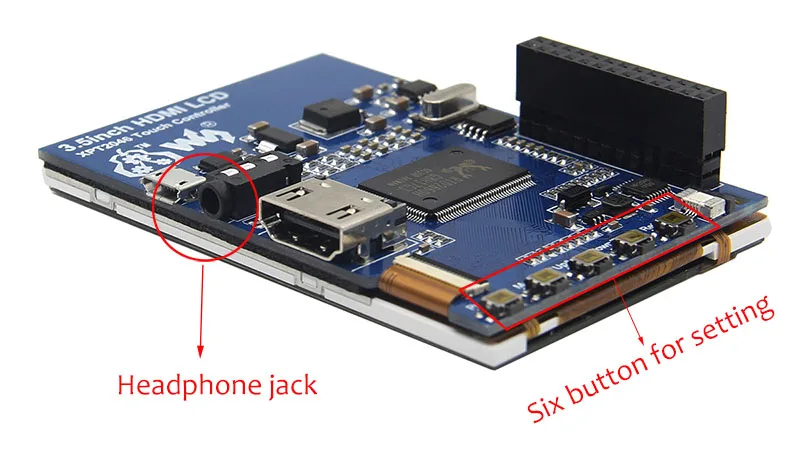

  • With headphone jack
  • For more details please refer to [Download Link]

[Packing List ]

  • 1 x 3.5 inch HDMI LCD
  • 1 x Touch Pen(random color)
  • 1 x HDMI Connector
  • 1 x Acrylic Case (with install screws pack)
  • Raspberry Pi PCB is not included

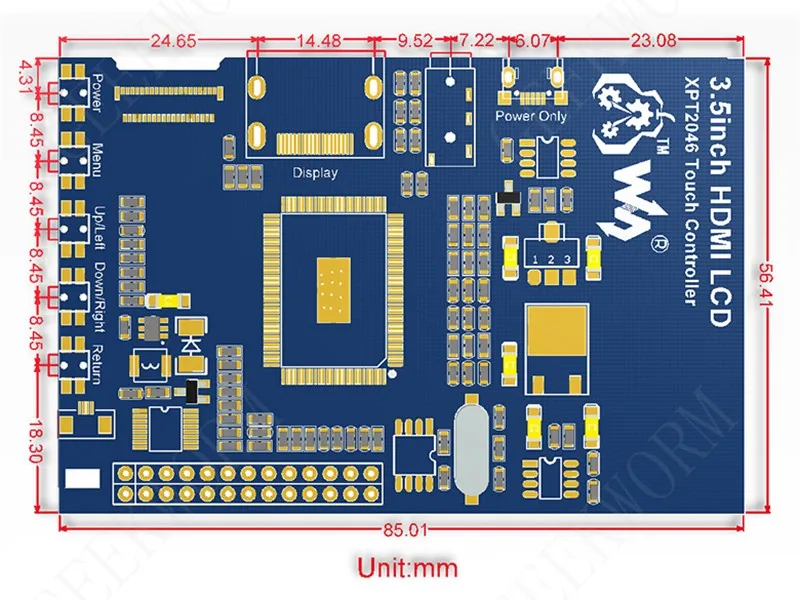

[PIN diagram]

35-HDMI-LCD-PIN-diagram

raspberry-pi-3.5inch-hdmi-lcd-04

[Product show]



raspberry-pi-3.5inch-hdmi-lcd-case-02-w800

IMG_2273



IMG_2202-AE-W800

raspberry-pi-3.5inch-hdmi-lcd-03



[How to install]

IMG_2276-AM-Installation

[Note]

1/ Only touch function requires GPIO, display dont's use the GPIO.

Required Pins for touch function

2/ To Enable the Touch Function, You must install separate driver to enable touch function;
Please refer to   [How to use LCD driver]:
Pay attetiion: When you are trying to install touch screen drivers on your Raspbian or other system, Please keep your Raspberry pi online with Internet ! Because the drivers will download some software during the installation.

3/ Set the resolution Base Official Raspbian
For this LCD, we can adjust the display resolution, please try as below:
sudo nano /boot/config.txt
max_usb_current=1
hdmi_group=2
hdmi_mode=1
hdmi_mode=87
hdmi_cvt 800 480 60 6 0 0 0


[Customer questions]

Question 1: Does it require gpio?
Answer: Only the touchscreen requires to be connected to the GPIO pins while the display doesn't need to. However, the display needs to be powered somehow.

Question 2: Do you need to install drivers if you just want it as a monitor without touch screen? is there any configuration needed for it to work w/ RetroPie?
Answer: You needn't install extra driver if you only want it as independent monitor without touch function, but you need to connect this LCD to desktop computer via extra HDMI cable and extra Micro USB cable, the HDMI cable transfer video and audio signal, the micro USB cable supply power to LCD;
Only support 320x480 - 1920x1080 pixel range on desktop computer;
This LCD supports retropie without touch function, we need to modify the config.txt file as following:
max_usb_current=1
hdmi_group=2
hdmi_mode=1
hdmi_mode=87
hdmi_cvt 800 480 60 6 0 0 0
hdmi_drive=1
Then you can use it on retropie without touch function.
By the way, this LCD supports almost all raspberry pi OS, and you need modify the config.txt file like above.
BUT besides raspbian and ubuntu, the touch function is not supported on other OS.

Question 3: Does it come with a manual to assemble the case?
Here is the manual to assemble the case:www.raspberrypiwiki.com/index.php/3.5_inch_HDMI_LCD#How_to_install
And we have updated the picture of installation on the page, please refer to the last picture.

Question 4: I can't install touch screen drivers on Raspbian?(Get it stuck on the rainbow splash screen)
Please check if your Raspberry Pi is online with Internet, the driver will need to download some software during the installation.

[Download Link]

www.raspberrypiwiki.com/index.php/3.5_inch_HDMI_LCD
