Raspberry Pi 5MP 4mm/6mm/8mm Focal Length IR-CUT Night Vision Camera

Regular price $26.99 Sale

Availability: Available Unavailable

Product Type: Raspberry pi

Product Vendor: Geekworm

Product SKU: 497358

  • Raspberry Pi 5MP OV5647 Night Vision Camera
  • 4mm lens, 6mm lens, 8mm lens available
  • Compatible with any versions of Raspberry Pi
  • With built-in IR-CUT,fix the chromatic aberration problem
  • Support IR night vision and adjustable focusing

Product Details

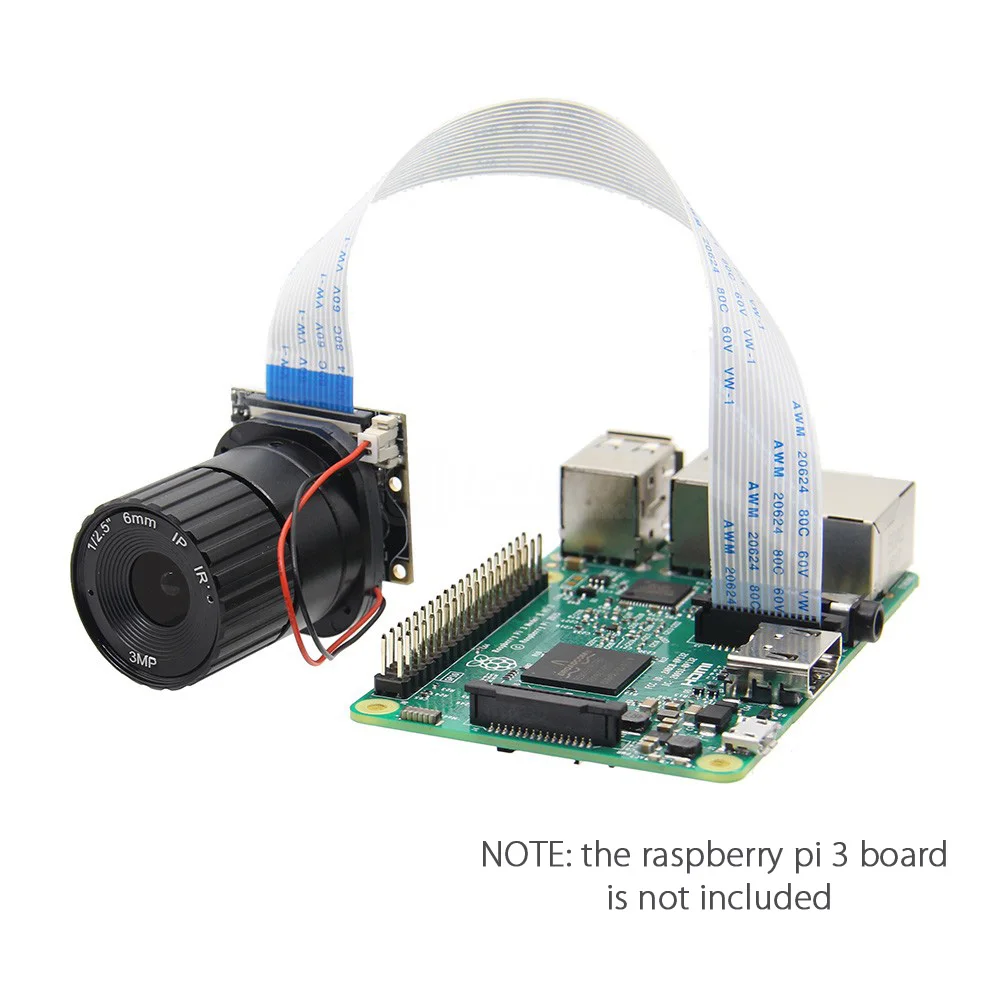

Raspberry Pi 5MP 4mm/6mm/8mm Focal Length IR-CUT Night Vision Camera

Raspberry Pi Camera / 5MP 4mm Focal Length Night Vision NoIR Camera Board with IR-CUT for Raspberry Pi 3 Model B/2B/B+/Zero (w)

Raspberry Pi Camera / 5MP 6mm Focal Length Night Vision NoIR Camera Board with IR-CUT for Raspberry Pi 3 Model B/2B/B+/Zero (w)
Raspberry Pi Camera / 5MP 8mm Focal Length Night Vision NoIR Camera Board with IR-CUT for Raspberry Pi 3 Model B/2B/B+/Zero (w)
There are 3 versions for this Raspberry Pi IR-CUT camera according to the different lens:
4mm lens
6mm lens
8mm lens
Please select the cameras according to your need.

[Features]
  • Compatible with all versions of Raspberry Pi board.
  • With built-in IR-CUT, fix the chromatic aberration problem when using in daytime, with better image.
  • Support IR night vision if you use the IR Fill light (please refer to: LED Board )
  • Support adjustable focusing.
[Parameters]
  • 5 Megapixel;
  • CMOS: 1/4” color CMOS QSXGA(5 megepixel) image sensor( OV5647 );
  • Aperture (F) : 1.2;
  • Focal Length: 4 mm| 6mm| 8mm available;
  • Diagonal: 70 degrees;
  • 4 screw holes: used for both attachment;
  • Support 3.3V power supply;
  • Support infrared LED and fill flash;
  • Dimension: 35mm x 35 mm.
You can use with Infrared IR LED Board(as the picture below),please refer to: LED Board
IMG_3445
[How to change the models]
  • RPi IR-CUT Camera works by default in normal mode.
  • Run the command:sudo nano /boot/config.txt,and add disable_camera_led = 1 on the last line. After saving and restarting Raspberry Pi, Camera will work in night vision mode. To return to normal mode, simply delete disable_camera_led = 1, save and restart Raspberry Pi.
  • To flexibly control the display mode, it can connect to the following locations by the Raspberry Pi GPIO interface, by change the GPIO level to switch between different modes (high for normal mode and low for night-vision mode).
[User Guide]
Please refer to: www.raspberrypiwiki.com/index.php/Raspberry_Pi_5MP_IR-CUT_Camera

[FAQ]
1/ Why the maker on the lens is 3mp, the datas said that it is 5mp?
The COMS is OV5647, a 1/4” color CMOS QSXGA(5 megepixel) image sensor, its actual megepixel is 5MP, not 3mp. You can refer to our wiki to check the sensor data if you need:
www.raspberrypiwiki.com/index.php/RPi_IR-CUT_Camera#Document
