Flex Sensor 2.2"

Regular price $16.99 Sale

Availability: Available Unavailable

Product Type: arduino

Product Vendor: Geekworm

[Introduction]  A simple Sparkfun flex sensor 2.2" in length. As the sensor is flexed, the resistance across the sensor increases. Patented technology by Spectra Symbol - they claim these sensors were used in the original Nintendo Power Glove. I love...

Product Details

[Introduction]

A simple Sparkfun flex sensor 2.2" in length. As the sensor is flexed, the resistance across the sensor increases. Patented technology by Spectra Symbol - they claim these sensors were used in the original Nintendo Power Glove. I love the Nintendo Power Glove. It's so bad!
The resistance of the flex sensor changes when the metal pads are on the outside of the bend (text on inside of bend).
Connector is 0.1" spaced and bread board friendly.  Check datasheet for full specifications.
Note: The latest version of this product varies on resistance. Please be careful when bending the wiring side of the sensor and note the change on the resistance.

[Features]

  • Angle Displacement Measurement
  • Bends and Flexes physically with motion device
  • Possible Uses
  • Robotics
  • Gaming (Virtual Motion)
  • Medical Devices
  • Computer Peripherals
  • Musical Instruments
  • Physical Therapy
  • Simple Construction
  • Low Profile

[Electrical Specifications]

  • Flat Resistance: 10K Ohms ±30%
  • Bend Resistance: minimum 2 times greater than the flat resistance at 180° pinch bend
  • Power Rating : 0.5 Watts continuous; 1 Watt Peak

[Mechanical Specifications]

  • Life Cycle: >1 million
  • Height: 0.43mm (0.017")
  • Temperature Range: -35°C to +80°

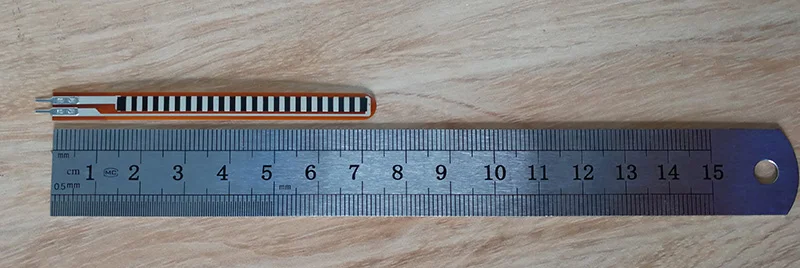

    Product Size:

    IMG_20170512_103618



    Packing List:
    • 1 x Flex 2.2" Sensor
